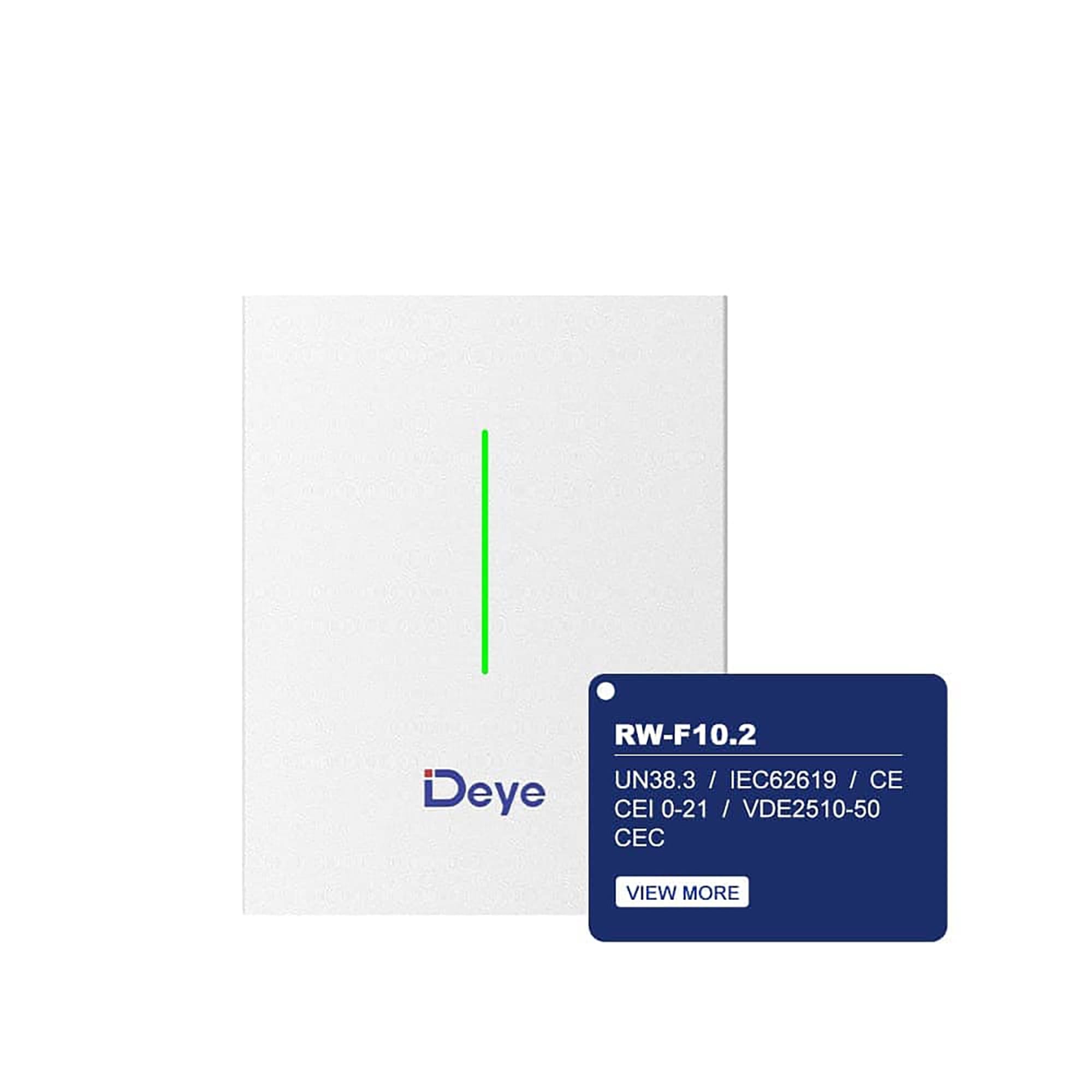

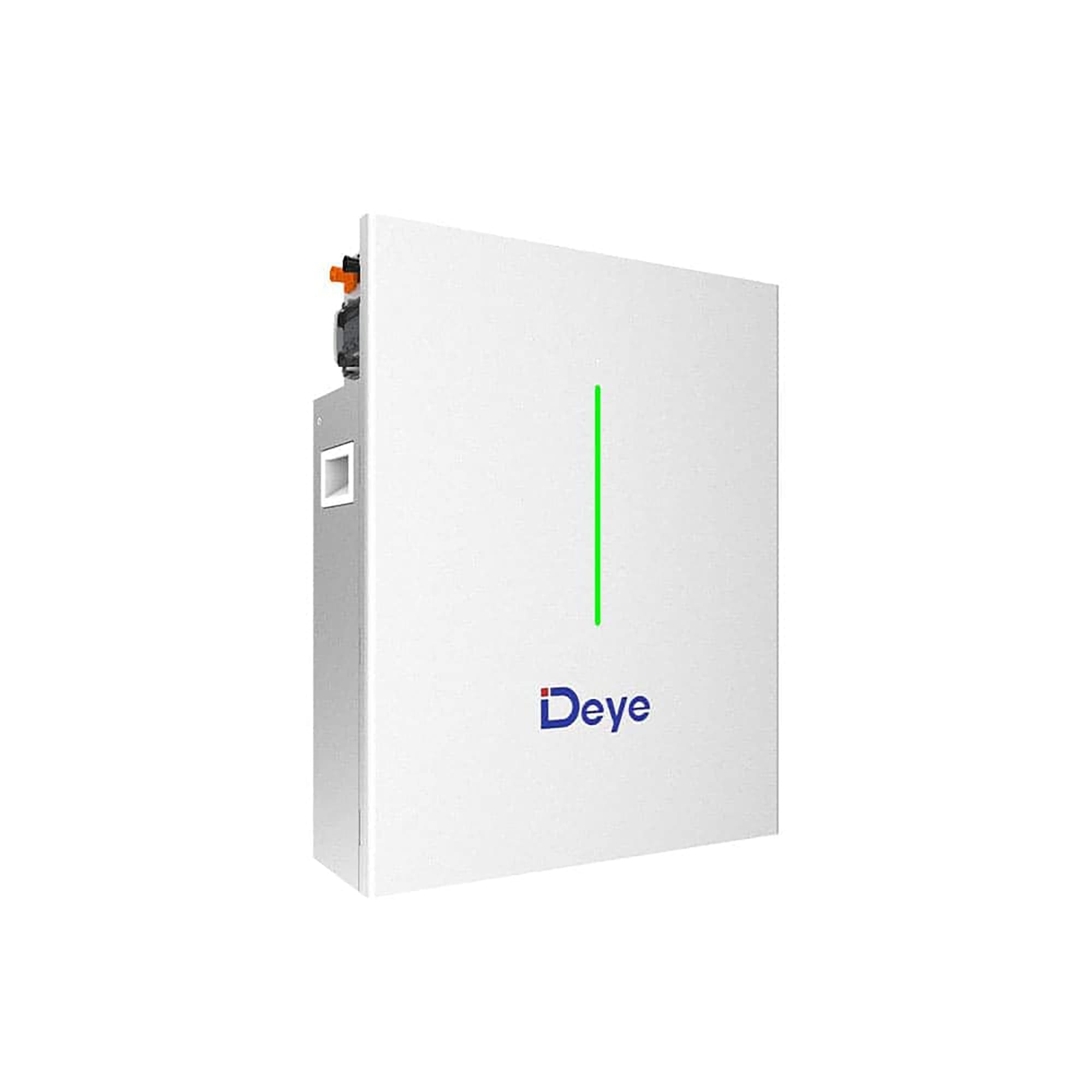

Deye ESS Battery Low Voltage Series (LV) RW-F10.2 10.24kWh LiFePO4 Battery Designed For Residential/Commercial Solar Energy Storage Solutions
The Deye ESS Battery RW-F10.2-B is a high-performance lithium iron phosphate (LiFePO₄) battery designed for energy storage in residential and commercial applications.
Invest in the Deye ESS Battery RW-F10.2 LFP Battery and take control of your energy future. With its superior safety, performance, and flexibility, this battery is the ideal choice for powering your home or business while reducing your carbon footprint.
Experience the difference of Deye’s cutting-edge energy storage technology today.
Key Features
- Battery Chemistry: Utilizes cobalt-free lithium iron phosphate (LiFePO₄), known for its high thermal stability and safety, minimizing risks associated with thermal runaway.
- Battery Capacity:
- Total Capacity: 200 Ah
- Nominal Energy: 10.24 kWh
- Usable Energy: Approximately 9.2 kWh
- Charge/Discharge Specifications:
- Recommended Charge/Discharge Current: 100 A
- Maximum Charge Current: 198 A
- Maximum Discharge Current: 240 A
- Peak Current (for 2 minutes at 25°C): 300 A
- Cycle Life: Designed for up to 6000 cycles at 90% Depth of Discharge (DOD), ensuring long-term reliability.
- Operating Temperature Range:
- Charge: 1°C to 55°C
- Discharge: -20°C to 55°C
- Physical Characteristics:
- Weight: Approximately 107 kg
- Dimensions: 600 mm (W) x 830 mm (H) x 200 mm (D)
- Environmental Protection: Rated at IP65, making it suitable for harsh environmental conditions.
- Intelligent Battery Management System (BMS): Continuously monitors critical battery parameters, including voltage, current, and temperature, enhancing safety and optimizing performance.
- Modular Design: Supports connection of up to 32 battery units in parallel, allowing for scalability and a maximum capacity of 327 kWh.
- Warranty: Comes with a 10-year warranty, underscoring Deye’s commitment to quality and customer satisfaction.
Applications
The Deye ESS Battery RW-F10.2-B is particularly well-suited for:
- Residential Energy Storage: Enhances self-consumption of solar energy and provides backup power.
- Commercial Applications: Suitable for businesses looking to optimize energy usage and reduce reliance on the grid.
The Deye ESS Battery RW-F10.2-B lithium iron phosphate battery represents a robust and efficient energy storage solution. Its advanced safety features, high performance, and modular design make it an excellent choice for maximizing the benefits of solar energy in both residential and commercial settings.
Model No. | RW-F10.2 | RW-F10.2-B |
Specification | ||
Storage System Technology | LFP (LiFePO4) | |
Battery Datasheet | ||
Electrical Data | ||
Nominal Voltage | 51.2 V | 51.2 V |
Nominal Capacity | 200Ah@20hr | 200Ah@20hr |
Max. Discharge Current | 240 A | 240 A |
Max. Charge Current | 198 A | 198 A |
Cycle Life | 6000@90%DOD | |
Temperature Parameters | ||
Charge Temperature | -0 ~ +55 ℃ | |
Discharge Temperature | -20 ~ +55 ℃ | |
Storage Temperature | -0 ~ +35 ℃ | |
General Data | ||
Dimension (L/W/H) | 200x600x760 mm | 200x600x830 mm |
Weight | 104 Kg | 107 Kg |
