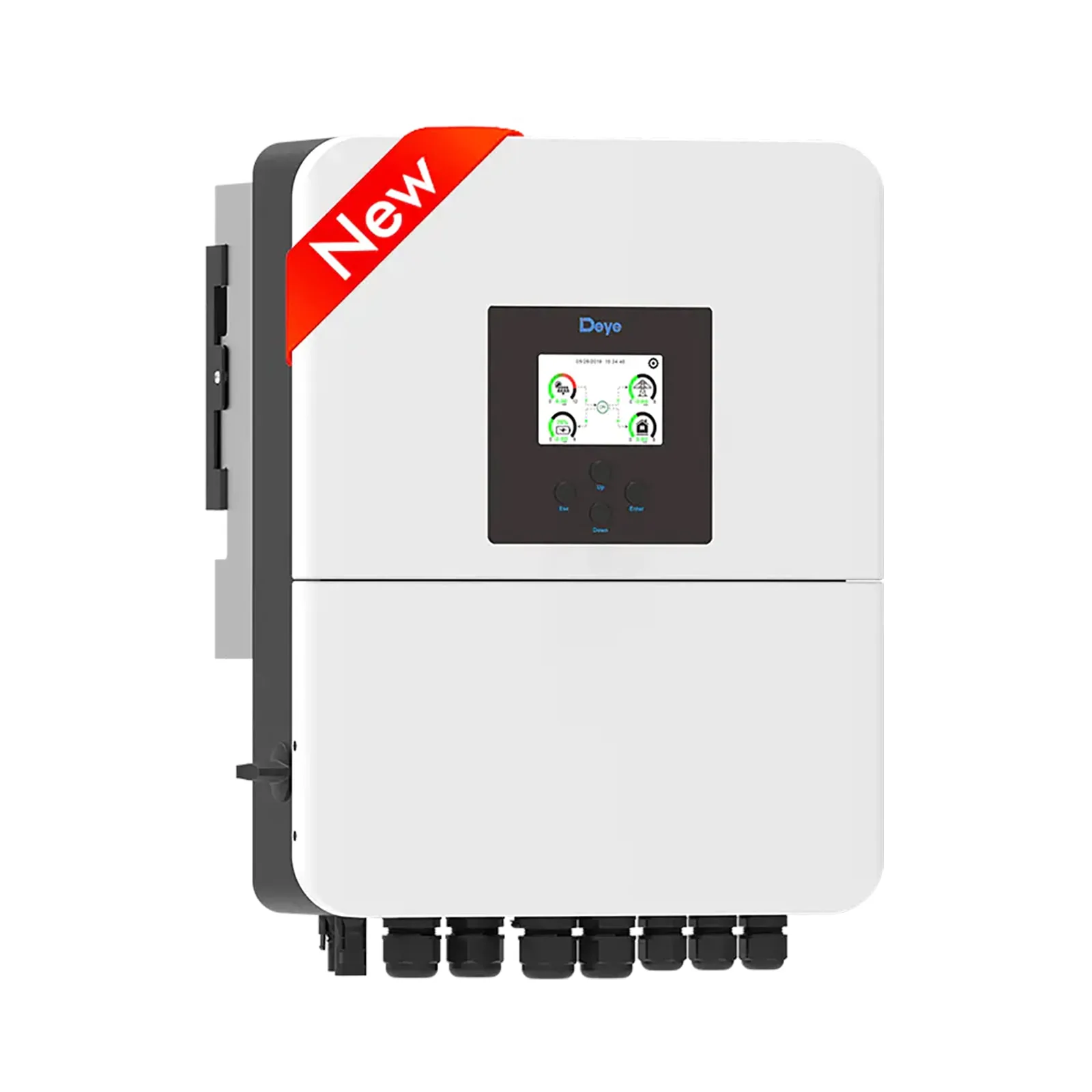

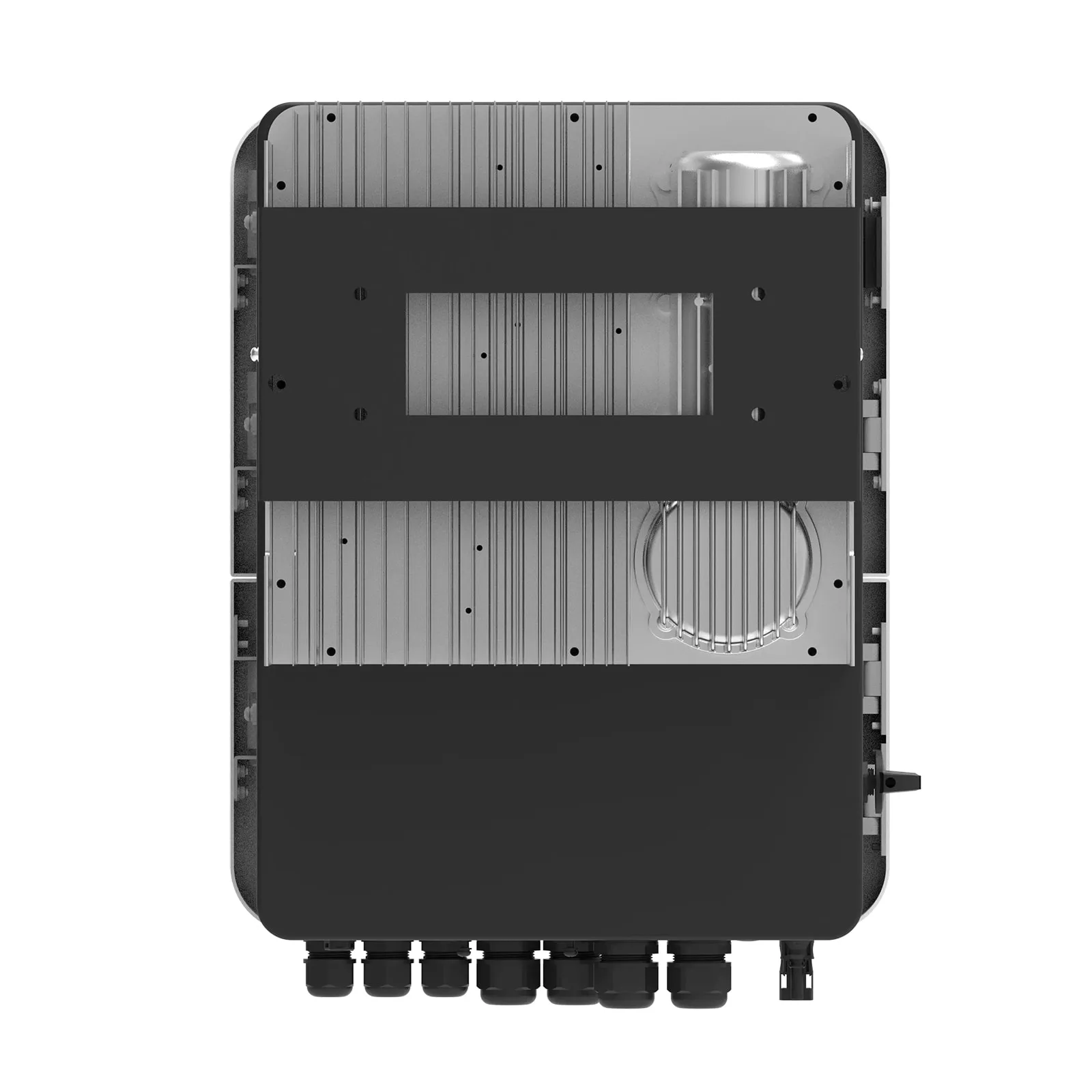

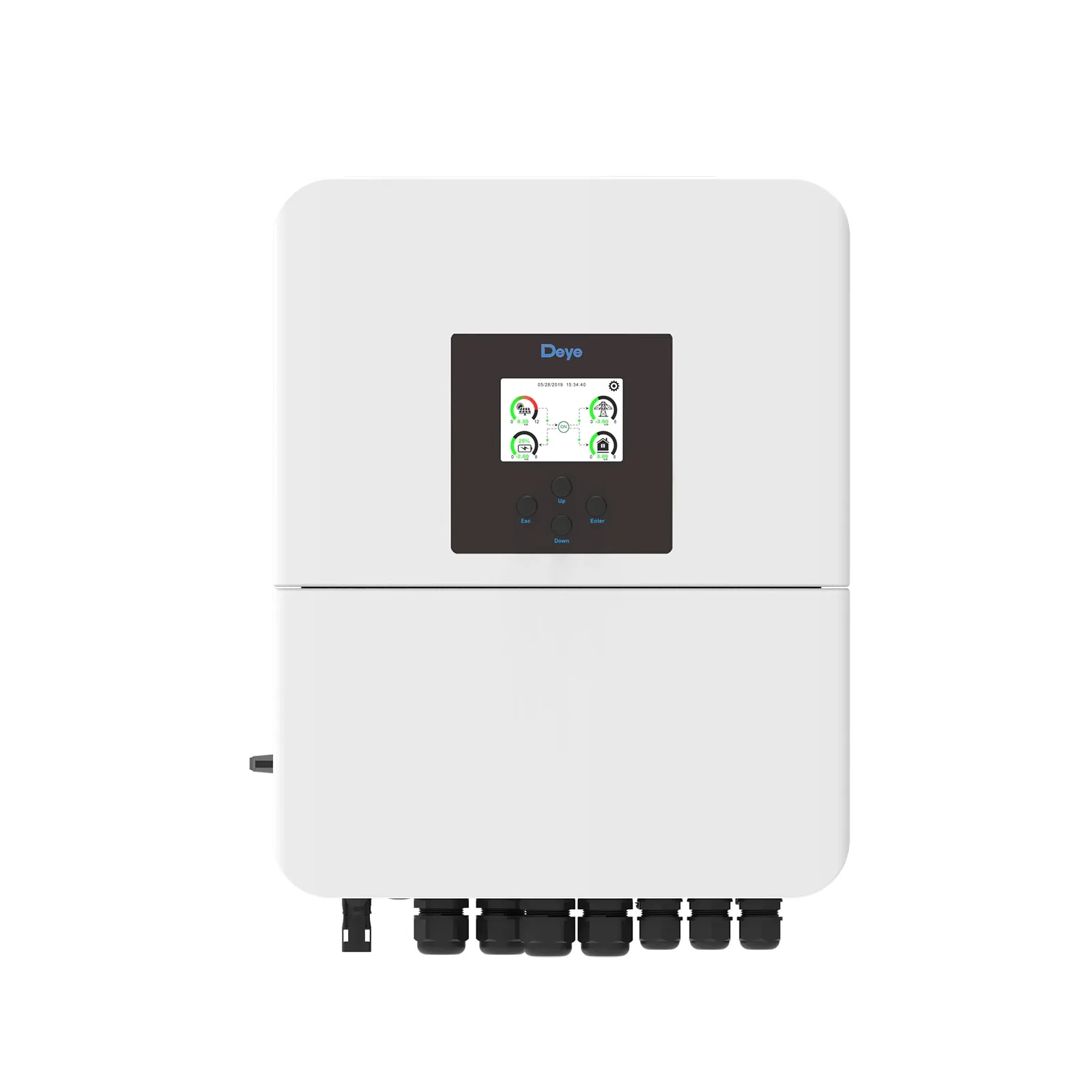

Deye Hybrid Solar Inverter SUN-6K-SG04LP1-EU-SM2 | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported

$1,100.00

Deye Hybrid Solar Inverter SUN-6K-SG04LP1-EU-SM2 | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

  • Colorful touch LCD, IP65 protection degree
  • AC couple to retrofifit existing solar system
  • Max. 16 pcs parallel for on-grid and off-grid
    operation; Support multiple batteries parallel
  • Max. charging/discharging current of 140A
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
ModelSUN-3K-SG04LP1-24-EU-SM1SUN-3K-SG04LP1-EU-SM1SUN-3.6K-SG04LP1-EU-SM2SUN-5K-SG04LP1-EU-SM2SUN-6K-SG04LP1-EU-SM2
Battery Input Data
Battery TypeLead-acid or Lithium-ion
Battery Voltage Range(V)20-3040-60
Max.Charging Current(A)1407090120135
Max.Discharging Current(A)1407090120135
Charging Strategy for Li-ion BatterySelf-adaption to BMS
Number of battery input1
PV String Input Data
Max. PV Access Power (W)
6000600072001000012000
Max PV Input Power(W)45004500540075009000
Max PV Input Voltage(V)500
Start-up Voltage(V)125
MPPT Voltage Range(V)150-425
Rated PV Input Voltage(V)370
Max Input Short-Circuit Current(A)2727+27
Max Operating PV Input Current(A)1818+18
No.of MPP Trackers/No.of String Per MPP Tracker1/12/1+1
AC Input/Output Data
Rated AC Input/Output Active Power(W)3000360050006000
Max AC Input/Output Apparent Power (VA)3300396055006600
Peak Power (off-grid)(W)2 times of rated power,10s
Rated AC Input/Output Current(A)13.7/13.116.4/15.722.8/21.827.3/26.1
Max AC Input/Output Current(A)15/14.418/17.325/2430/28.7
Max Continuous AC Passthrough (grid to load)(A)3540
Rated Input/Output Voltage/Range(V)220V/230 0.85Un-1.1Un
Grid Connection FormL+N+PE
Rated Input/Output Grid Frequency/Range50Hz/45Hz-55Hz     60Hz/55Hz-65Hz
Power Factor Adjustment Range0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi<3% (of nominal power)
DC Injection Current<0.5%ln
Efficiency
Max Efficiency97.6%
Euro Efficiency96.5%
MPPT Efficiency>99%
Equipment Protection
Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection LevelTYPE II(DC),TYPE II(AC)
Interface
Communication InterfaceRS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range-40 to+60℃,>45℃ Derating
Permissible Ambient Humidity0~100%
Permissible Altitude2000m
Noise<30
Ingress Protection(IP) RatingIP 65
Inverter TopologyNon-Isolated
Over Voltage CategoryOVC II(DC),OVC III(AC)
Cabinet size(W*H*D)[mm]376*470*241.5(Excluding connectors and brackets)
Weight[kg]17.619
Warranty5 Years/10 Years

the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Coolingnatural cooling
Grid RegulationIEC 61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Weight 18 kg
Dimensions 40 × 50 × 40 cm
Brand

Battery Type

Lead-acid

,

Lithium-ion

Battery Voltage Range(V)

40-60

Max. Charging Current(A)

135

Max. Discharging Current(A)

135

Number of battery input

1

Start-up Voltage(V)

125

Max PV Input Power(W)

12000

Max PV Input Voltage(V)

500

Monitor Mode

4G

,

Bluetooth

,

GPRS

,

LAN

,

WIFI

MPPT Efficiency

>99%

MPPT Voltage Range(V)

150-425

No. Of MPPT

1/1

Rated AC Input/Output Active Power(W)

6000

Rated Input/Output Grid Frequency/Range

50Hz/45Hz-55Hz

,

60Hz/55Hz-65Hz

Rated Input/Output Voltage/Range(V)

220V/230V

Size(W*H*D)[mm]

376*470*242
