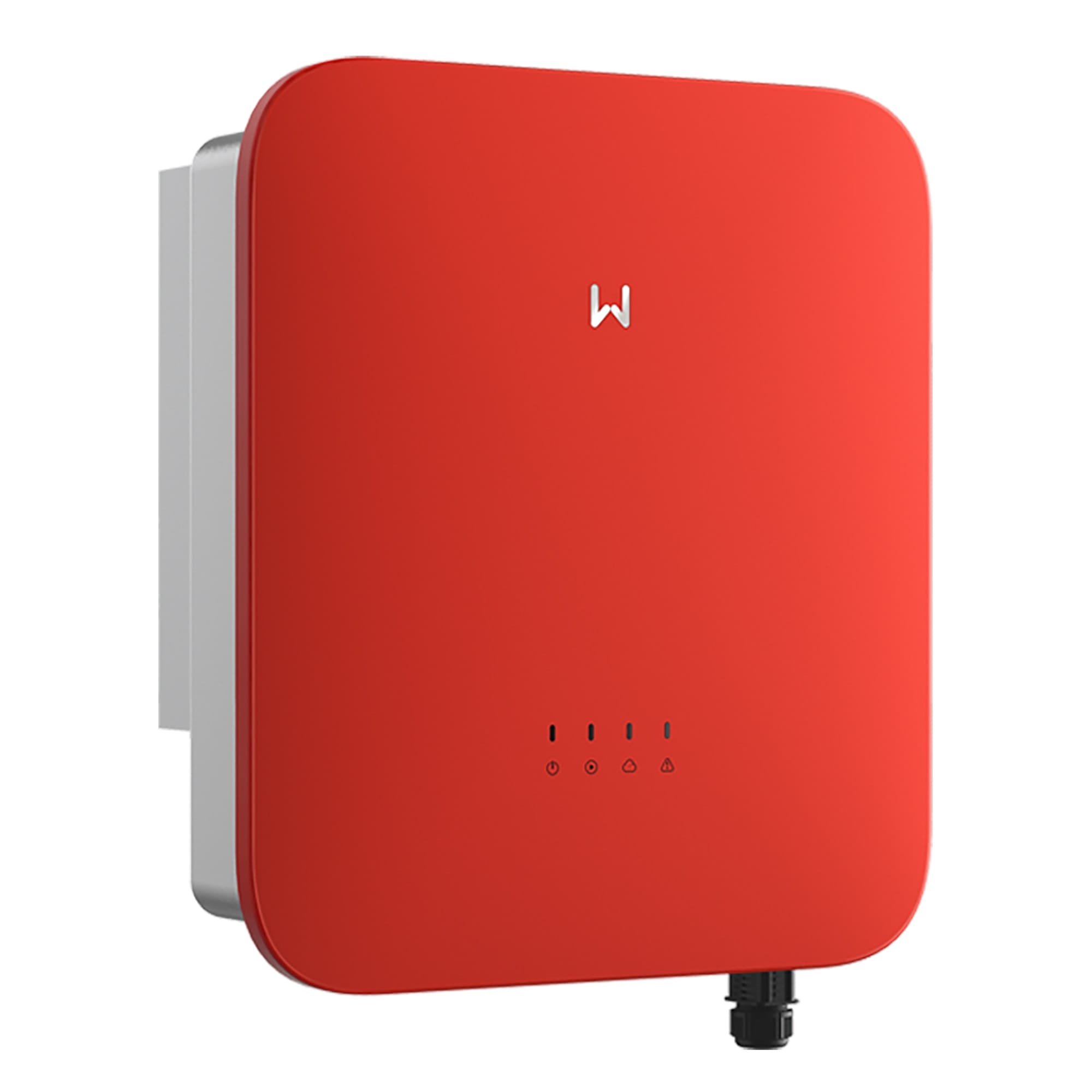

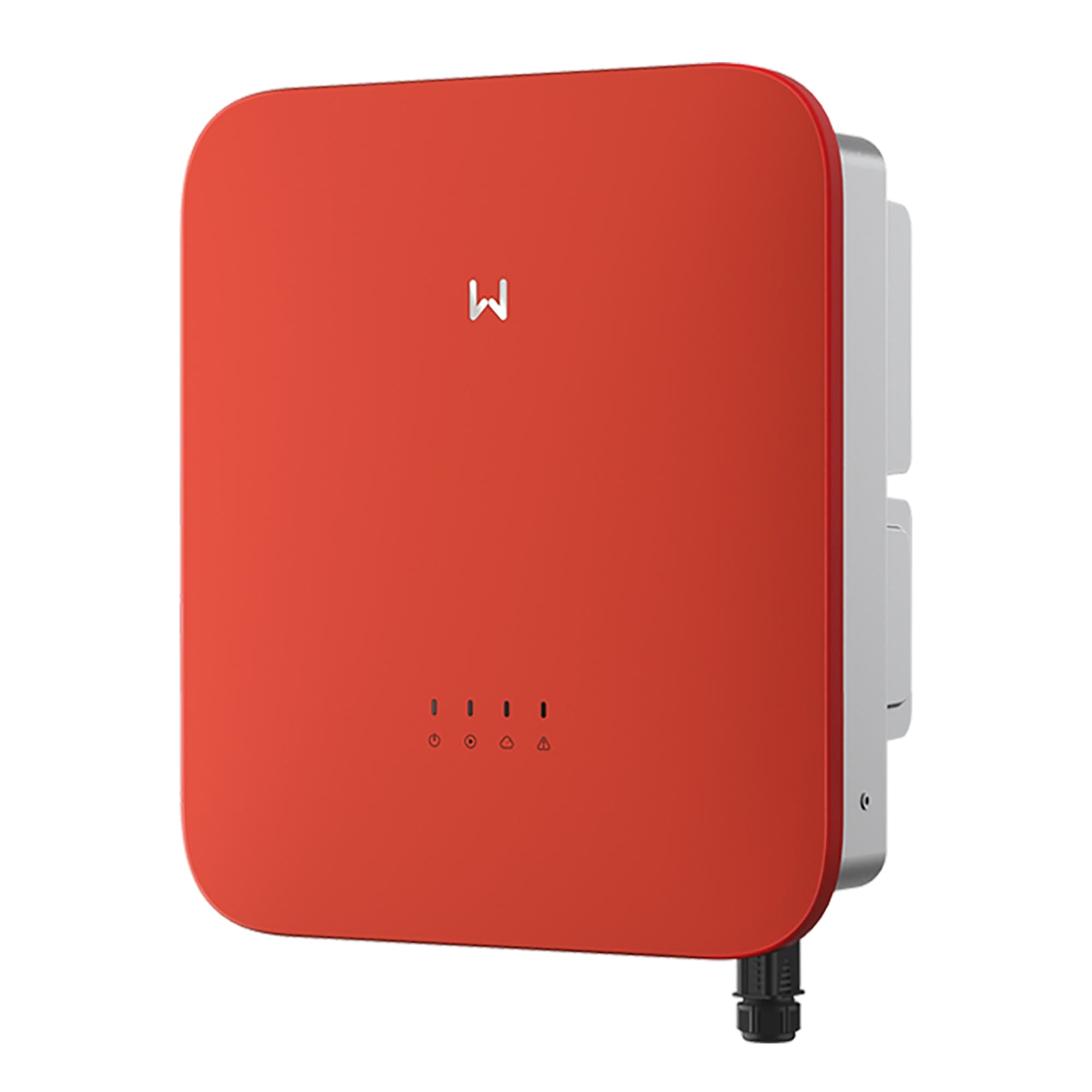

Goodwe On-Grid Solar Inverter GW10K-MS-C30 10KW Dual MPPT Trackers 220V Single-Phase Solar Solution For Residential PV system(CN Version)
$420.00
The MS G3 single-phase inverters of 5-10kW provide powerful and versatile solution options for residential buildings. This model boasts 3 MPPTs for various complex rooftops, thus leading to high power efficiency. The ultra-low 50V startup voltage allows inverters to kick in earlier during the day and presents more power generation. In addition, by supporting up to 20A DC max. input current per MPPT, the MS G3 Series is ideal for high-power modules, which makes full use of power generated and presents lower LCOE. Importantly, PID (potential induced degradation) recovery function is supported for better module performance. The inverter also takes safety measures including optional Arc-Fault Circuit Interrupter (AFCI) and Type II Surge Protection Device (SPD) on both DC & AC sides to protect the system from electrical fire and lightning hazards in extreme environments.
Goodwe On-Grid Solar Inverter GW10K-MS-C30 10KW Dual MPPT Trackers 220V Single-Phase Solar Solution For Residential PV system(CN Version)
The GoodWe On-Grid Solar Inverter GW10K-MS-C30 is a single-phase solar inverter designed for residential applications, offering advanced features and high efficiency.
Key Features
- Rated Power: 10 kW, suitable for medium to large residential solar systems.
- Maximum Efficiency: Up to 98.2%, ensuring optimal energy conversion from solar panels.
- MPPT Trackers: Equipped with 2 Maximum Power Point Trackers (MPPTs), which allow for flexible configurations and improved performance in varying sunlight conditions.
- Input Specifications:
- Maximum DC Voltage: 600 V
- MPPT Voltage Range: 100 V to 560 V
- Startup Voltage: 50 V
- Maximum Input Current per MPPT: 20 A
- Output Specifications:
- Nominal AC Voltage: 220 V / 230 V / 240 V
- Maximum AC Output Current: 45.5 A
- Protection Rating: IP65, making it suitable for outdoor installations and resistant to dust and water.
- Cooling System: Features a fanless design for quiet operation, which is particularly beneficial for residential settings.
- Dimensions: Approximately 447 mm x 513 mm x 205 mm.
- Weight: 18 kg, making it relatively lightweight for easy installation.
- Communication: Supports Wi-Fi connectivity for monitoring and control through the GoodWe app.
- Safety Features: Includes optional Arc Fault Circuit Interrupter (AFCI) and Type II Surge Protection Device (SPD) for enhanced safety.
Advantages
- High Efficiency: The inverter’s maximum efficiency of 98.2% ensures that a significant portion of the generated solar energy is converted into usable power.
- Flexible Configuration: The three MPPTs allow for optimal performance even with complex rooftop layouts or partially shaded conditions.
- Robust Design: The IP65 rating ensures durability and reliability in outdoor environments, suitable for various climates.
- Quiet Operation: The fanless cooling system provides silent operation, making it ideal for residential installations.
- Comprehensive Monitoring: The built-in monitoring capabilities allow users to track performance and manage their solar systems effectively through a smartphone app.
Applications
The GoodWe On-grid Solar Inverter GW10K-MS-C30 is ideal for:
- Residential Solar Systems: Perfect for homeowners looking to harness solar energy for self-consumption and reduce electricity bills.
- Small Commercial Applications: Can also be used in small businesses to optimize energy usage and enhance sustainability.
The GoodWe On-grid Solar Inverter GW10K-MS-C30 is a reliable and efficient choice for residential solar applications. Its advanced features, high efficiency, and robust design make it an excellent option for homeowners looking to maximize their solar energy systems.
| Model No. | GW5000-MS-30 | GW6000-MS-30 | GW7000-MS-30 | GW8500-MS-30 | GW10K-MS-30 |
| Input Data(DC) | |||||
| Max. DC Voltage | 600 V | 600 V | 600 V | 600 V | 600 V |
| Nominal DC Voltage | 360 V | 360 V | 360 V | 360 V | 360 V |
| Min. DC Voltage to Start Feed In | 50 V | 50 V | 50 V | 50 V | 50 V |
| Max. DC Current | 20 A | 20 A | 20 A | 20 A | 20 A |
| MPP(T) Voltage Range | 40~560 V | 40~560 V | 40~560 V | 40~560 V | 40~560 V |
| No of MPP Trackers | 3 | 3 | 3 | 3 | 3 |
| Connectors | MC4 | MC4 | MC4 | MC4 | MC4 |
| Output Data (AC) | |||||
| Max. AC Power | 5.5 kW | 6.6 kW | 7.7 kW | 9.35 kW | 10 kW |
| Nominal AC Power | 5 kW | 6 kW | 7 kW | 8.5 kW | |
| Output AC Voltage Range | 160~270 V | 160~270 V | 160~270 V | 160~270 V | 160~270 V |
| Nominal AC Voltage | 220, 230, 240 V | 220, 230, 240 V | 220, 230, 240 V | 220, 230, 240 V | 220, 230, 240 V |
| Max. AC Current | 24 A | 28.7 A | 33.5 A | 40.7 A | 43.5 A |
| Frequency Range | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz |
| Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
| Power Factor (cosθ) | 1 | 1 | 1 | 1 | 1 |
| Distortion (THD) | < % | < 3 % | < 3 % | < 3 % | < 3 % |
| Max. Efficiency | 97.80% | 97.80% | 97.70% | 97.90% | 97.90% |
| Euro Efficiency | 97.20% | 97.20% | 97.10% | 97.30% | 97.30% |
| General Data | |||||
| Dimensions (H/W/D) | 507x441x210 mm | 507x441x210 mm | 507x441x210 mm | 507x441x210 mm | 507x441x210 mm |
| Weight | 19 kg | 19 kg | 19 kg | 19 kg | 19 kg |
| Power Consumption at Night | < 1 W | < 1 W | < 1 W | < 1 W | < 1 W |
| Noise Level | < 30 dB(A) | < 30 dB(A) | < 30 dB(A) | < 30 dB(A) | < 30 dB(A) |
| Operating Temperature | -25 ~ +60 ℃ | ||||
| Protection Class | IP66 | ||||
| Humidity | 0-100 % | ||||
| Cooling | Natural | ||||
| Max. Altitude | 4000 m | ||||
| Interface | RS 485, Ethernet, WLAN | ||||
| Display | LCD, LED | ||||
| Protection Features | |||||
| Protection Features | Anti Island Protection(ENS), Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection | ||||
| Weight | 14 kg |
|---|---|
| Dimensions | 50 × 50 × 30 cm |
| Brand | |
| Max PV Input Power(W) |
15000 |
| Max PV Input Voltage(V) |
600 |
| Max PV Input Current(A) |
20 |
| Start-up Voltage(V) |
50 |
| MPPT Voltage Range(V) |
40-560 |
| No. Of MPPT |
2/1+1 |
| MPPT Efficiency |
98.2% |
| Rated AC Input/Output Active Power(W) |
10000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
| Max AC Output Current(A) |
45.5 |
| Monitor Mode |
4G ,GPRS ,LAN ,WIFI |
