Growatt Residential Single Phase On-Grid Hybrid Solar Inverter MIN 3600TL-XH 3.6KW energy storage inverter
$670.00
The Growatt MIN 3600 TL-XH inverter has an affordable price and high quality. It is certified for the global market and is often used in consumer installations. Growatt MIN-XH inverters can be purchased with ARK energy storage up to 5.12 to 25.6 kWh.
Growatt Residential Single Phase On-Grid Hybrid Solar Inverter MIN 3600TL-XH 3.6KW energy storage inverter
Key Features
Core Value
– Future proof battery ready
– Low initial investment
High Yields
– DC/AC ratio up to 2.0
– Max. efficiency 98.4%
– Dual MPP trackers
Safety and Reliability
– Type II SPD on DC side
– Support export limitation
– AFCI function optional

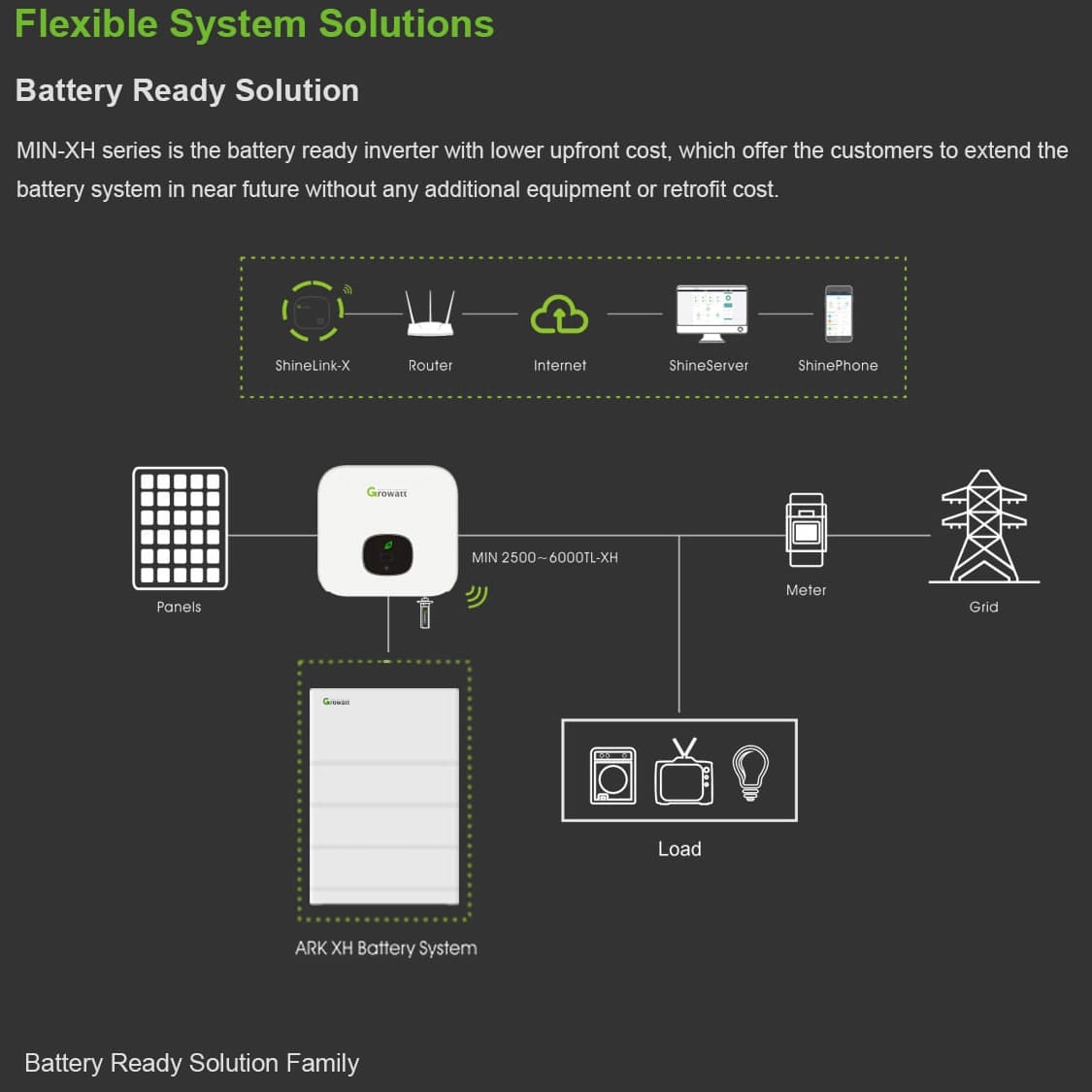

The Growatt MIN 3600 TL-XH inverter has an affordable price and high quality. It is certified for the global market and is often used in consumer installations. Growatt MIN-XH inverters can be purchased with ARK energy storage up to 5.12 to 25.6 kWh. Energy storage for MIN-XH inverters is a great solution for maximizing self-consumption. Installing a MIN-XH plus ARK energy storage reduces sending energy to the grid and instead stores the energy produced in batteries. With this solution, we can become more independent of power prices from the power distribution company.
These inverters are suitable for LiFePo4 battery and backup system. In addition, with the addition of an energy meter, MIN TL-XH inverters can activate the export limit function and generate energy balances for the entire building.
One-phase energy storage inverter designed for residential and small industrial applications. Available capacities: 2.5kW, 3kW, 3.6kW, 4.2kW, 4.6kW, 5kW, 6kW. Inverter is also equipped with a range of advanced features that make it easy to install and use. It has a user-friendly interface that allows homeowners and installers to monitor system performance and adjust settings as needed. The inverter is also compatible with a range of monitoring systems, including WiFi, Ethernet, and RS485.
- Type II SPD on DC side
- AFCI function
- Max. efficiency 98.4%
- Dual MPP trackers
- Wide MPPT voltage range
- Future proof battery ready
- Touch key and OLED display
- Compact design for one person installation
- Growatt comprehensive warranty plan
- 10 year warranty
Specifications of inverter Growatt MIN 3600 TL-XH:
- Max. recommended PV power (for module STC) [W] : 7200
- Max. DC voltage[V] : 550
- Nominal Voltage: 360
- AC nominal power [W] : 3600
- Max. output current [A] : 16
- Max. charge power [W] : 6000
- Max. discharge power [W] : 3600
- Dimensions (W / H / D) [mm] : 375/350/160
- Weight [kg] : 10.8
- MAX. efficiency [%] : 98.2
- Protection degree: IP65
- Interfaces: Interfaces: : RS485 / USB/Wi-Fi/GPRS/ RF/LAN
- Cooling : Natural convection
- Topology : Transformless
| Model No. | MIN 2500TL-XH | MIN 3000TL-XH | MIN 3600TL-XH | MIN 4200TL-XH | MIN 4600TL-XH | MIN 5000TL-XH | MIN 6000TL-XH |
| Warranty | |||||||
| Product Warranty (Min) | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| Input Data(DC) | |||||||
| Max. DC Power | 5 kW | 6 kW | 7.2 kW | 8.4 kW | 9.2 kW | 10 kW | 10 kW |
| Max. DC Voltage | 500 V | 500 V | 550 V | 550 V | 550 V | 550 V | 550 V |
| Nominal DC Voltage | 360 V | 360 V | 360 V | 360 V | 360 V | 360 V | 360 V |
| Min. DC Voltage to Start Feed In | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Max. DC Current | 27 A | 27 A | 27 A | 27 A | 27 A | 27 A | 27 A |
| MPP(T) Voltage Range | 70~500 V | 70~500 V | 70~550 V | 70~550 V | 70~550 V | 70~550 V | 70~550 V |
| No of MPP Trackers | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| DC Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Connectors | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 |
| Output Data (AC) | |||||||
| Nominal AC Power | 2.5 kW | 3 kW | 3.6 kW | 4.2 kW | 4.6 kW | 5 kW | 6 kW |
| Output AC Voltage Range | 180~280 V | 180~280 V | 180~280 V | 180~280 V | 180~280 V | 180~280 V | 180~280 V |
| Nominal AC Voltage | 230 V | 230 V | 230 V | 230 V | 230 V | 230 V | 230 V |
| Max. AC Current | 11.3 A | 13.6 A | 16 A | 19 A | 20.9 A | 22.7 A | 27.2 A |
| Frequency Range | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz |
| Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
| Distortion (THD) | < 3 % | 3% | < 3 % | < 3 % | < 3 % | < 3 % | < 3 % |
| No of feed-in phases | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Max. Efficiency | 98.20% | 98.20% | 98.20% | 98.40% | 98.40% | 98.40% | 98.40% |
| Euro Efficiency | 97.10% | 97.10% | 97.20% | 97.20% | 97.50% | 97.50% | 97.50% |
| General Data | |||||||
| Dimensions (H/W/D) | 350x375x160 mm | 350x375x160 mm | 350x375x160 mm | 350x375x160 mm | 350x375x160 mm | 350x375x160 mm | 350x375x160 mm |
| Weight | 10.8 kg | 10.8 kg | 10.8 kg | 10.8 kg | 10.8 kg | 10.8 kg | 10.8 kg |
| Power Consumption at Night | < 10 W | < 10 W | < 10 W | < 10 W | < 10 W | < 10 W | < 10 W |
| Operating Temperature | -14 ~ +50 ℃ | ||||||
| Transformer | Transformerless | ||||||
| Protection Class | IP65 | ||||||
| Humidity | 0-100 % | ||||||
| Cooling | Natural | ||||||
| Max. Altitude | 4000 m | ||||||
| Interface | RS 485, USB, WLAN | ||||||
| Display | LED | ||||||
| Protection Features | |||||||
| Protection Features | Anti Island Protection(ENS), Short Circuit Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection, Ground Fault Monitoring, Grid Monitoring | ||||||
| Weight | 12 kg |
|---|---|
| Dimensions | 40 × 40 × 20 cm |
| Brand | |
| Battery Type |
Lithium-ion |
| Battery Voltage Range(V) |
360-550 |
| Max. Charging Current(A) |
17 |
| Max. Discharging Current(A) |
17 |
| Number of battery input |
1 |
| Start-up Voltage(V) |
100 |
| Max PV Input Power(W) |
7200 |
| Max PV Input Voltage(V) |
550 |
| Monitor Mode |
4G ,Bluetooth ,GPRS ,LAN ,WIFI |
| MPPT Efficiency |
>99% |
| MPPT Voltage Range(V) |
70-550 |
| No. Of MPPT |
2/1+1 |
| Rated AC Input/Output Active Power(W) |
3600 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
| Size（W*H*D）[mm] |
375/350/160 |
Growatt is a leading global provider of distributed energy solutions, specializing in sustainable energy generation, storage, and consumption. The company offers a comprehensive range of products, including solar inverters, energy storage systems, and smart energy management solutions.
Key Offerings
Solar Inverters: Growatt's lineup includes intelligent string inverters suitable for residential, commercial, and utility-scale solar applications, with capacities ranging from 0.75 kW to 253 kW.
Energy Storage Solutions: Growatt provides versatile storage solutions for both new installations and retrofits, including hybrid and AC-coupled systems. Their battery systems, such as the APX series, are designed to maximize self-consumption and enhance grid independence.
Electric Vehicle (EV) Chargers: The company offers smart EV chargers with capacities ranging from 3 kW to 40 kW, enabling users to charge their vehicles using solar energy.
Smart Energy Management: Growatt's advanced systems leverage Big Data, AI, and IoT technologies for efficient energy management, providing multi-point data monitoring and a smart cloud platform for predicting energy generation and consumption.
Recent Innovations
At the Intersolar Europe 2024 exhibition, Growatt showcased its latest products, including the NEO 600-1000M-X Microinverter and the NOAH 2000 Battery for balcony solar systems. These innovations reflect the company's commitment to integrating solar and storage solutions seamlessly for residential and commercial applications.
Applications
Growatt's solutions are designed to cater to various applications, including:
Residential Systems: Enhancing energy independence and reducing electricity bills through self-consumption of solar power.
Commercial Solutions: Optimizing energy usage for businesses and providing backup power during outages.
Utility-Scale Projects: Supporting large-scale solar installations with efficient energy management systems.
