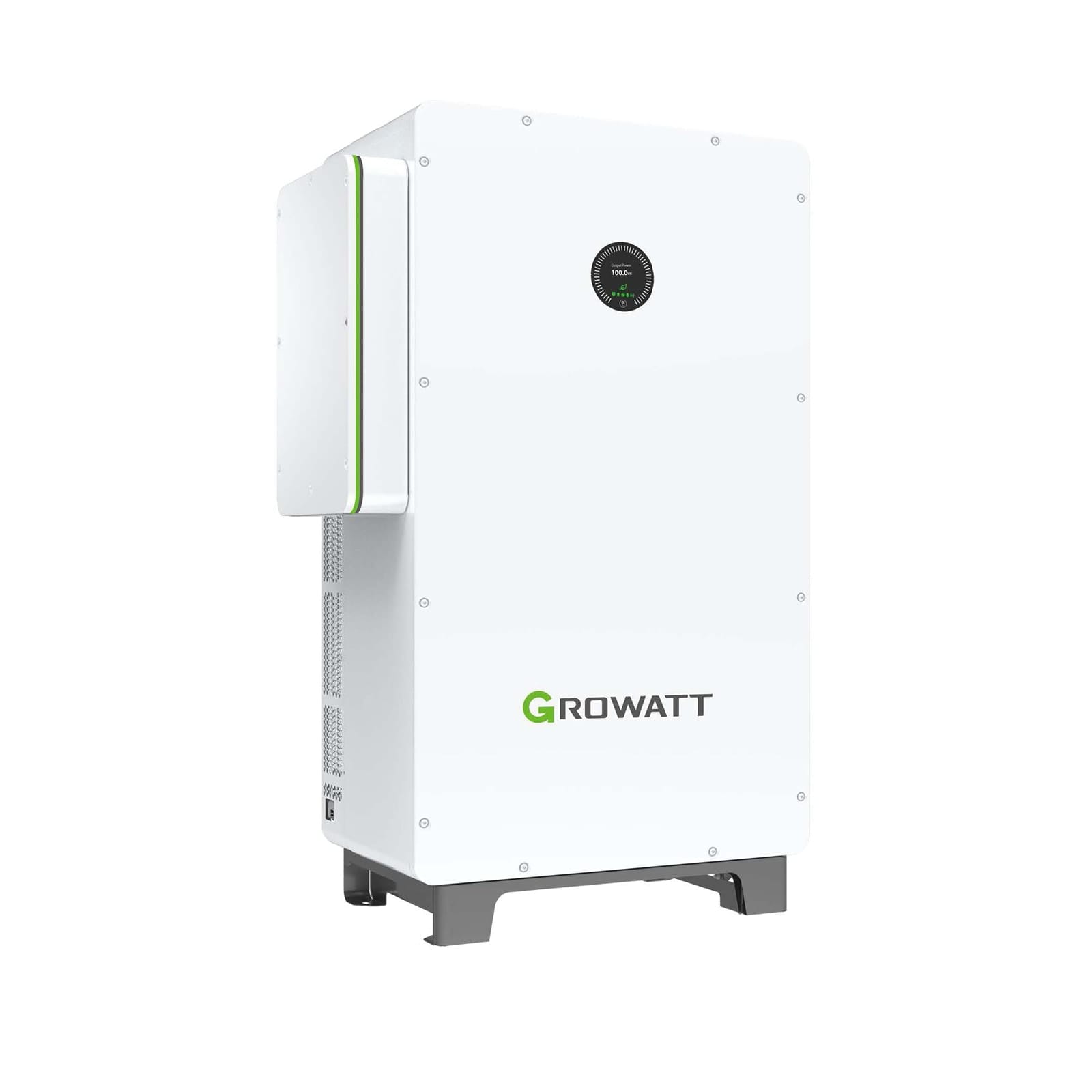

Growatt Hybrid Solar Inverter WIT 50K-H(WIT 50KTL3-H-LV) Three Phase 50KW On-Grid Commercial Storage Inverter

$6,400.00

The Growatt WIT 50KTL3-H-LV inverter features an affordable price and high quality. It is certified for the global market and is often used in commercial installations. Growatt WIT inverters can be purchased with APX energy storage from 71 to 200 kWh.

The Growatt Hybrid Solar Inverter WIT 50KTL3-H-LV features an affordable price and high quality. It is certified for the global market and is often used in commercial installations. Growatt WIT inverters can be purchased with APX energy storage from 71 to 200 kWh. Energy storage for WIT 50KTL3-H-LV inverters is a great solution for maximizing self-consumption and potential backup function. Installing a WIT 50KTL3-H-LV plus APX energy storage reduces sending energy to the grid and instead stores the energy produced in batteries. With this solution, we can become more independent of power prices from the power distribution company.

Three-phase energy storage inverter are designed for commercial applications. Available capacities: 50kW, 63kW, 75kW, 100kW. Inverter is also equipped with a range of advanced features that make it easy to install and use. It has a user-friendly interface that allows homeowners and installers to monitor system performance and adjust settings as needed. The inverter is also compatible with a range of monitoring systems, including WiFi, Ethernet, and RS485.

Key Features

Leading Functions
– Built-in UPS and black start

– 100% unbalanced output

– 110% continuous AC overloading

– Type II SPD on DC and AC side

High Yields
– Multiple MPPTs input

– DC/AC Ratio up to 2.0

– Max. efficiency up to 98%

System Flexibility
– Scalable up to 300kW

– Support lithium and lead-acid battery

– Remote control of DG

GENERAL INFORMATION

  • Scalable system configuration, extend to 300kW ·
  • Support UPS function and black start ·
  • 100% unbalanced load when backup ·
  • 110% continuous AC overloading capacity ·
  • Support remote control of DG ·Multiple MPPTs input ·
  • Grid-support functions

Basic specifications of inverter Growatt WIT 50KTL3-H-LV:

  • Max. recommended PV power (for module STC) [W] : 109200
  • Max. DC voltage : 1100
  • Nominal Voltage: 550
  • AC nominal power [W] : 50000
  • Max.charge power [W]: 56700
  • Max.discharge power [W]: 56700
  • Max. output current [A] : 90.9
  • Dimensions (W / H / D) [mm] : 820/1350/510
  • Weight [kg] : 153
  • MAX. efficiency [%] : 98.2
  • Protection degree: IP66
  • Interfaces: RS485/CAN/USB
  • Cooling : Smart air cooling
  • Topology : Transformless
Weight 170 kg
Dimensions 90 × 150 × 60 cm
Brand

Battery Type

Lithium-ion

Battery Voltage Range(V)

600-1000

Max. Charging Current(A)

83.3

Max. Discharging Current(A)

83.3

Number of battery input

1

Start-up Voltage(V)

195

Max PV Input Power(W)

109200

Max PV Input Voltage(V)

1100

Monitor Mode

4G

,

Bluetooth

,

GPRS

,

LAN

,

WIFI

MPPT Efficiency

98.2%

MPPT Voltage Range(V)

180-800

No. Of MPPT

7

Rated AC Input/Output Active Power(W)

50000

Rated Input/Output Grid Frequency/Range

50Hz/45Hz-55Hz

,

60Hz/55Hz-65Hz

Rated Input/Output Voltage/Range(V)

230/400V

Size(W*H*D)[mm]

820/1350/510
