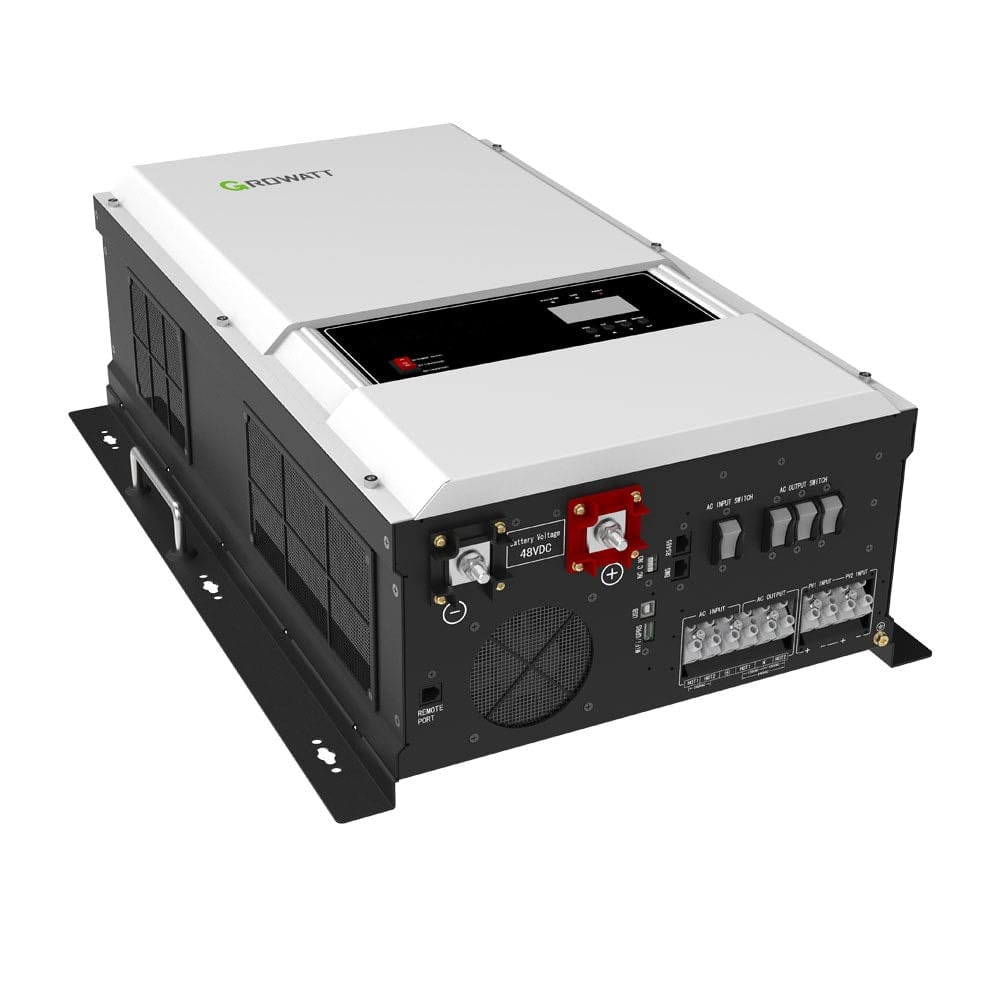

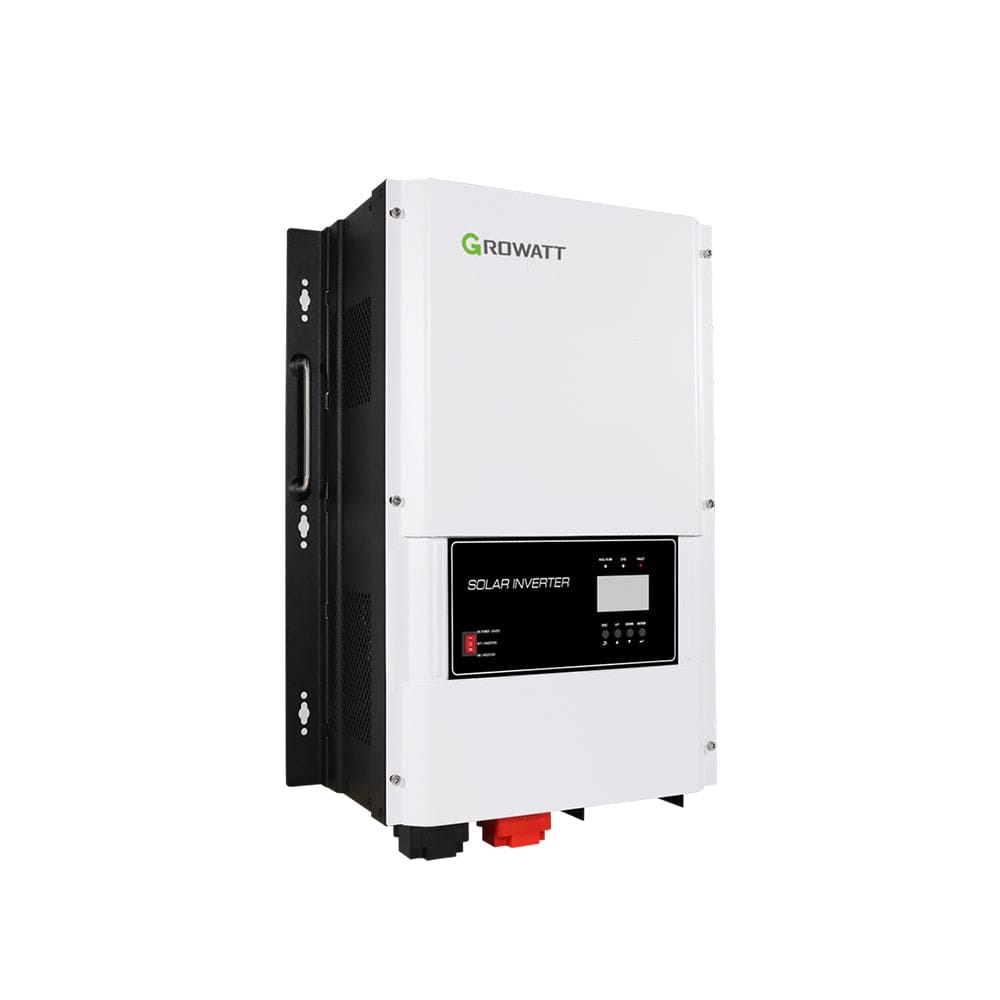

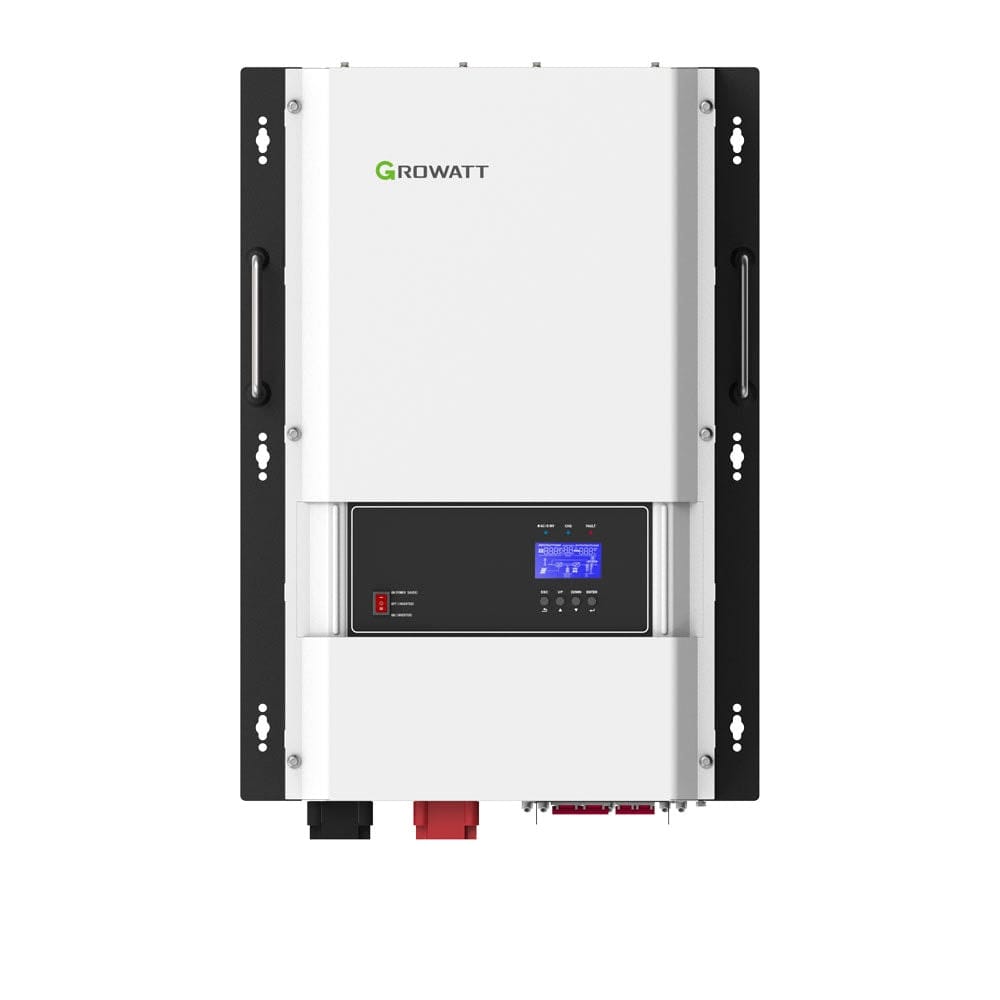

Growatt 12KW Pure Sine Wave Off-Grid Hybrid Solar Inverter SPF 12KT HVM 48VDC Solar Input Compatible Lithium/Lead-acid Battery For Residential Solar Energy System

$1,490.00

SPF low-frequency series inverter adopts powerful transformer which has the advantage of impact loads, like pumps, motors, and some high-torque devices.

Growatt Pure Sine Wave Off-Grid Hybrid Solar Inverter SPF 12kW HVM 48VDC Solar Input Compatible Lithium/Lead-acid Battery For Residential Solar Energy System

The Growatt SPF 12KT HVM (Low Frequency) 48V is a multifunctional off grid hybrid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter, and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.

Because this model has a higher continuous and surge rating (12kW and 36kW) than the others due to a low frequency solar inverter, this can mean you use more power in less time, so you’ll want to be mindful not to drain your batteries too deep. This off-grid hybrid solar inverter supports up to 5kW of solar panels. This solar inverter cannot be installed in parallel.

    • Integrated MPPT charge controller
    • Configurable grid or solar input priority
    • Optional WIFI/ GPRS remote monitoring
    • Overload, short circuit and deep discharge Protection
    • Configurable AC/ solar input priority via LCD setting
    • Built-in Pure Copper Low Frequency transformer
    • Compatible to mains voltage or generator power
    • Low Voltage PV input (ELV Ready)
    • Inverter OUTPUT: 12000W / Surge Rating: 36kW/ Max PV Array Power: 7000W / Maximum Solar Charge Current: 120A / AC Charge current: 100A

    Specifications:

    • Battery Voltage 48VDC
    • Battery Type Lithium/Lead-Acid

    INVERTER OUTPUT

    • Rated Power 12KW
    • AC Voltage Regulation 230VAC + 5% @ 50/60Hz
    • Parallel Capability NO
    • Surge Power 36KW Efficiency (Peak) >88%
    • Waveform Pure Sine Wave
    • Transfer Time 10ms typical, 20ms Max

    SOLAR CHARGER

    • Maximum PV Array Power 7000w
    • MPPT Range @ Operating Voltage 60~145VDC
    • Maximum PV array open circuit voltage 150VDC
    • Maximum Solar Charge Current 120A
    • Maximum Efficiency 98%

    AC Charger

    • Charge Current 50A
    • AC Input Voltage 230VAC
    • Selectable Voltage Range 154~272VAC (For Home Appliances)
    • Frequency Range 50/60Hz (Auto Sensing)

    Physical

    • Protection Degree IP20
    • Dimension (W/H/D) 380/650/255mm
    • Net Weight 75kg

    Operating Environment

    • Humidity 5% to 95% Relative Humidity (Non-Condensing)
    • Altitude <2000m
    • Operating Temperature 0 °C – 55 °C
    • Storage Temperature -15 °C – 60°C
    Model
    SPF 4KT HVM
    SPF 5KT HVM
    SPF 6KT HVM
    SPF 8KT HVM
    SPF 10KT HVM
    SPF 12KT HVM
    Battery voltage
    48VDC
    Battery type
    Lithium/Lead-acid
    INVERTER OUTPUT
    Rated power
    4KW
    5KW
    6KW
    8KW
    10KW
    12KW
    Surge rating
    12KW
    15KW
    18KW
    24KW
    30KW
    36KW
    Waveform
    pure sine wave
    Output voltage
    220/230/240VAC
    Output frequency
    50/60HZ
    Inverter efficiency
    >85%
    Line model efficiency
    >95%
    Power factor
    1.0
    Transfer time
    10ms typical,20ms max
    SOLAR CHARGER
    Maximum pv charge current
    80A
    120A
    Maximum pv array power
    5000W
    7000W
    Number of independent mppt tracker/strings per  mppt tracker
    1/1
    2/1
    MPPT range
    60-145VDC
    Maximum pv array open circuit voltage
    150VDC
    Maximum efficiency
    >98%
    AC INPUT
    Voltage
    230VAC
    Selectable voltage range
    154-272VAC(for appliance),184-272VAC(for UPS)
    Frequency range
    50/60HZ
    Maximum charge current
    40A
    50A
    60A
    70A
    80A
    100A
    MECHANICAL SPECIFICATIONS
    Protection degree
    IP20
    Dimension(W/H/D)
    360/540/218mm
    380/650/255mm
    Net weight(kg)
    38
    41
    45
    64
    66
    75
    OPERATING ENVIRONMENT
    Operation temperature range
    0-45 degree
    Model
    SPF 4KT DVM
    SPF 5KT DVM
    SPF 6KT DVM
    SPF 8KT DVM
    SPF 10KT DVM
    SPF 12KT DVM
    Battery voltage
    48VDC
    Battery type
    Lithium/Lead-acid
    INVERTER OUTPUT
    Rated power
    4KW
    5KW
    6KW
    8KW
    10KW
    12KW
    Surge rating
    12KW
    15KW
    18KW
    24KW
    30KW
    36KW
    Waveform
    pure sine wave
    Output voltage
    104-110-115-120/208-220-230-240VAC(optional)
    Output frequency
    50/60HZ
    Inverter efficiency
    >85%
    Line model efficiency
    >95%
    Power factor
    1.0
    Transfer time
    10ms max
    SOLAR CHARGER
    Maximum pv charge current
    80A
    120A
    Maximum pv array power
    5000W
    7000W
    Number of independent mppt tracker/strings per  mppt tracker
    1/1
    2/1
    MPPT range
    60-145VDC
    Maximum pv array open circuit voltage
    150VDC
    Maximum efficiency
    >98%
    AC INPUT
    Voltage
    240VAC
    Selectable voltage range
    154-272VAC(for appliance),184-272VAC(for UPS)
    Frequency range
    50/60HZ
    Maximum charge current
    40A
    50A
    60A
    70A
    80A
    100A
    MECHANICAL SPECIFICATIONS
    Protection degree
    IP20
    Dimension(W/H/D)
    360/540/218mm
    380/650/255mm
    Net weight(kg)
    42
    47
    52
    64
    66
    75
    OPERATING ENVIRONMENT
    Operation temperature range
    0-45 degree
Weight 80 kg
Dimensions 60 × 80 × 50 cm
Brand

Battery Type

Lead-acid

,

Lithium-ion

Max. Charging Current(A)

120

Battery Voltage Range(V)

48

Max PV Input Power(W)

7000

Max PV Input Voltage(V)

150

MPPT Voltage Range(V)

60-145

No. Of MPPT

1/1

Number of battery input

1

Rated AC Input/Output Active Power(W)

12000

Rated Input/Output Grid Frequency/Range

50Hz/45Hz-55Hz

,

60Hz/55Hz-65Hz

Rated Input/Output Voltage/Range(V)

220V/230V
