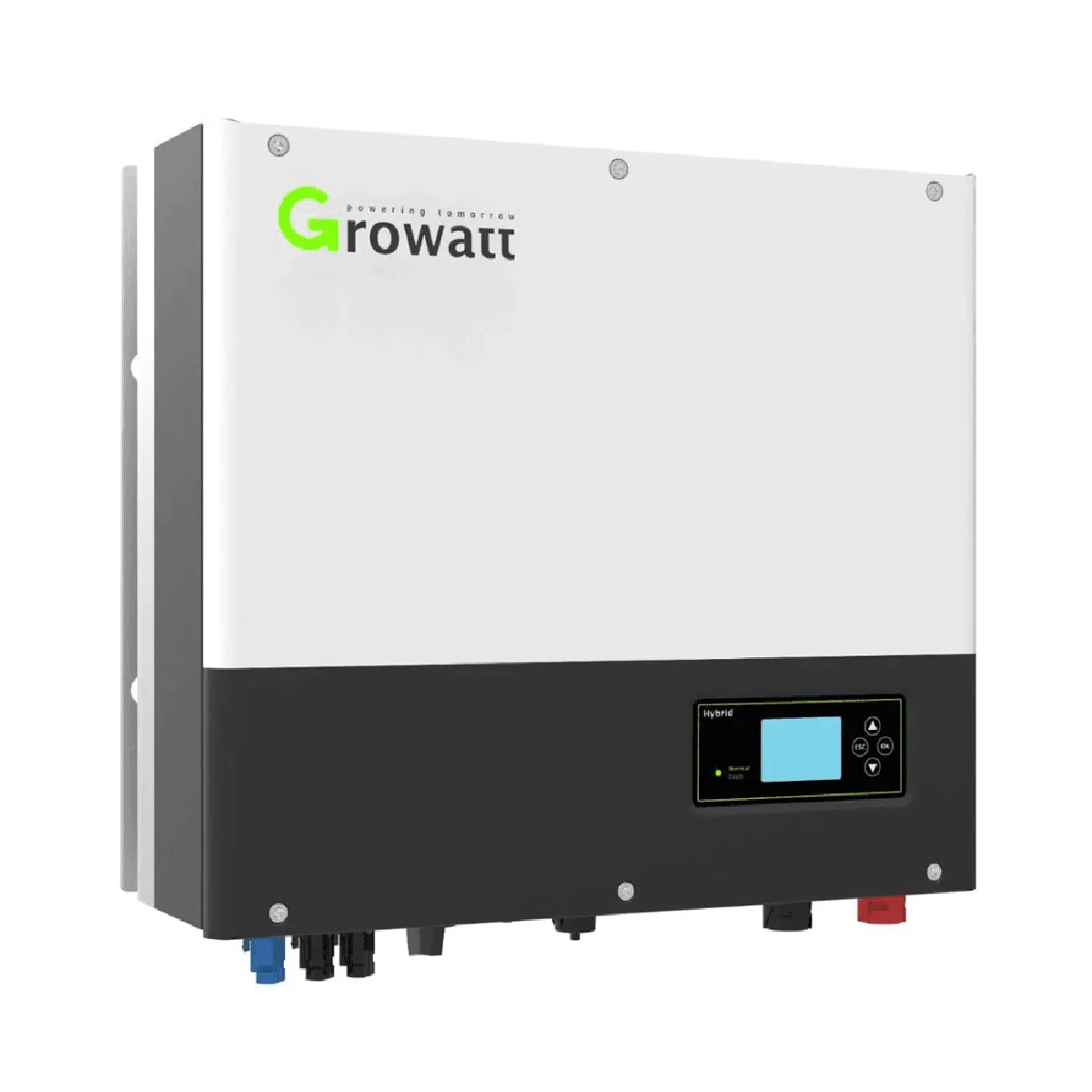

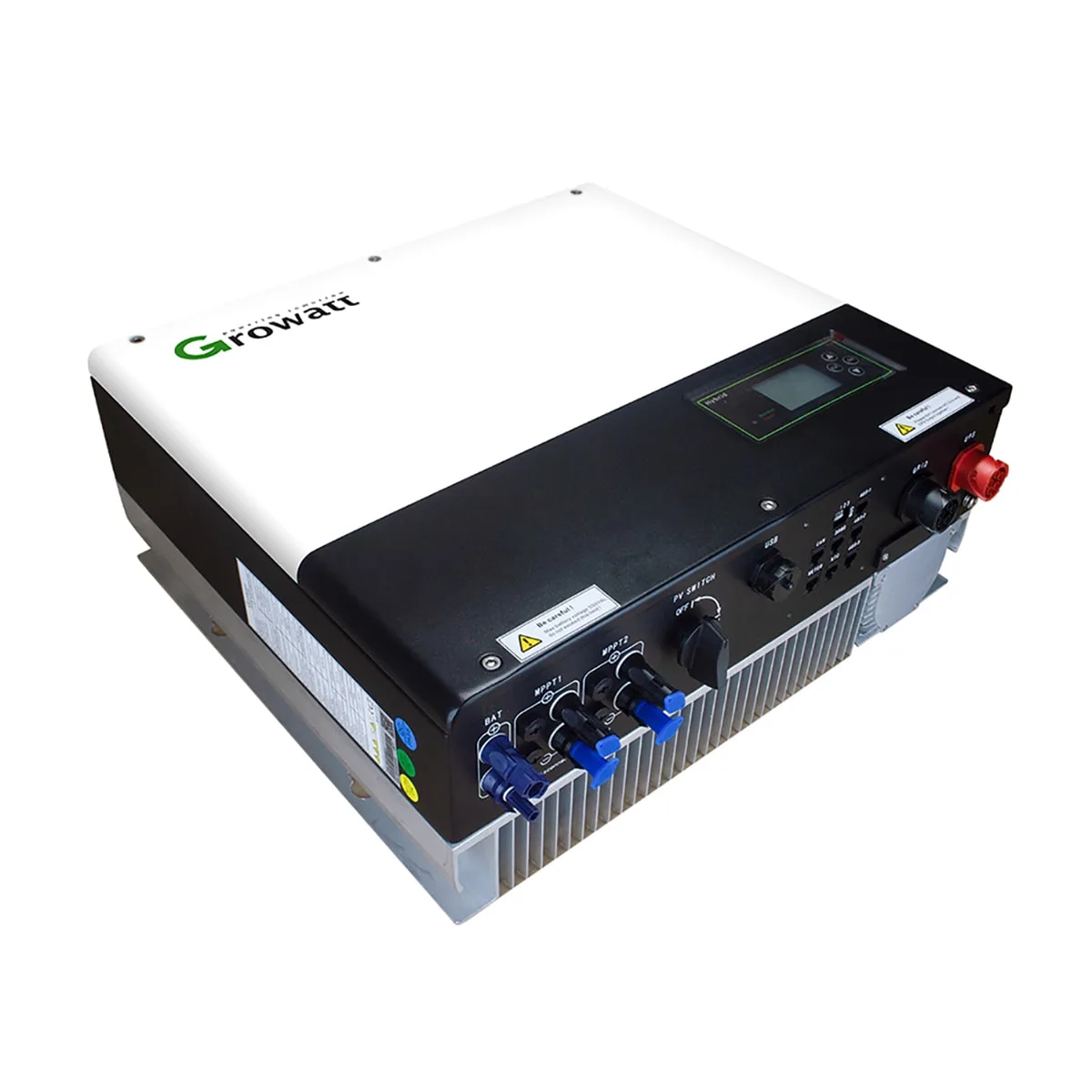

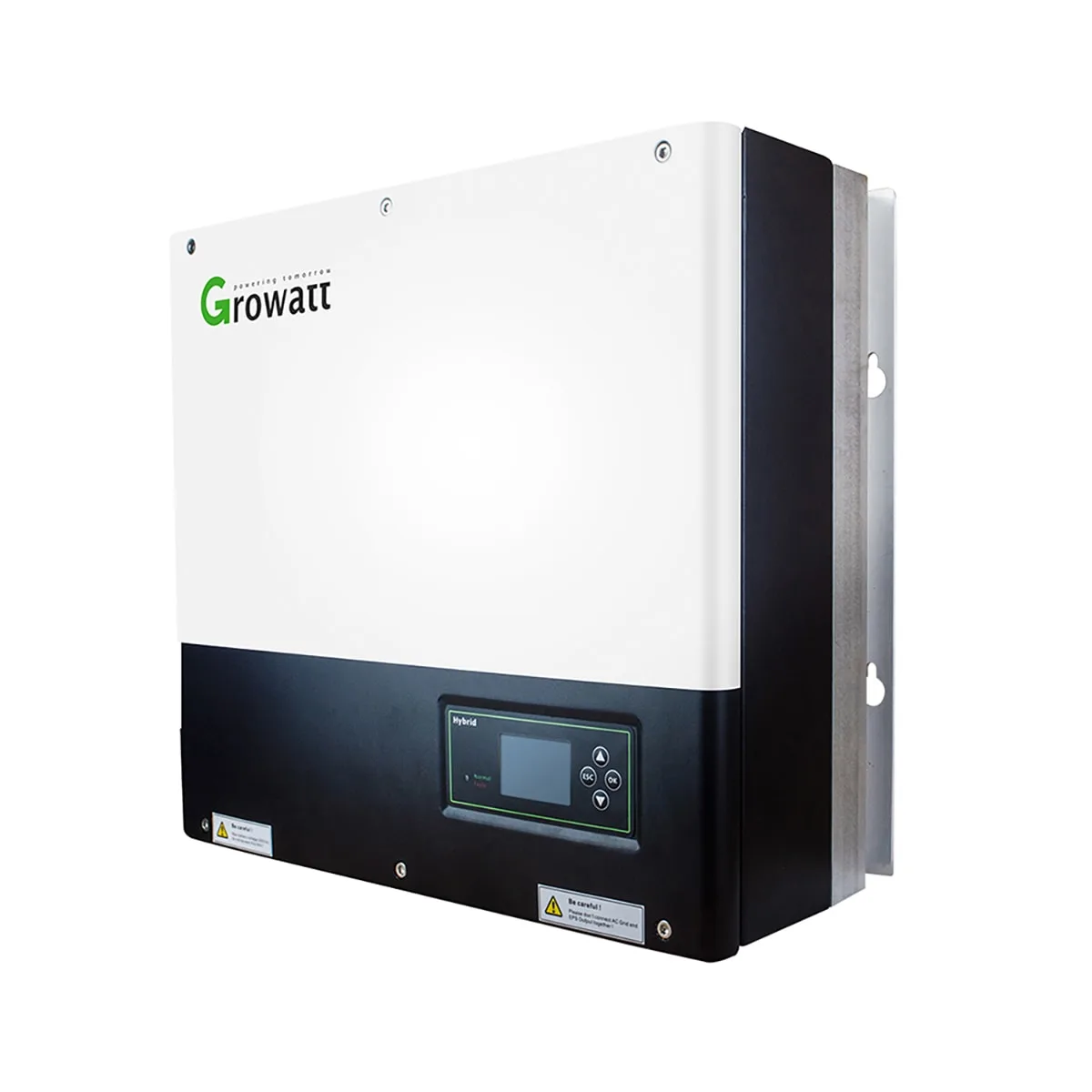

Growatt Off-Grid Storage Hybrid Solar Inverter with UPS function SPH8000TL3 BH-UP For Residential Max 12000W solar input compatible Lithium/Lead-acid Battery
$1,860.00
Growatt SPH TL3-BH-UP is three-phase hybrid inverter designed for residential and small industrial applications. Available capacities: 4kW, 5kW, 6kW, 7kW, 8kW, 10kW. A properly designed hybrid system including SPH inverters and a battery pack and other accessories can maximize the self-sufficiency of a solar system and reduce electricity bills.
Growatt Off-Grid Storage Hybrid Solar Inverter with UPS function SPH8000TL3 BH-UP For Residential Max 12000W solar input compatible Lithium/Lead-acid Battery
The Growatt Off-grid Hybrid Solar Inverter SPH 8000TL3-BH-UP is a three-phase hybrid inverter designed for residential and small industrial applications. It is known for its affordable price and high quality. The inverter is certified for the global market and is commonly used in pro-consumer installations. It comes in various capacities ranging from 4kW to 10kW.
One of the key features of the SPH inverter is its backup output for EPS (Emergency Power Supply) circuits.
This output can operate in two modes:
- Bypass mode, where power is constantly supplied to the EPS output,
- UPS (Uninterruptible Power Supply) mode, where power is available after a power outage, enabling off-grid operation.
To further enhance its functionality, Growatt offers the option to pair the SPH inverter with ARK energy storage systems. These energy storage solutions have capacities ranging from 7.68 kWh to 25.6 kWh. By combining the Growatt SPH inverter with ARK energy storage, users can maximize self-consumption of the energy generated. Instead of sending excess energy to the grid, it is stored in the batteries, reducing reliance on energy prices set by the distribution company. This setup promotes greater energy independence.
The Growatt SPH Hybrid solar inverters are compatible with LiFePo4 batteries and backup power systems, providing flexibility for various energy storage configurations. Additionally, when combined with an energy meter, the SPH inverters can activate the export limit function, allowing users to regulate the amount of energy they export to the grid. This feature enables the generation of energy balances for the entire building, promoting efficient energy management.
Overall, the Growatt SPH 8000TL3-BH-UP inverter offers a cost-effective and high-quality solution for residential and small industrial applications. Its hybrid capabilities, EPS backup output, compatibility with ARK energy storage, and ability to activate export limits make it a versatile choice for those seeking efficient energy management and greater energy independence.
GENERAL INFORMATION
- UPS function, 10 ms switching
- Compact design for easier installation
- 3-phase output 100% phase unbalanced
- Asymmetrical phase power flow management
- LCD display with four buttons
- Natural cooling without fans
- Adjustable charging and discharging times
- Online smart service
- Battery management system for safe operation
- Battery charge status monitoring
- IP65 protection rating
- Growatt comprehensive warranty plan
- 10 year warranty
Basic specifications of hybrid inverter Growatt SPH 8000 TL3-BH-UP:
- Max. recommended PV power (for module STC) [W] : 12000
- Max. DC voltage : 1000
- Max charging and discharging current [A]: 25
- AC nominal power [W] : 8000
- Max. output current [A] : 25
- Dimensions (W / H / D) [mm] : 505/453/198
- Weight [kg] : 28
- MAX. efficiency [%] : 98.2
- Protection degree: IP65
- Interfaces: RS232/RS485/CAN/USB
- Cooling : Natural convection
- Topology : Transformless
| Model No. | SPH 4000TL3 BH-UP | SPH 5000TL3 BH-UP | SPH 6000TL3 BH-UP | SPH 7000TL3 BH-UP | SPH 8000TL3 BH-UP | SPH 10000TL3 BH-UP |
| Warranty | ||||||
| Product Warranty (Min) | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| Input Data(DC) | ||||||
| Max. DC Power | 6 kW | 7.5 kW | 9 kW | 10.5 kW | 12 kW | 15 kW |
| Max. DC Voltage | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Min. DC Voltage to Start Feed In | 120 V | 120 V | 120 V | 120 V | 120 V | 120 V |
| Max. DC Current | 27 A | 27 A | 27 A | 27 A | 27 A | 27 A |
| MPP(T) Voltage Range | 120~1000 V | 120~1000 V | 120~1000 V | 120~1000 V | 120~1000 V | 120~1000 V |
| No of MPP Trackers | 2 | 2 | 2 | 2 | 2 | 2 |
| DC Inputs | 2 | 2 | 2 | 2 | 2 | 2 |
| Connectors | MC4 | MC4 | MC4 | MC4 | MC4 | MC4 |
| Output Data (AC) | ||||||
| Nominal AC Power | 4 kW | 5 kW | 6 kW | 7 kW | 8 kW | 10 kW |
| Output AC Voltage Range | 310~476 V | 310~476 V | 310~476 V | 310~476 V | 310~476 V | 310~476 V |
| Nominal AC Voltage | 230, 400 V | 230, 400 V | 230, 400 V | 230, 400 V | 230, 400 V | 230, 400 V |
| Max. AC Current | 6.1 A | 7.6 A | 9.1 A | 10.6 A | 12.1 A | 15.2 A |
| Frequency Range | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz | 45-65 Hz |
| Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
| Distortion (THD) | < 3 % | > 3 % | < 3 % | < 3 % | < 3 % | < 3 % |
| No of feed-in phases | 3 | 3 | 3 | 3 | 3 | 3 |
| Max. Efficiency | 97.60% | 97.80% | 98% | 98.20% | 98.20% | 98.20% |
| Euro Efficiency | 97% | 97.20% | 97.30% | 97.40% | 97.40% | 97.50% |
| General Data | ||||||
| Dimensions (H/W/D) | 453x505x198 mm | 453x505x198 mm | 453x505x198 mm | 453x505x198 mm | 453x505x198 mm | 453x505x198 mm |
| Weight | 30 kg | 30 kg | 30 kg | 30 kg | 30 kg | 30 kg |
| Power Consumption at Night | < 13 W | < 13 W | < 13 W | < 13 W | < 13 W | < 13 W |
| Operating Temperature | -25 ~ +60 ℃ | |||||
| Transformer | Transformerless | |||||
| Protection Class | IP65 | |||||
| Humidity | 0-100 % | |||||
| Cooling | Natural | |||||
| Max. Altitude | 3000 m | |||||
| Interface | RS 485, USB, WLAN | |||||
| Display | LCD, LED | |||||
| Protection Features | ||||||
| Protection Features | Anti Island Protection(ENS), Short Circuit Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection, Ground Fault Monitoring, Grid Monitoring | |||||
| Weight | 33 kg |
|---|---|
| Dimensions | 70 × 70 × 40 cm |
| Brand | |
| Battery Type |
Lead-acid ,Lithium-ion |
| Max. Charging Current(A) |
25 |
| Battery Voltage Range(V) |
25 |
| Max PV Input Power(W) |
12000 |
| Max PV Input Voltage(V) |
1000 |
| MPPT Voltage Range(V) |
120-1000 |
| No. Of MPPT |
2/1+1 |
| Number of battery input |
1 |
| Rated AC Input/Output Active Power(W) |
8000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
230/400V |
Growatt is a leading global provider of distributed energy solutions, specializing in sustainable energy generation, storage, and consumption. The company offers a comprehensive range of products, including solar inverters, energy storage systems, and smart energy management solutions.
Key Offerings
Solar Inverters: Growatt's lineup includes intelligent string inverters suitable for residential, commercial, and utility-scale solar applications, with capacities ranging from 0.75 kW to 253 kW.
Energy Storage Solutions: Growatt provides versatile storage solutions for both new installations and retrofits, including hybrid and AC-coupled systems. Their battery systems, such as the APX series, are designed to maximize self-consumption and enhance grid independence.
Electric Vehicle (EV) Chargers: The company offers smart EV chargers with capacities ranging from 3 kW to 40 kW, enabling users to charge their vehicles using solar energy.
Smart Energy Management: Growatt's advanced systems leverage Big Data, AI, and IoT technologies for efficient energy management, providing multi-point data monitoring and a smart cloud platform for predicting energy generation and consumption.
Recent Innovations
At the Intersolar Europe 2024 exhibition, Growatt showcased its latest products, including the NEO 600-1000M-X Microinverter and the NOAH 2000 Battery for balcony solar systems. These innovations reflect the company's commitment to integrating solar and storage solutions seamlessly for residential and commercial applications.
Applications
Growatt's solutions are designed to cater to various applications, including:
Residential Systems: Enhancing energy independence and reducing electricity bills through self-consumption of solar power.
Commercial Solutions: Optimizing energy usage for businesses and providing backup power during outages.
Utility-Scale Projects: Supporting large-scale solar installations with efficient energy management systems.
