Hoymiles Microinverter HMS-2250-6T 2250W 230/400V Three-Phase Solar Inverter For EU Market On-grid Residential PV System/Commercial PV Rooftops

Hoymiles Microinverter HMT-2250-6T 2250W 230/400V Three-Phase Solar Inverter For EU Market On-grid Residential PV System/Commercial PV Rooftops

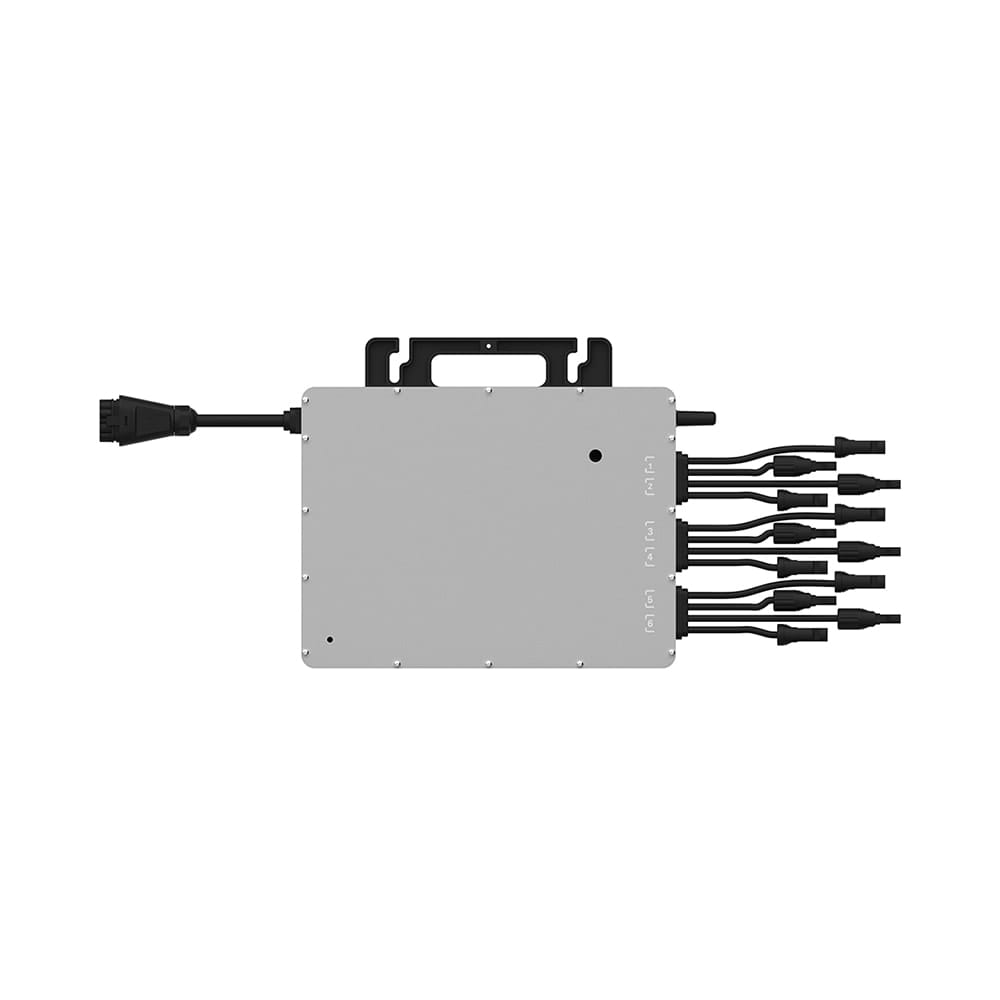

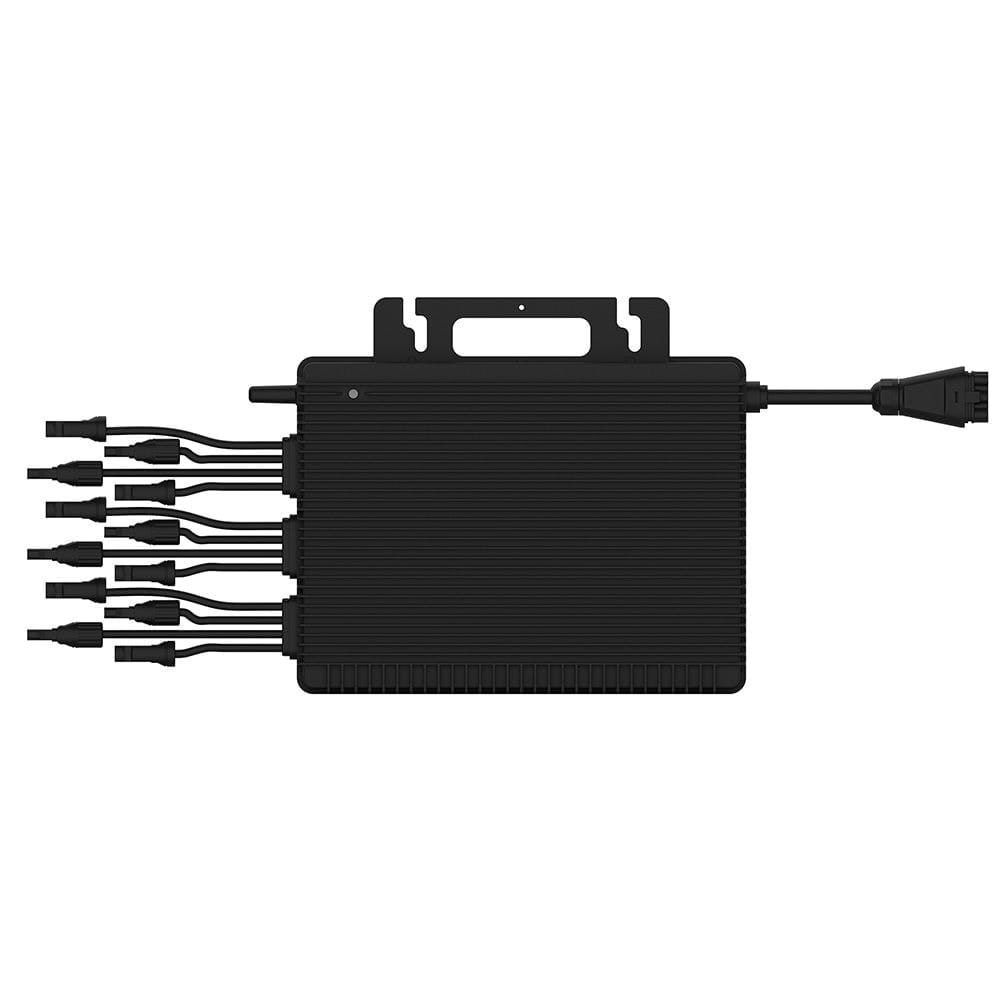

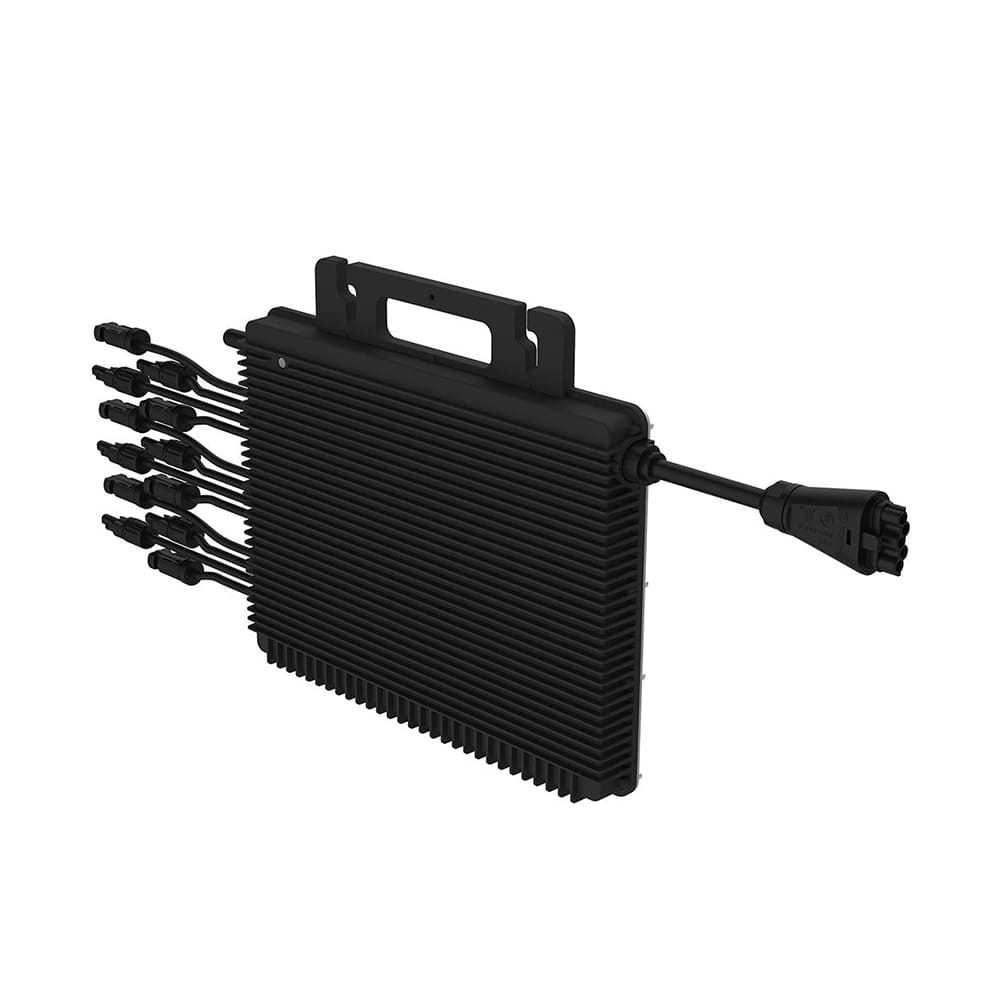

The HMT-2250-6T from Hoymiles is the perfect micro inverter for your balcony power plant. The compact lightweight (only 6kg) is suitable for solar power production with up to six solar panels with an output of up to 505W each. Just like all other micro inverters from Hoymiles, it is suitable for long operating hours and a wide range of PV module applications, as the switch-on voltage is only 22V and the DC input range of the operating voltage (16-60V) is extremely wide. Information on required and optional accessories can be found at the end of the description.

Note: The HMT inverter may only be connected to the mains by an electrician.

Features

• Minimization of the effects of e.g. shading, dust or ageing through MPPT
• High-quality energy generation with high MPPT accuracy
• Optimum system reliability
• Peak efficiency of 96.5%
• 12-year product warranty
• High level of safety thanks to integrated protective functions
• Easy installation
• Long service life
• Complies with VDE-R-N 4105: 2018 & EN50549-1:2019

Optionally possible:

• Monitoring via S-Miles app or S-Miles Cloud
• A DTU Lite-S is required for system monitoring
• To have the option of changing settings in addition to monitoring, a DTU Pro-S is required instead of the DTU Lite-S

Optimum reliability

Micro inverter systems are inherently more reliable than conventional inverters. The decentralized design of a micro inverter system ensures that the entire PV system does not fail in the event of a fault. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The housing of the micro inverter is designed for outdoor installation and complies with protection class IP67.

Simple design

PV systems with Hoymiles microinverters are very easy to plan and install. Up to 6 solar modules can be connected per model. You do not need to install cumbersome conventional inverters. Each micro inverter can be quickly mounted on the PV mounting frame or directly under the PV module. The PV module is connected to the micro inverter directly on site, eliminating the risk of people being exposed to dangerously high DC voltage.

Technical data

• Recommended module power: up to 505W (per module)
• Maximum input voltage: 60V
• MPPT voltage range: 16-60V
• Switch-on voltage: 22V
• Maximum input current: 6×11.5A
• Maximum input short-circuit current: 6x15A
• Mains connection: Three-phase
• Nominal output power (VA): 2250
• Rated output current: 3.26 x 3
• Nominal output voltage / range: 230 V/AC/400 V/AC, 3W+N+PE
• Rated frequency / range (Hz): 50/45-55 or 60/55-65
• Power factor (adjustable): >0.99 standard 0.8 leading … 0.8 lagging
• Distortion factor: <3%
• Maximum units per 10 AWG strand2: 9
• Maximum units per 12 AWG strand2: 6
• CEC peak efficiency: 96.5 %
• MPPT nominal efficiency: 99.8 %
• Power consumption at night (mW): <50
• Ambient temperature range: -40~+65°C
• Dimensions (WxHxD): 330 x 250 x 37 mm
• Weight: 6 kg (including 0.6 m AC cable)
• Housing classification: IP67

Required HMT accessories

• You need a T-junction with cable for each HMT microinverter.
• At least one end cap and one release aid are required for each HMT microinverter system (from one inverter).
• A disconnection aid can also be ordered as an option.
