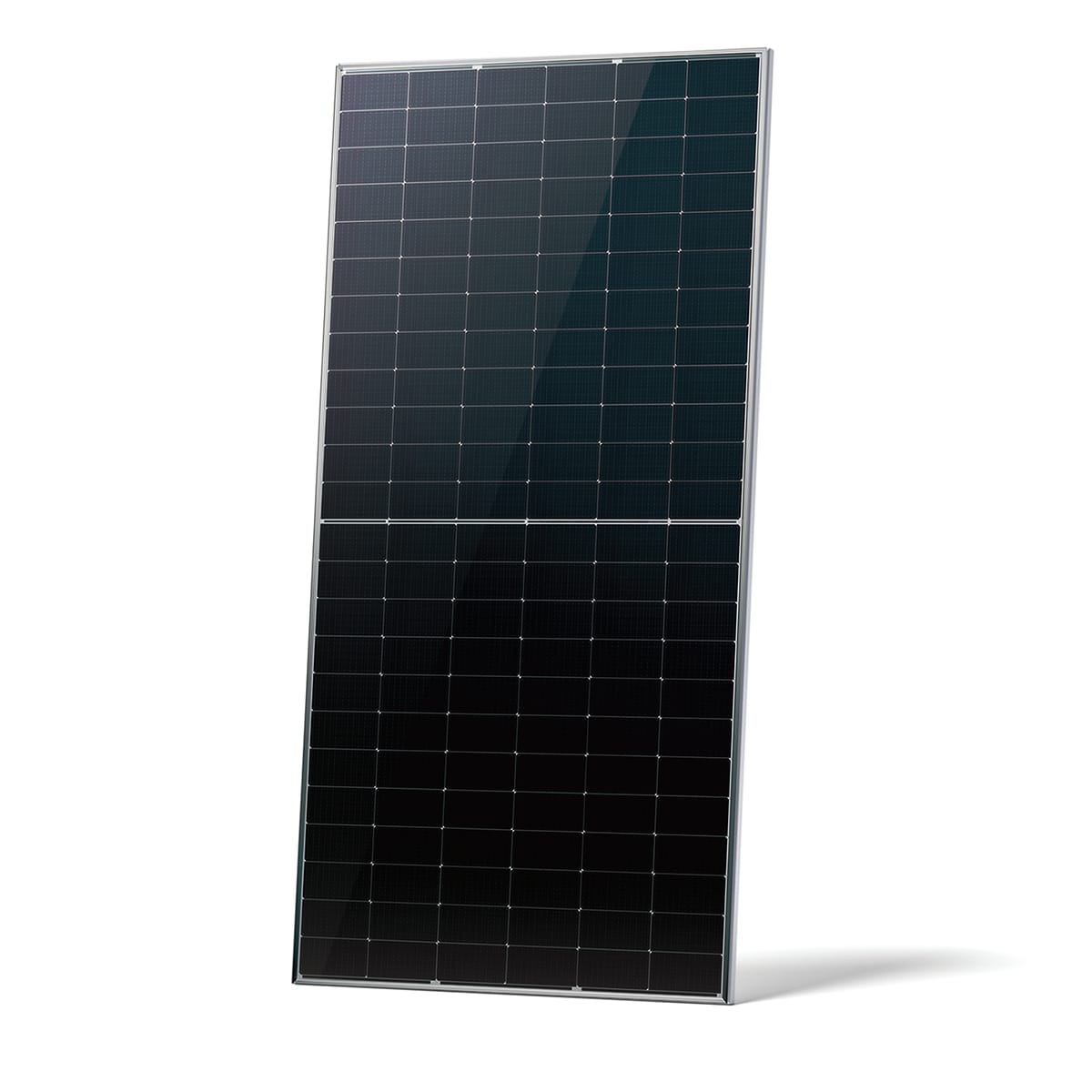

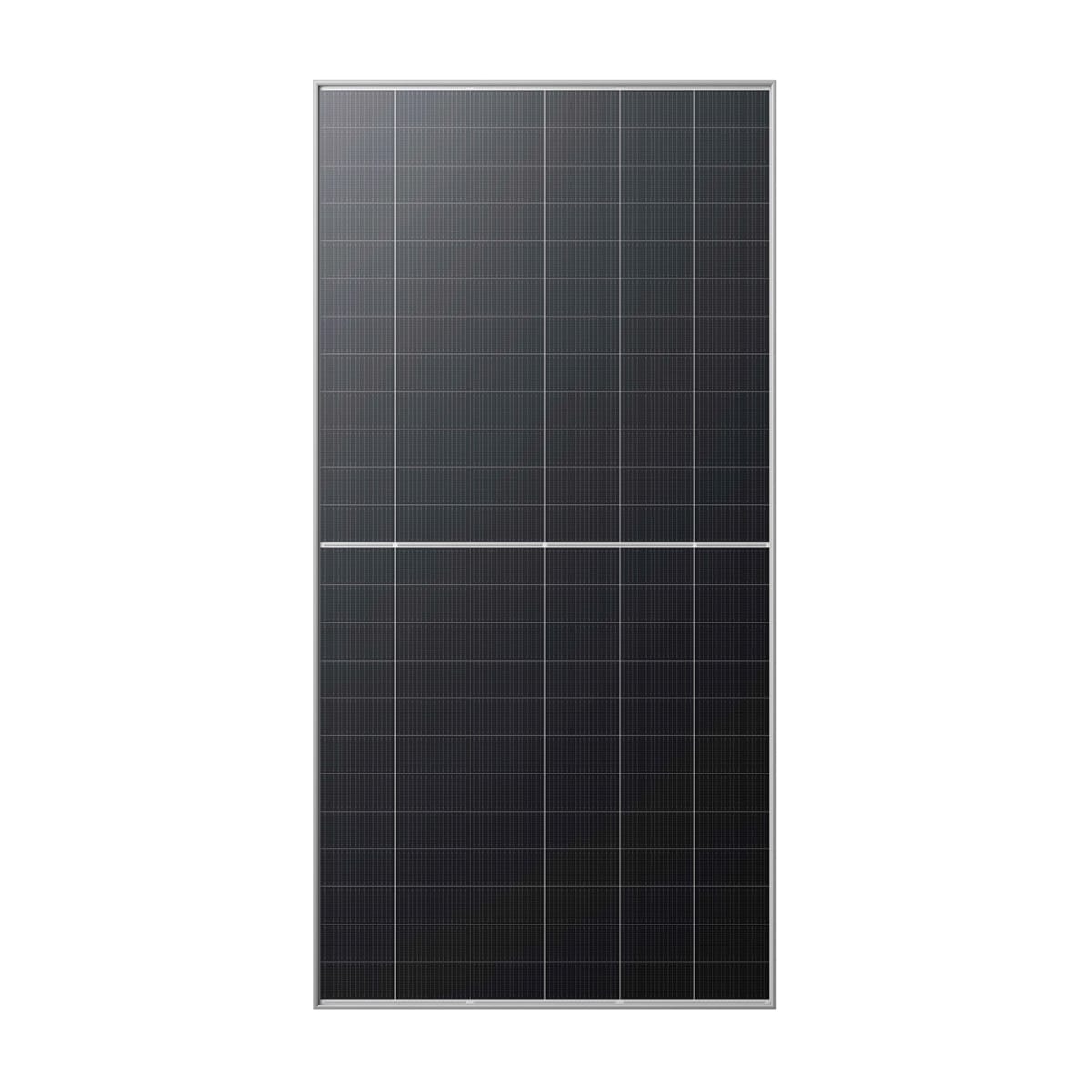

Jinko Solar Panels Tiger Neo 72HL4-(V) 580-605W N-Type Mono-facial 144 Cells Monocrystalline PV Module For On-Grid Solar Power System
Jinko Solar’s solar panels are high-efficiency solution using monocrystalline N-type (182mm M10 cell) technology. With an excellent Anti-PID performance guarantee (according to IEC 62804 standard) thanks to exhaustive control of materials and optimized production processes, this panel is highly resistant to degradation and maintains optimal performance over time. In addition, it has a degradation in the first year of less than 1% (no initial degradation by LID or LETID) and an annual degradation over a period of 30 years of less than 0.4%, which guarantees its long-term durability and efficiency.
Key features
SMBB technology: The solar panel features Smart Multi-Busbar technology, which enhances light trapping and current collection, leading to improved module power output and reliability.
Hot 3.0 technology: The N-type module with Hot 3.0 technology offers superior reliability and lower Light Induced Degradation (LID) and Light and Elevated Temperature Induced Degradation (LETID).
PID resistance: The panel has excellent Anti-Potential Induced Degradation (PID) performance, thanks to an optimised mass-production process and materials control.
Enhanced mechanical load: The solar panels are certified to withstand wind loads of 2400 Pascal and snow loads of 5400 Pascal, ensuring durability in harsh conditions.
Durability against extreme conditions: The panel exhibits high resistance to salt mist and ammonia, making it suitable for challenging environmental conditions.
Jinko Solar, a global leader in solar technology, has designed the Tiger Neo N-type 72HL4-(V) 605W Mono-Facial Module with advanced technology and robust construction. The solar panels SMBB technology and Hot 3.0 technology reflect Jinko’s commitment to delivering innovative and reliable solar solutions for diverse applications.
Type | Monocrystalline | |||||
Model No. | 580W | 585W | 590W | 595W | 600W | 605W |
Warranty | ||||||
Product Warranty | 12 Years | |||||
Power Warranty | 30 Years of 84.7% Output Power | |||||
Electrical Data at STC | ||||||
Maximum Power (Pmax) | 580 Wp | 585 Wp | 590 Wp | 595 Wp | 600 Wp | 605 Wp |
Voltage at Maximum Power (Vmpp) | 43.35 V | 43.53 V | 43.71 V | 43.88 V | 44.06 V | 44.23 V |
Current at Maximum Power (Impp) | 13.38 A | 13.44 A | 13.5 A | 13.56 A | 13.62 A | 13.68 A |
Open Circuit Voltage (Voc) | 52.31 V | 52.47 V | 52.63 V | 52.79 V | 52.95 V | 53.11 V |
Short Circuit Current (Isc) | 14.01 A | 14.07 A | 14.13 A | 14.19 A | 14.25 A | 14.31 A |
Panel Efficiency | 22.45% | 22.65% | 22.84% | 23.03% | 23.23% | 23.42% |
Power Tolerance (Positive) | 3% | 3% | 3% | 3% | 3% | 3% |
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
Thermal Ratings | ||||||
Operating Temperature Range | -40~70 °C | |||||
Temperature Coefficient of Pmax | -0.29 %/°C | |||||
Temperature Coefficient of Voc | -0.25 %/°C | |||||
Temperature Coefficient of Isc | 0.045 %/°C | |||||
Maximum Ratings | ||||||
Maximum System Voltage | 1500 V | |||||
Series Fuse Rating | 25 A | |||||
Material Data | ||||||
Panel Dimension (H/W/D) | 2278x1134x35 mm | |||||
Weight | 27 kg | |||||
Cell Number | 144 | |||||
Glass Type | Anti-reflection Coating, Tempered | |||||
Glass Thickness | 3.2 mm | |||||
Frame Type | Anodized Aluminium | |||||
Junction Box Protection Class | IP 68 | |||||
Connector Type | MC4 | |||||
Cable Crossection | 4 mm2 |
