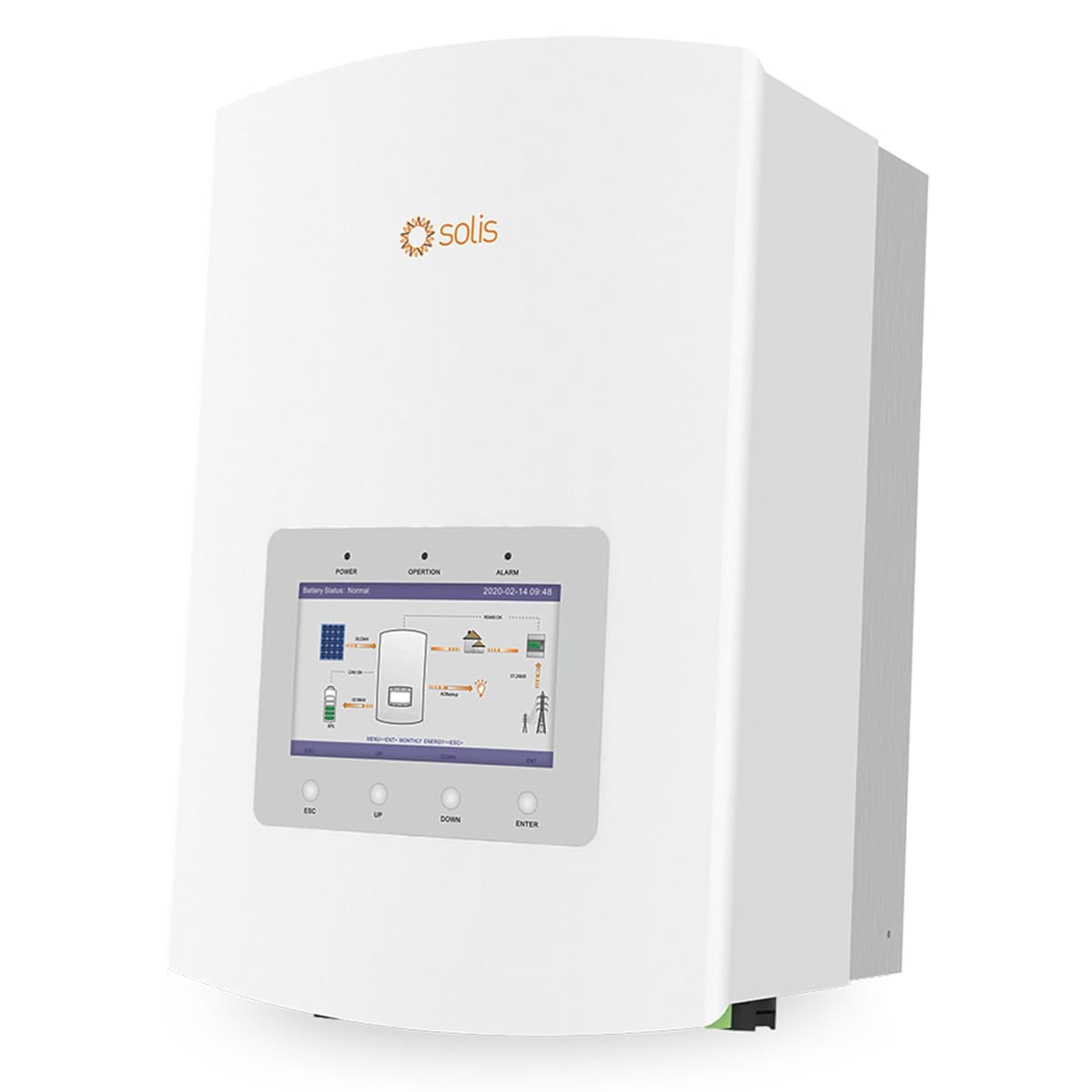

Solis Hybrid Solar Inverter RHI-5K-48ES-5G 5kW 230V Single Phase Solution For Residential Solar Energy System Compatible Low Voltage Lithium/Lead-Acid Battery
$1,420.00
This Solis RHI-5K-48ES-5G-Dc Hybrid Solar Inverter offers a powerful combination of 5KW of PV output and 48V of battery storage, with a 5G communications feature enabling you to access information and make adjustments remotely. With this state-of-the-art system, you get the latest in solar-battery storage technology. Enjoy reliable power production and efficient energy usage.
Solis Hybrid Solar Inverter RHI-5K-48ES-5G 5kW 230V Single Phase Solution For Residential Solar Energy System Compatible Low Voltage Lithium/Lead-Acid Battery
Solis energy storage Hybrid Solar inverter is a good choice for on/ off-grid integrated storage solutions
1. Higher incomes: select the electricity consumption mode in real time according to the market price;
2. High independence: can be operated out of the power grid;
3. Higher efficiency: International leading brand components provide higher efficiency;
4. Perfect switch: it’s less than 20ms from the grid
Hybrid Energy Storage Inverter
Single Phase Low Voltage Hybrid solar inverter, Compatible with lithium & lead-acid batteries, increased more choice in different markets
Features:
▶ Uninterrupted power supply, 20ms reaction
▶ 5kW backup power to support more important loads
▶ Multiple working modes to make maximize self-consumption, increase benefit
▶ Higher charge-discharge efficiency, improving the economic benefits
▶ AFCI protection, proactively reduces fire risk
▶ Fanless design, long lifespan
▶ Compatible with lithium & lead-acid batteries, increased more choice in different markets
▶ Intelligent EMS function, improving battery’s reliability
▶ With high-frequency isolation technology, making system safer and long lifespan
▶ 24-hour fully intelligent energy management, Real-time grasp of PV plant status
▶ Remotely control & upgrade function, making digital power plant maintenance at your fingertips
| Model No. | RHI-3K-48ES-5G | RHI-3.6K-48ES-5G | RHI-4.6K-48ES-5G | RHI-5K-48ES-5G | RHI-6K-48ES-5G |
| Input Data(DC) | |||||
| Max. DC Power | 7 kW | 7 kW | 8 kW | 8 kW | 8 kW |
| Max. DC Voltage | 600 V | 600 V | 600 V | 600 V | 600 V |
| Rated DC Voltage | 330 V | 330 V | 330 V | 330 V | 330 V |
| Min. DC Voltage to Start Feed In | 120 V | 120 V | 120 V | 120 V | 120 V |
| Max. DC Current | 11 A | 11 A | 11 A | 11 A | 11 A |
| MPP(T) Voltage Range | 90~520 V | 90~520 V | 90~520 V | 90~520 V | 90~520 V |
| No of MPP Trackers | 2 | 2 | 2 | 2 | 2 |
| DC Inputs | 2 | 2 | 2 | 2 | 2 |
| Connectors | MC4 | MC4 | MC4 | MC4 | MC4 |
| Output Data (AC) | |||||
| Max. AC Power | 4 kW | 4 kW | 6 kW | 6 kW | 6 kW |
| Max. AC Current | 15.7 A | 17.3 A | 23 A | 23.9 A | 26.1 A |
| Rated AC Current | 13 A | 13 A | 22 A | 22 A | 22 A |
| Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
| Distortion (THD) | 2% | 2% | 2% | 2% | 2% |
| Max. Efficiency | 97.50% | 97.50% | 97.50% | 97.50% | 97.50% |
| Euro Efficiency | 96.80% | 96.80% | 96.80% | 96.80% | 96.80% |
| General Data | |||||
| Dimensions (H/W/D) | 505x333x249 mm | 505x333x249 mm | 505x333x249 mm | 505x333x249 mm | 505x333x249 mm |
| Weight | 17 kg | 17 kg | 17 kg | 17 kg | 17 kg |
| Operating Temperature | -25 ~ +60 ℃ | ||||
| Protection Class | IP65 | ||||
| Cooling | Natural | ||||
| Max. Altitude | 2000 m | ||||
| Interface | RS 485, WLAN | ||||
| Display | LCD | ||||
| Protection Features | |||||
| Protection Features | Overvoltage Protection, Reverse Polarity Protection, Ground Fault Monitoring | ||||
RHI-(3-6)K-48ES-5G series inverter is energy storage hybrid solar inverter combines the advantages of grid tied inverters and off-grid inverters. It can not only feedback surplus electricity to public grid to get margin, but can also be used in conjunction with solar batteries to maximize the power generated by solar panels. utilization.
It can be used as an off grid solar energy storage system.
You can freely set the charging and discharging time and get margin from the public grid company based on the peak-valley electricity price difference.
WiFi and GPRS real time monitoring by Cellphone APP or PC.
| Weight | 18 kg |
|---|---|
| Dimensions | 52 × 40 × 30 cm |
| Brand | |
| Battery Type |
Lead-acid ,Lithium-ion |
| Max. Charging Current(A) |
100 |
| Battery Voltage Range(V) |
42-58 |
| Max PV Input Power(W) |
8000 |
| Max PV Input Voltage(V) |
600 |
| MPPT Voltage Range(V) |
90-520 |
| No. Of MPPT |
2/1+1 |
| Number of battery input |
1 |
| Rated AC Input/Output Active Power(W) |
5000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
Solis is a leading global manufacturer of solar inverters and energy storage solutions. They offer a wide range of inverter products for residential, commercial, and utility-scale solar applications.
Some key things to know about Solis inverters:
Product Overview:
Solis offers both string inverters and microinverters/power optimizers.
Their inverter models range from small single-phase units for residential use to large 3-phase central inverters for utility-scale solar farms.
Solis has a strong focus on reliability, efficiency, and advanced grid support features.
Key Features:
High conversion efficiency, often exceeding 98% peak efficiency
Dual MPPT inputs for flexible system design
Integrated DC and AC surge protection
Advanced grid support functions like volt/var control, voltage ride-through
Remote monitoring and control capabilities
Modular and scalable design options
Applications:
Residential rooftop solar
Commercial and industrial solar installations
Ground-mounted utility-scale solar power plants
Hybrid solar + energy storage systems
Warranty:
Solis offers standard 5-year warranties on their inverters
Extended warranty options up to 20 or 25 years are available
