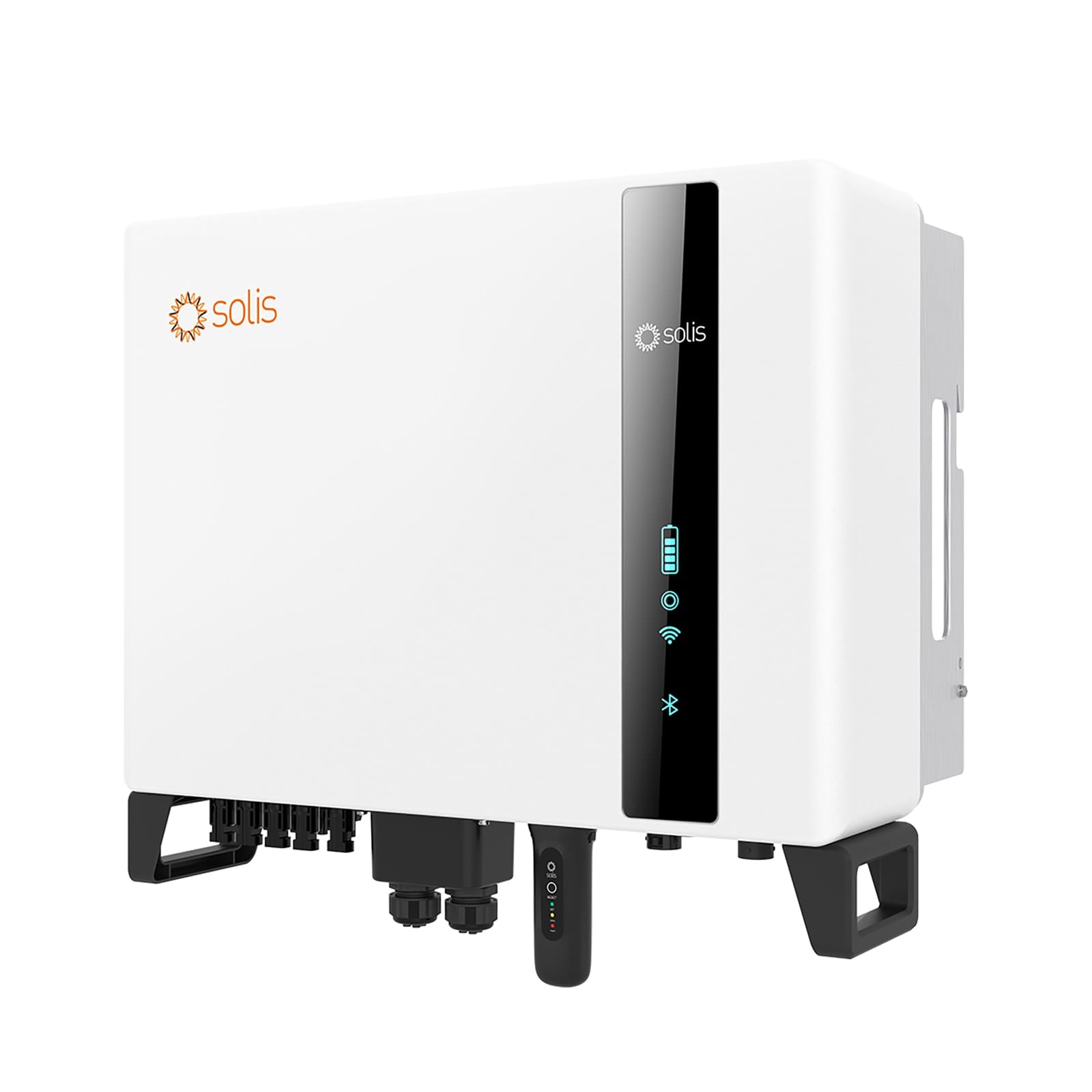

Solis Hybrid Solar Inverter S6-EH3P10K-H-EU 10kW 400V Three Phase Solution For Residential Solar Energy System Compatible 120-600V Lithium Battery

$1,650.00

The Solis Hybrid solar inverter offers flexibility for module design with its 3 MPPT. Its high input current makes it compatible with modern high-performance modules. Thanks to the integrated switching device, selected loads can still be supplied with emergency power in the event of a grid failure.

Solis Hybrid Solar Inverter S6-EH3P10K-H-EU 10kW 400V Three Phase Solution For Residential Solar Energy System Compatible 120-600V Lithium Battery

S6 Hybrid Solar inverter that can connect solar panels and a high voltage battery. This hybrid solar inverter will capture the solar during the day and provide power to your home loads and charge the battery. At night it will use the battery to satisfy your home loads. This will prevent you from using any power from the grid and save you from ever paying them a cent! Fight back with the new S6 solar hybrid inverter from Solis.

Three Phase High Voltage Energy Storage Hybrid Solar Inverter

Leading Features

  • Automatic UPS switching
  • Supports Peak Shaving Mode
  • Integrated 2/3/4 MPPTs for multiple array orientations
  • Industry leading 50A/10kW max charge/discharge rating
  • Compatible with multiple brands of lithium battery models
  • Pre-made Battery, Meter and CAN cabling to reduce installation time
  • Increased battery protection and operation features to extend battery life
  • Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port

The Solis S6 3-Phase High-Voltage Hybrid Solar Inverter with 8 kW AC Output

The Solis Hybrid solar inverter offers flexibility for module design with its 3 MPPT. Its high input current makes it compatible with modern high-performance modules. Thanks to the integrated switching device, selected loads can still be supplied with emergency power in the event of a grid failure.

Product advantages

  • Integrated changeover device for backup power
  • Great flexibility with 3 MPPT
  • Parallel connection of up to 10 hybrid inverters via RS485
  • High input current of 16 A
  • AFCI function integrated

Product Features S6 3P-Hybrid Solar Inverter – 10 kW

  • Mains connection: 3-phase
  • AC output: 10 kVA
  • 10.0 kW emergency power output via separate output
  • MPP tracker: 4 with 1 string output each
  • Max. short circuit current per MPPT: 24 A
  • Max. input current: 16 A
  • Communcations: CAN, RS485, Wi-Fi
  • Incl. 1 m battery cable with MC4 connectors
  • 3-phase smart meter with 3 current transformers included
  • WiFi module is included in the scope of delivery
  • Protection category: IP66
  • Dimensions: 496 x 596 x 230 mm (HxWxD)
  • Weight: 31.8 kg
  • Warranty: 5 years
Models3K4K5K6K8K10K
Recommended max. PV array size6 kW8 kW10 kW12 kW16 kW20 kW
Max. usable PV input power4.8 kW6.4 kW8 kW9.6 kW12.8 kW16 kW
Max. input voltage1000 V
Rated voltage600 V
Start-up voltage160 V
MPPT voltage range200 – 850 V
Max. input current16 A / 16 A16 A / 16 A / 16 A4 × 16 A
Max. short circuit current24 A / 24 A24 A / 24 A / 24 A4 × 24 A
MPPT number / Max. input strings number2 / 23 / 34 / 4
Battery
Battery typeLi-ion
Battery voltage range120 – 600 V
Max. charge / discharge power3 kW4 kW5 kW6 kW8 kW10 kW
Max. charge / discharge current25 A50 A
CommunicationCAN / RS485
Rated output power3 kW4 kW5 kW6 kW8 kW10 kW
Max. apparent output power3 kVA4 kVA5 kVA6 kVA8 kVA10 kVA
Rated grid voltage3/N/PE, 380 V / 400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current4.6 A / 4.3 A6.1 A / 5.8 A7.6 A / 7.2 A9.1 A / 8.7 A12.2 A / 11.5 A15.2 A / 14.4 A
Max. output current4.6 A / 4.3 A6.1 A / 5.8 A7.6 A / 7.2 A9.1 A / 8.7 A12.2 A / 11.5 A15.2 A / 14.4 A
Power factor> 0.99 (0.8 leading – 0.8 lagging)
THDi< 3%
Input voltage range304 – 437 V / 320 – 460 V
Max. input current6.8 A9.1 A11.4 A13.8 A18.2 A22.8 A
Rated grid frequency50 Hz / 60 Hz
Frequency range45 – 55 Hz / 55 – 65 Hz
Rated output power3 kW4 kW5 kW6 kW8 kW10 kW
Max. apparent output power4.8 kVA, 60 s6.4 kVA, 60 s8 kVA, 60 s9.6 kVA, 60 s12.8 kVA, 60 s16 kVA, 60 s
Back-up switch time< 10 ms
Rated output voltage3/N/PE, 380 V / 400 V
Rated frequency50 Hz / 60 Hz
Rated output current4.6 A / 4.3 A6.1 A / 5.8 A7.6 A / 7.2 A9.1 A / 8.7 A12.2 A / 11.5 A15.2 A / 14.4 A
THDv (@linear load)< 2%
Max. efficiency95.50%96.00%96.50%97.00%97.50%97.90%
EU efficiency95.51%96.03%96.77%97.10%97.41%97.51%
BAT charged by PV max. efficiency95.96%96.57%98.37%98.45%98.22%98.31%
BAT charged / discharged to AC max. efficiency97.04%97.29%97.32%97.34%97.50%97.50%
Protection
Anti-islanding protectionYes
Output over current protectionYes
Short circuit protectionYes
Integrated AFCI 2.0Optional

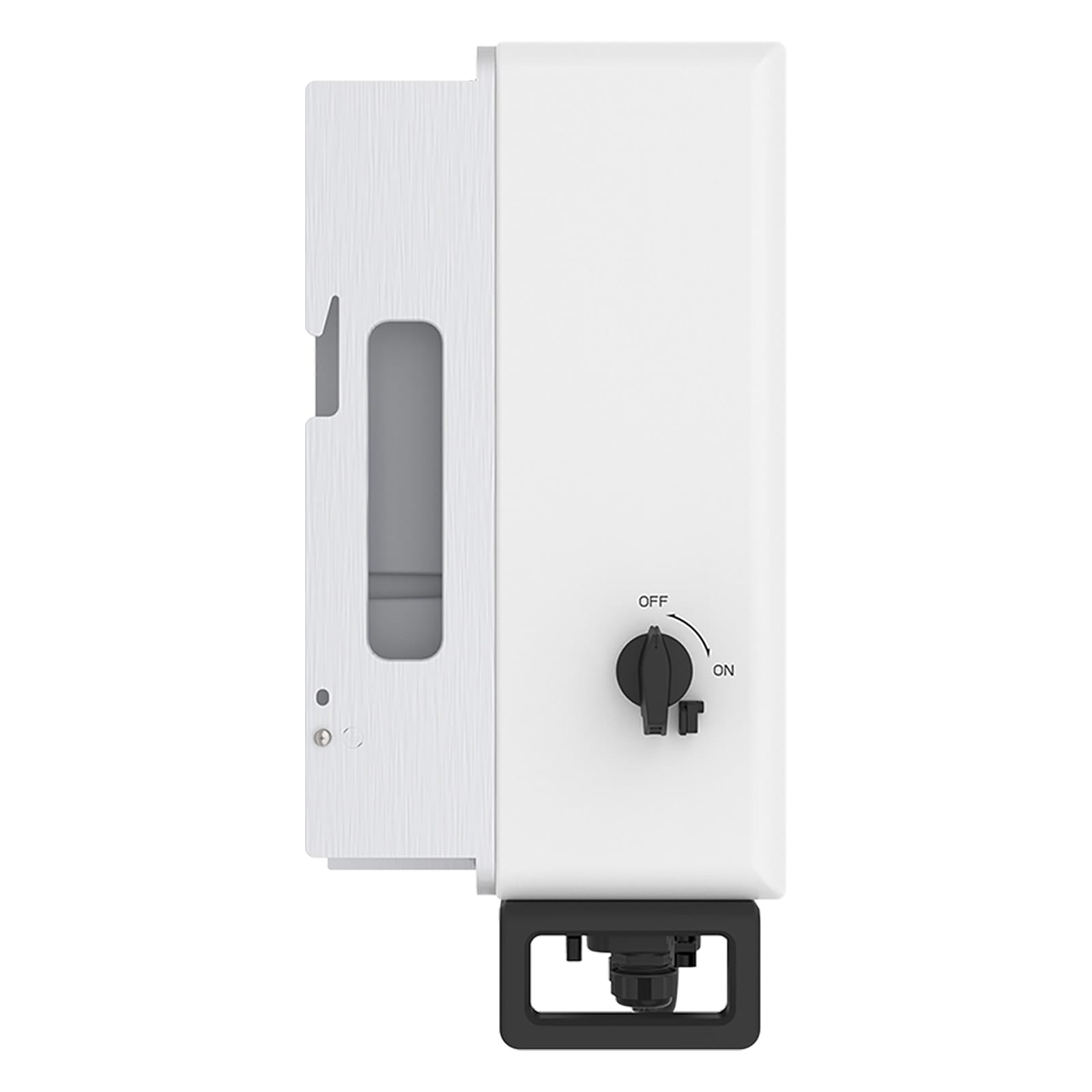

Integrated DC switchYes
DC reverse-polarity protectionYes
PV over voltage protectionYes
Battery reverse protectionYes
General Data
Max. allowable phase imbalance (grid & back-up)100%
Max. power per phase (grid & back-up)50% rated power
Dimensions (W × H × D)600 × 500 × 210 mm600 × 500 × 230 mm
Weight26.4 kg27.6 kg30.2 kg
TopologyTransformerless
Self-consumption (night)< 25 W
Operating ambient temperature range-25 ~ +60°C
Relative humidity0 – 95%
Ingress protectionIP66
Noise emission (typical)< 46.9 dB(A)

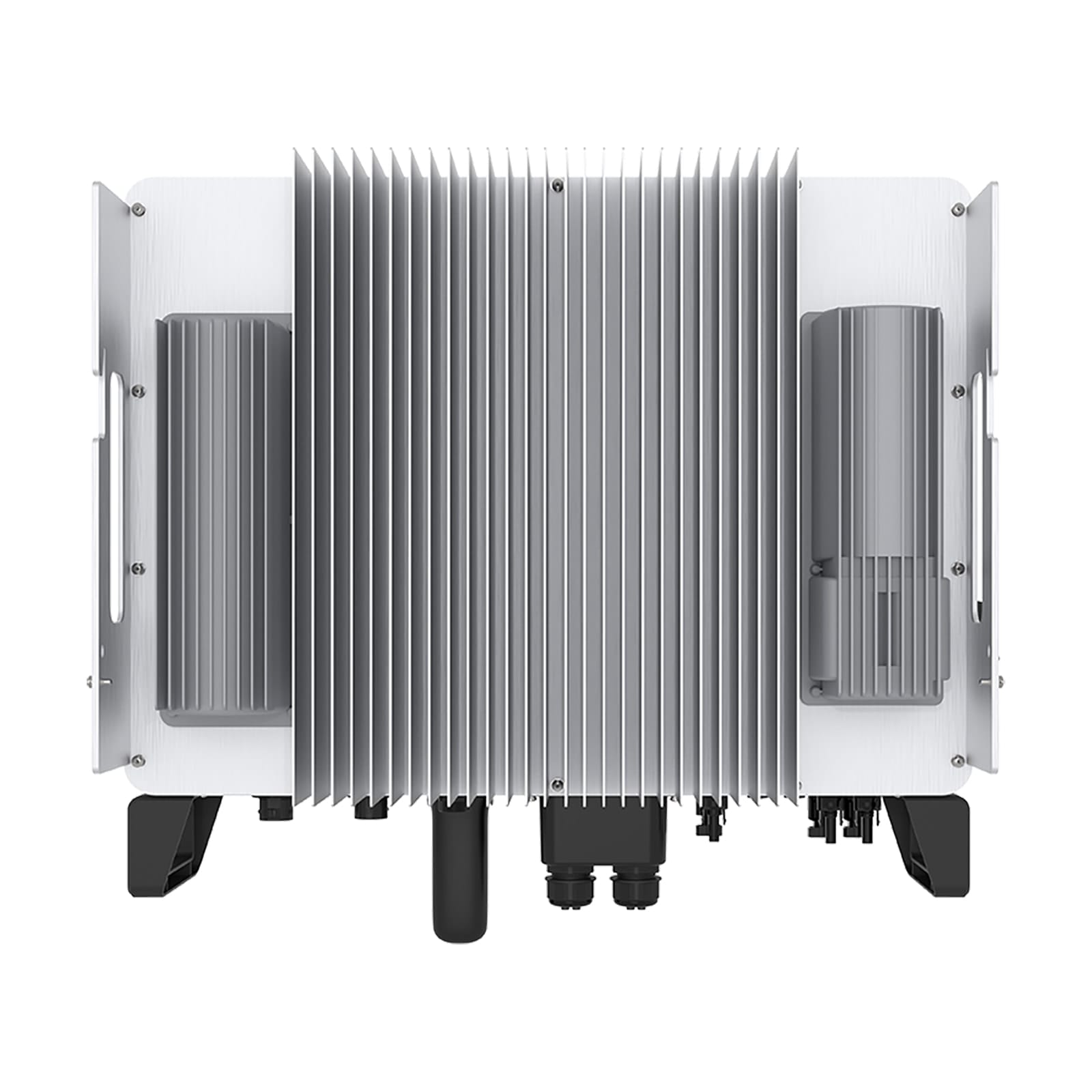

Cooling conceptNatural cooling
Max. operation altitude4000 m
Grid connection standardG98 or G99,VDE-AR-N 4105/VDEV 0124, EN 50549-1,VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/
UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Safety / EMC standardIEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3
Features

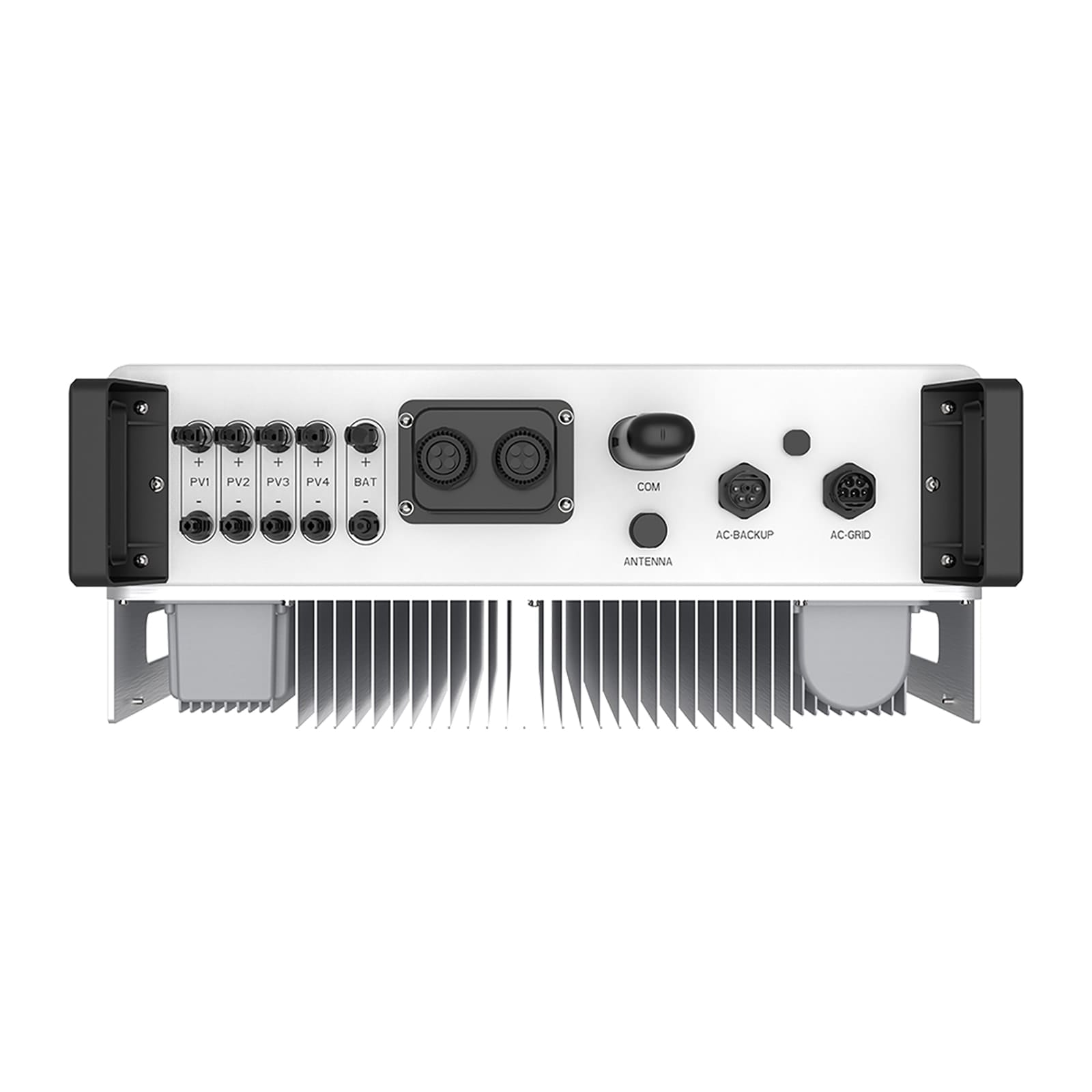

PV connectionMC4 connector
Battery connectionQuick connection plug
AC connectionQuick connection plug
DisplayLED indicator & Bluetooth + APP
Communication                                                                                                  CAN, RS485, Optional: Wi-Fi, Cellular, LAN

Weight 32 kg
Dimensions 80 × 60 × 40 cm
Brand

Battery Type

Lithium-ion

Max. Charging Current(A)

50

Battery Voltage Range(V)

120-600

Max PV Input Power(W)

20K

Max PV Input Voltage(V)

1000

MPPT Voltage Range(V)

200-850

No. Of MPPT

4

Number of battery input

1

Rated AC Input/Output Active Power(W)

10000

Rated Input/Output Grid Frequency/Range

50Hz/45Hz-55Hz

,

60Hz/55Hz-65Hz

Rated Input/Output Voltage/Range(V)

230/400V
