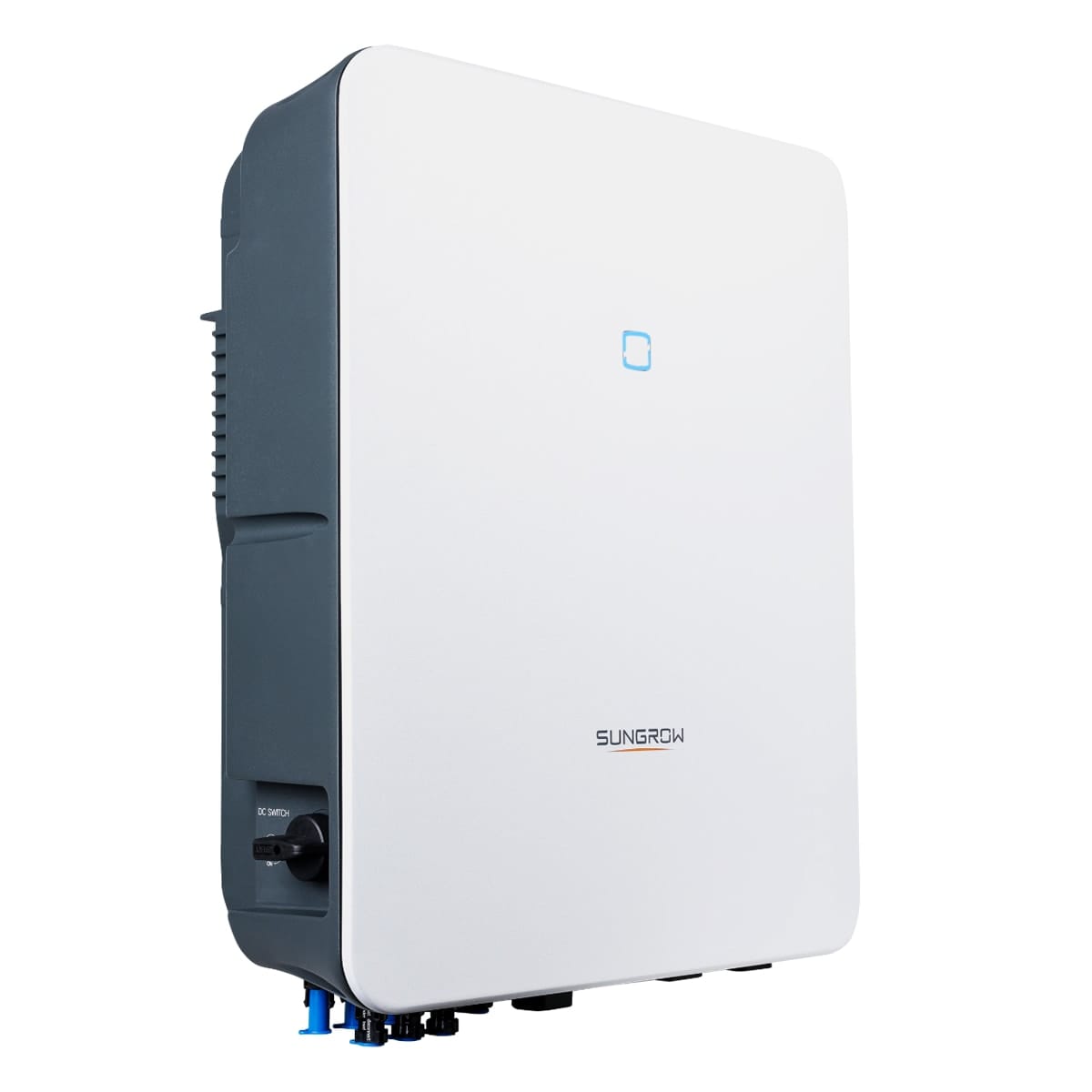

Sungrow Hybrid Solar Inverter SH5.0RT 5kW 400V Three Phase Solution For Residential Solar Energy System Compatible High Voltage Lithium Battery

$1,600.00

The Sungrow SH5.0/10RT is a powerful and versatile hybrid solar inverter for Australian/EU homes seeking advanced energy management and increased solar power use. It is a compelling option if you have a three-phase connection, high energy consumption, or desire backup power and future battery storage.

Sungrow Hybrid Solar Inverter SH5.0RT 5kW 400V Three Phase Solution For Residential Solar Energy System Compatible High Voltage Lithium Battery

The Sungrow SH5.0/10RT is a powerful and versatile hybrid solar inverter for Australian/EU homes seeking advanced energy management and increased solar power use. It is a compelling option if you have a three-phase connection, high energy consumption, or desire backup power and future battery storage.

Key features of the Sungrow SH5.0/10RT Hybrid Solar Inverter

  • Hybrid functionality: The SH5.0/10RT integrates solar power generation, battery storage, and grid connection seamlessly. This allows you to maximise self-consumption of solar energy, store excess for later use, and reduce reliance on the grid.
  • High power output: With a 5kW DC to AC power conversion rating, the SH5.0/10RT is suitable for medium-sized solar panel systems. Notably, it boasts a 10kW surge capability, handling temporary spikes in solar production.
  • Three-phase compatibility: Unlike single-phase inverters, the SH5.0/10RT is compatible with three-phase power connections, common in larger Australian homes. This allows for better power distribution and handling of higher energy loads.
  • Battery compatibility: The inverter is designed to work with compatible high-voltage lithium-ion batteries. This enables you to store excess solar energy during the day and use it at night or during grid outages.
  • High efficiency: The SH5.0/10RT boasts a maximum efficiency of over 98%, ensuring you get the most out of your solar energy production.
  • Integrated energy management: The inverter features built-in energy management capabilities. You can monitor and control energy flows, set charging and discharging schedules for your battery, and optimise energy use based on your needs.
  • Grid support and backup: The hybrid solar inverter supports grid-tie operation, allowing you to feed excess energy back to the grid and potentially earn credits. It also provides backup power during outages, keeping essential appliances running.
  • Monitoring and communication: The SH5.0/10RT has Wi-Fi connectivity for remote monitoring via Sungrow’s iSolarCloud platform. You can access real-time and historical data on your system’s performance anywhere.

Specifications of the Sungrow SH5.0/10RT Hybrid Solar Inverter

  • Model options: SH5.0RT (5 kW) and SH10RT (10 kW)
  • Maximum efficiency: 98.4%
  • Number of independent MPP trackers: 2
  • Degree of protection: IP65
  • Dimensions (W*H*D): 460 mm * 540 mm * 170 mm
  • Weight: 27 kg

Sungrow SH5.0/10RT Hybrid Solar Inverter warranty
Sungrow offers a competitive 10-year standard warranty on the SH5.0/10RT inverter, providing peace of mind for your investment.

Applications for the Sungrow SH5.0/10RT Hybrid Solar Inverter
The SH5.0/10RT is well-suited for the following applications:

  • Three-phase residential solar systems with battery storage: Ideal for homeowners wanting to maximise self-consumption, reduce grid dependence, and enjoy backup power during outages.
  • Homes with high daytime energy use: The hybrid solar inverter’s ability to store solar energy for later use benefits households with high daytime consumption.
  • Off-grid or remote applications: Paired with sufficient battery storage, the SH5.0/10RT can contribute to a more energy-independent home.

Advantage of the Sungrow SH5.0/10RT Hybrid Solar Inverter

  • Strong warranty: Sungrow offers a standard 10-year warranty in Australia, providing peace of mind for your investment.
  • High power handling: With a 200% DC overloading capability, the SH5.0/10RT can handle more solar panels than its rated capacity, maximising solar production.
  • Flexible system design: This hybrid solar inverter allows for a legacy grid-tied solar connection on one side and additional solar power to run appliances during the day directly on the other side, increasing efficiency.
  • Advanced monitoring: The included Wi-Fi dongle and the new iSolarCloud platform offer easy and comprehensive system monitoring from your phone or computer.
  • Backup power: During outages, the SH5.0/10RT can seamlessly switch to battery backup, keeping your essential appliances running.
  • Wide DC voltage range: The hybrid solar inverter’s wide operating range allows it to work effectively with various solar panel configurations.
  • Battery dependence: Maximizing the self-consumption and backup capabilities requires purchasing compatible Sungrow batteries, adding to the overall system cost.
  • Higher initial cost: Compared to grid-tie inverters, hybrid solar inverters generally have a higher upfront cost.

This Hybrid Solar inverter is ideal for Australian/EU households in the following situations:

  • Three-phase electrical connection: If your home has a three-phase connection, the SH5.0/10RT can efficiently handle your higher power needs.
  • High solar energy users: If your household consumes a lot of electricity, especially during peak hours, the ability to store excess solar energy and use it later can significantly reduce grid dependence and electricity bills.
  • A desire for backup power: The SH5.0/10RT provides peace of mind during grid outages by keeping essential appliances operational.
  • Planning for future battery storage: Even if you don’t currently have a battery, the SH5.0/10RT’s compatibility allows for easy integration in the future.

Things to consider:

  • Ensure your solar panel system size matches the inverter’s DC input capacity.
  • Verify compatibility with your chosen battery storage solution.
  • Consider if your home has a three-phase power connection.
  • Consult a qualified solar installer to determine if the SH5.0/10RT fits your needs.
Type designationSH5.0RTSH6.0RTSH8.0RTSH10RT
PV Input
Recommended max. PV input power7500 W9000 W12000 W15000 W
Max. PV input voltage1000 V
Startup voltage180 V250 V250 V250 V
Rated input voltage600 V
MPP voltage range150 V – 950 V200 V – 950 V200 V – 950 V200 V – 950 V
MPP voltage range for nominal power

210 V – 850 V

250 V – 850 V330 V – 850 V280 V – 850 V
No. of MPPTs2
Max. number of PV strings per MPPT

1/1

1/1

1/1

1/1

Max. PV input current

25A

25A25A

37.5A

(12.5A/12.5A)

(12.5A/12.5A)

(12.5A/12.5A)

(12.5A/25A)

Max. current for input connector

30 A

Short-circuit current of PV input

32A

32A32A

48A

(16A/16A)

(16A/16A)(16A/16A)

(16A/32A)

AC Input and Output

Max. AC input power from grid

12500 W

15000 W

18600 W

20600 W

Rated AC output power

5000 W

6000 W

8000 W

10000 W

Max. AC output power

5000 VA

6000 VA

8000 VA

10000 VA

Rated AC output apparent power

5000 VA

6000 VA

8000 VA

10000 VA

Rated AC ouput current

7.3 A

8.7 A

11.6 A

14.5 A

Max. AC output current

7.6 A

9.1 A

12.1 A

15.2A

Rated AC voltage

3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V

AC voltage range

270 – 480V

Rated grid frequency /

50Hz / 45 – 55Hz

Grid frequency range
THD<3% (of rated power)
DC current injection<0.5% In
Power factor>0.99 / 0.8 leading to 0.8 lagging
Protection & Function
LVRTYes
Anti-islanding protectionYes
AC short circuit protectionYes
Leakage current protectionYes
DC switch (solar)No
DC fuse (battery)Yes
Overvoltage categoryIII [MAINS], II [PV] [BATTERY]
SPDDC Type II / AC Type II
Battery input reverse polarity protectionYes
Parallel operation on grid port / Max. No. of invertersMaster-slave mode / 5 * (need same inverters type)
Battery Data

Battery type

Li-ion battery

Battery voltage

150-600V

Max charge / discharge current

30A ** / 30A **

Max charge / discharge power

7500 W /

9000 W /

10600 W / 10600 W

10600 W / 10600 W

6000 W

7200 W

System Data
Max. efficiency98.00%98.20%98.40%98.40%
European efficiency97.20%97.50%97.90%97.90%
Isolation method (solar / battery)Transformerless / Transformerless
Degree of protection

IP65

Operating ambient temperature range-25 ℃ – 60 ℃
Allowable relative humidity range0% – 100%
(non-condensing)
Cooling method Natural convection
Max. operating altitude4000 m (>3000 m Derating)
Noise (Typical)

30dB (A)

Display

LED

Communication

RS485, WLAN, Ethernet, CAN, 4×DI, 1×DO

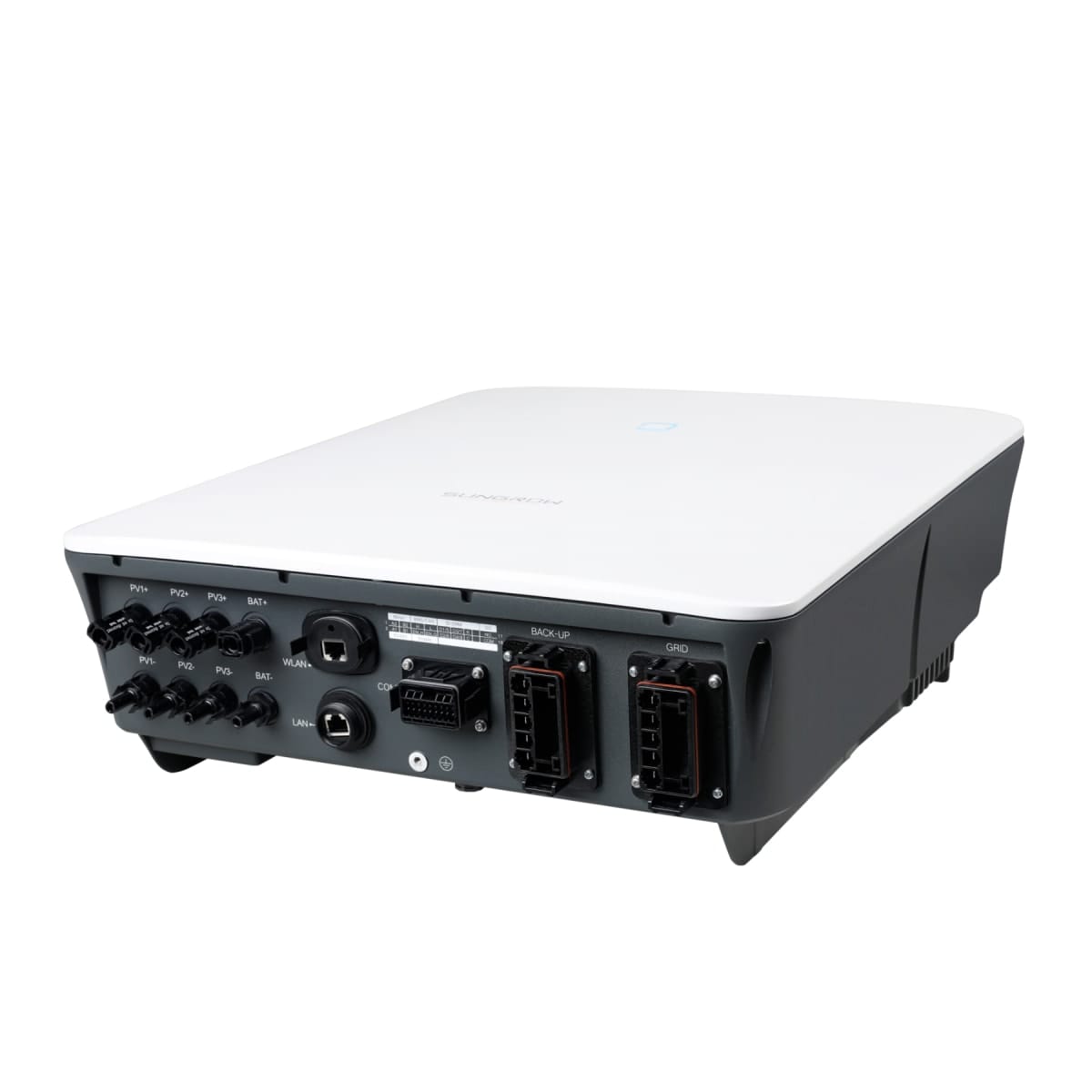

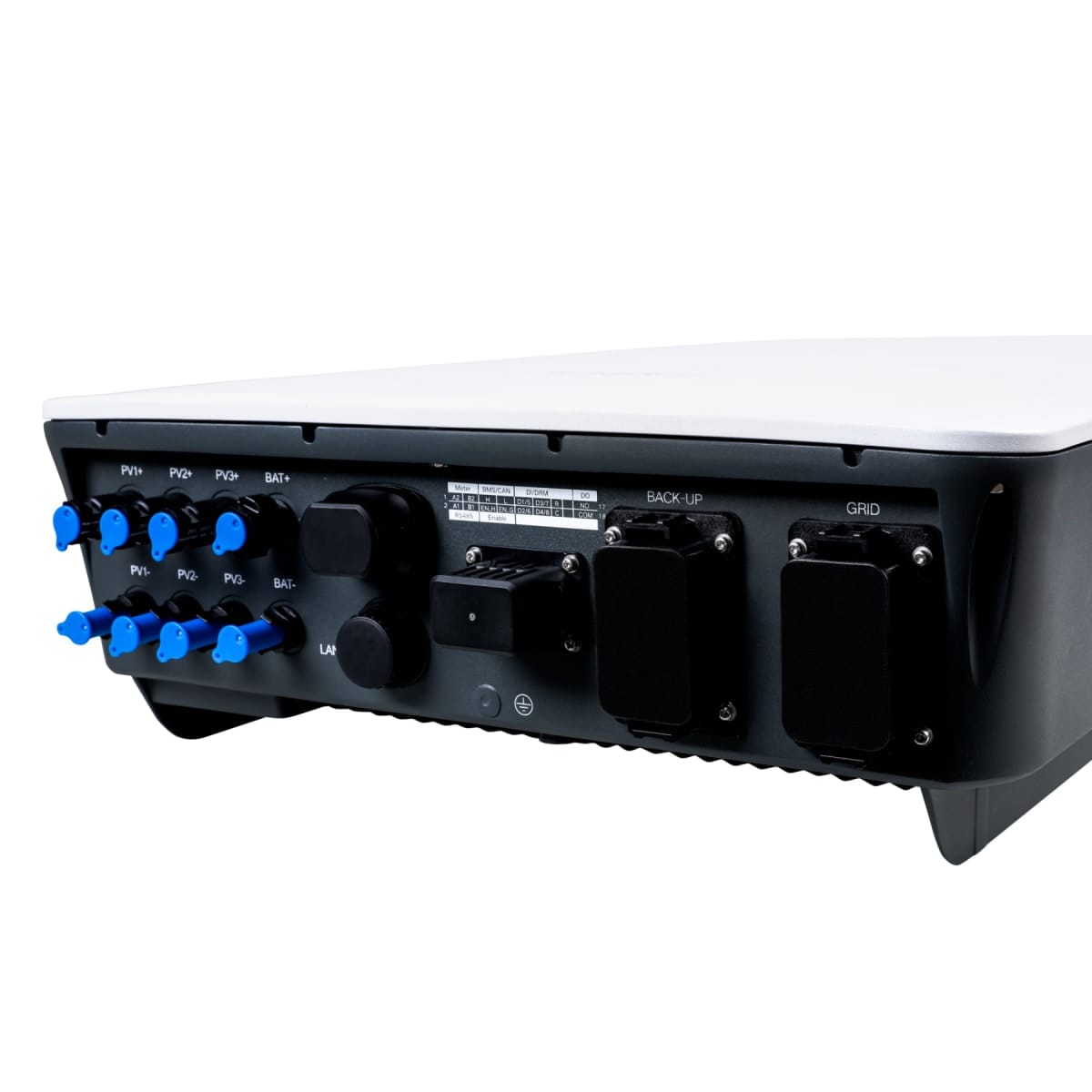

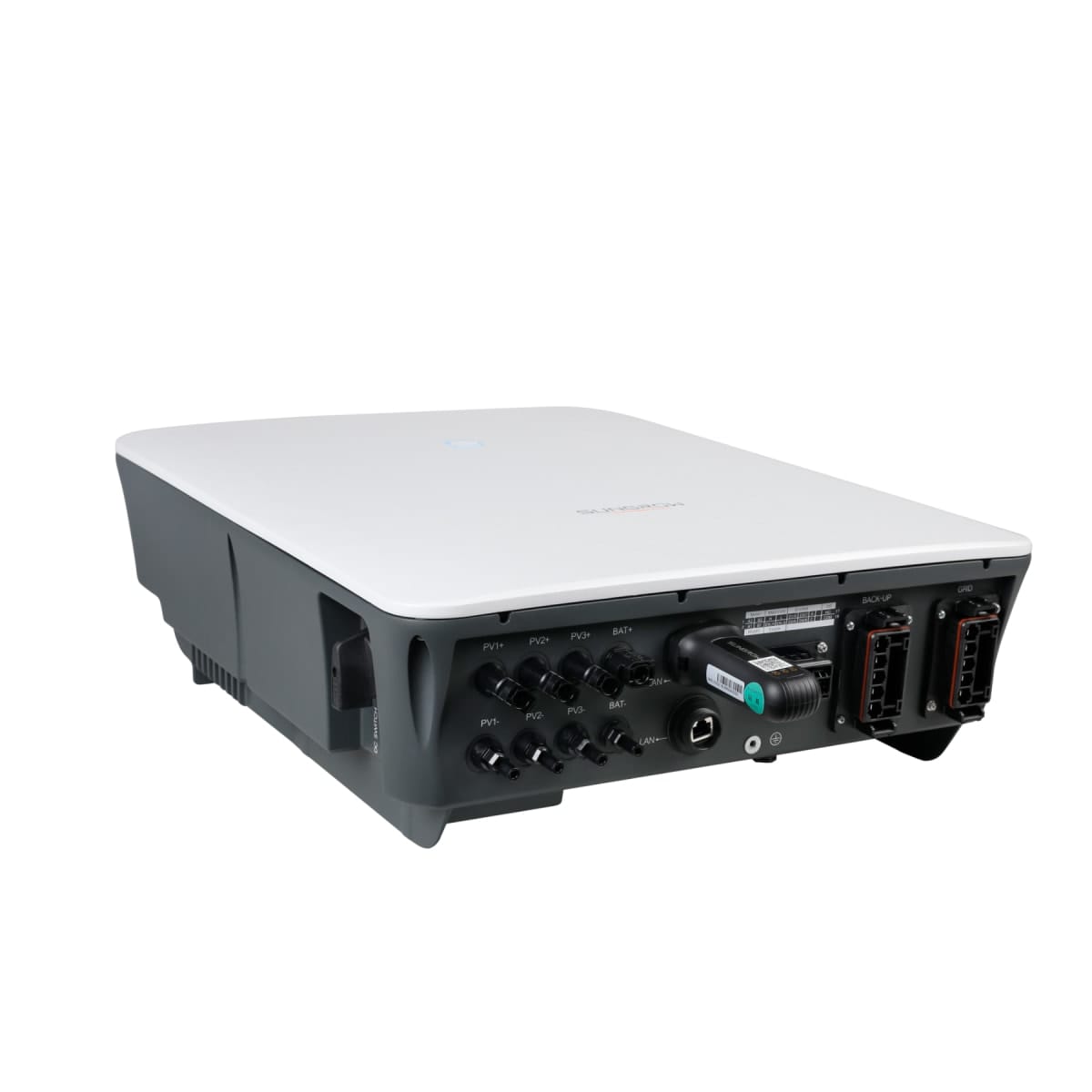

DC connection type

MC4 (PV) / Sunclix (Battery)

AC connection type

Plug and play connector

Compliance

IEC / EN 62109, IEC / EN 61000-6, EN 62477-1,

IEC 61727, IEC 62116, IEC 61683,

VDE-AR-N-4105, AS/NZS 4777.2:2020, EN50549-1, NRS 097-2-1,

TOR Generator Type A

Country of manufacture

China

Mechanical Data

Dimensions (W * H * D)

460 * 540 * 170 mm

Mounting method

Wall-mounting bracket

Weight

27 kg

Backup Data

Rated voltage3 / N / PE, 220Vac / 230Vac / 240Vac
Frequency range 50Hz / 60Hz
Total hamonic factor output voltage2%
(Linear load)
Switch time to emergency mode

<20ms

Rated output power5000 W / 5000 VA6000 W / 6000 VA8000 W / 8000 VA10000 W / 10000 VA
Peak output power ***

6000W/6000

7200W/7200

12000W/

12000W/

VA, 5min

VA, 5min

12000VA, 5min

12000VA, 5min

10000W/10000 VA, 10s

10000W/10000 VA, 10s
Rated output current for backup load 3 * 18.5 A
during on grid mode
Weight 30 kg
Dimensions 60 × 60 × 30 cm
Brand

Battery Type

Lithium-ion

Max. Charging Current(A)

30

Battery Voltage Range(V)

150-600

Max PV Input Power(W)

7500

Max PV Input Voltage(V)

1000

MPPT Voltage Range(V)

150-950

No. Of MPPT

2/1+1

Number of battery input

1

Rated AC Input/Output Active Power(W)

5000

Rated Input/Output Grid Frequency/Range

50Hz/45Hz-55Hz

,

60Hz/55Hz-65Hz

Rated Input/Output Voltage/Range(V)

230/400V
