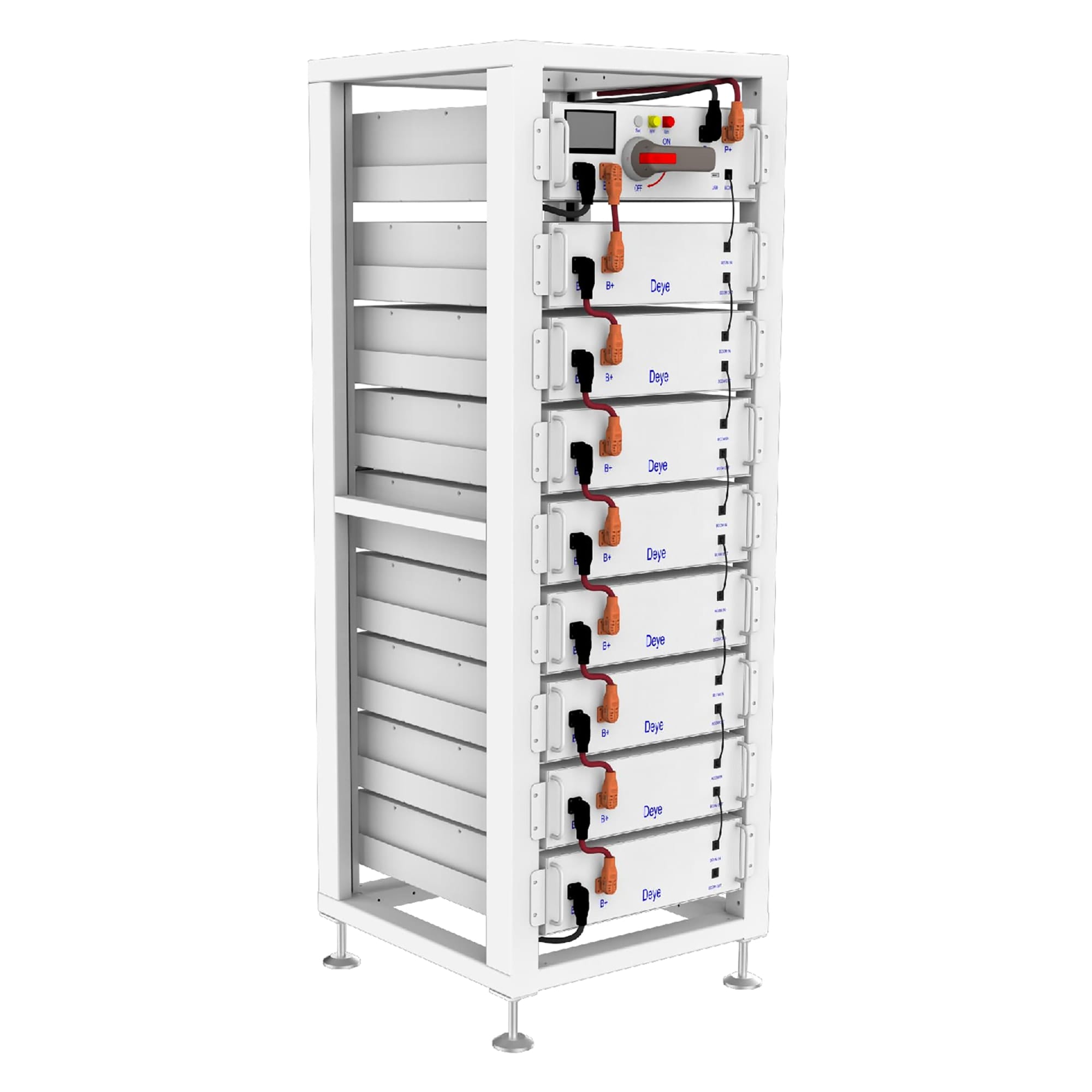

Deye ESS Battery High Voltage Series (HV) BOS-G15 15.36kWh LiFePO4 Battery Designed For Residential/Commercial Solar Energy Storage Solutions
$4,100.00
The Deye BOS-G series is a state-of-the-art LiFePO4 battery system designed to provide reliable, safe, and efficient energy storage for your home or business. With a wide range of configurations and capacities, the BOS-G series offers a versatile solution to meet your specific energy needs.
Deye ESS Battery High Voltage Series (HV) BOS-G15 15.36kWh LiFePO4 Battery Designed For Residential/Commercial Solar Energy Storage Solutions
The Deye ESS Battery BOS-G series utilizes advanced LiFePO4 cell technology, known for its superior thermal stability, high cycle life, and excellent safety profile. Each battery module has a nominal capacity of 100Ah and energy of 5.12 kWh, allowing you to scale your system to perfectly match your energy storage requirements.
With a recommended depth of discharge (DOD) of 90% and a cycle life of ≥6000 cycles at 25°C, the BOS-G series ensures maximum usable energy and long-term performance. The system also features a wide operating temperature range of -20°C to 55°C, making it suitable for various environments.
The BOS-G series comes equipped with a high-voltage box (HVB750V/100A) that enables seamless integration with your existing power system. The high-voltage box supports an operating voltage range of 120-750 Vdc and a maximum charge/discharge current of 125A, ensuring efficient power transfer and compatibility with a wide array of inverters and chargers.
Safety is a top priority with the BOS-G series. The system features multiple layers of protection, including over-voltage, under-voltage, over-current, short-circuit, and temperature monitoring. The IP20-rated enclosure provides protection against dust and debris, while the built-in status indicators keep you informed of the system’s operating status at all times.
Deye’s commitment to quality and customer satisfaction is evident in the 10-year warranty provided with the BOS-G series. With its robust design, advanced features, and exceptional performance, the Deye BOS-G LiFePO4 battery system is the ideal choice for those seeking a reliable and efficient energy storage solution.
Key Features
- Capacity: 15.36 kWh (3 battery modules in series)
- Nominal Voltage: 153.6 V
- Operating Voltage Range: 120 V to 172.8 V
- Usable Energy: 13.82 kWh
- Recommended Depth of Discharge: 90%
- Cycle Life: ≥ 6000 cycles at 25°C with 90% DOD
- Dimensions: 540 mm x 385 mm x 1050 mm
- Weight: 175 kg
- Operating Temperature: -20°C to 55°C
- IP Rating: IP20
Advantages
- Modular Design: The BOS-G15 is part of the BOS-G series, which offers a range of capacities from 15.36 kWh to 61.44 kWh by connecting 3 to 12 battery modules in series. This modular approach allows for flexible system sizing to meet specific energy storage requirements.
- Safety: The BOS-G15 utilizes LiFePO4 battery chemistry, known for its superior thermal stability and safety. The battery modules feature built-in explosion relief devices and fire protection devices for added safety.
- Efficiency: The high-voltage design of the BOS-G series enhances overall system efficiency by minimizing losses during energy conversion and transmission.
- Intelligent Battery Management System (BMS): The BMS provides comprehensive protection against over-discharge, over-charge, over-current, and extreme temperatures. It also manages the charge and discharge states while balancing the current and voltage of each cell.
- Eco-Friendly: The BOS-G15 is made from non-toxic and pollution-free materials, making it an environmentally friendly choice for energy storage.
- Versatile Installation: The compact and lightweight design of the BOS-G15 allows for easy installation in various settings, including residential and commercial applications.
Applications
The ESS Battery Deye BOS-G15 is ideal for:
- Residential Solar Energy Storage: Enhances self-consumption of solar energy and provides backup power for homes.
- Commercial Solar Energy Storage: Suitable for businesses looking to optimize energy usage and reduce reliance on the grid.
Conclusion
The Deye ESS Battery BOS-G15 is a reliable and efficient energy storage solution designed for residential and commercial solar applications. Its modular design, safety features, and eco-friendly materials make it an excellent choice for maximizing the benefits of solar energy.
| Model | BOS-G | ||
| MainParameter | |||
| Cell Chemistry | LiFePO4 | ||
| Module Energy(kWh) | 5.12 | ||
| Module Nominal Voltage(V) | 51.2 | ||
| Module Capacity(Ah) | 100 | ||
| Battery Module Qty in series.(Optional) | 3(Min) | 8(Standard USCluster) | 12(Standard EUCluster) |
| System Nominal Voltage(V) | 153.6 | 409.6 | 614.4 |
| System Operating Voltage(V) | 124.8~175.2 | 332.8~467.2 | 499.2~700 |
| System Energy(kWh) | 15.36 | 40.96 | 61.44 |
| System Usable Energy (kWh) 1 | 13.8 | 36.86 | 55.29 |
| Charge/Discharge | Recommend 50 | ||
| Current (A) | Nominal 100 | ||
| Peak Discharge (2 mins,25°C) 125 | |||
| Working Temperature(°C) | Charge: 0~55/Discharge:-20~55 | ||
| Status Indicator | Yellow: Battery HighVoltage Power On | ||
| Red: Battery SystemAlarm | |||
| Communication Port | CAN2.0/RS485 | ||
| Humidity | 5~85%RH | ||
| Altitude | ≤2000m | ||
| IP Rating of Enclosure | IP20 | ||
| Dimension(W/D/H,mm) | 589*590*1640 | 589*590*2240 | |
| Weight Approximate(kg) | 258 | 434 | 628 |

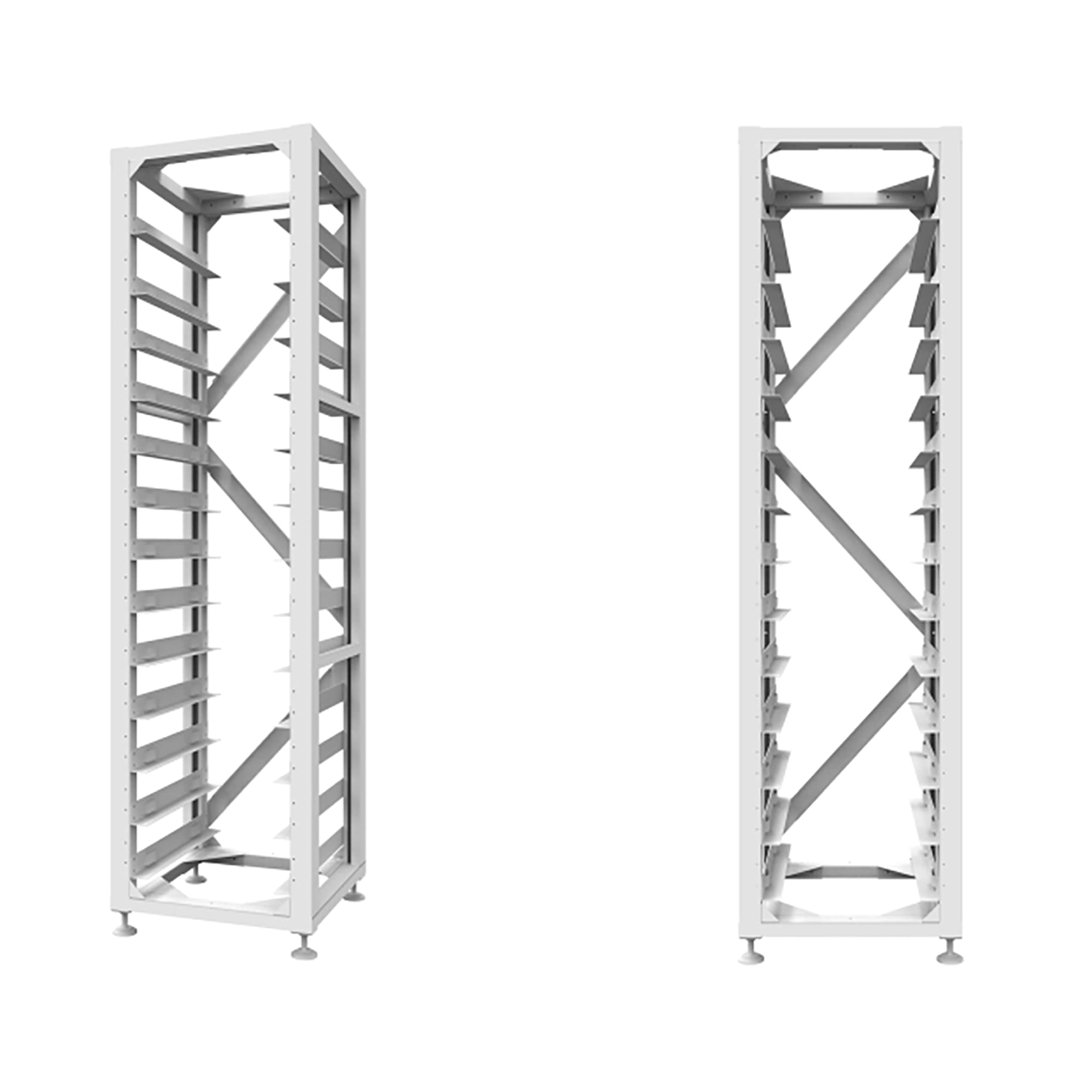

| Installation Location | Rack Mounting | ||
| Storage Temperature(°C) | 0~35 | ||
| Recommend Depth of Discharge | 90% | ||
| Cycle Life | 25±2°C, 0.5C/0.5C,EOL70%≥6000 | ||
| Warranty 3 | 10 years | ||
| Certification | CE/IEC62619/UL1973/UL9540A/UN38.3 | ||

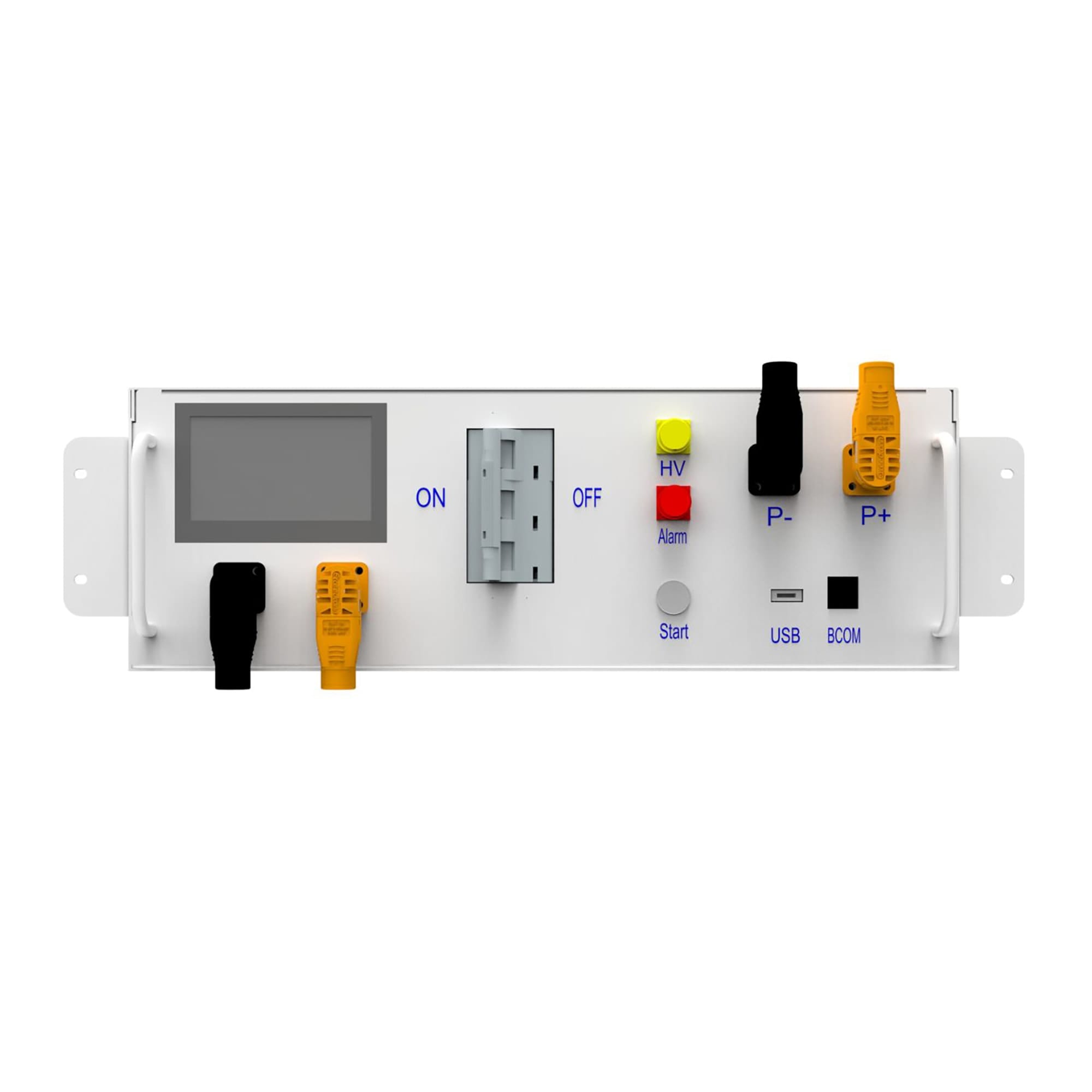

| Model | HVB750V/100A-EU |
| Description | High Voltage Battery cluster control box conforming to European or British Standards |
| Operating Voltage | 120〜750Vdc |
| Nominal Charge/Discharge Current | 100A |
| Max.Charge/Discharge Current | 125A |
| DC Input Rating | 12±2%V/4.15A |
| Operating Temperature Range | -20~65℃ |
| Ingress Protection | IP20 |
| Dimension (W/D/H) | 440*570*150mm |
| Weight Approximate | 15.5kg |
| Model | HVB750V/100A-US |
| Description | High Voltage Battery cluster control box conforming to North American Standard |
| Operating Voltage | 120 〜750Vdc |
| Nominal Charge/Discharge Current | 100A |
| Max.Charge/Discharge Current | 125A |
| DC Input Rating | 12±2%V/4.15A |
| Operating Temperature Range | -20~65℃ |
| Ingress Protection | IP20 |
| Dimension (W/D/H) | 440*570*150mm |
| Weight Approximate | 17kg |

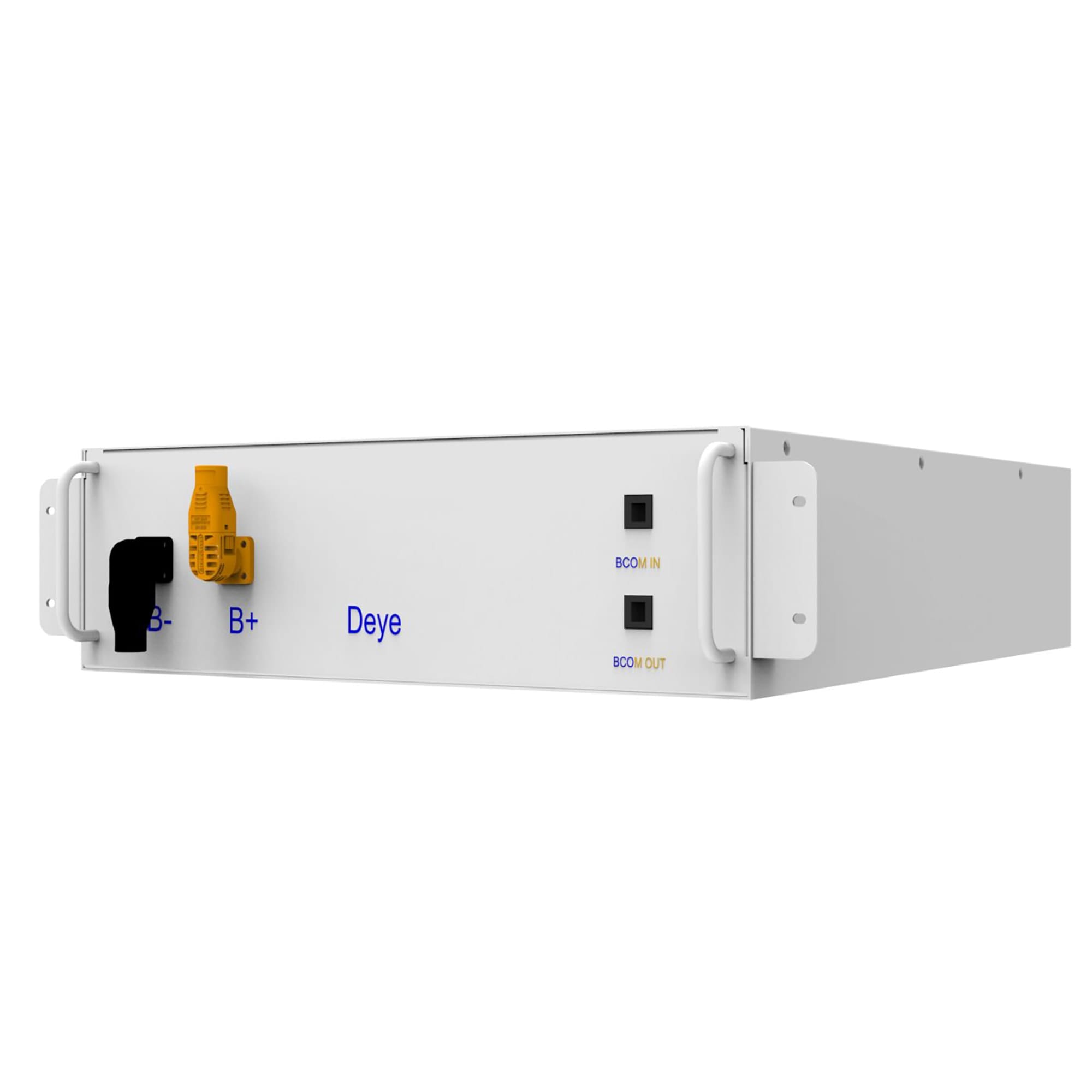

| Model | BOS-GM5.1 |
| Description | 5.12kwh battery module |
| Battery Type | LiFeP04(LFP) |
| Nominal Voltage | 51.2Vdc |
| Rated Capacity | 100Ah |
| Rated Energy | 5.12kWh |
| Nominal Charge/Discharge Current | 100A |
| Peak.Discharge Current | 125A |
| Charge Temperature | 0〜55°C |
| Discharge Temperature | -20°C 〜55°C |
| Storage Temperature | 0°C 〜350C |
| Ingress Protection | IP20 |
| Weight | 200 kg |
|---|---|
| Dimensions | 600 × 900 × 40 cm |
| Brand | |
| Battery Type |
LiFePO4 |
| Capacity(Ah) |
300 |
| Nominal Energy(Kwh) |
15 |
| Nominal Voltage (V) |
153.6 |
| Max. Charging Current(A) |
100 |
| Max. Discharging Current(A) |
100 |
| Warranty(Year) |
10 |
Deye is a leading global provider of energy storage solutions, specializing in high-performance lithium battery systems designed for residential, commercial, and industrial applications. Here are the key aspects of Deye and its offerings based on the search results:
Company Overview
Established: Deye Group was founded in 2000 and has grown to become a significant player in the energy storage market, with a focus on photovoltaic power generation solutions.
Global Presence: Deye operates in over 50 countries and has multiple production bases, emphasizing its commitment to providing reliable energy solutions worldwide.
Product Offerings
High-Voltage Lithium Batteries:
Deye's high-voltage lithium battery solutions, such as the BOS-G series, are designed for both residential and commercial energy storage. These batteries support peak shaving, load leveling, and can maintain stable voltage and frequency for large-scale applications.
The BOS-G series features a modular design, allowing for configurations ranging from 20.48 kWh to 61.44 kWh by connecting multiple battery modules.
Energy Storage Systems:
Deye offers various energy storage systems that integrate seamlessly with renewable energy sources, enabling users to store excess energy generated during the day for use during peak demand times or outages.
The RW-F10.2-B model is highlighted for its safety features, long cycle life, and intelligent Battery Management System (BMS), making it suitable for diverse applications.
C&I Application Solutions:
Deye showcased its commercial and industrial (C&I) energy storage solutions at industry exhibitions, emphasizing scalable and efficient systems for larger energy demands.
All-in-One Energy Storage Systems:
The BOW-G1000 series is a compact energy storage container designed for easy maintenance and intelligent energy management, suitable for various applications from peak shaving to emergency backup power.
Key Features of Deye Products
Safety: Deye’s batteries utilize cobalt-free lithium iron phosphate (LiFePO₄) chemistry, which is known for its safety and thermal stability. The intelligent BMS protects against overcharging, over-discharging, and temperature extremes.
Efficiency: The systems are designed for high energy density and low self-discharge rates, ensuring reliable performance and longevity.
Modularity: Many Deye products feature modular designs, allowing for easy expansion and scalability according to user needs.
Remote Monitoring: Deye's systems support remote monitoring and management, enabling users to track performance and make adjustments as needed.
Applications
Deye's energy storage solutions are suitable for a variety of applications, including:
Residential Energy Storage: Enhancing self-consumption of solar energy and providing backup power during outages.
Commercial and Industrial Applications: Optimizing energy usage and reducing costs in business operations.
Utility-Scale Projects: Supporting large-scale energy storage and management for grid stability.
