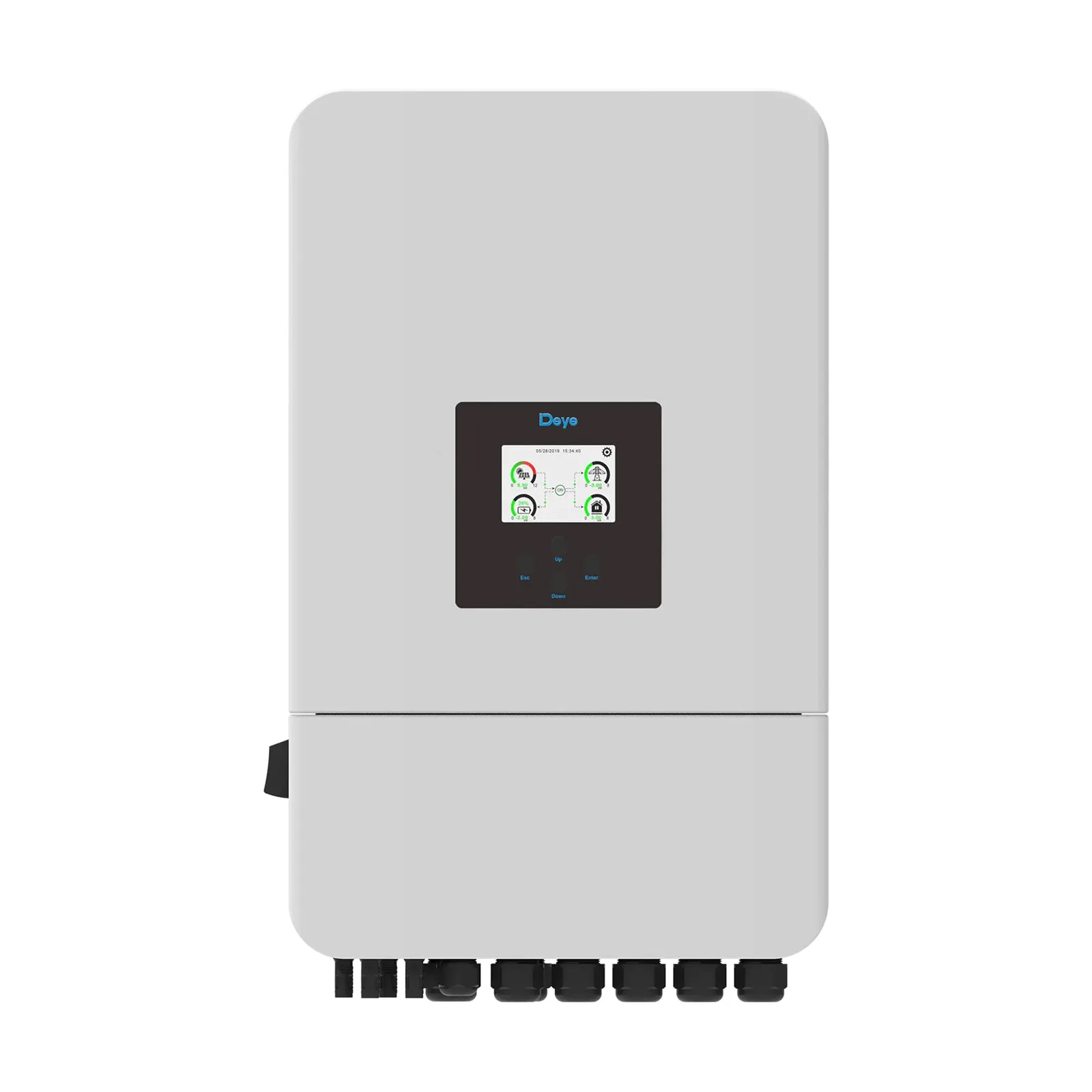

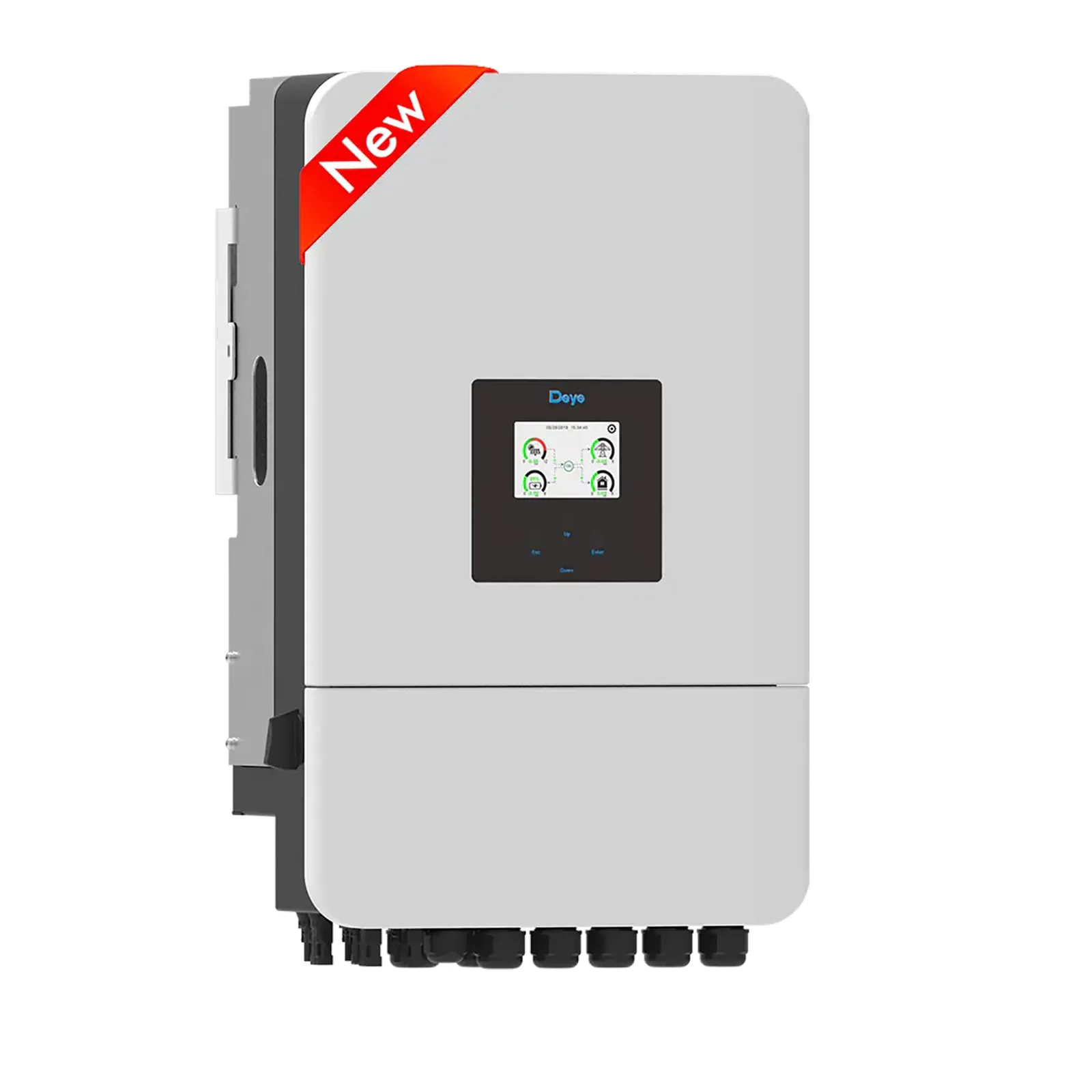

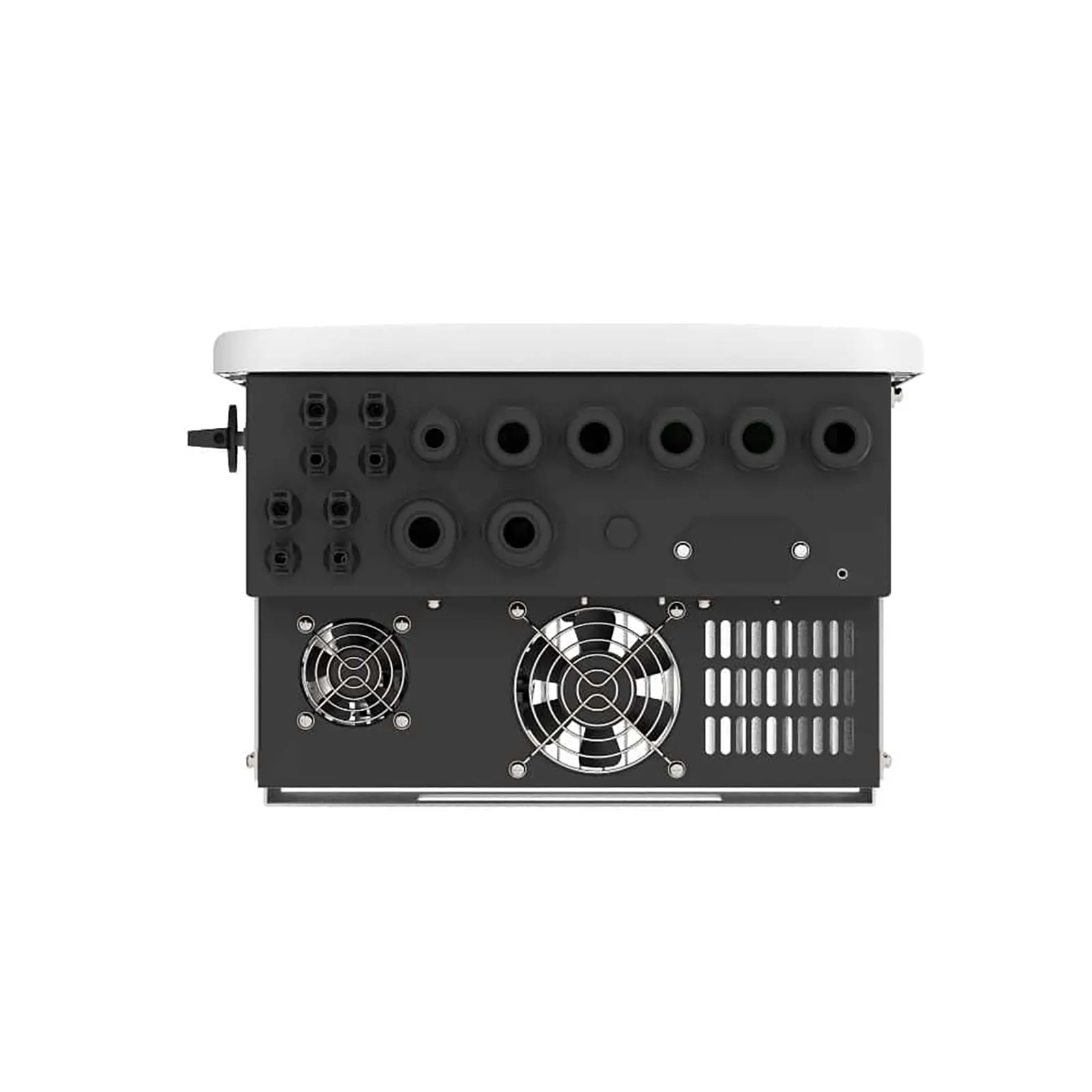

Deye Hybrid Solar Inverter 5KW SUN-5K-SG05LP1-EU-SM2 | 3.6-8kW | Single Phase | Hybrid Inverter | LV Battery Supported

Deye Hybrid Solar Inverter 5KW SUN-5K-SG05LP1-EU-SM2 | 3.6-8kW | Single Phase | Hybrid Inverter | LV Battery Supported

Key Features

1. High Charging/Discharging Current: With a maximum charging and discharging current of 190A, the Deye SUN-(3.6-8)K-SG05LP1-EU-SM2 series guarantees rapid and efficient energy storage and utilization. This high current capacity ensures that energy is stored and retrieved promptly, matching the demands of both residential and commercial users.

2. Diesel Generator Compatibility: These inverters offer support for storing energy derived from diesel generators. This feature is particularly beneficial for areas with inconsistent grid power, providing an additional layer of reliability and ensuring uninterrupted power supply.

3. Scalability and Expandability: The inverter system supports connecting up to 16 units in parallel for both on-grid and off-grid operations. This scalability makes it suitable for larger installations, allowing users to expand capacity as needed without significant overhauls to the existing setup.

4. Flexible Battery Support: The inverters are compatible with multiple batteries connected in parallel, providing flexibility in system design and capacity adjustments. They support both Lead-acid and Lithium-ion batteries, with a voltage range of 40-60V, and feature a self-adaptive charging strategy that aligns with the battery management system (BMS).

5. AC Coupling Capability: For users who already have an existing solar system, these inverters can be AC coupled to retrofit the system, enhancing its efficiency and energy management capabilities.

6. User-Friendly Interface: Equipped with a colorful touch LCD screen, the Deye SUN-(3.6-8)K-SG05LP1-EU-SM2 series provides an intuitive interface for easy monitoring and management of the system. The IP65 protection rating ensures durability and protection against dust and water, making it suitable for a wide range of environments.

Technical Highlights

• Efficiency:
  • Maximum efficiency of 97.6% and MPPT (Maximum Power Point Tracking) efficiency greater than 99%, ensuring optimal energy conversion and utilization.
  • Minimal total current harmonic distortion (THDi) at less than 3% of the nominal power, and DC injection current below 0.5% In, promoting system stability and longevity.
• Power Specifications:
  • Range of rated input/output power from 3600W to 8000W, with respective maximum output capacities slightly higher to accommodate peak demands.
  • Designed to handle 2 times the rated power for up to 10 seconds in off-grid mode, providing robust support during peak usage.
• Protection and Safety:
  • Comprehensive protection mechanisms including DC polarity reverse connection, AC overcurrent, AC overvoltage, short circuit, thermal protection, and ground fault monitoring.
  • Surge protection (TYPE II for both DC and AC) ensuring robust defense against transient voltage spikes.

Communication and Integration

• Featuring versatile communication options such as GPRS, WIFI, Bluetooth, 4G, and LAN, along with RS485/RS232/CAN interfaces, these inverters facilitate flexible system monitoring and management to suit various user preferences and technical setups.

The Deye SUN-(3.6-8)K-SG05LP1-EU-SM2 series hybrid inverters are a top-tier choice for anyone looking to enhance their solar power systems with reliable, efficient, and flexible energy storage solutions. Their high efficiency, comprehensive protection features, and user-friendly design make them a valuable addition to any residential or commercial solar installation.
