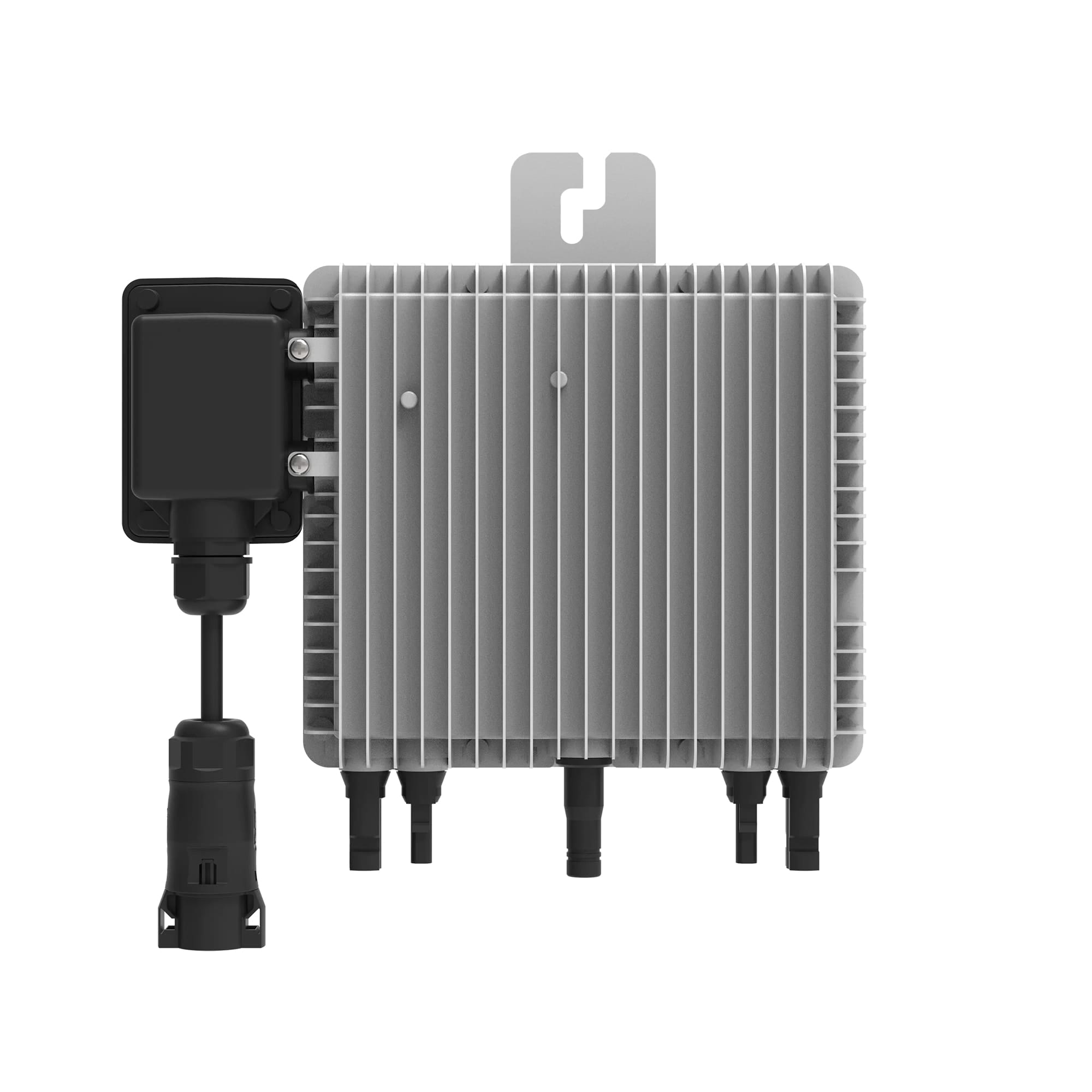

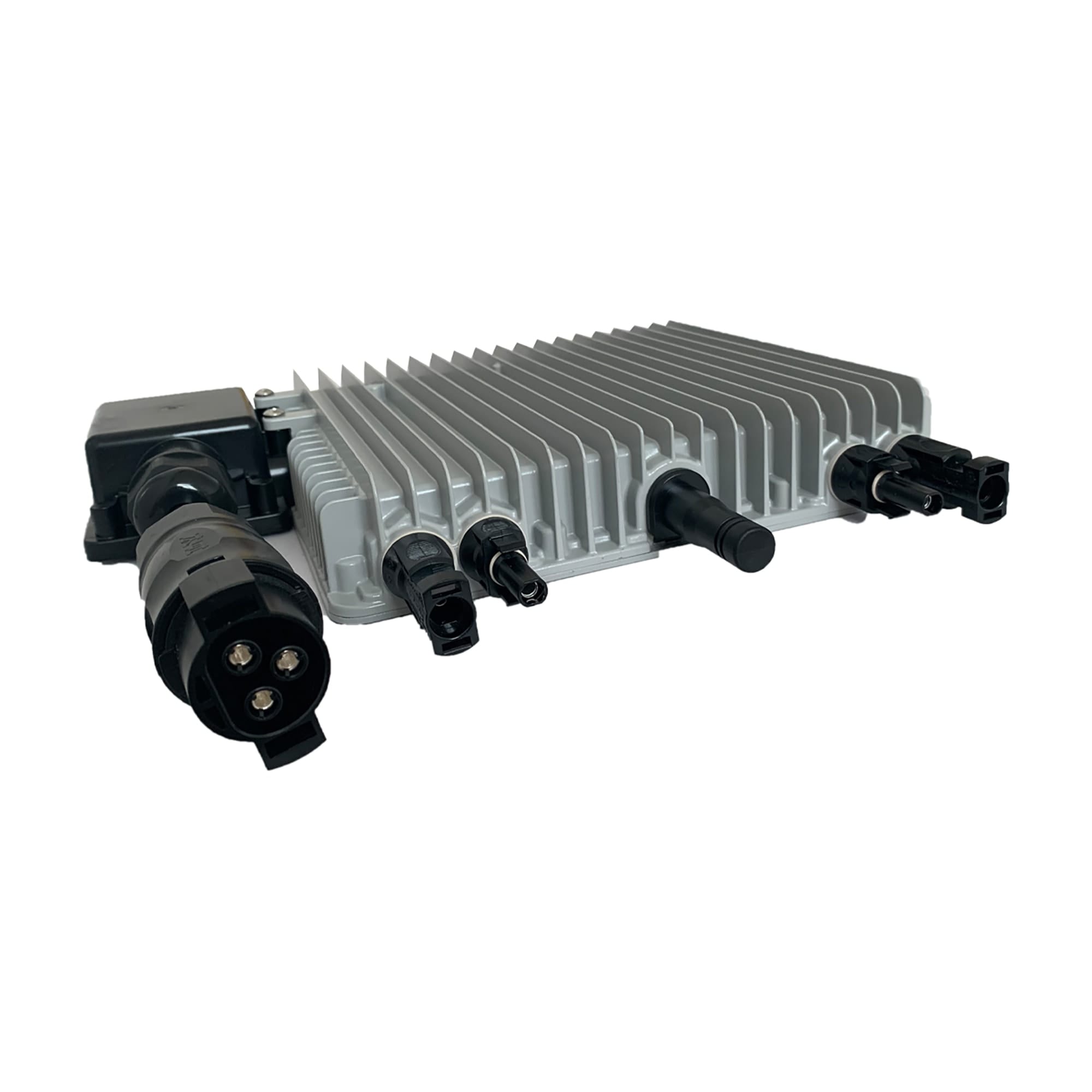

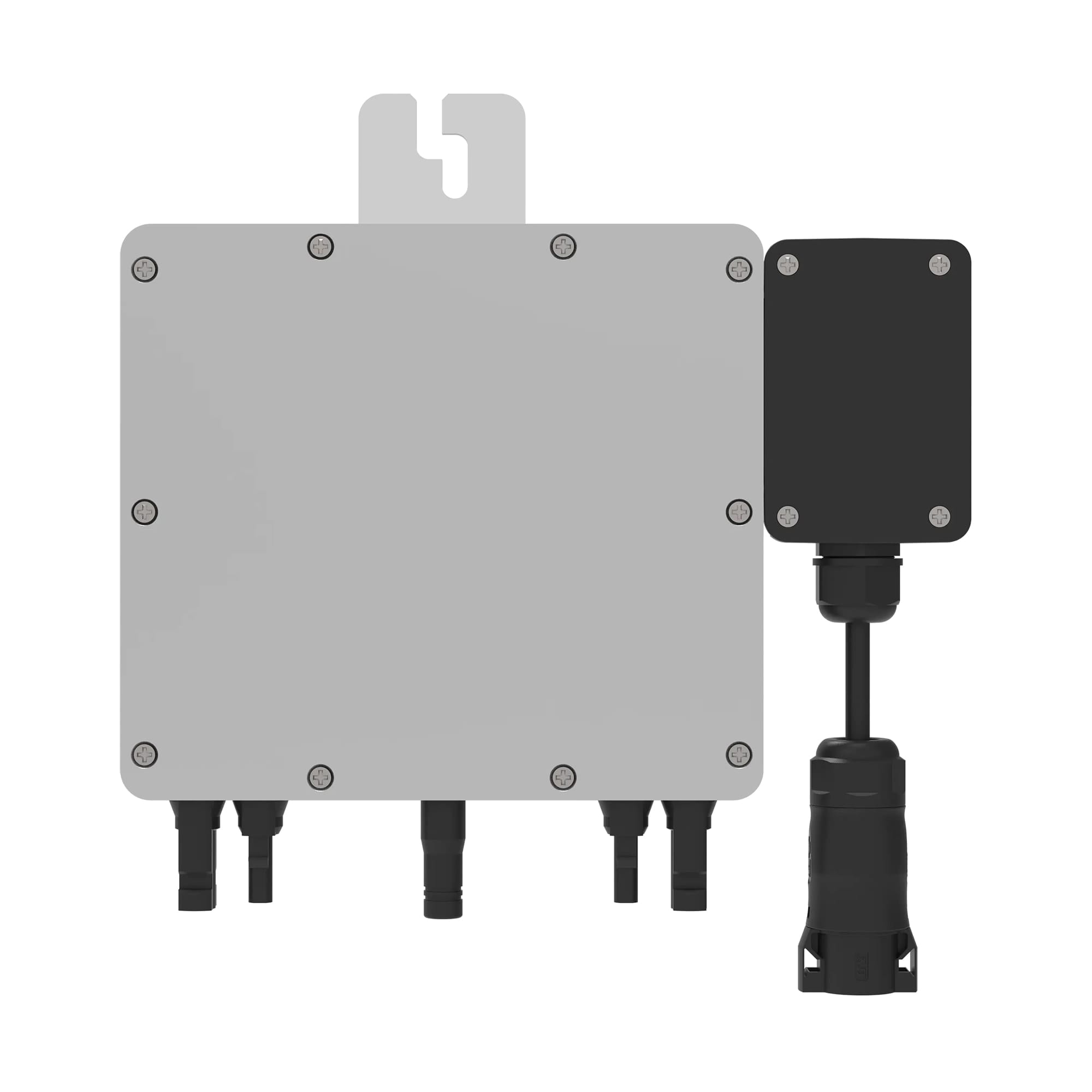

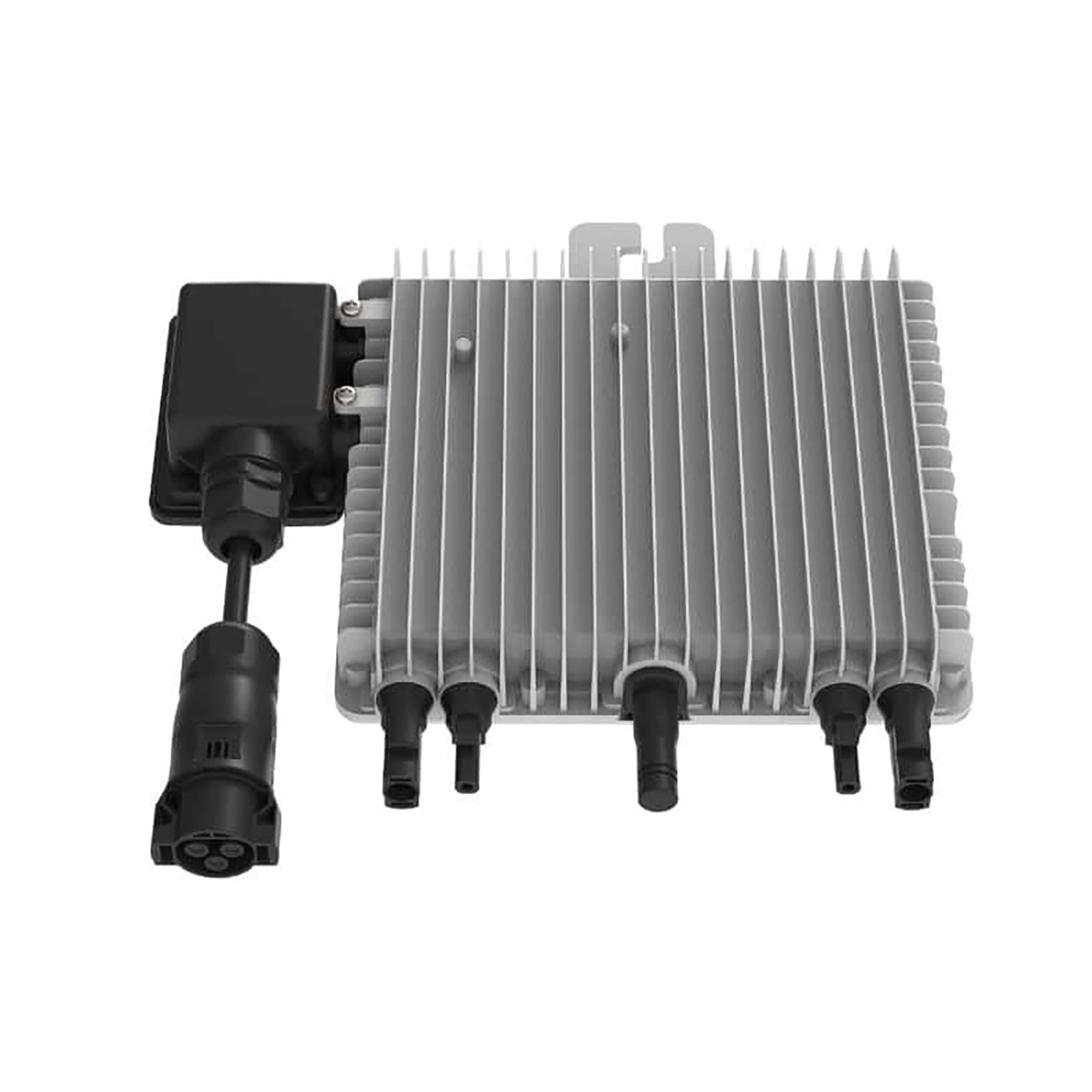

Deye Microinverter 2 MPP trackers SUN-M80G4-EU-Q0 800W 230V Single-Phase Solar Inverter For On-grid Residential PV system/Commercial PV Rooftops
$152.00
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately. Compared with string inverter, microinverter can harvest maximum power of each panel for the independent MPPT design. Also, it gives you module level monitoring, making the O&M easier. Solution and service by Deye – famous Microinverter Manufacturer.
There are two general classifications of power optimizers: analog and digital. Typically, an analog optimizer uses a discrete control to regulate the output from the source. In a sense, it is similar to the microinverter discussed above. However, unlike the microinverter, it does not use any semiconductor logic to accomplish its task, instead relying solely on the electrical signals it senses from the input voltage. In this respect, it is distinct from a load regulator, which monitors and controls the maximum amount of energy drawn by the equipment.
SKU:
SUN-M80G4-EU-Q0
Categories: Micro Inverter, Inverter & Controller
Tags: Deye Microinverter, Microinverter, On-Grid Solar Inverter, Solar Inverter
Deye Microinverter 2 MPP trackers SUN-M80G4-EU-Q0 800W 230V Single-Phase Solar Inverter For On-grid Residential PV system/Commercial PV Rooftops
Key Features
- Dual MPPT: Equipped with two MPP trackers per module, maximizing energy harvest by optimizing power conversion from each PV module.
- Robust Protection: The IP67 rating ensures resistance to dust and water, enhancing the inverter’s longevity and reliability in various environments.
- WiFi Integration: Built-in WiFi facilitates real-time system monitoring and management through an intuitive interface.
- Rapid Shutdown Function: Enhances safety by complying with the DIN VDE V 0126-95 standard, ensuring AC discharge within <100ms for rapid shutdown.
- Ease of Installation: Designed for quick-plug balcony PV systems, simplifying the installation process and minimizing setup time.
- Extended Relay Life: External relay designed for low-temperature operation, offering long life and easier maintenance.
- Long-Term Reliability: With a 25-year design lifetime and a 15-year warranty, providing assurance of long-term operation and support.
Technical Specifications
- Model Variants:
- SUN-M60G4-EU-Q0
- SUN-M80G4-EU-Q0
- SUN-M100G4-EU-Q0
- PV Input:
- Max. Input Power: 210-420/560/700W(2 pieces)
- Max. Input Voltage: 60V
- Start-up Voltage: 20V
- MPPT Voltage Range: 25-55V
- Max. Operating PV Input Current: 13 + 13A
- Max. Input Short Circuit Current: 19.5 + 19.5A
- AC Output:
- Rated Active Power: 600-1000W
- Max. Apparent Power: 600-1000VA
- Grid Connection: L/N/PE
- Rated Output Voltage: 220/230V (Range: 0.85Un-1.1Un)
- Rated Output Frequency: 50/60Hz
- Power Factor: 0.9 leading to 0.9 lagging
- Total Harmonic Distortion (THDi): <3%
- Max. Efficiency: 96.5%
- Euro Efficiency: 96.0%
- MPPT Efficiency: >99%
- Max. Units per Branch: Up to 8 units
- Protection Features:
- DC Polarity Reverse Connection Protection
- AC Output Overcurrent Protection
- AC Output Overvoltage Protection
- AC Output Short Circuit Protection
- Thermal Protection
- DC Terminal Insulation Monitoring
- Power Network Monitoring
- Island Protection
- Earth Fault Detection
- Overvoltage Load Drop Protection
- Environmental Specifications:
- Operating Temperature: -40 to +65°C (Derating above 45°C)
- Permissible Ambient Humidity: 0-100%
- Permissible Altitude: 2000m
- Noise Level: ≤25dB
- Physical Characteristics:
- Ingress Protection Rating: IP67
- Cooling Method: Natural Cooling
- Dimensions: 280.5×190×40 mm (excluding connectors and brackets)
- Weight: 3.5 kg
- Certifications and Standards:
- Grid Regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
- Safety and EMC Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Model No. | SUN-M60G3 -US-Q0 | SUN-M60G3 -EU-Q0 | SUN-M80G3 -US-Q0 | SUN-M80G3 -EU-Q0 | SUN-M100G3 -US-Q0 | SUN-M100G3 -EU-Q0 |
Warranty | ||||||
Product Warranty (Min) | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years |
Input Data(DC) | ||||||
Max. DC Power | 420 W | 420 W | 500 W | 500 W | 600 W | 600 W |
Max. DC Voltage | 60 V | 60 V | 60 V | 60 V | 60 V | 60 V |
MPP(T) Voltage Range | 25~55 V | 25~55 V | 25~55 V | 25~55 V | 25~55 V | 25~55 V |
No of MPP Trackers | 2 | 2 | 2 | 2 | 2 | 2 |
DC Inputs | 1 | 1 | 1 | 1 | 1 | 1 |
Output Data (AC) | ||||||
Max. AC Power | 600 W | 600 W | 800 W | 800 W | 1000 W | 1000 W |
Nominal AC Voltage | 220 V | 230 V | 220 V | 230 V | 220 V | 230 V |
Rated AC Current | 2.7 A | 2.6 A | 3.6 A | 3.5 A | 4.5 A | 4.4 A |
Frequency Range | 45-55 Hz | 45-55 Hz | 45-55 Hz | 45-55 Hz | 45-55 Hz | 45-55 Hz |
Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
Power Factor (cosθ) | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 |
No of feed-in phases | 3 | 3 | 3 | 3 | 3 | 3 |
Max. Efficiency | 96.50% | 96.50% | 96.50% | 96.50% | 96.50% | 96.50% |
General Data | ||||||
Dimensions (H/W/D) | 229x212x40 mm | 229x212x40 mm | 229x212x40 mm | 229x212x40 mm | 229x212x40 mm | 229x212x40 mm |
Weight | 3.5 kg | 3.5 kg | 3.5 kg | 3.5 kg | 3.5 kg | 3.5 kg |
Power Consumption at Night | < 0.05 W | < 0.05 W | < 0.05 W | < 0.05 W | < 0.05 W | < 0.05 W |
Operating Temperature | -40 ~ +60 ℃ | |||||
Protection Class | IP67 | |||||
Interface | WLAN |
Weight | 4 kg |
---|---|
Dimensions | 30 × 30 × 10 cm |
Brand | |
Max PV Input Power(W) |
560×2 |
Max PV Input Voltage(V) |
60 |
Max PV Input Current(A) |
13 |
Start-up Voltage(V) |
20 |
MPPT Voltage Range(V) |
25-55 |
No. Of MPPT |
2/1+1 |
MPPT Efficiency |
>99% |
Rated AC Input/Output Active Power(W) |
800 |
Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
Rated Input/Output Voltage/Range(V) |
220V/230V |
Max AC Output Current(A) |
3.5 |
Monitor Mode |
4G ,GPRS ,LAN ,WIFI |
