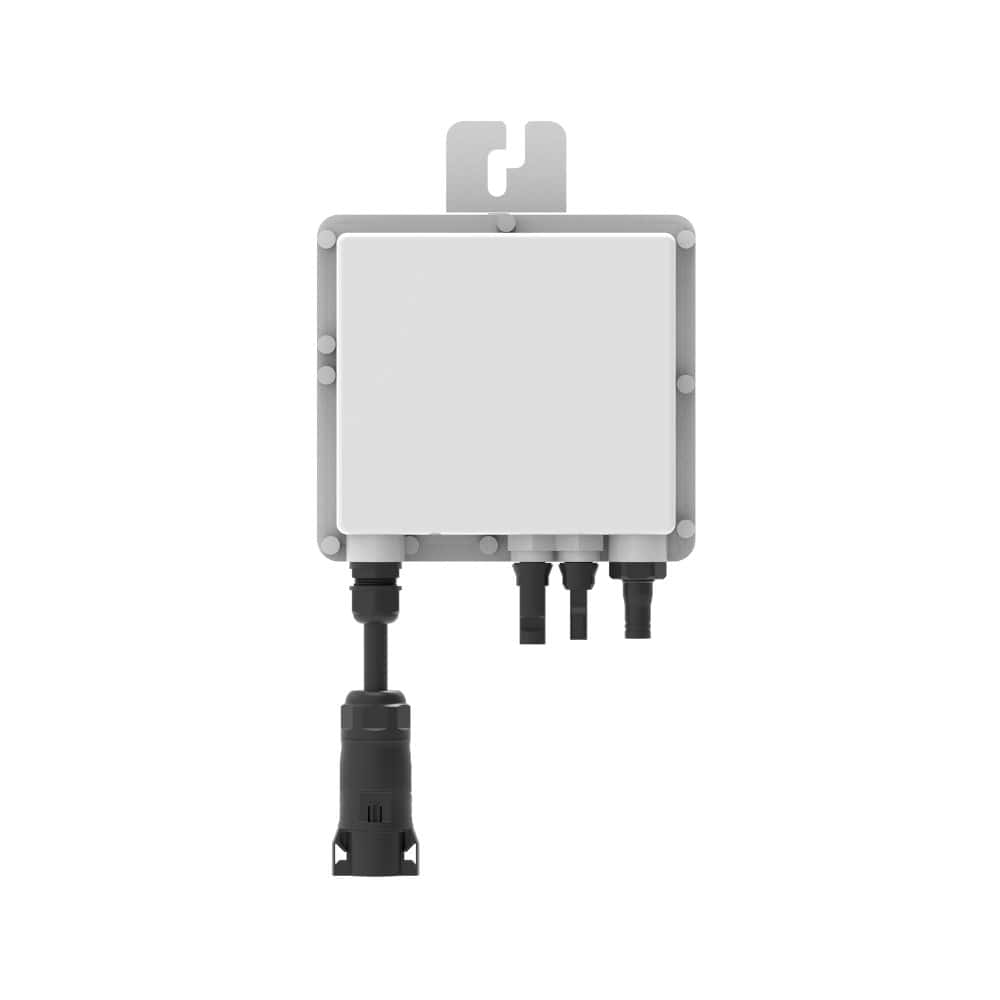

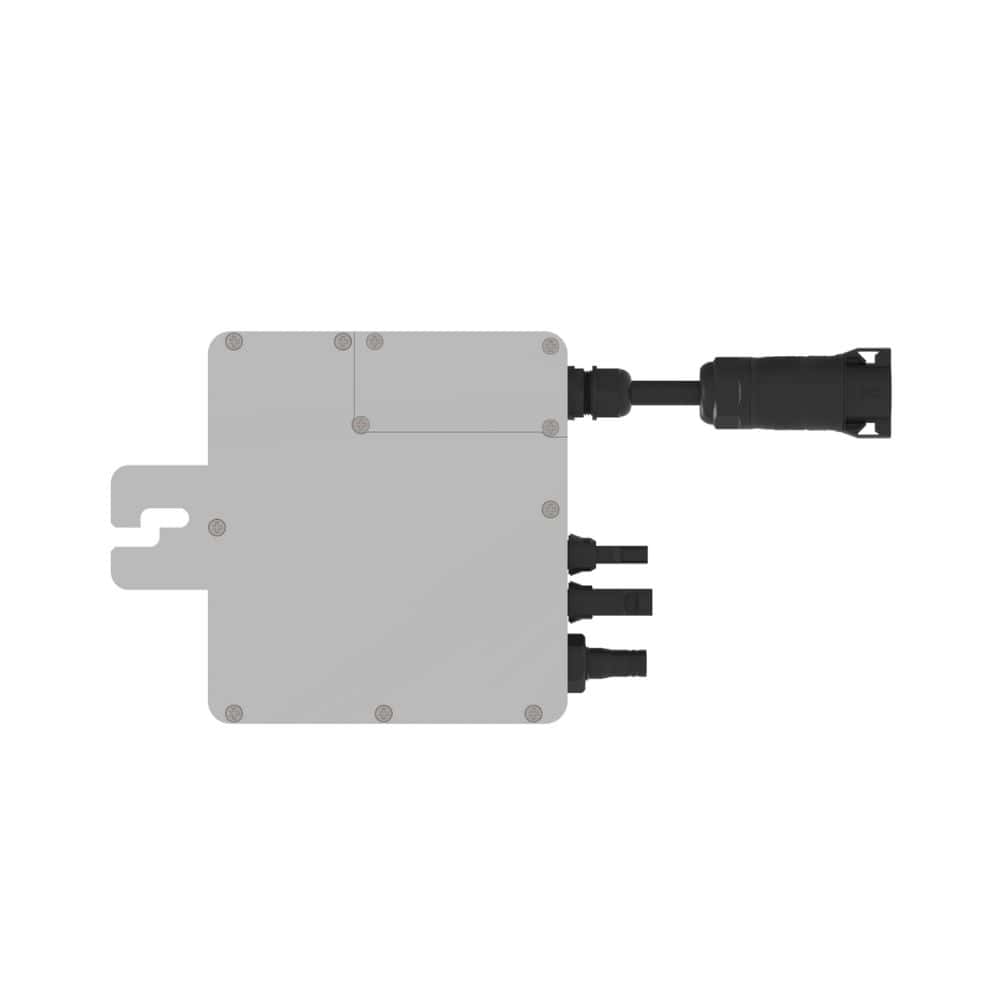

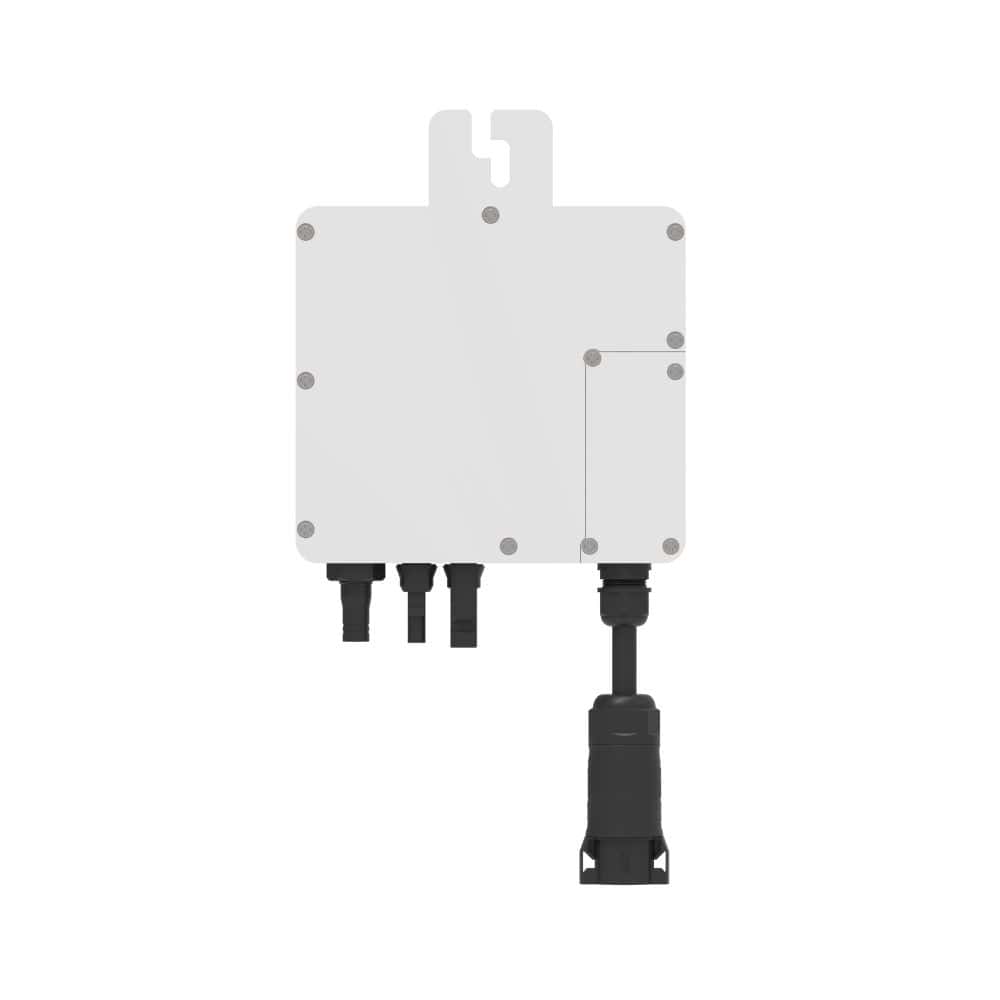

Deye Microinverter SUN-M30G4-EU-Q0 300W 230V Single-Phase Solar Inverter For On-grid Residential PV System/Commercial PV Rooftops
$79.00
The SUN-M30/40/50G4-EU-Q0 series microinverter is an advanced and efficient solution for photovoltaic (PV) systems. Its single Maximum Power Point (MPP) tracker, module-level monitoring, and IP67 protection make it a highly reliable and user-friendly choice for renewable energy applications.
Deye Microinverter SUN-M30G4-EU-Q0 300W 230V Single-Phase Solar Inverter For On-grid Residential PV System/Commercial PV Rooftops
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
Compared with string inverter, microinverter can harvest maximum power of each panel for the independent MPPT design. Also, it gives you module level monitoring, making the O&M easier. Solution and service by Deye – famous Microinverter Manufacturer.
There are two general classifications of power optimizers: analog and digital.
Typically, an analog optimizer uses a discrete control to regulate the output from the source. In a sense, it is similar to the microinverter discussed above. However, unlike the microinverter, it does not use any semiconductor logic to accomplish its task, instead relying solely on the electrical signals it senses from the input voltage. In this respect, it is distinct from a load regulator, which monitors and controls the maximum amount of energy drawn by the equipment.
The Deye SUN-M30G4-EU-Q0 microinverter is a reliable and efficient choice for solar energy systems, providing high performance, robust protection, and advanced monitoring capabilities. Its design allows for easy installation and operation, making it a versatile solution for various solar applications.
Key Features
- Maximized Performance: Equipped with one MPP tracker per module, ensuring optimized power conversion efficiency and performance.
- High Protection: IP67 rating ensures protection against dust and water ingress, thereby extending the inverter’s lifespan even in harsh environmental conditions.
- Integrated WIFI: Facilitates real-time monitoring and management through a user-friendly interface.
- Rapid Shutdown Function: Provides enhanced safety by complying with the DIN VDE V 0126-95 standard for rapid AC discharge within <100ms.
- Easy Installation: Designed for quick-plug balcony PV systems, allowing for straightforward setup and maintenance.
- Long-lasting Durability: Features an external relay designed for low temperature, extended life, and easier maintenance.
- Comprehensive Warranty: Comes with a 25-year design lifetime and a 15-year warranty for peace of mind.
Technical Specifications
- Model Variants:
- SUN-M30G4-EU-Q0
- SUN-M40G4-EU-Q0
- SUN-M50G4-EU-Q0
- PV Input:
- Max. Input Power: Up to 500W
- Max. Input Voltage: 60V
- Start-up Voltage: 20V
- MPPT Voltage Range: 25-55V
- Max. Operating PV Input Current: 13A
- Max. Input Short Circuit Current: 19.5A
- AC Output:
- Rated Active Power: 300-500W
- Max. Apparent Power: 300-500VA
- Grid Connection: L/N/PE
- Rated Output Voltage: 220/230V (Range: 0.85Un-1.1Un)
- Rated Output Frequency: 50/60Hz
- Power Factor: 0.9 leading to 0.9 lagging
- Total Harmonic Distortion (THDi): <3%
- Max. Efficiency: 96.5%
- Euro Efficiency: 96.0%
- MPPT Efficiency: >99%
- Max. Units per Branch: 17 units
- Protection Features:
- DC Polarity Reverse Connection Protection
- AC Output Overcurrent Protection
- AC Output Overvoltage Protection
- AC Output Short Circuit Protection
- Thermal Protection
- DC Terminal Insulation Monitoring
- Power Network Monitoring
- Island Protection
- Earth Fault Detection
- Overvoltage Load Drop Protection
- Environmental Specifications:
- Operating Temperature: -40 to +65°C (Derating >45°C)
- Permissible Ambient Humidity: 0-100%
- Permissible Altitude: 2000m
- Noise Level: ≤25dB
- Physical Characteristics:
- Ingress Protection Rating: IP67
- Cooling Method: Natural Cooling
- Dimensions: 173×158.5×31.5 mm (excluding connectors and brackets)
- Weight: 1.85 kg
- Certifications and Standards:
- Grid Regulations: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
- Safety and EMC Standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
The Deye SUN-M30G4-EU-Q0 microinverter is ideal for:
- Residential Solar Systems: Suitable for homeowners looking to optimize their solar energy production.
- Small Commercial Applications: Can also be used in small businesses to enhance energy efficiency.
| Model | SUN-M30G4-EU-Q0 | SUN-M40G4-EU-Q0 | SUN-M50G4-EU-Q0 |
| PV String Input Data | |||
| Max. PV Input Power(W) | 210-420(1 Piece) | 210-560(1 Piece) | 210-700(1 Piece) |
| Max. PV Input Voltage(V) | 60 | ||
| Start-up Voltage(V) | 20 | ||
| MPPT voltage range(V) | 25-55 | ||
| Rated PV Input voltage(V) | 42.5 | ||
| Max. Input Short-Circuit Current (A) | 19.5 | ||
| Max. Operating PV Input Current(A) | 13 | ||
| No. of MPP Trackers/No. of String per MPP Tracker | 1 | ||
| AC Output Side | |||
| Rated AC Output Active Power(W) | 300 | 400 | 500 |
| Max.AC Output Apparent Power(VA) | 300 | 400 | 500 |
| Rated AC output current (A) | 1.4/1.4 | 1.9/1.8 | 2.3/2.2 |
| Max.AC Output Current(A) | 1.4/1.4 | 1.9/1.8 | 2.3/2.2 |
| Rated output voltage/range (V) | 220/230 0.85Un-1.1Un | ||
| Grid Connection Form | L/N/PE | ||
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 | ||
| Max. unit per branch | 17 | 13 | 10 |
| Power Factor Adjustment Range | 0.9 leading to 0.9 lagging | ||
| Total Current Harmonic Distortion THDi | <3% | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max. Efficiency | 96.50% | ||
| Euro Efficiency | 96.00% | ||
| MPPT Efficiency | >99% | ||
| Operating Temperature Range (°C) | -40 to +65℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude (m) | 2000m | ||
| Noise (dB) | ≤ 25 | ||
| Ingress Protection(IP) Rating | IP 67 | ||
| Inverter Topology | Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet Size（W*H*Dmm) | 173×158.5×31.5 (Excluding connectors and brackets) | ||
| Weight (kg) | 1.85 | ||
| Warranty | 15 Years | ||
| Type Of Cooling | natural cooling | ||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,G99,VDE-AR-N 4105 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
| Weight | 2 kg |
|---|---|
| Dimensions | 20 × 20 × 10 cm |
| Brand | |
| Max PV Input Power(W) |
420 |
| Max PV Input Voltage(V) |
60 |
| Max PV Input Current(A) |
13 |
| Start-up Voltage(V) |
20 |
| MPPT Voltage Range(V) |
25-55 |
| No. Of MPPT |
1/1 |
| MPPT Efficiency |
>99% |
| Rated AC Input/Output Active Power(W) |
300 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
| Max AC Output Current(A) |
1.4 |
| Monitor Mode |
WIFI |
Deye is a leading global provider of energy storage solutions, specializing in high-performance lithium battery systems designed for residential, commercial, and industrial applications. Here are the key aspects of Deye and its offerings based on the search results:
Company Overview
Established: Deye Group was founded in 2000 and has grown to become a significant player in the energy storage market, with a focus on photovoltaic power generation solutions.
Global Presence: Deye operates in over 50 countries and has multiple production bases, emphasizing its commitment to providing reliable energy solutions worldwide.
Product Offerings
High-Voltage Lithium Batteries:
Deye's high-voltage lithium battery solutions, such as the BOS-G series, are designed for both residential and commercial energy storage. These batteries support peak shaving, load leveling, and can maintain stable voltage and frequency for large-scale applications.
The BOS-G series features a modular design, allowing for configurations ranging from 20.48 kWh to 61.44 kWh by connecting multiple battery modules.
Energy Storage Systems:
Deye offers various energy storage systems that integrate seamlessly with renewable energy sources, enabling users to store excess energy generated during the day for use during peak demand times or outages.
The RW-F10.2-B model is highlighted for its safety features, long cycle life, and intelligent Battery Management System (BMS), making it suitable for diverse applications.
C&I Application Solutions:
Deye showcased its commercial and industrial (C&I) energy storage solutions at industry exhibitions, emphasizing scalable and efficient systems for larger energy demands.
All-in-One Energy Storage Systems:
The BOW-G1000 series is a compact energy storage container designed for easy maintenance and intelligent energy management, suitable for various applications from peak shaving to emergency backup power.
Key Features of Deye Products
Safety: Deye’s batteries utilize cobalt-free lithium iron phosphate (LiFePO₄) chemistry, which is known for its safety and thermal stability. The intelligent BMS protects against overcharging, over-discharging, and temperature extremes.
Efficiency: The systems are designed for high energy density and low self-discharge rates, ensuring reliable performance and longevity.
Modularity: Many Deye products feature modular designs, allowing for easy expansion and scalability according to user needs.
Remote Monitoring: Deye's systems support remote monitoring and management, enabling users to track performance and make adjustments as needed.
Applications
Deye's energy storage solutions are suitable for a variety of applications, including:
Residential Energy Storage: Enhancing self-consumption of solar energy and providing backup power during outages.
Commercial and Industrial Applications: Optimizing energy usage and reducing costs in business operations.
Utility-Scale Projects: Supporting large-scale energy storage and management for grid stability.
