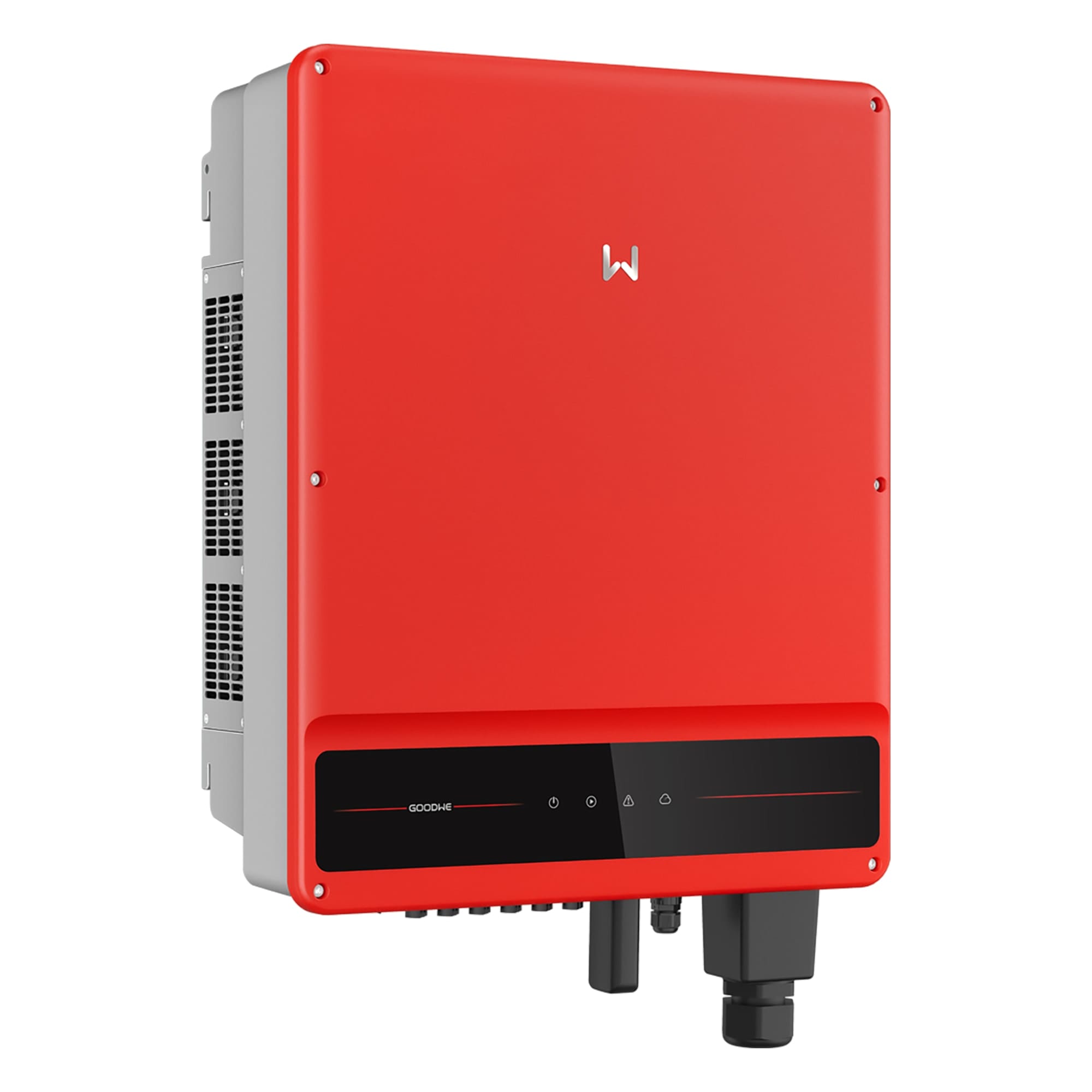

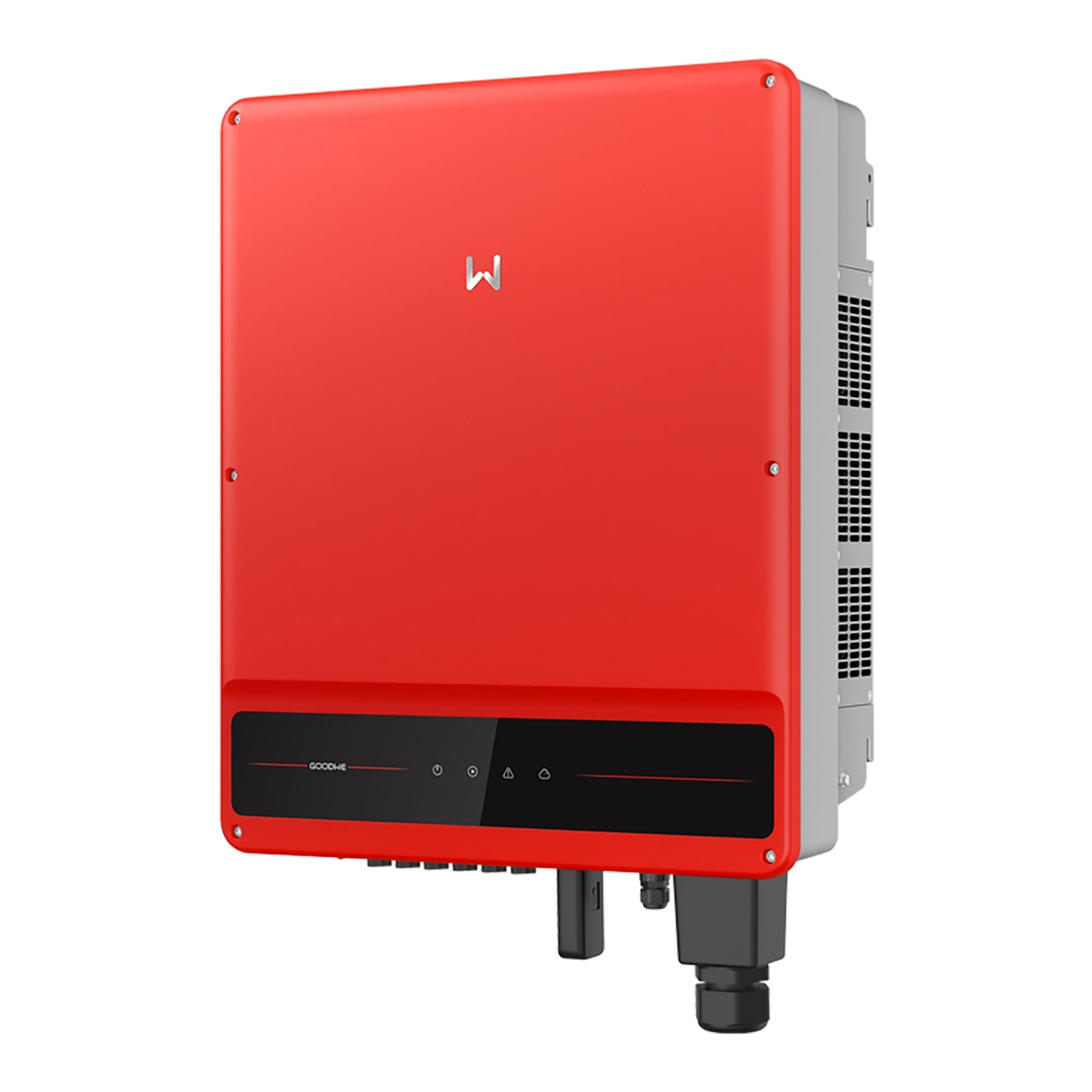

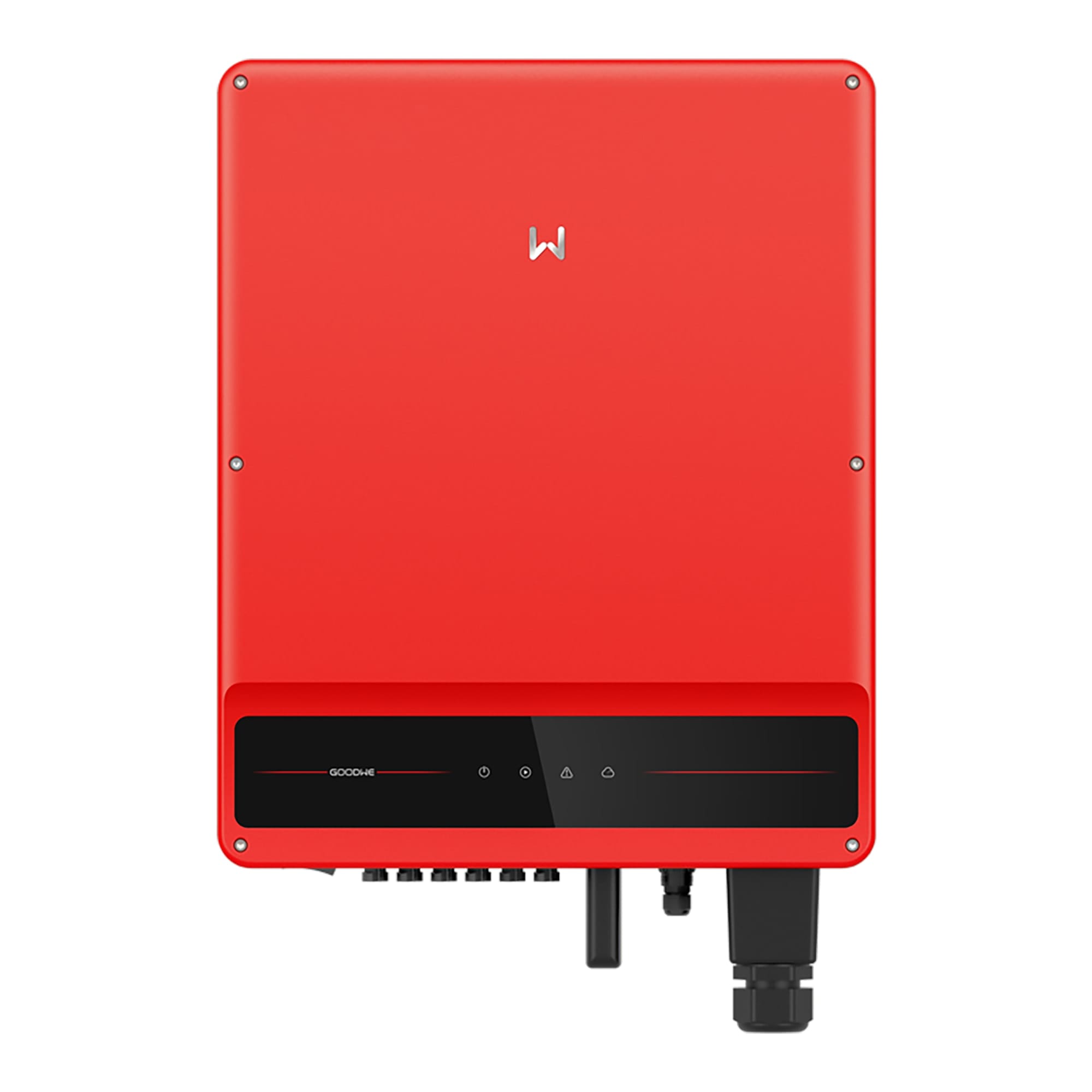

Goodwe On-Grid Solar Inverter SMT Series GW60KS-MT 60KW Three-Phase Solar Solution For Large-scale Industrial PV system/Commercial PV Rooftops
$1,330.00
High and reliable energy yield for commercial PV rooftops
Commercial rooftop installations with complex layouts can trust the SMT inverter to facilitate maximum output. With high efficiency levels and up to six MPPT ports, a consistently impressive performance of the PV system is enabled. The inverter is easily transported and installed due it being compact and lightweight, and can be integrated with GoodWe’s Smart Energy Controller SEC1000 for load monitoring and power export limit functionalities.
Goodwe On-Grid Solar Inverter SMT Series GW60KS-MT 60KW 380V Three-Phase Solar Solution For Industrial PV system/Commercial PV rooftops
The GoodWe On-grid Solar Inverter GW60KS-MT is a three-phase on-grid solar inverter designed for medium to large-scale commercial rooftop installations. Here are the detailed features and specifications of this model:
Key Features
- Rated Power: 60 kW, ideal for commercial PV systems and larger residential applications.
- Maximum Efficiency: Up to 98.6%, ensuring high energy conversion efficiency from solar panels.
- MPPT Trackers: Equipped with 6 Maximum Power Point Trackers (MPPTs), which allow for flexible configurations and optimal performance in varying sunlight conditions.
- Input Specifications:
- Maximum DC Input Voltage: 1100 V
- MPPT Voltage Range: 200 V to 950 V
- Startup Voltage: 180 V
- Maximum Input Current per MPPT: 30 A
- Output Specifications:
- Nominal Output Voltage: 400 V (3L/N/PE or 3L/PE)
- Maximum AC Active Power: 60 kW
- Maximum AC Apparent Power: 66 kVA
- Protection Rating: IP65, making it suitable for outdoor installations and resistant to dust and water.
- Cooling System: Features a fanless design for quiet operation and enhanced reliability.
- Dimensions: Approximately 520 mm x 660 mm x 220 mm.
- Weight: 55 kg, making it manageable for installation.
- Communication Options: Includes RS485, Wi-Fi, GPRS, and optional PLC communication for remote monitoring and management.
- Safety Features: Equipped with optional Arc Fault Circuit Interrupter (AFCI) and Type II Surge Protection Device (SPD) on both the DC and AC sides.
Advantages
- High Efficiency: With a maximum efficiency of 98.6%, the inverter optimizes energy production, making it suitable for commercial applications where performance is critical.
- Flexible Configuration: The three MPPTs allow for optimal performance even with complex rooftop layouts or partially shaded conditions.
- Robust Design: The IP65 rating ensures durability and reliability in outdoor environments, suitable for various climates.
- Comprehensive Monitoring: The built-in monitoring capabilities allow users to track performance and manage their solar systems effectively through a smartphone app or web portal.
- Compatibility with Bi-facial Modules: Designed to accommodate bi-facial solar panels, enhancing energy yield from installations.
Applications
The GoodWe On-Grid Solar Inverter GW60KS-MT is ideal for:
- Commercial Solar Installations: Perfect for businesses looking to maximize their solar energy usage and reduce electricity costs.
- Industrial Applications: Suitable for large-scale industrial facilities that require reliable and efficient energy solutions.
- Rooftop Installations: Designed for medium to large commercial rooftops, maximizing space and energy generation.
The GoodWe On-Grid Solar Inverter GW60KS-MT is a powerful and efficient inverter designed for large-scale solar applications. Its advanced features, high efficiency, and robust design make it an excellent choice for commercial users looking to optimize their solar energy systems.
| Model No. | GW25K-MT | GW30K-MT | GW36K-MT | GW50KS-MT | GW60KS-MT |
| Input Data(DC) | |||||
| Max. DC Voltage | 1100 V | 1100 V | 1100 V | 1100 V | 1100 V |
| Nominal DC Voltage | 600 V | 600 V | 600 V | 600 V | 600 V |
| Min. DC Voltage to Start Feed In | 180 V | 180 V | 180 V | 180 V | 180 V |
| MPP(T) Voltage Range | 200~950 V | 200~950 V | 200~950 V | 200~950 V | 200~950 V |
| No of MPP Trackers | 3 | 3 | 3 | ||
| DC Inputs | 6 | 6 | 6 | ||
| Connectors | MC4 | MC4 | MC4 | MC4 | MC4 |
| Output Data (AC) | |||||
| Max. AC Power | 27.5 kW | 33 kW | 36 kW | 55 kW | 66 kW |
| Nominal AC Power | 25 kW | 30 kW | 50 kW | 60 kW | |
| Output AC Voltage Range | 320~460 V | 320~460 V | 320~460 V | 320~460 V | 320~460 V |
| Nominal AC Voltage | 400 V | 400 V | 400 V | 230, 400 V | 230, 400 V |
| Max. AC Current | 40 A | 48 A | 53.3 A | 80 A | 96 A |
| Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
| Power Factor (cosθ) | 1 | 1 | 1 | 1 | 1 |
| Distortion (THD) | < 3 % | < 3 % | < 3 % | < 3 % | 3% |
| No of feed-in phases | 3 | 3 | 3 | 3 | 3 |
| Max. Efficiency | 98.70% | 98.80% | 98.80% | 98.60% | 98.60% |
| Euro Efficiency | 98.40% | 98.50% | 98.50% | 98.10% | 98.10% |
| General Data | |||||
| Dimensions (H/W/D) | 590x480x200 mm | 590x480x200 mm | 590x480x200 mm | 660x520x220 mm | 660x520x220 mm |
| Weight | 40 kg | 40 kg | 40 kg | 55 kg | 55 kg |
| Power Consumption at Night | < 1 W | < 1 W | < 1 W | < 1 W | < 1 W |
| Operating Temperature | -30 ~ +60 ℃ | ||||
| Transformer | Transformerless | ||||
| Protection Class | IP65 | ||||
| Humidity | 0-100 % | ||||
| Cooling | Fan | ||||
| Max. Altitude | 3000 m | ||||
| Interface | RS 485, WLAN | ||||
| Display | LCD, LED | ||||
| Protection Features | |||||
| Protection Features | Anti Island Protection(ENS), Overvoltage Protection, Overcurrent Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection | ||||
| Weight | 60 kg |
|---|---|
| Dimensions | 80 × 60 × 40 cm |
| Brand | |
| Max PV Input Power(W) |
90000 |
| Max PV Input Voltage(V) |
1100 |
| Max PV Input Current(A) |
30 |
| Start-up Voltage(V) |
180 |
| MPPT Voltage Range(V) |
200-950 |
| No. Of MPPT |
6 |
| MPPT Efficiency |
98.6% |
| Rated AC Input/Output Active Power(W) |
60000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
230/400V |
| Max AC Output Current(A) |
96 |
| Monitor Mode |
4G ,GPRS ,LAN ,WIFI |
GoodWe is a prominent global manufacturer of solar inverters and energy storage solutions, catering to residential, commercial, and utility-scale markets. The company focuses on innovative technology to facilitate the transition to renewable energy and enhance energy efficiency.
Key Offerings
Solar Inverters: GoodWe produces a wide range of solar inverters, including string inverters and hybrid inverters, designed for various applications. Their inverters are known for high efficiency, reliability, and advanced features such as multiple MPPTs (Maximum Power Point Trackers) for optimized energy harvesting.
Energy Storage Solutions: The company offers a variety of energy storage systems that integrate seamlessly with solar installations. These solutions are designed to maximize self-consumption, provide backup power, and facilitate energy management for homes and businesses.
Commercial and Industrial Solutions: GoodWe provides tailored energy solutions for commercial and industrial applications, helping businesses reduce energy costs and improve sustainability.
Utility PV Solutions: Their offerings also include solutions for utility-scale projects, focusing on maximizing power generation and reducing the levelized cost of electricity (LCOE).
Recent Developments
GoodWe actively participates in industry events, such as Intersolar South America 2024, showcasing their commitment to expanding in key markets and addressing the evolving needs of energy users. They emphasize the importance of flexible storage solutions to enhance their leadership in the energy sector.
Environmental Commitment
GoodWe is dedicated to driving the global energy transition and creating sustainable solutions for future generations. Their products contribute to significant reductions in carbon emissions, with millions of tons of CO2 saved through their solar installations.
