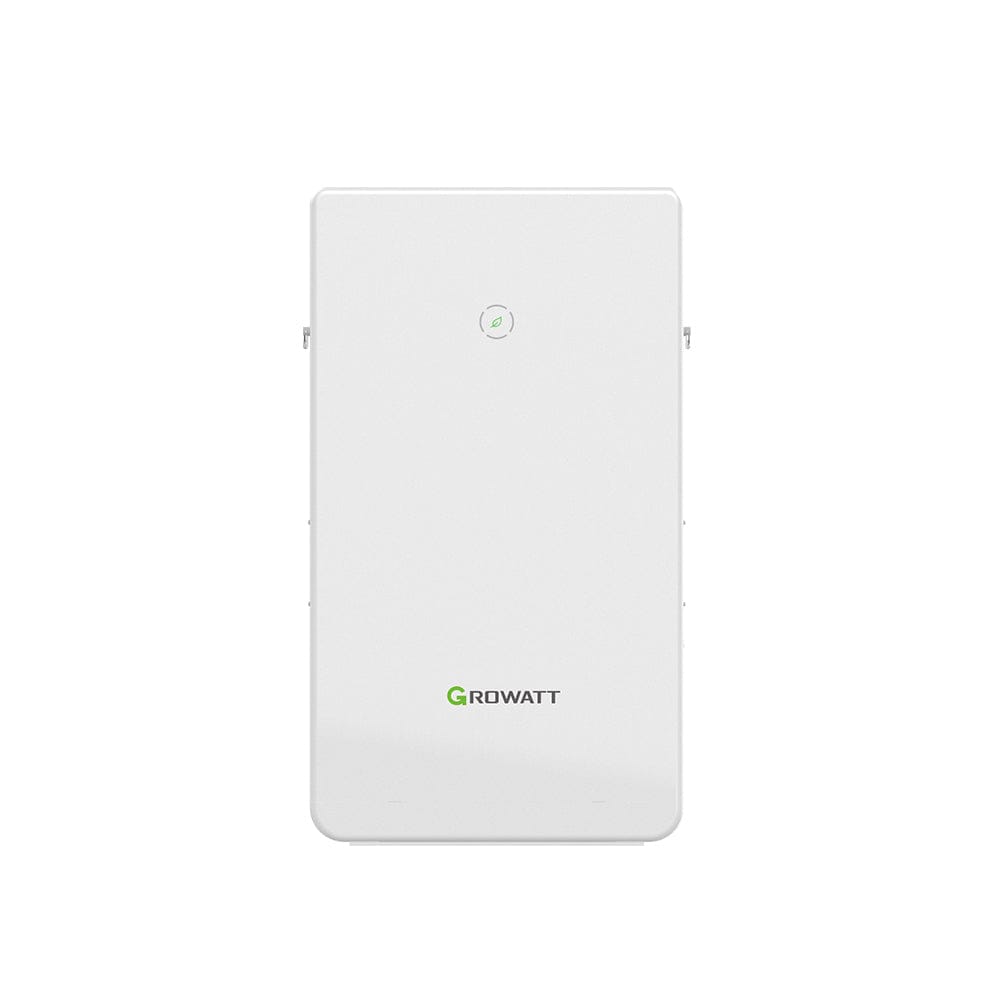

Growatt 9.9 KWh ARO LiFePO4 High Voltage Home Energy Storage ESS Battery | Compatible With Growatt MIN Series Grid-Tie inverter | UL9540 Certificated For Residential Solar Energy System

$3,500.00

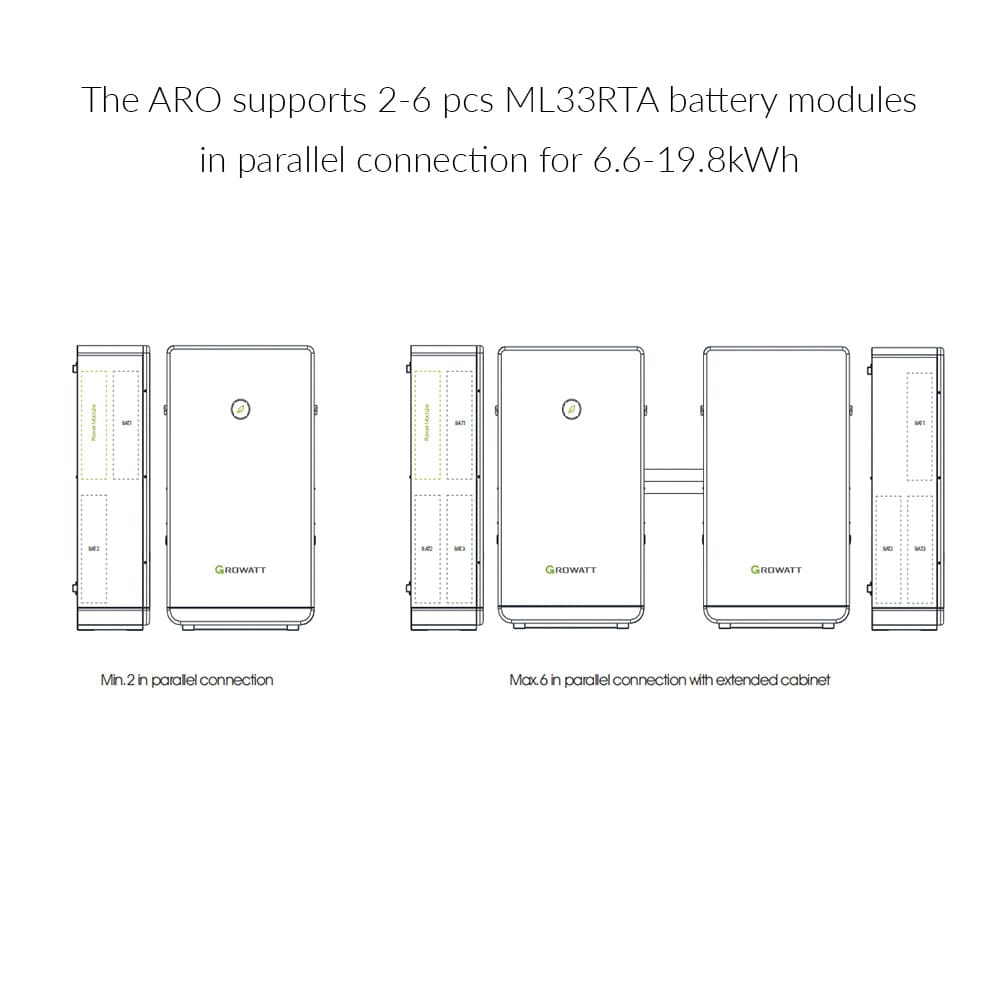

  • Flexible capacity options, 9.9kWh to 19.8kWh
  • Excellent safety of LiFePO4 Battery
  • Long lifespan, cycle life> 6000
  • 10 years warranty

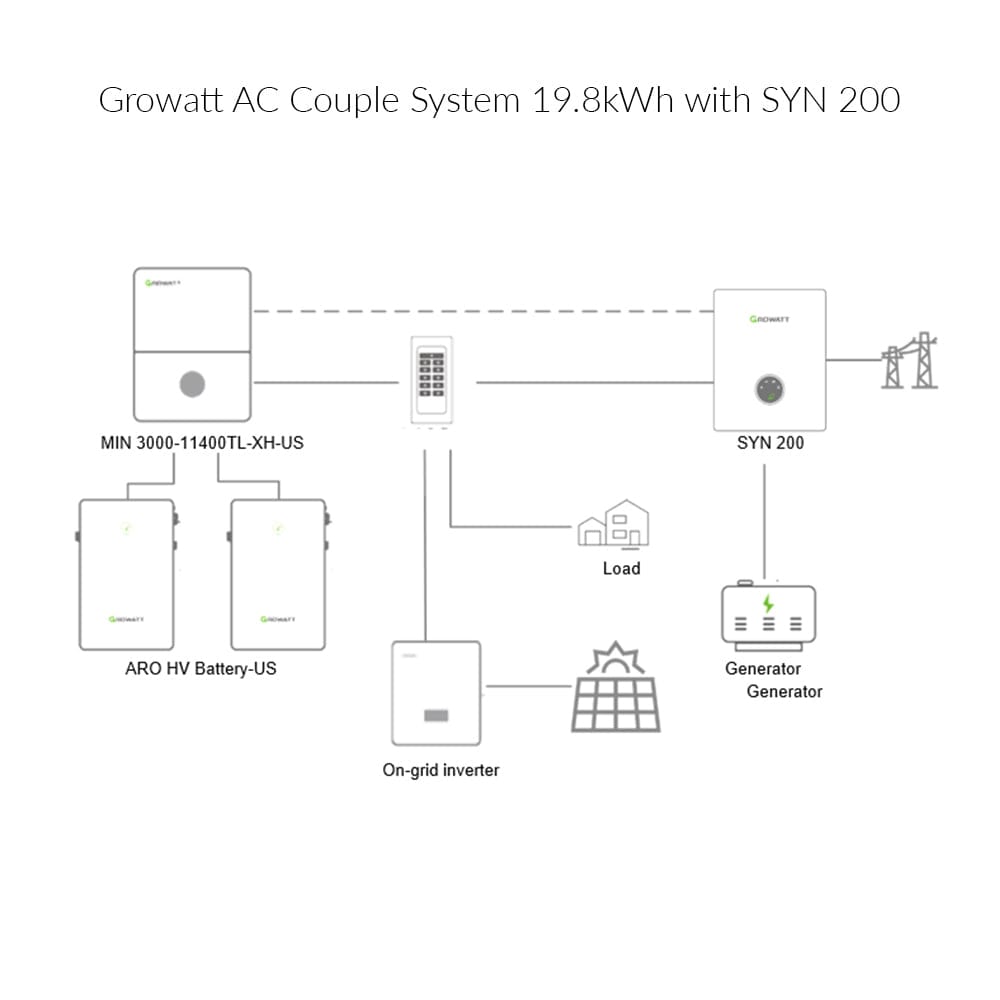

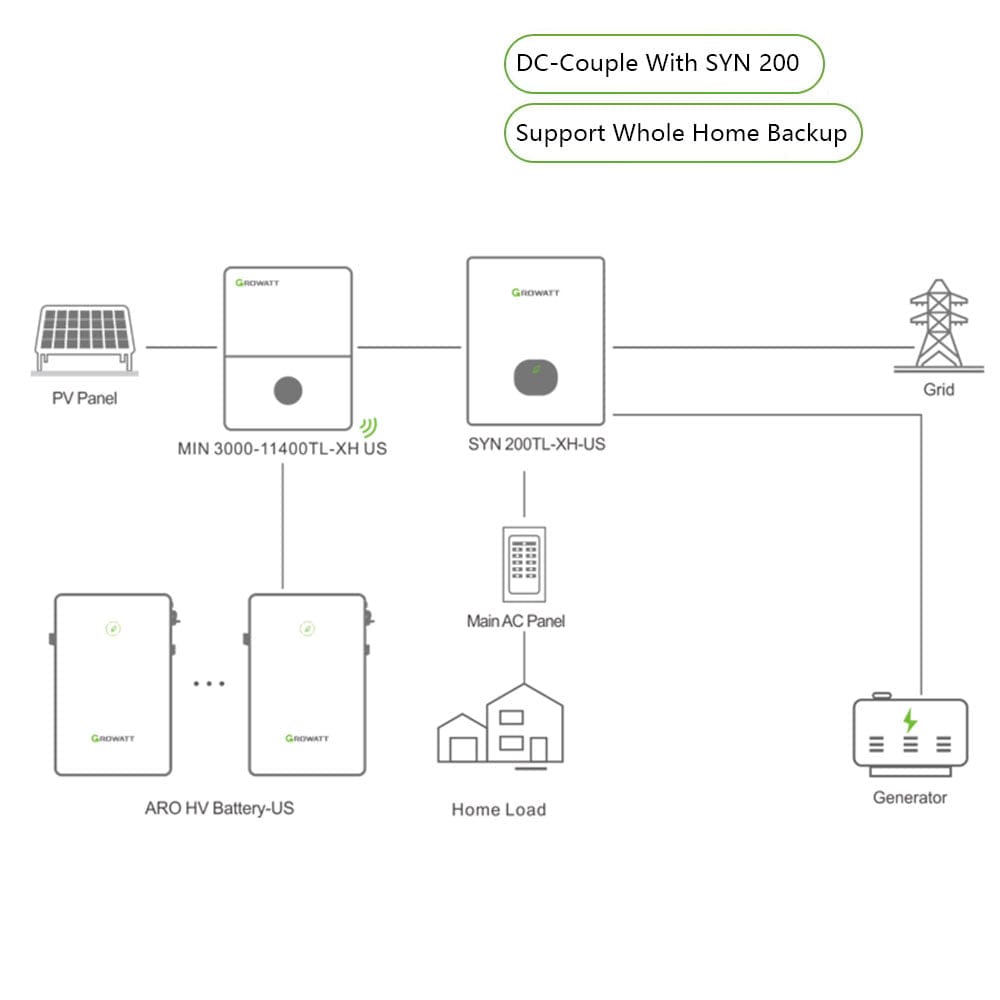

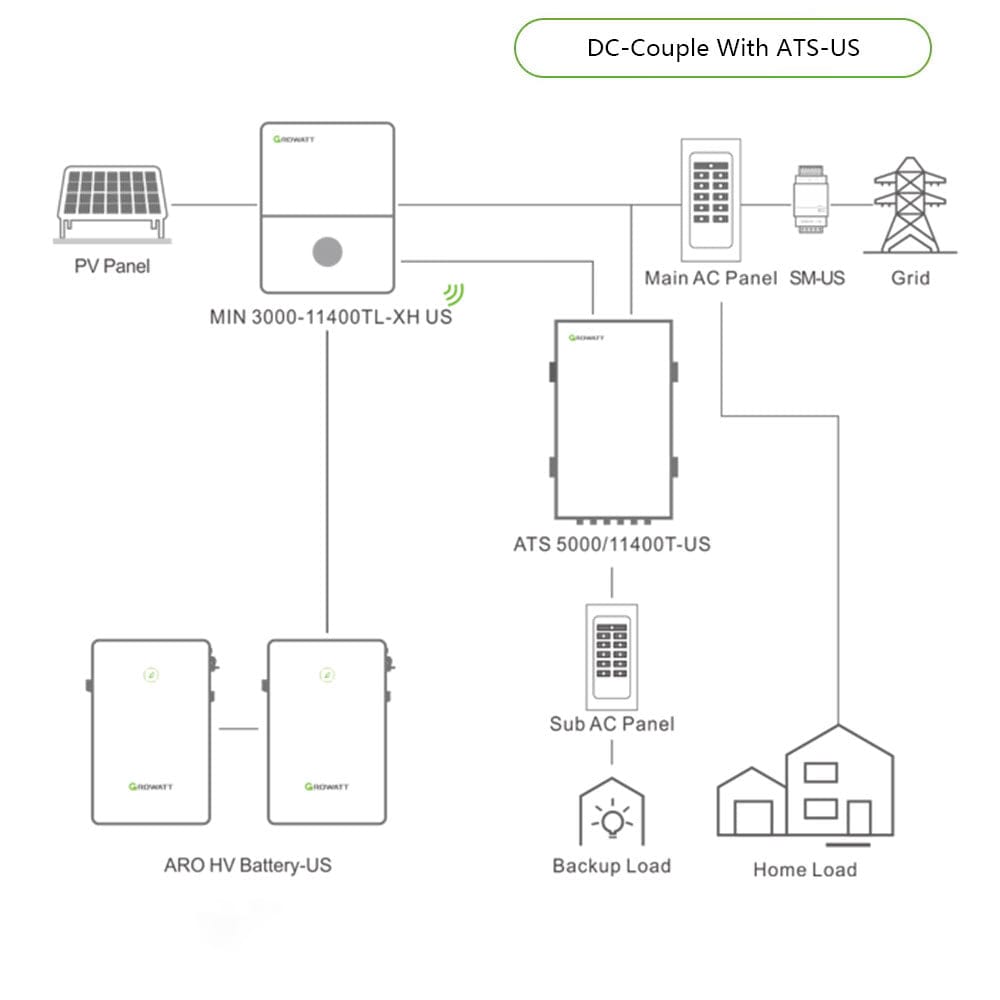

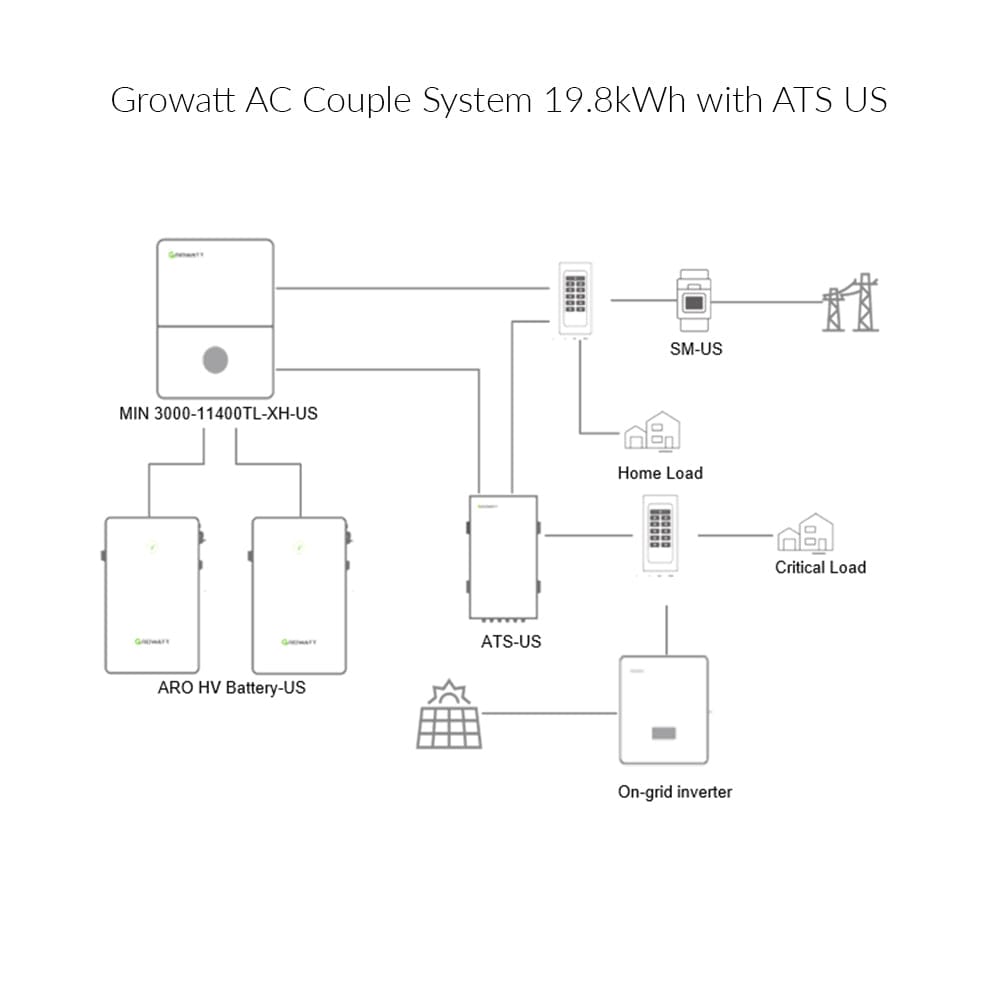

  • Compatible with Growatt MIN 3000-11400TL XH-US

Growatt 9.9 KWh ARO LiFePO4 High Voltage Home Energy Storage Battery | Compatible With Growatt MIN Series Grid-Tie inverter | UL9540 Certificated For Residential Solar Energy System

The Growatt 9.9 KWh ARO LiFePO4 high voltage ESS Battery with its advanced LiFePO4 chemistry, delivers a longer lifespan and enhanced safety compared to traditional battery technologies. Its high voltage capacity also means fewer batteries are needed to achieve the desired power output, reducing installation time and costs.
Also designed with installers in mind, the Growatt 9.9 KWh ARO HV LiFePO4 Battery is easy to install and integrate into existing systems. Its compact and modular design makes it easy to handle and install in a variety of locations.

Key Features:

  • Easy Installation:
    – Easy power output expansion
    – Module automatic recognition
    – NEMA 4X for outdoor installation
  • Safety and Reliability:
    – Cobalt-free LiFePO4 battery
    – High cycle stability and long lifespan
    – Soft start to defend the system from surges
    – Whole system warranty
  • Smart O&M
    – Auto under-voltage wakeup
    – Remote diagnosis and upgrade

Product Specifications

  • Nominal Voltage: 400V
  • Operating Voltage: 350~550V
  • Max. Charge/Discharge Power: 5.2kW / 5.2kW
  • Max. Charge/Discharge Current: 14.3A@360V
  • DOD: 90%
  • Cycle Life: >6000 cycles
  • IP Protection IP56/NEMA Type 4x
  • Communication Protocol:  RS485, CAN
  • Connect style: Parallel
ManufacturerGrowatt
TypeLiFePO4 High Voltage
Battery Capacity9.9kWh

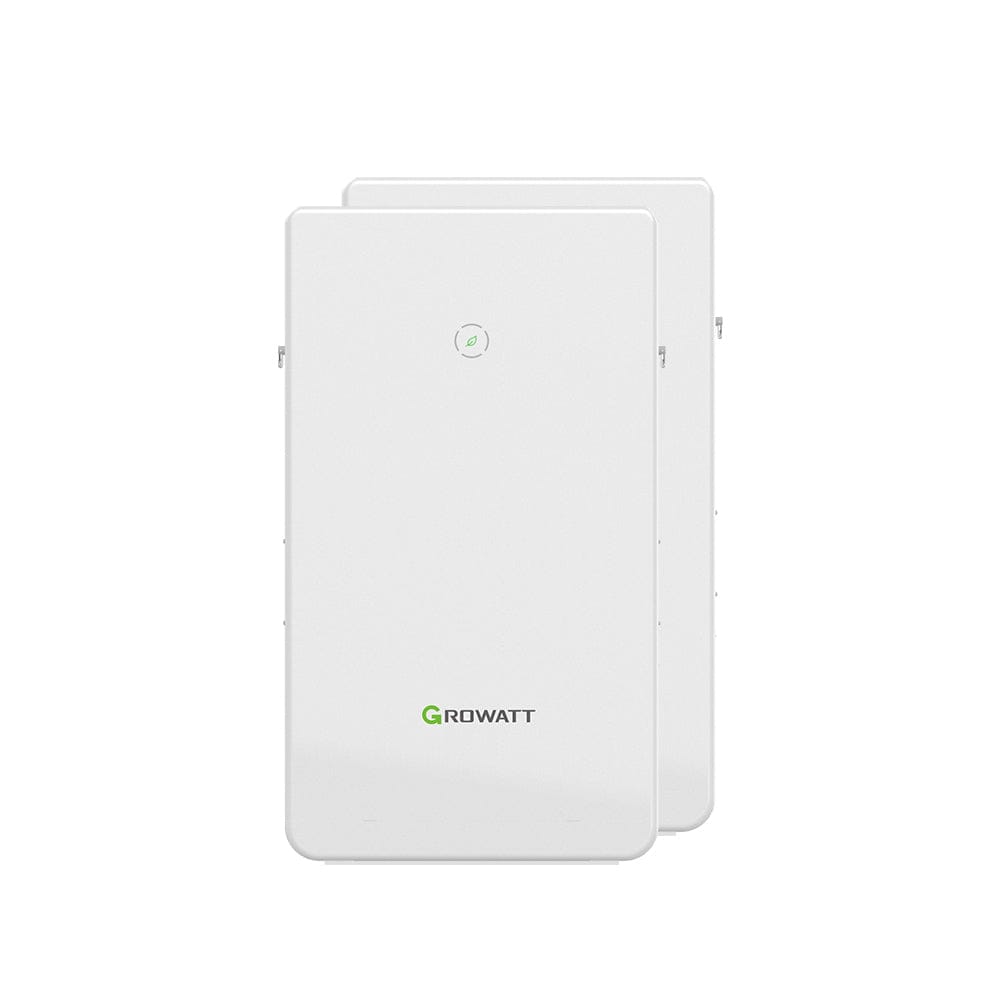

Easy ScalableEasy scale up to 19.8kWh
Dimensions(W*D*H)25.6*12.6*45.7inch (650*320*1160mm)
Weight309lbs ( 140 kg )
InstallationOutdoor / Indoor ( Floor stand )
IP ProtectionIP56/NEMA Type 4x
CertificateUL9540A, UL1973
Warranty10 Years

The Growatt ARO 9.9H-C1 ESS battery offers a robust and efficient energy storage solution with a focus on safety, longevity, and compatibility with various solar systems. Its high cycle life, advanced LiFePO₄ technology, and user-friendly features make it an excellent choice for maximizing the benefits of solar energy in both residential and commercial settings.

Weight 160 kg
Dimensions 120 × 90 × 40 cm
Brand

Battery Type

LiFePO4

Capacity(Ah)

40

Nominal Energy(Kwh)

10

Nominal Voltage (V)

400

Max. Charging Current(A)

14.3

Max. Discharging Current(A)

14.3

Warranty(Year)

10
