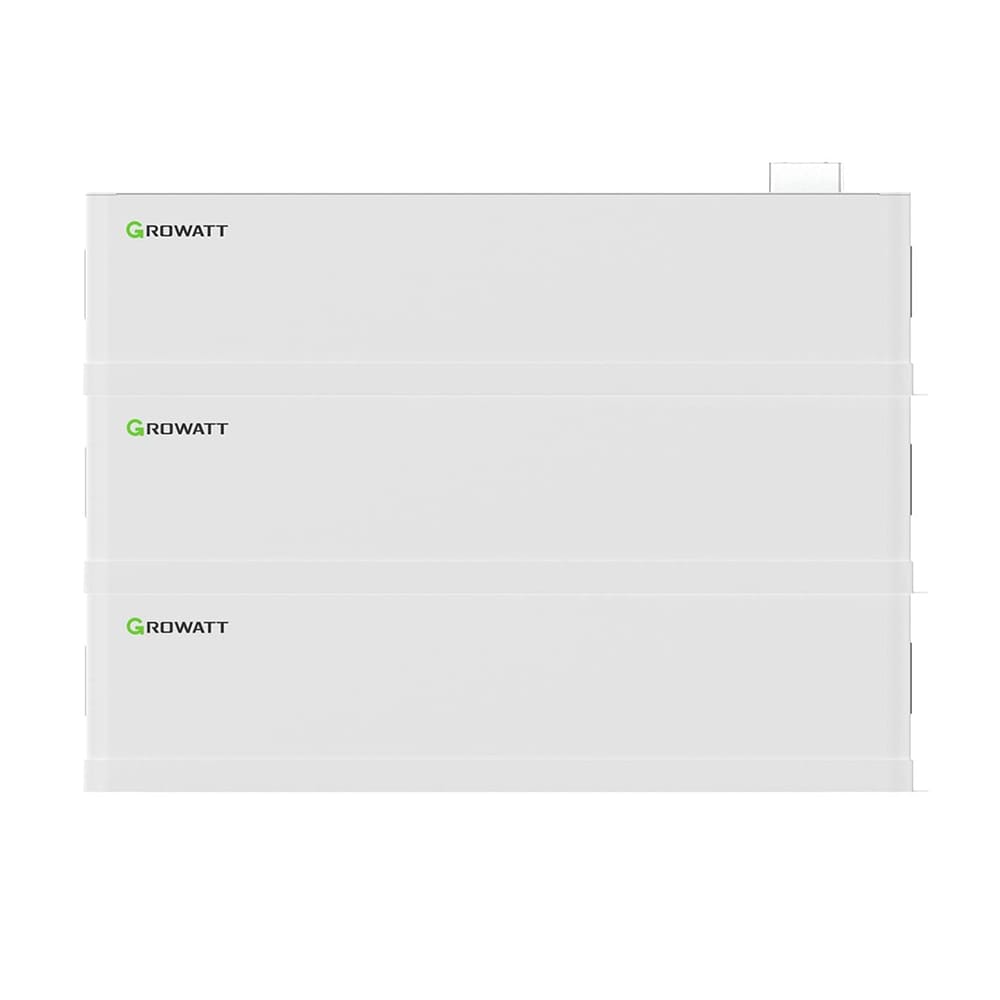

Growatt AXE 15.0L 15kWh LV LiFePO4 ESS Battery Compatible With Growatt MIN Series Grid-Tie inverter For Residential Solar Energy System
$5,100.00
- Modular Scalability: From 5kWh to a vast 400kWh, tailor your energy storage to match your needs perfectly.
- Advanced Safety: Cobalt-free LiFePO4 battery cells provide exceptional stability and peace of mind.
- Effortless Installation: Designed for simplicity, set up your system quickly with stackable modules that require no cable connections.
- Reliable Longevity: High cycle stability ensures a long lifespan, giving you a dependable power source for years to come.
- Remote Management: Stay updated and troubleshoot with ease thanks to the remote diagnosis and upgrade capabilities.
- Intelligent Design: Automatic module recognition simplifies expansion and integration within existing systems.
- Surge Protection: Soft start technology defends against power surges, protecting your investment.
- Substantial Warranty: A 5-year warranty backs your purchase, providing substantial security and confidence.
- Eco-Friendly Technology: Embrace green energy with a battery that minimizes environmental impact.
- Comprehensive Monitoring: With the integrated BMS, monitor SOC, voltage, temperature, and more for optimal performance.
Growatt AXE 15L 15kWh LV LiFePO4 ESS Battery Compatible With Growatt MIN Series Grid-Tie inverter For Residential Solar Energy System
The AXE Ess battery system adopts cobalt free LiFePO4 chemistry, modular energy optimizer, fuse, and aerosol to ensure its enhanced safety, reliability, and long lifespan. Furthermore, the modular energy optimization ensures the system fully use every pack’s energy, mix packs of new and old batches, and mix packs of different capacity, which offer the most flexible system application.
This state-of-the-art lithium iron phosphate (LiFePO4) battery is the base of the Growatt AXE LV Battery System.
The system offers a flexible storage capacity between 5kWh to 400kWh and not only meets the growing demand for residential off-grid lithium battery storage systems but is also suitable for large business and industrial scenarios.
The ESS battery system is modular and comes with internal plugs, requiring no extra cable connections, with all the external cables integrated onto one plug, to simplify its connection to the inverter.
Each module has an internal plug connection, and the battery pack quickly connects to the inverter with a single cable harness.
In terms of safety, there are multi-level protections from the inverter and BMS, such as cell security monitoring and balancing. Meanwhile, as a cobalt-free LFP battery, it comes with high-temperature resistance, safety and stability as well as up to 5,000 charge cycles. The AXE LV battery system also has an expected service life of more than 10 years. Generally, it holds more advantages in terms of the TCO (total cost of ownership) for customers.
With regards to compatibility, AXE LV battery system can be used with all Growatt’s SPF off-grid series inverters and works along with the single-phase SPH and SPA series storage inverters.
For daily use and maintenance, Growatt provides a whole-system warranty including the battery system and storage inverters. Additionally, Growatt allows installers to upgrade the firmware of the battery system remotely, which can help reduce the O&M cost and improve service efficiency.
BATTERY FEATURES:
- Excellent safety of cobalt free LiFePO4 battery
- Module energy capacity: 15kWh
- Nominal Voltage: 51.2V
- Operating Voltage Range: 48-57.6V
- Depth of Discharge: 92%
- Module dimensions (W/H/D mm): 650/140¹/350 (excluding base¹)
- Auto under-voltage wakeup
- Smart O&M – Cloud platform for smart monitoring and maintenance, support remote firmware upgrade
- Communication Port: CAN/RS485
- IP20 Protection
- Compatible with off-grid series inverters and single-phase SPH and SPA series storage inverters
- 10-year whole system warranty
Box Contents:
- Battery AXE 5.0Lx3
- Quick installation manual
- User manual
- Warranty card
- Certificate of conformity
Datasheet | AXE 5.0L | AXE 10.0L | AXE 15.0L | AXE 20.0L | AXE 25.0L | AXE 30.0L | AXE 35.0L | AXE 40.0L |
Battery Module | AXE 5.0L – C1 (5.0kWh, 51.2V, 40kg) | |||||||
Energy Capacity | 5.0kWh | 10.0kWh | 15.0kWh | 20.0kWh | 25.0kWh | 30.0kWh | 35.0kWh | 40.0kWh |
Dimension (W/D/H) | 650/350/165mm | 650/350/305mm | 650/350/445mm | 650/350/585mm | 650/350/725mm | 650/350/865mm | 650/350/1005mm | 650/350/1145mm |
Weight | 42kg | 82kg | 122kg | 162kg | 202kg | 242kg | 282kg | 322kg |
Max Charge | 60A | 120A | 150A | 150A | 150A | 150A | 150A | 150A |
Max Discharge | 60A | 120A | 150A | 150A | 150A | 150A | 150A | 150A |
General | ||||||||
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) | |||||||
Nominal Voltage | 51.2V | |||||||
Operating voltage Range | 48 – 57.6V | |||||||
IP Protection | IP 20 | |||||||
Operation Temperature | 0~50°C | |||||||
| Weight | 50 kg |
|---|---|
| Dimensions | 80 × 50 × 40 cm |
| Brand | |
| Battery Type |
LiFePO4 |
| Capacity(Ah) |
300 |
| Nominal Energy(Kwh) |
15 |
| Nominal Voltage (V) |
51.2 |
| Max. Charging Current(A) |
120 |
| Max. Discharging Current(A) |
120 |
| Warranty(Year) |
10 |
Growatt is a leading global provider of distributed energy solutions, specializing in sustainable energy generation, storage, and consumption. The company offers a comprehensive range of products, including solar inverters, energy storage systems, and smart energy management solutions.
Key Offerings
Solar Inverters: Growatt's lineup includes intelligent string inverters suitable for residential, commercial, and utility-scale solar applications, with capacities ranging from 0.75 kW to 253 kW.
Energy Storage Solutions: Growatt provides versatile storage solutions for both new installations and retrofits, including hybrid and AC-coupled systems. Their battery systems, such as the APX series, are designed to maximize self-consumption and enhance grid independence.
Electric Vehicle (EV) Chargers: The company offers smart EV chargers with capacities ranging from 3 kW to 40 kW, enabling users to charge their vehicles using solar energy.
Smart Energy Management: Growatt's advanced systems leverage Big Data, AI, and IoT technologies for efficient energy management, providing multi-point data monitoring and a smart cloud platform for predicting energy generation and consumption.
Recent Innovations
At the Intersolar Europe 2024 exhibition, Growatt showcased its latest products, including the NEO 600-1000M-X Microinverter and the NOAH 2000 Battery for balcony solar systems. These innovations reflect the company's commitment to integrating solar and storage solutions seamlessly for residential and commercial applications.
Applications
Growatt's solutions are designed to cater to various applications, including:
Residential Systems: Enhancing energy independence and reducing electricity bills through self-consumption of solar power.
Commercial Solutions: Optimizing energy usage for businesses and providing backup power during outages.
Utility-Scale Projects: Supporting large-scale solar installations with efficient energy management systems.
