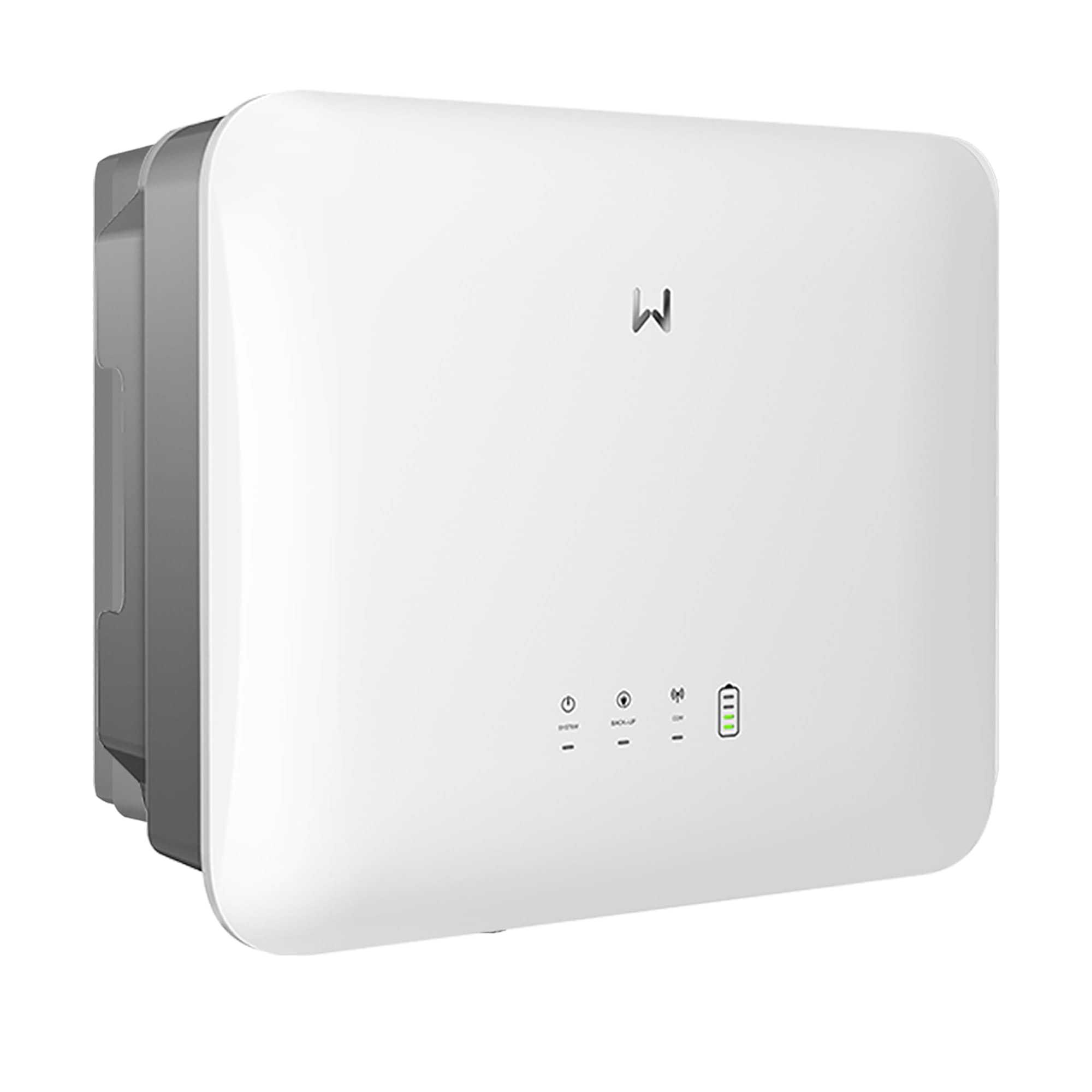

Goodwe Smart Energy Storage Hybrid Solar Inverter ES G2 Series GW5000-ES-20 5KW Single-Phase Solution For Residential Solar Energy System Compatible 48VDC Lithium/Lead-acid Battery
$1,260.00
The GoodWe ES G2 inverter is a single-phase hybrid solar inverter designed to increase self-consumption of generated solar energy, with the ability to control the flow of energy intelligently. The inverter has the functionality of providing backup modes with quick switching time in less than 10ms, that can cover heavy loads such as air conditioning. Its smart design also supports parallel connection for a dependable backup power supply. Installation is also easier and quicker thanks to a compact, lightweight design, with plug and play connection. The ES G2 is compatible with a wide range of low voltage batteries such as the GoodWe Lynx Home U Series battery. The ES G2 is the ideal inverter for homeowners looking to achieve a high degree of energy autonomy, reliable power supply, and lower energy bills.
SKU:
GW5000-ES-20
Categories: Inverter & Controller, Hybrid Inverter
Tags: Goodwe Hybrid Solar Inverter, Goodwe solar inverter, Hybrid Solar Inverter, On-Grid Solar Inverter
Goodwe Smart Energy Storage Hybrid Solar Inverter ES G2 Series GW5000-ES-20 5KW Single-Phase Solution For Residential Solar Energy System Compatible 48VDC Lithium/Lead-acid Battery
The GoodWe GW5000-ES-20 is part of the ES G2 series of hybrid solar inverters, designed for residential solar applications.
Key Features
- Rated Power: 5 kW, suitable for medium-sized residential solar systems.
- Hybrid Functionality: This inverter is designed to optimize self-consumption of generated solar energy and can manage energy flow intelligently. It supports battery storage, allowing homeowners to store excess energy for later use.
- MPPT Trackers: Equipped with 2 Maximum Power Point Trackers (MPPTs), allowing for better energy harvesting from solar panels, especially in situations with shading or different panel orientations.
- Input Specifications:
- Maximum DC Input Voltage: 600 V
- MPPT Voltage Range: 60 V to 550 V
- Startup Voltage: 58 V
- Maximum Input Current per MPPT: 16 A
- Output Specifications:
- Nominal AC Voltage: 220 V / 230 V / 240 V
- Maximum AC Output Current: 22.7 A
- Protection Rating: IP65, making it suitable for outdoor installations and resistant to dust and water.
- Cooling System: Features natural convection cooling, which allows for quiet operation and enhances reliability.
- Dimensions: Approximately 505.9 mm x 434.9 mm x 154.8 mm.
- Weight: 21.5 kg, which makes it manageable for installation.
- Communication Options: Supports Wi-Fi, RS485, and optional Ethernet for remote monitoring and management via the GoodWe app.
- Safety Features: Includes Arc Fault Circuit Interruption (AFCI) for enhanced safety, built-in surge protection, and overheating safeguards.
Advantages
- High Efficiency: The inverter is designed to maximize energy production, making it ideal for residential applications.
- Flexible Configuration: The dual MPPTs allow for optimal performance even with complex rooftop layouts or partially shaded conditions.
- Compact and Lightweight Design: The inverter’s design simplifies installation and makes it suitable for various rooftop spaces.
- Comprehensive Monitoring: The inverter provides advanced monitoring capabilities through a web portal and mobile app, allowing users to track real-time and historical performance data.
- Robust Safety Features: The inclusion of AFCI and surge protection enhances the safety of the installation.
Applications
The GoodWe Hybrid Solar Inverter GW5000-ES-20 is ideal for:
- Residential Solar Systems: Perfect for homeowners looking to harness solar energy for self-consumption and reduce electricity bills.
- Small Commercial Applications: Can also be used in small businesses to optimize energy usage and enhance sustainability.
The GoodWe Hybrid Solar Inverter GW5000-ES-20 is a reliable and efficient choice for residential solar applications. Its hybrid functionality, dual MPPT design, and robust safety features make it an excellent option for homeowners looking to maximize their solar energy systems.
Model No. | GW3600-ES-20 | GW3600M-ES-20 | GW5000-ES-20 | GW5000M-ES-20 | GW6000-ES-20 | GW6000M-ES-20 |
Input Data(DC) | ||||||
Max. DC Power | 5.4 kW | 5.4 kW | 7.5 kW | 7.5 kW | 9 kW | 9 kW |
Max. DC Voltage | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
Nominal DC Voltage | 360 V | 360 V | 360 V | 360 V | 360 V | 360 V |
Min. DC Voltage to Start Feed In | 58 V | 58 V | 58 V | 58 V | 58 V | 58 V |
Max. DC Current | 32 A | 32 A | 32 A | 32 A | 32 A | 32 A |
MPP(T) Voltage Range | 60~550 V | 60~550 V | 60~550 V | 60~550 V | 60~550 V | 60~550 V |
No of MPP Trackers | 2 | 2 | 2 | 2 | 2 | 2 |
DC Inputs | 2 | 2 | 2 | 2 | 2 | 2 |
Output Data (AC) | ||||||
Nominal AC Voltage | 220, 230, 240 V | 220, 230, 240 V | 220, 230, 240 V | 220, 230, 240 V | 220, 230, 240 V | 220, 230, 240 V |
Max. AC Current | 16.7 A | 16.7 A | 22.7 A | 22.7 A | 27.3 A | 27.3 A |
Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
Power Factor (cosθ) | 1 | 1 | 1 | 1 | 1 | 1 |
Distortion (THD) | < 3 % | < 3 % | < 3 % | < 3 % | < 3 % | < 3 % |
No of feed-in phases | 1 | 1 | 1 | 1 | 1 | 1 |
Max. Efficiency | 97.60% | 97.60% | 97.60% | 97.60% | 97.60% | 97.60% |
Euro Efficiency | 96.70% | 96.70% | 96.70% | 96.70% | 96.70% | 96.70% |
General Data | ||||||
Dimensions (H/W/D) | 434.9×505.9×154.8 mm | 434.9×505.9×154.8 mm | 434.9×505.9×154.8 mm | 434.9×505.9×154.8 mm | 434.9×505.9×154.8 mm | 434.9×505.9×154.8 mm |
Weight | 20.8 kg | 20 kg | 21.5 kg | 20 kg | 21.5 kg | 20 kg |
Power Consumption at Night | < 10 W | < 10 W | < 10 W | < 10 W | < 10 W | < 10 W |
Operating Temperature | -25 ~ +60 ℃ | |||||
Protection Class | IP65 | |||||
Humidity | 0-95 % | |||||
Cooling | Natural | |||||
Max. Altitude | 3000 m | |||||
Interface | RS 485, WLAN | |||||
Display | LED | |||||
Protection Features | ||||||
Protection Features | Anti Island Protection(ENS), Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Reverse Polarity Protection, Surge Protection |
Weight | 23 kg |
---|---|
Dimensions | 70 × 60 × 40 cm |
Brand | |
Battery Type |
Lead-acid ,Lithium-ion |
Max. Charging Current(A) |
120 |
Battery Voltage Range(V) |
40-60 |
Max PV Input Power(W) |
10000 |
Max PV Input Voltage(V) |
600 |
MPPT Voltage Range(V) |
60-550 |
No. Of MPPT |
2/1+1 |
Number of battery input |
1 |
Rated AC Input/Output Active Power(W) |
5000 |
Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
Rated Input/Output Voltage/Range(V) |
220V/230V |
