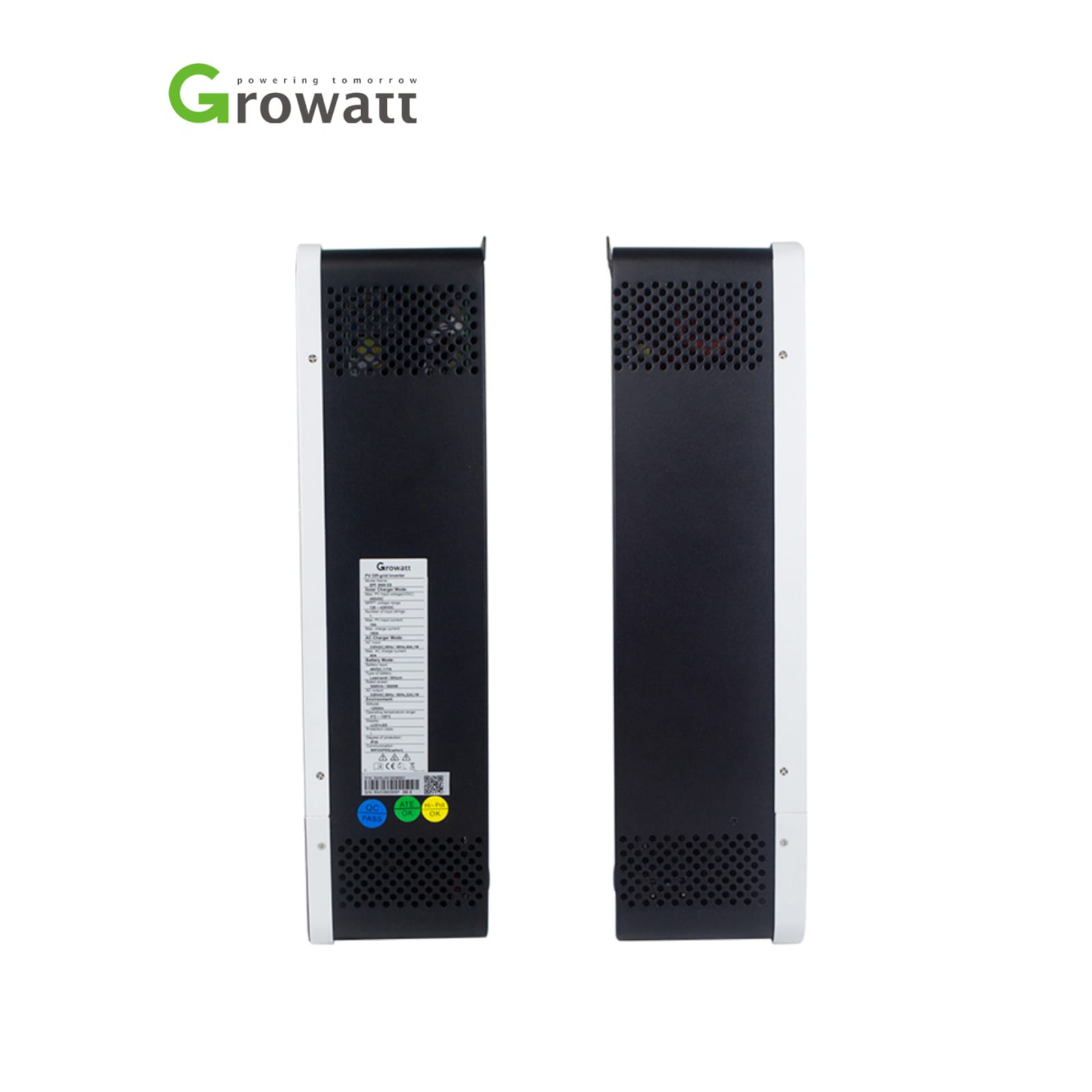

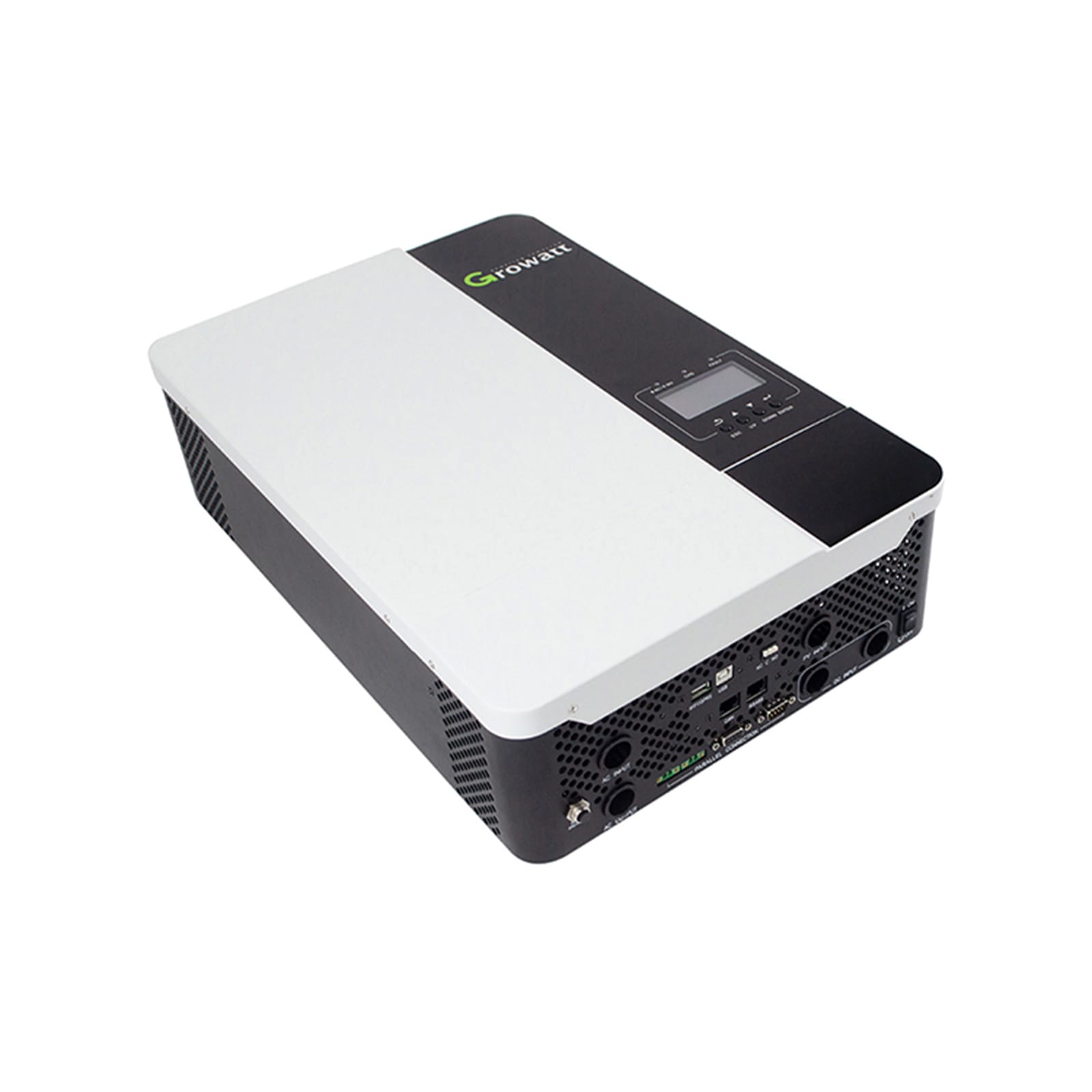

Growatt Off-Grid Storage Hybrid Solar Inverter SPF 3500 ES MAX. 4500W solar input compatible 48VDC Lithium/Lead-acid Battery 80A MPPT Charger
$370.00
One-phase hybrid inverter designed for residential and small industrial applications. Available capacities: 3kW, 3.5kW, 5kW. Inverter is also equipped with a range of advanced features that make it easy to install and use. It has a user-friendly interface that allows homeowners and installers to monitor system performance and adjust settings as needed. The inverter is also compatible with a range of monitoring systems, including WiFi, Ethernet, and GPRS.
Growatt Off-Grid Storage Hybrid Solar Inverter SPF 3500 ES MAX. 4500W solar input compatible 48VDC Lithium/Lead-acid Battery 80A MPPT Charger
Growatt SPF 3500 ES (Solar Power Frequency) is a type of hybrid solar inverter designed for use in residential and commercial solar power systems. It is a combination of an inverter, a battery charger, and a transfer switch that manages the flow of energy between solar panels, batteries, and the electrical grid. The Growatt SPF inverter is known for its high efficiency, reliability, and flexibility. It can work with both on-grid and off-grid solar systems, and can be used for backup power during power outages. It also has a range of features, such as a built-in MPPT charge controller, LCD display, and remote monitoring capabilities through a mobile app.
One-phase hybrid inverter designed for residential and small industrial applications. Available capacities: 3kW, 3.5kW, 5kW. Inverter is also equipped with a range of advanced features that make it easy to install and use. It has a user-friendly interface that allows homeowners and installers to monitor system performance and adjust settings as needed. The inverter is also compatible with a range of monitoring systems, including WiFi, Ethernet, and GPRS.
Key Features
High Yields
– DC/AC ratio up to 1.2
– 2 times peak power ability
– Output power factor up to 1.0
Scalable & Flexible
– Up to 6 units in parallel for capacity extension
– Multi-customized modes for diverse scenarios
– Compatible with lithium, lead-acid and GEL batteries
Smart & Reliable

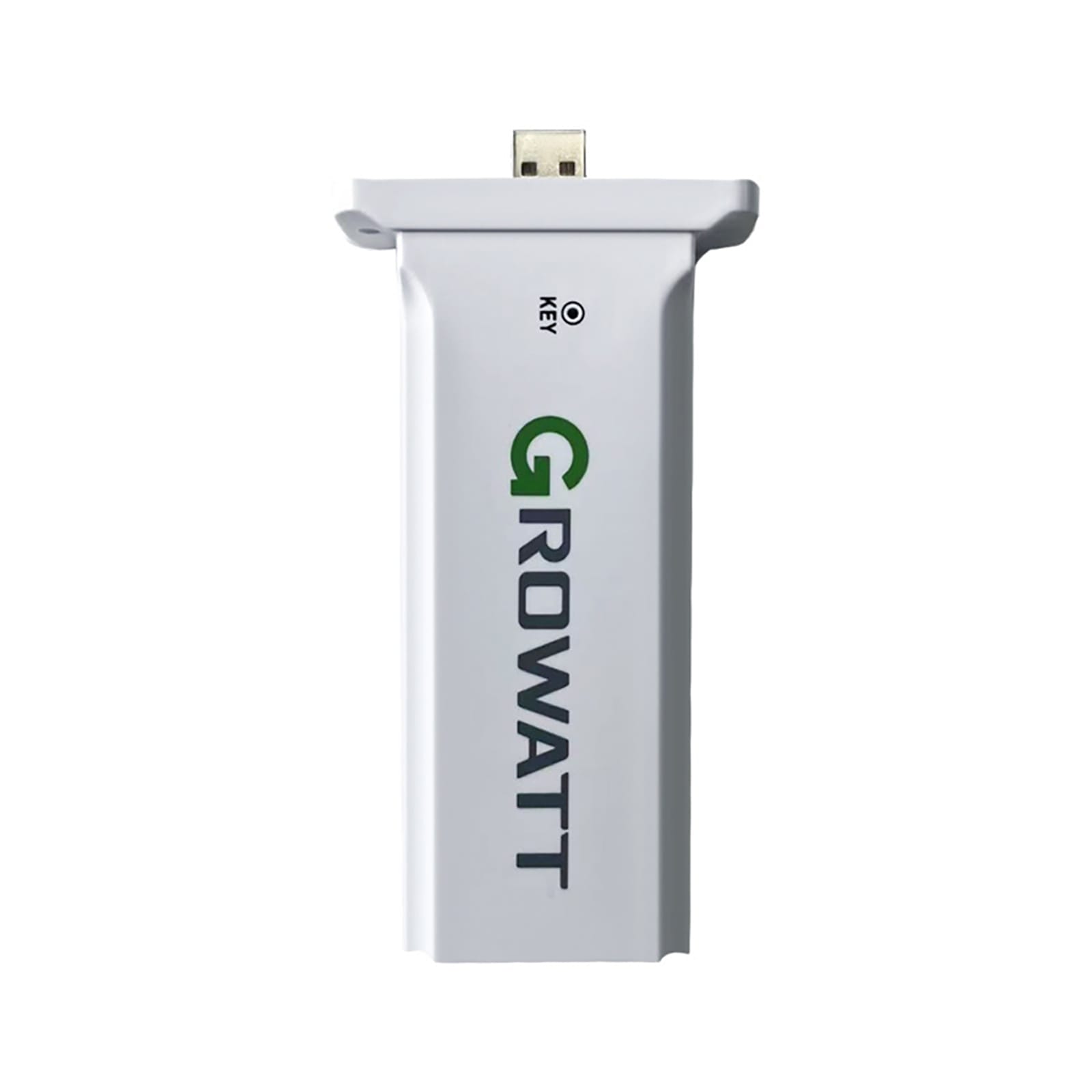

– Support WiFi and GPRS remote monitoring
– PVkeeper platform for local commissioning
– Timing charging and output control
Specifications of hybrid inverter Growatt SPF 3500 ES
- Rated power [W] : 3500
- Battery Voltage [VDC]: 48
- Max. PV Array Power [W] : 4500
- MPPT Range Operating Voltage – 120VDC – 430VDC
- Charge Current [A] : 60
- Dimensions (W / H / D) [mm] : 330/485/135
- Weight [kg] : 11.5
- MAX. efficiency [%] : 93
- Protection degree: IP20
| Weight | 14 kg |
|---|---|
| Dimensions | 60 × 40 × 20 cm |
| Brand | |
| Battery Type |
Lead-acid ,Lithium-ion |
| Max. Charging Current(A) |
80 |
| Battery Voltage Range(V) |
40-60 |
| Max PV Input Power(W) |
4500 |
| Max PV Input Voltage(V) |
450 |
| MPPT Voltage Range(V) |
120-430 |
| No. Of MPPT |
2/1+1 |
| Number of battery input |
1 |
| Rated AC Input/Output Active Power(W) |
3500 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
Growatt is a leading global provider of distributed energy solutions, specializing in sustainable energy generation, storage, and consumption. The company offers a comprehensive range of products, including solar inverters, energy storage systems, and smart energy management solutions.
Key Offerings
Solar Inverters: Growatt's lineup includes intelligent string inverters suitable for residential, commercial, and utility-scale solar applications, with capacities ranging from 0.75 kW to 253 kW.
Energy Storage Solutions: Growatt provides versatile storage solutions for both new installations and retrofits, including hybrid and AC-coupled systems. Their battery systems, such as the APX series, are designed to maximize self-consumption and enhance grid independence.
Electric Vehicle (EV) Chargers: The company offers smart EV chargers with capacities ranging from 3 kW to 40 kW, enabling users to charge their vehicles using solar energy.
Smart Energy Management: Growatt's advanced systems leverage Big Data, AI, and IoT technologies for efficient energy management, providing multi-point data monitoring and a smart cloud platform for predicting energy generation and consumption.
Recent Innovations
At the Intersolar Europe 2024 exhibition, Growatt showcased its latest products, including the NEO 600-1000M-X Microinverter and the NOAH 2000 Battery for balcony solar systems. These innovations reflect the company's commitment to integrating solar and storage solutions seamlessly for residential and commercial applications.
Applications
Growatt's solutions are designed to cater to various applications, including:
Residential Systems: Enhancing energy independence and reducing electricity bills through self-consumption of solar power.
Commercial Solutions: Optimizing energy usage for businesses and providing backup power during outages.
Utility-Scale Projects: Supporting large-scale solar installations with efficient energy management systems.
