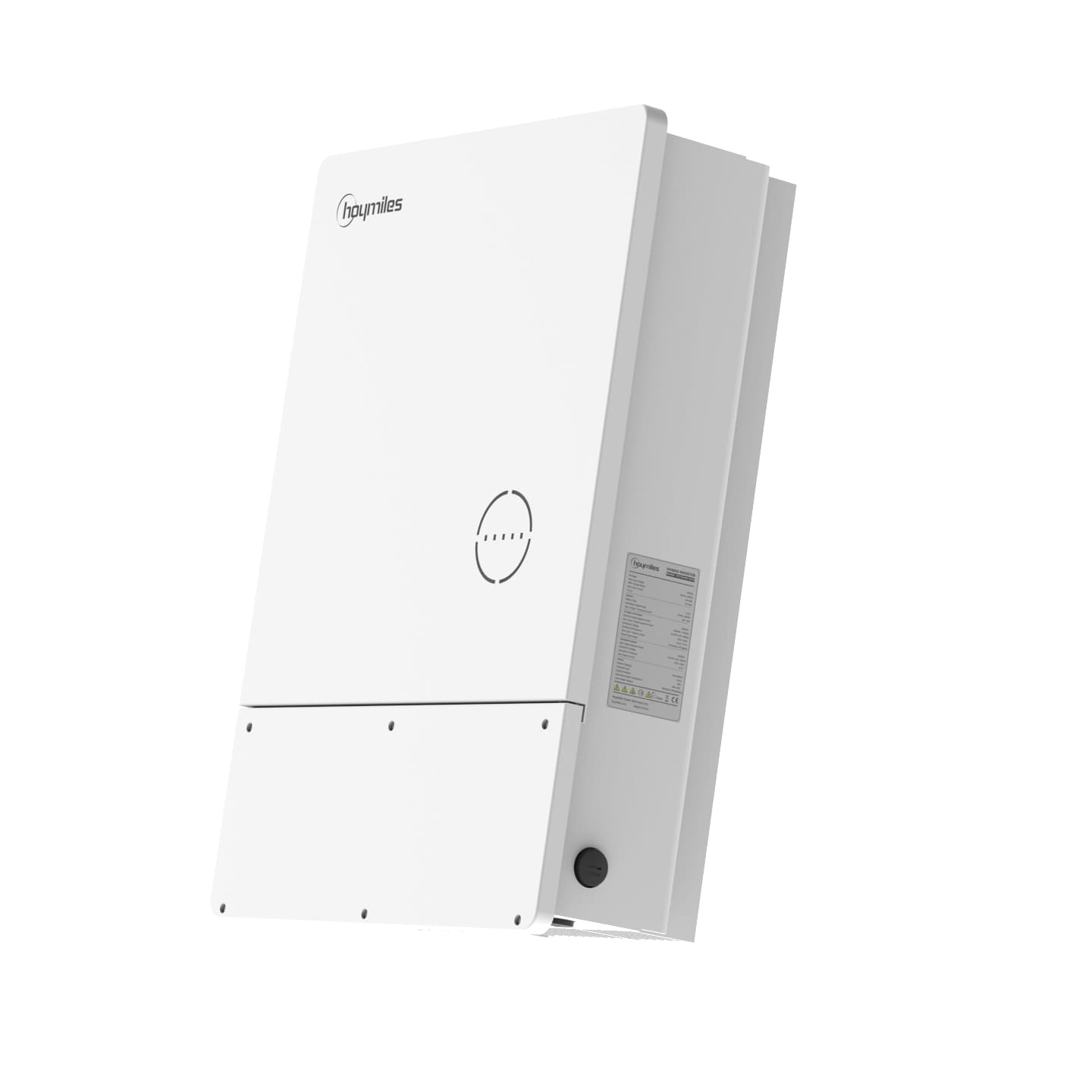

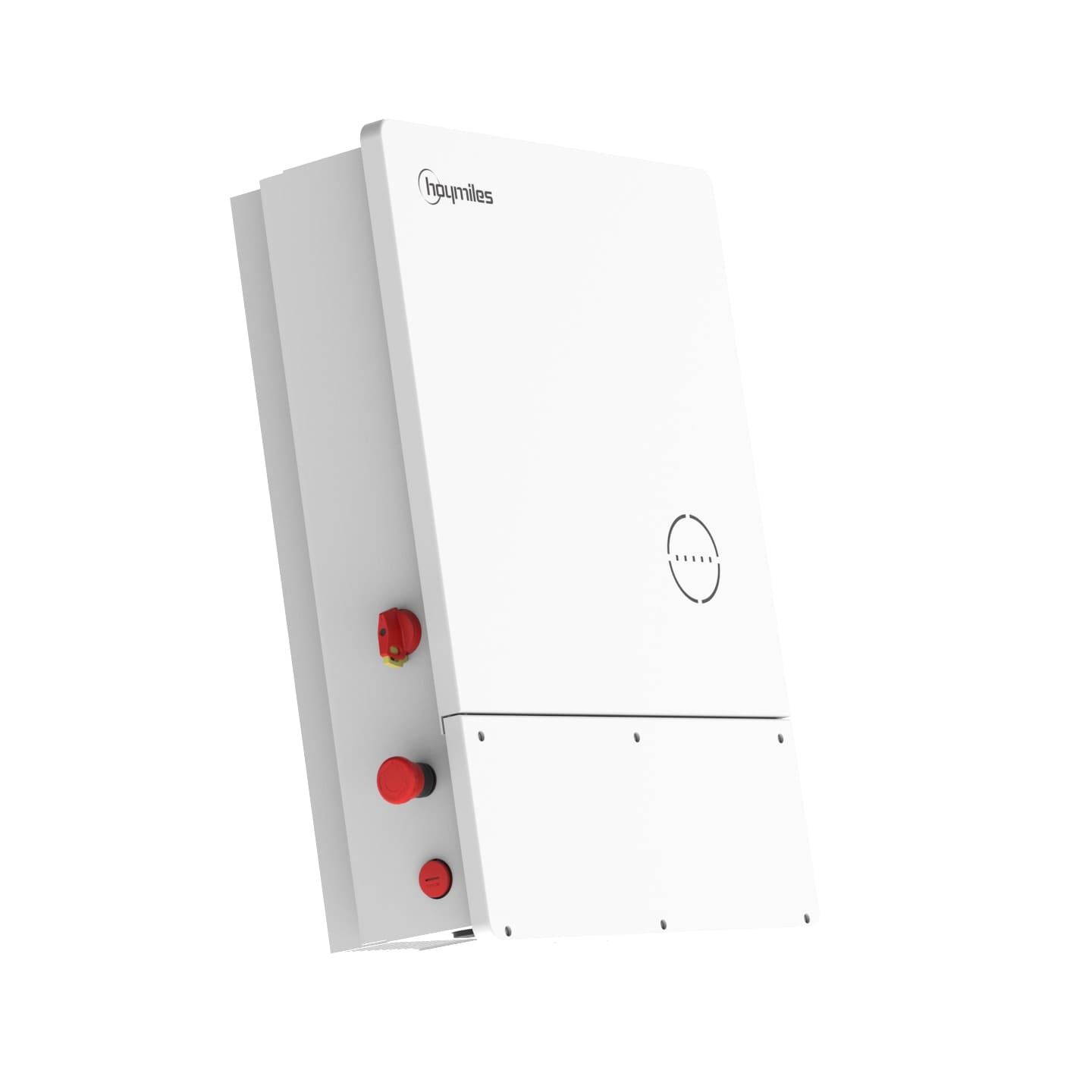

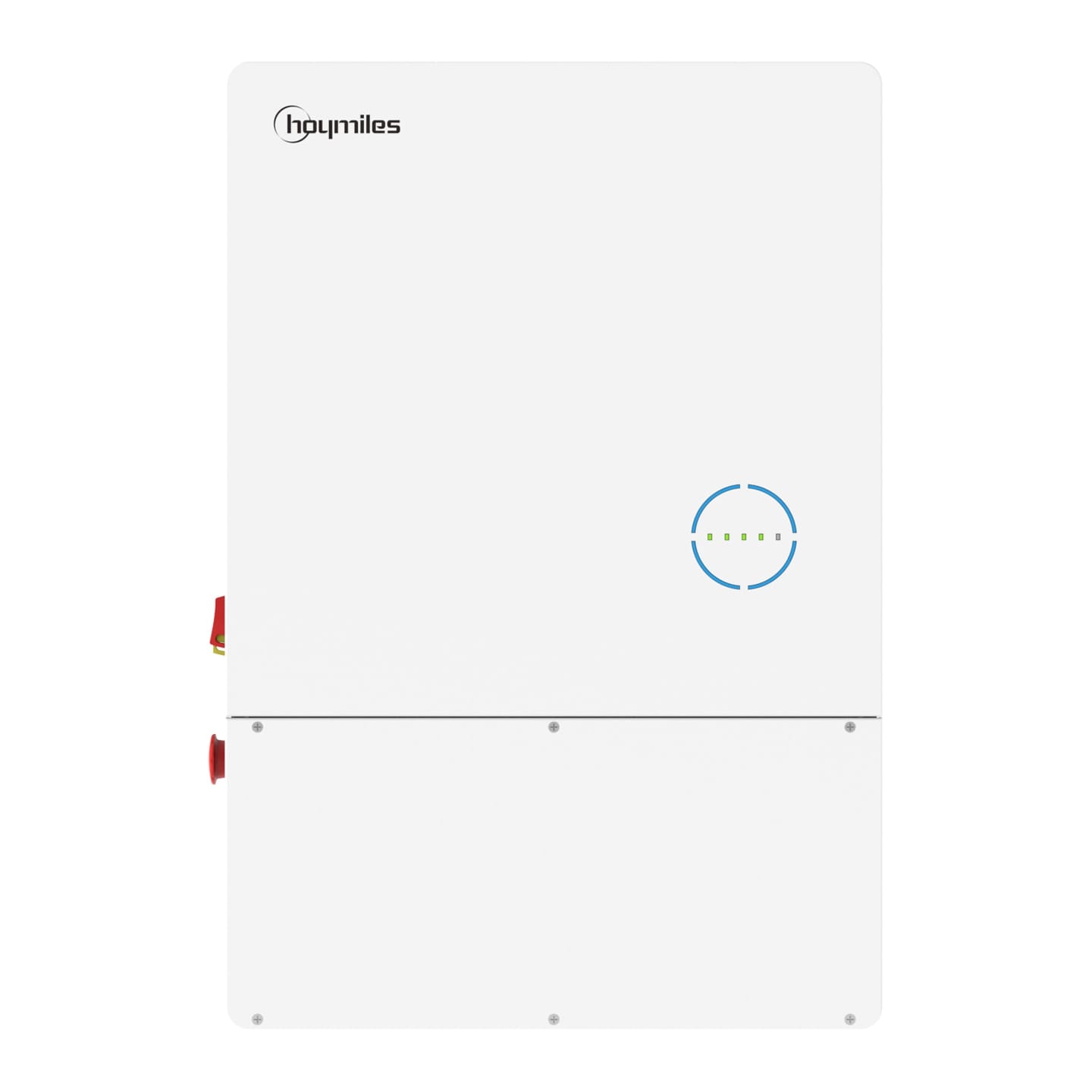

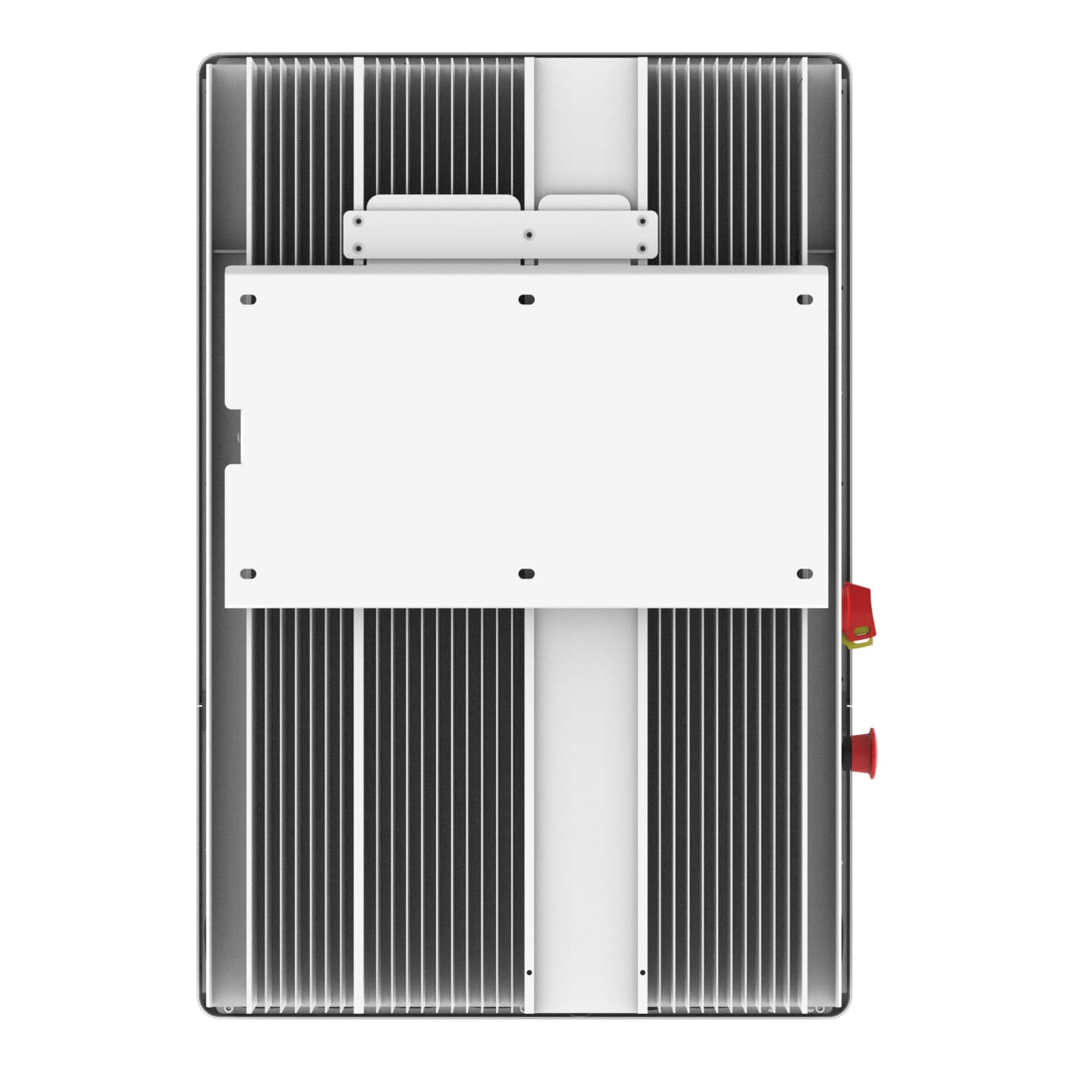

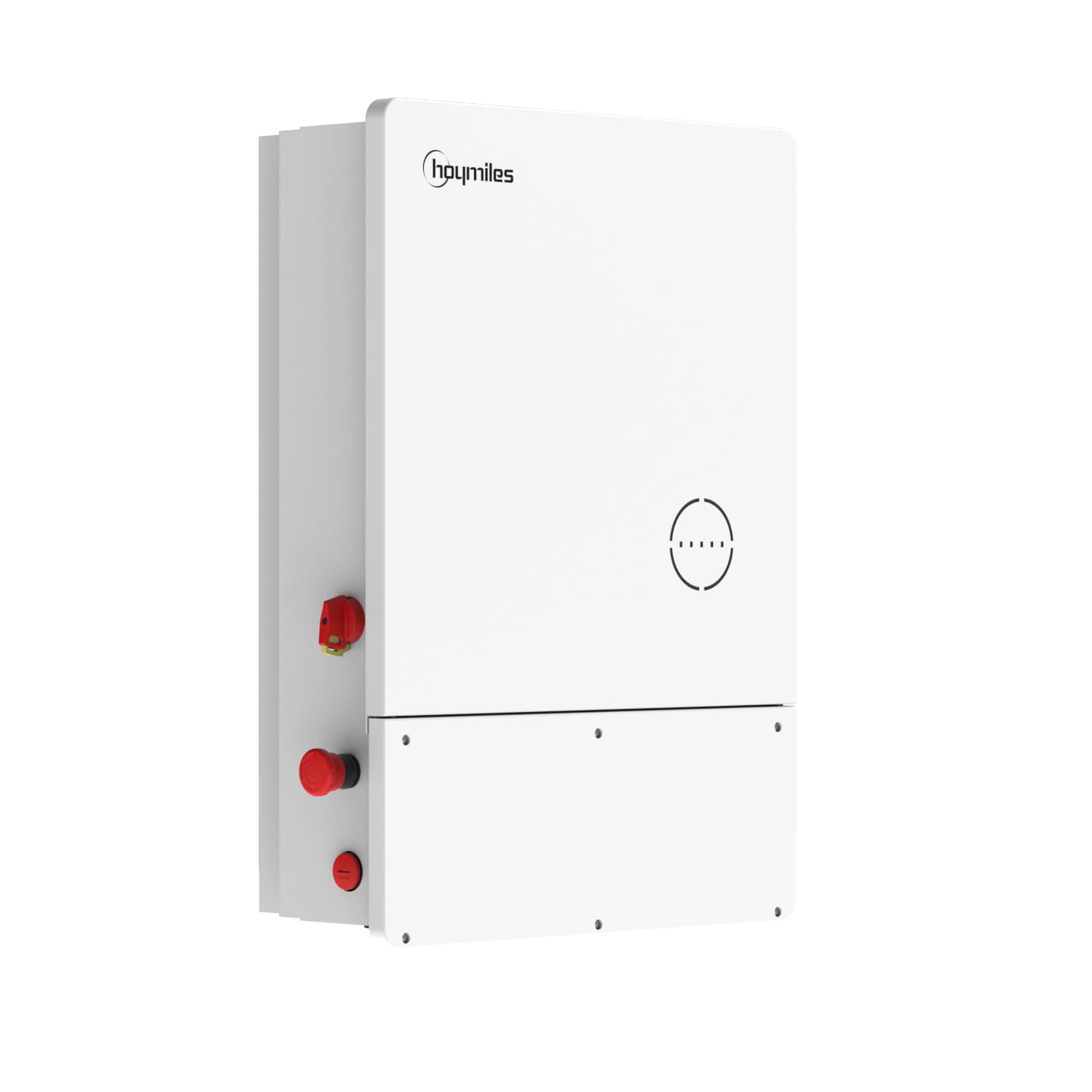

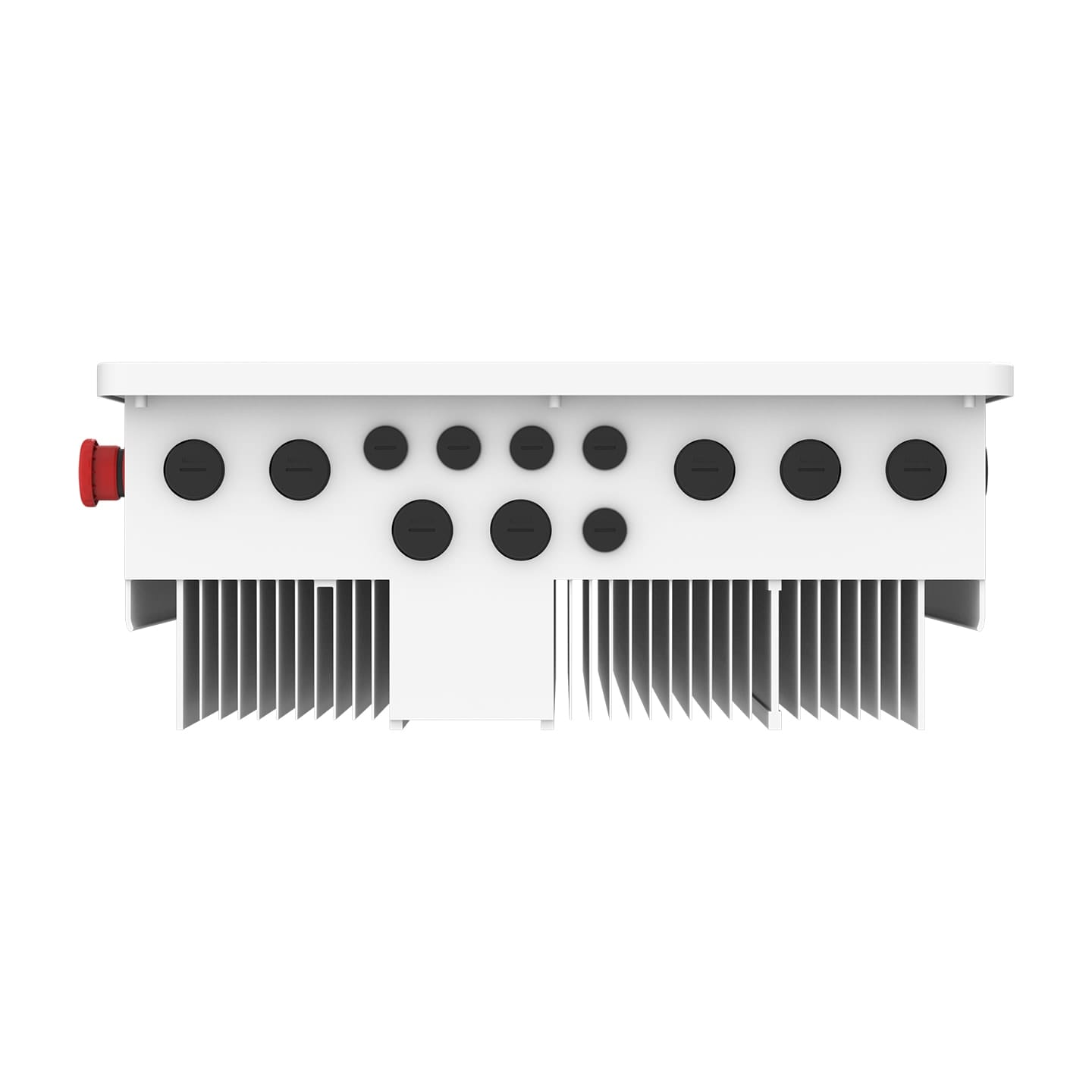

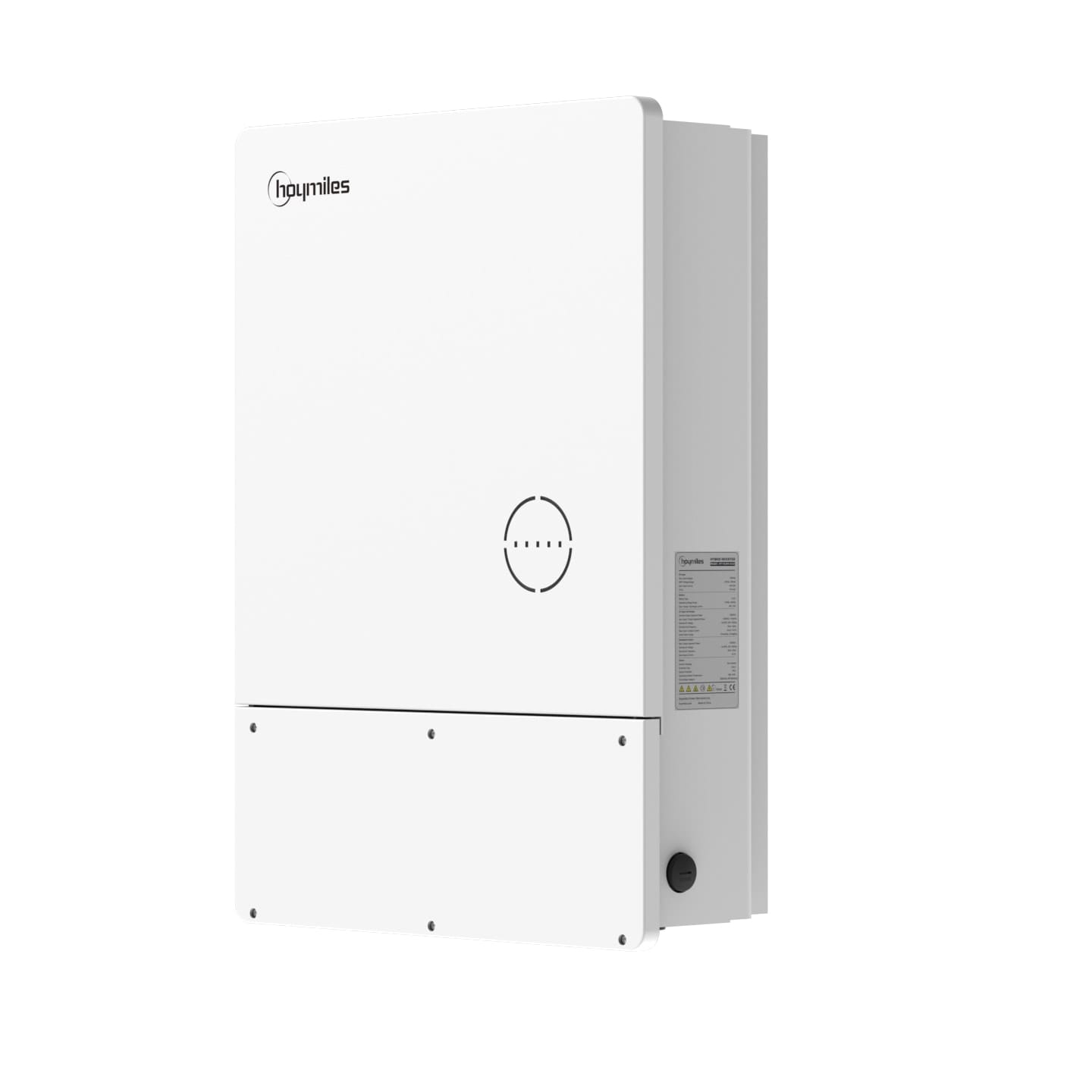

Hoymiles Hybrid Solar Inverter HYS-10LV-EUG2 10kW 230V Single-Phase Solution For EU Market Residential Solar Energy System Compatible Low Voltage Lithium/Lead-Acid Battery

$1,680.00

The HYS-LV-EUG2 Series is a new generation single-phase hybrid inverter with excellent reliability, including power classes ranging from 8.0 kW to 12.0 kW. The intelligent EMS function supports self-consumption mode, economic mode, and backup mode for multi-scenario applications.
Monitoring management through Hoymiles Cloud allows users to remotely diagnose and track system’s performance over time, maximizing the total solar power production and battery utilization.

Hoymiles Hybrid Solar Inverter HYS-10LV-EUG2 10kW 230V Single-Phase Solution For EU Market Residential Solar Energy System Compatible Low Voltage Lithium Battery

The Hoymiles 10kW HYS hybrid solar inverter is a quality solution for generating solar power with exceptional efficiency. Its modular design and high power density rating sets it apart from other brands. Your hybrid solar inverter is your central hub between solar panels, storage batteries and your homes energy requirements.

Higher Power Density: With a modular design and exceptional efficiency, the HYS hybrid inverter features the highest power density rating in the world for its size and power output. This means it can generate more power while taking up less space.

More Power Bands: The HYS hybrid solar inverter features 8 different power bands to choose from, with the maximum single-unit power output reaching up to 12kW. This makes the smart hybrid inverter a versatile solution for a wide range of residential applications.

Lower Costs: The HYS hybrid solar inverter offers a cost-saving option for anyone who wants to generate electricity from the sun, with a 5% reduction in product costs and a 50% reduction in installation costs compared to other brands

More Advanced Features: The HYS hybrid Solar inverter offers intelligent energy management for homes, power dispatching and demand-side response management, and distributed virtual power station management. These advanced features make it an ideal solution for sustainable living and commercial applications.

Hoymiles Hybrid Solar Inverter HYS-8LV-EUG2 8kW 230V Single-Phase Solution For EU Market Residential Solar Energy System Compatible Low Voltage Lithium Battery

Benefits Of Using Hoymiles Hybrid Solar Inverter

The newly launched Hoymiles hybrid solar inverter offers a variety of benefits for residential and commercial customers looking to streamline energy management and reduce costs:

The Hoymiles HYS hybrid solar inverter makes managing energy usage easier. Whether on or off the grid, the smart inverter system can help ensure constant power and prevent disruptions in electricity supply.

The Hoymiles HYS hybrid solar inverter can help reduce the reliance on the grid, which can have a positive impact on the environment. By switching to solar power, residential or businesses can limit the number of carbon gases produced by electricity production plants.

The Hoymiles HYS hybrid solar inverter is also an economical choice. While there may be an upfront investment, the Hoymiles HYS hybrid solar inverter can provide significant long-term savings.

● Intelligent export limitation

● Double MPPT tracker, up to 14A MPPT current

● DC/AC ratio up to 150%

● Ultralight for easy installation and space-saving

● Compatible with multiple batteries, providing users with more choices

● UPS level switching time <10 ms

● Built-in dry contact flexibly set to earth fault alarm, load control or generator control

●  Max. 10 parallel inverters

●  10 Years Warranty

S-Miles Cloud The Hoymiles monitoring platform

On mobile devices and web browsers, S-Miles Cloud is your complete toolkit for monitoring, managing and troubleshooting your photovoltaic installation. From visual data on your energy production and usage to options for in-depth analytics, it’s all in the same simple interface. So you can maximize performance, stay in control of your solar system, and make data-driven decisions at every stage.

Dimensions: 19.8 ×29.1 ×7.95 inch (502 × 740 × 202 mm)Max. PV input Current: 32A/32A
Weight: 90.4 lbs (41 kg)Rated Output Power (VA): 10,000VA
Battery voltage range: 40V–60VMax. output apparent power (on-grid): 11,000VA
Max. battery charge/discharge current: 200A/200AMax. input power (on-grid): 23,000W
MPPT voltage range: 125V-500VMax. efficiency: 97.6%
Number of MPPTs: 2Protection degree: IP65
Weight 44 kg
Dimensions 90 × 70 × 40 cm
Brand

Battery Type

Lead-acid

,

Lithium-ion

Max. Charging Current(A)

32

Battery Voltage Range(V)

40-60

Max PV Input Power(W)

13000

Max PV Input Voltage(V)

550

MPPT Voltage Range(V)

125-500

No. Of MPPT

2/1+1

Number of battery input

1

Rated AC Input/Output Active Power(W)

10000

Rated Input/Output Grid Frequency/Range

50Hz/45Hz-55Hz

,

60Hz/55Hz-65Hz

Rated Input/Output Voltage/Range(V)

220V/230V
