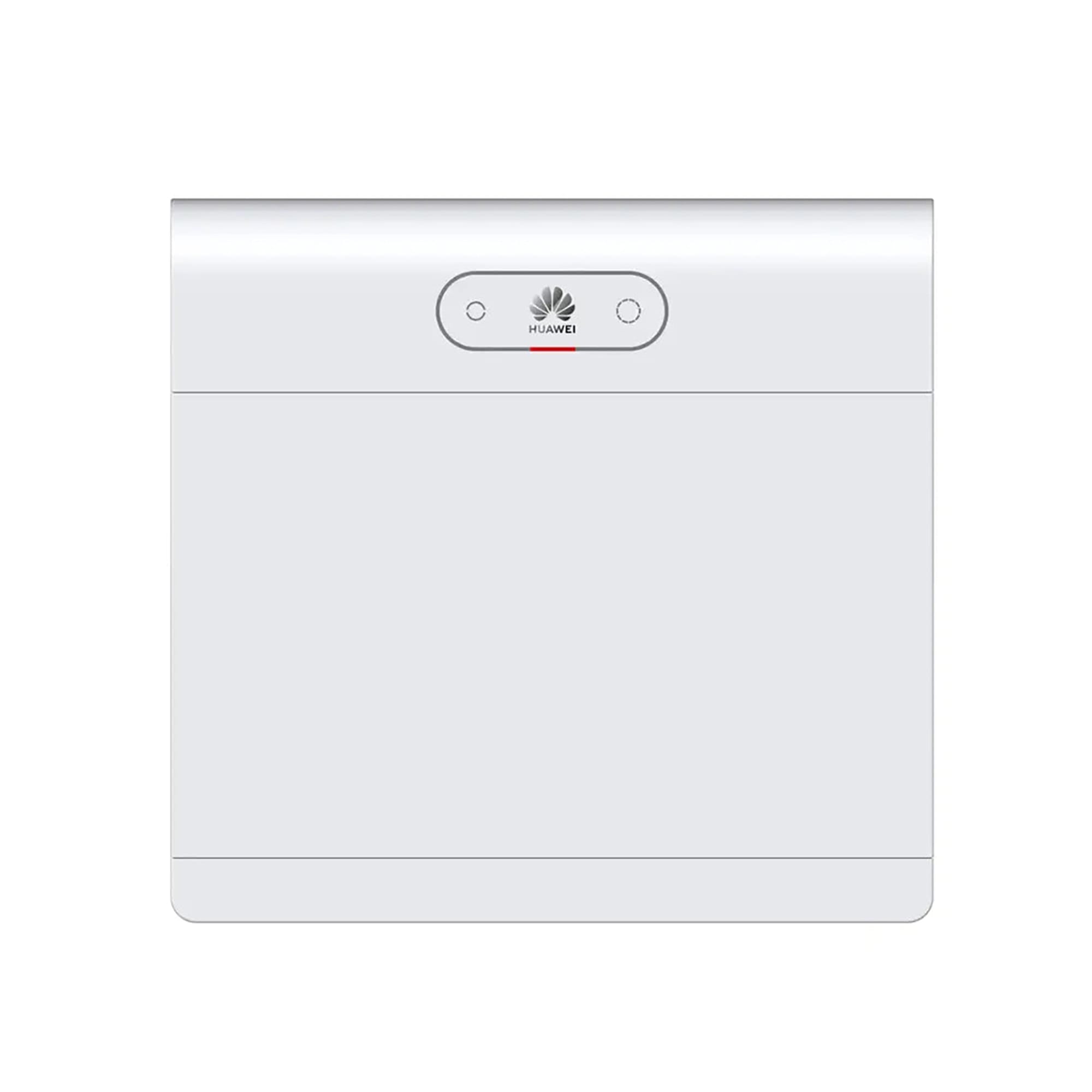

HUAWEI Energy Storage System (ESS) LUNA2000-7-S1 For Home 6.9KWh Smart PV Storage Battery System
$3,600.00
An upgrade for more power, safety and efficiency. This high energy density PV battery with lithium iron phosphate cell chemistry offers a guaranteed long lifetime of 15 years and a future-oriented design. With scalability options per ESS tower from 7 to 21 kWh, the LUNA2000-S1 series meets a variety of energy storage requirements and offers homeowners the flexibility to increase the capacity of their storage system as needed, whether to increase self-consumption or to provide sufficient backup capacity. Module+ optimization allows the LUNA2000-S1 to utilize the integrated energy optimizer, which improves usable energy by more than 40%*.
Independent management at module level enables fast charging and discharging with 3.5 kW for each battery module and a maximum input and output power of 10.5 kW for each energy storage system.
Flexible capacity
- 6.9 kWh per battery module
- Scalable from 6.9 kWh to 20.7 kWh per ESS
- Max. 4 ESS with 82.8 kWh for one SUN2000-(12-25K)-MB0 inverte
Increased energy efficiency
- Module+ design with integrated energy optimizer
- Extremely long operating time
- Full discharge depth of 100%
Security guaranteed on five levels
- Protection at cell level as well as electrical and structural safety
- Active safety measures and emergency precautions
Maximum performance in all application scenarios
- Operating temperature from -20°C to +55°C
- A maximum charging and discharging capacity of 10.5 kW is achieved when three battery modules are used
- Extremely quiet operation
Convenient installation

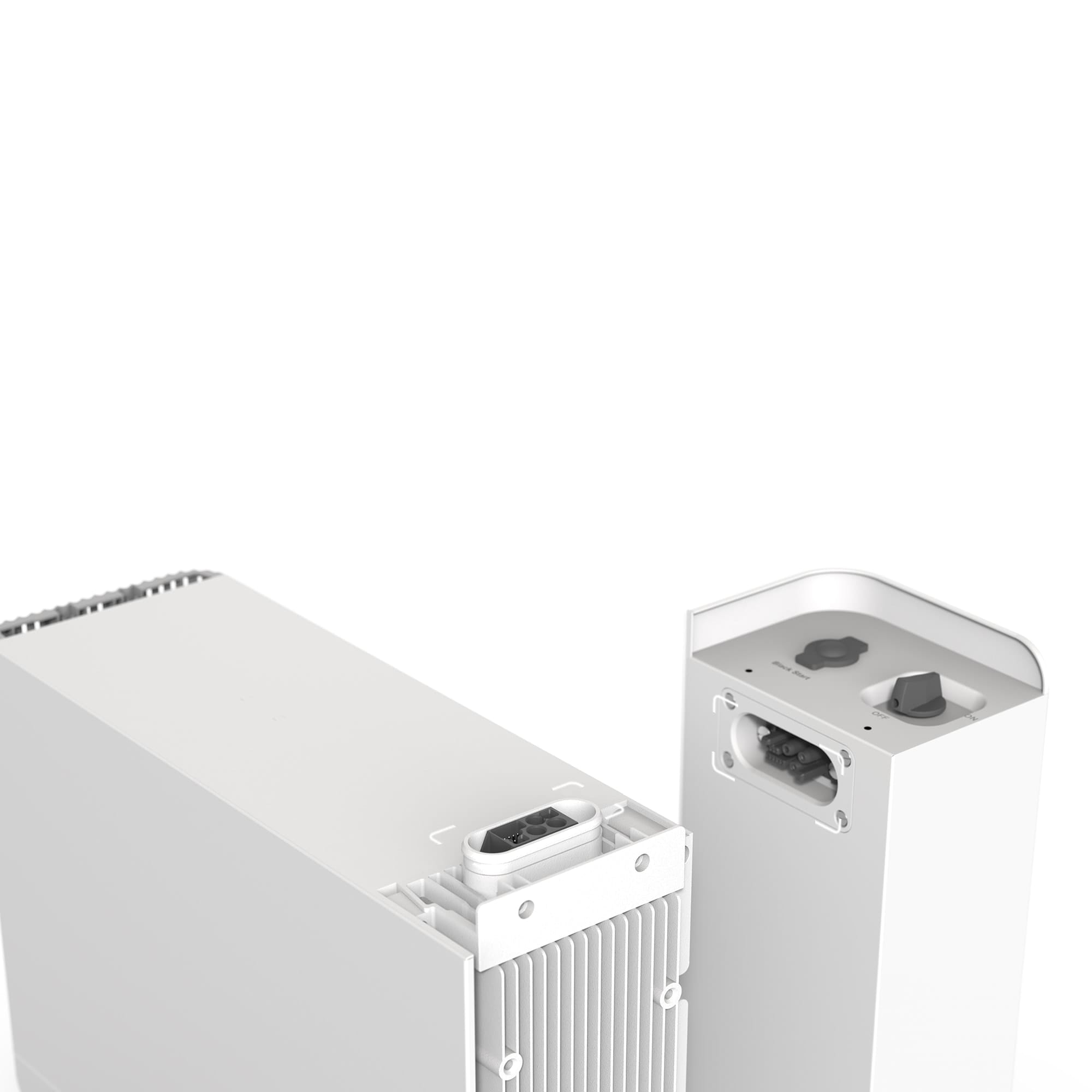

- Docking between modules without cabling
- Design with horizontal adjustment option
- Quick commissioning
Attractive design
- A user-friendly communication interface to display the battery status
- Elegant curves and a sleek finish Simple and seamless
Huawei ESS LUNA2000-14-S1 | General data
Abmessungen (B*T*H): 590 * 255 * 870 mm
Gewicht (inkl. Standfuß): 148 kg
Leistungsmodul Abmessungen (B*T*TH): 590 * 255 * 150 mm
Lesitungsmodul Gewicht: 10 kg
Batteriemodul Abmessungen (B*T*H): 590 * 255 * 360 mm
Batteriemodul Gewicht: 68 kg
Installation: Standfuß (standard), Wandmontage (optional)
Betriebstemperaturbereich: -20 °C~ +55 °C1
Rel. Luftfeutchtigkeit im Betrieb: 5%~95%
Kühlung: Konvektionskühlung (Natural)
Schutzart: IP 66
Geräuschentwicklung: < 29 dB
Zelltechnologie: Lithium-Eisenphosphat (LiFePO4)
Garantie: 15 Jahre2
Skalierbarkeit: Parallelbetrieb von max. 4 ESS LUNA2000-21-S13
Huawei ESS LUNA2000-7-S1 | Performance
Power module: LUNA2000-10KW-C1
Number of power modules: 1
Battery module: LUNA2000-7-E1
Battery module capacity: 6.9 kWh
Number of battery modules: 1
Usable energy of the battery 6.9 kWh
Nominal discharge power: 3.5 kW
Maximum discharge power: 3.5 kW
Nominal voltage (1-phase WR/L1): 350 V
Operating voltage range (1-phase WR/L1): 350 – 560 V
Nominal voltage (3-phase WR M1/MB0 series): 600 V
Operating voltage range (3-phase WR M1/MB0 series): 600 – 980 V
Huawei ESS LUNA2000-7-S1 | Compatible inverters
SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
Huawei ESS LUNA2000-7-S1 | Communication
Display: SOC status LED, status LED
Communication: RS485/FE/CAN (only for parallel operation)
Huawei ESS LUNA2000-7-S1 | Standards and safety
Certificates: CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS
Huawei ESS LUNA2000-7-S1 | Notes and explanations
1 Charge/discharge power derating and, if necessary, heating at temperatures from -20°C to +5°C & +45°C to +55°C. Recommended operating temperature +15°C to +30°C.
2 The 15-year warranty only applies if the LUNA200-S1 is connected to the SmartPVMS. For details, please refer to the warranty conditions.
3 Only with the new SUN2000-12/15/17/20/25K-MB0 inverter can you expand the storage capacity of a single PV system by operating up to 4 towers in parallel. The maximum storage capacity controlled by a single inverter is 84 kWh.
* Theoretical values from Huawei’s internal laboratories in specific test environments
| Performance | |||
| Power module | LUNA2000-10KW-C1 | ||
| Number of power modules | 1 | ||
| Battery module | LUNA2000-7-E1 | ||
| Battery module energy | 6.9 kWh | ||
| Number of battery modules | 1 | 2 | 3 |
| Battery usable energy | 6.9 kWh | 13.8 kWh | 20.7 kWh |
| Max. charging & discharging power | 3.5 kW | 7 kW | 10.5 kW |
| Operating voltage range (single-phase system) | 350 – 560 V | ||
| Operating voltage range (three-phase system) | 600 – 980 V | ||
| Communication | |||
| Display | SOC status indicator, LED indicator | ||
| Communication | RS485/FE/CAN | ||
| General Specification | |||
| Dimensions (W x D x H) | 590 mm x 255 mm x 510 mm | 590 mm x 255 mm x 870 mm | 590 mm x 255 mm x 1230 mm |
| Weight (Floor stand toolkit included) | 80 kg | 148 kg | 216 kg |
| Power module dimension (W x D x H) | 590 mm x 255 mm x 150 mm | ||
| Power module weight | 10 kg | ||
| Battery module dimensions (W x D x H) | 590 mm x 255 mm x 360 mm | ||
| Battery module weight | 68 kg | ||
| Installation | Floor stand (standard), Wall mounting (optional) | ||
| Operating temperature | -20℃ to +55℃ (-4℉ to +131℉) | ||
| Max. operating altitude | 4,000 m (13,123 ft.) (Derating above 2,000 m) | ||
| Environment | Outdoor/Indoor | ||
| Relative humidity | 5%-95% | ||
| Cooling | Natural convection | ||
| Protection rating | IP 66 | ||
| Noise emission | < 29 dB7 | ||
| Cell technology | Lithium iron phosphate (LiFePO4) | ||
| Scalability | Max. 4 systems in parallel operation | ||
| Compatible inverters | SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1 SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 | ||
| Certificates | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS | ||
| Available for ordering | LUNA2000-7-E1, LUNA2000-10KW-C1, Wall Mounting Bracket for LUNA2000-7/14/21-S1 | ||
| Weight | 80 kg |
|---|---|
| Dimensions | 70 × 40 × 60 cm |
| Brand | |
| Battery Type |
Lithium-ion |
Huawei's solar technology, particularly its inverters and energy management systems, is recognized for its advanced features and high efficiency.
Efficiency and Performance
High Efficiency: Huawei inverters typically boast efficiency ratings above 98%, comparable to other top brands like Sungrow. However, Huawei's inverters have a slight edge in performance under partial shading conditions due to their AI-driven Maximum Power Point Tracking (MPPT) technology, which optimizes energy production and consumption effectively.
Durability: Both Huawei and competing brands like Sungrow feature inverters with IP65 ratings, making them resistant to dust and water. Huawei's advanced cooling technology enhances operational reliability, especially in hot climates.
Smart Technology and Monitoring
AI Integration: Huawei inverters are equipped with smart energy management features that utilize AI to optimize energy production and consumption. This is a significant advantage for homeowners looking to maximize self-consumption and reduce grid reliance.
Advanced Monitoring: The FusionSolar app allows users to monitor system performance in real-time, receive alerts, and analyze energy consumption patterns. Huawei’s monitoring capabilities are often praised for their detailed analytics and predictive features, which can preemptively notify users of potential issues.
Compatibility and Versatility
Battery Compatibility: Huawei inverters are designed for seamless integration with various battery systems, making them a popular choice for hybrid solar solutions. This flexibility is crucial for users looking to implement energy storage alongside their solar systems.
Modular Design: Huawei's solar solutions are modular, allowing for easy expansion and scalability, which is beneficial for both residential and commercial applications.
Cost and Value
Competitive Pricing: Huawei's systems are priced approximately 7% higher than some competitors, such as SolaX. This premium reflects their commitment to advanced technology and user-friendly design while remaining competitive in the market.
