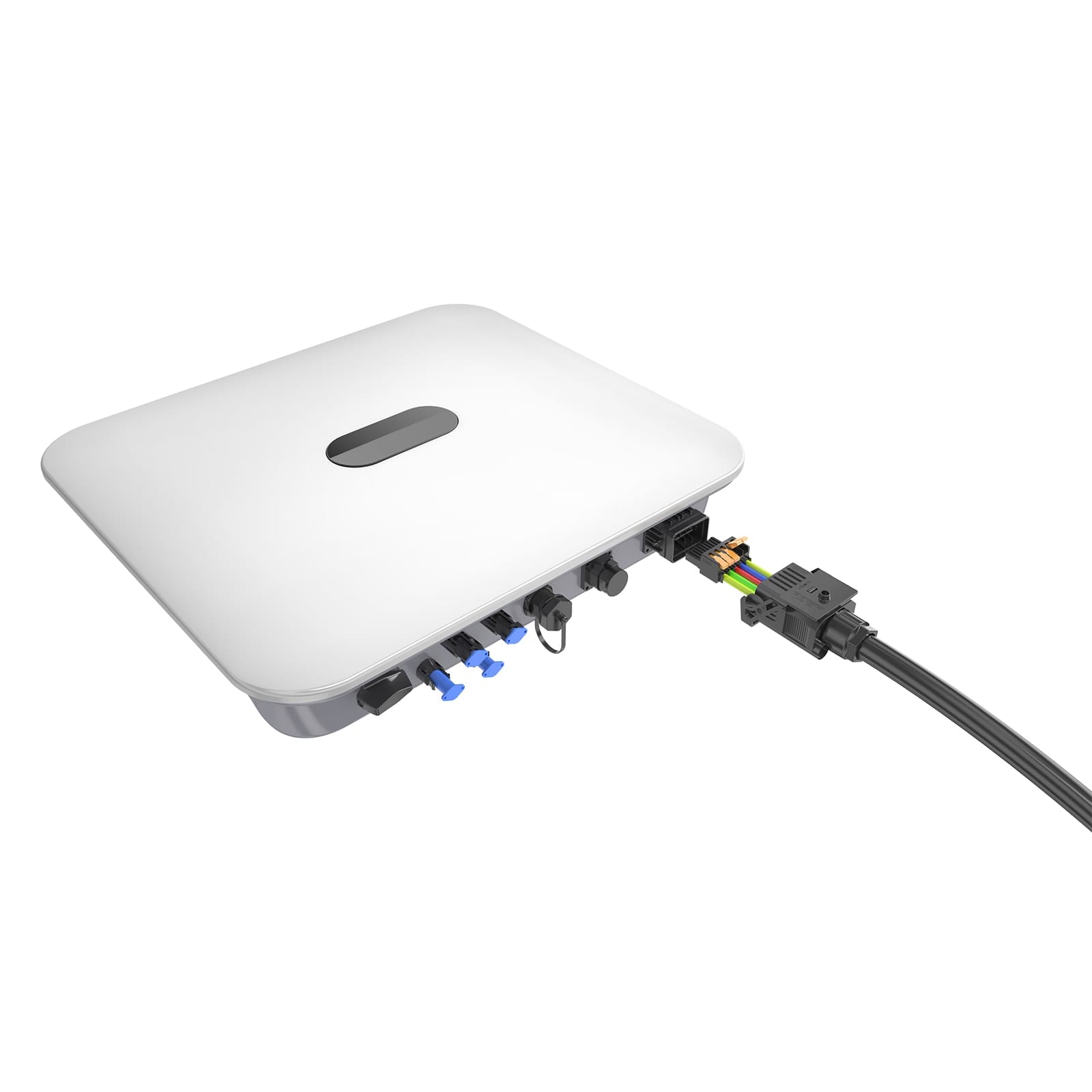

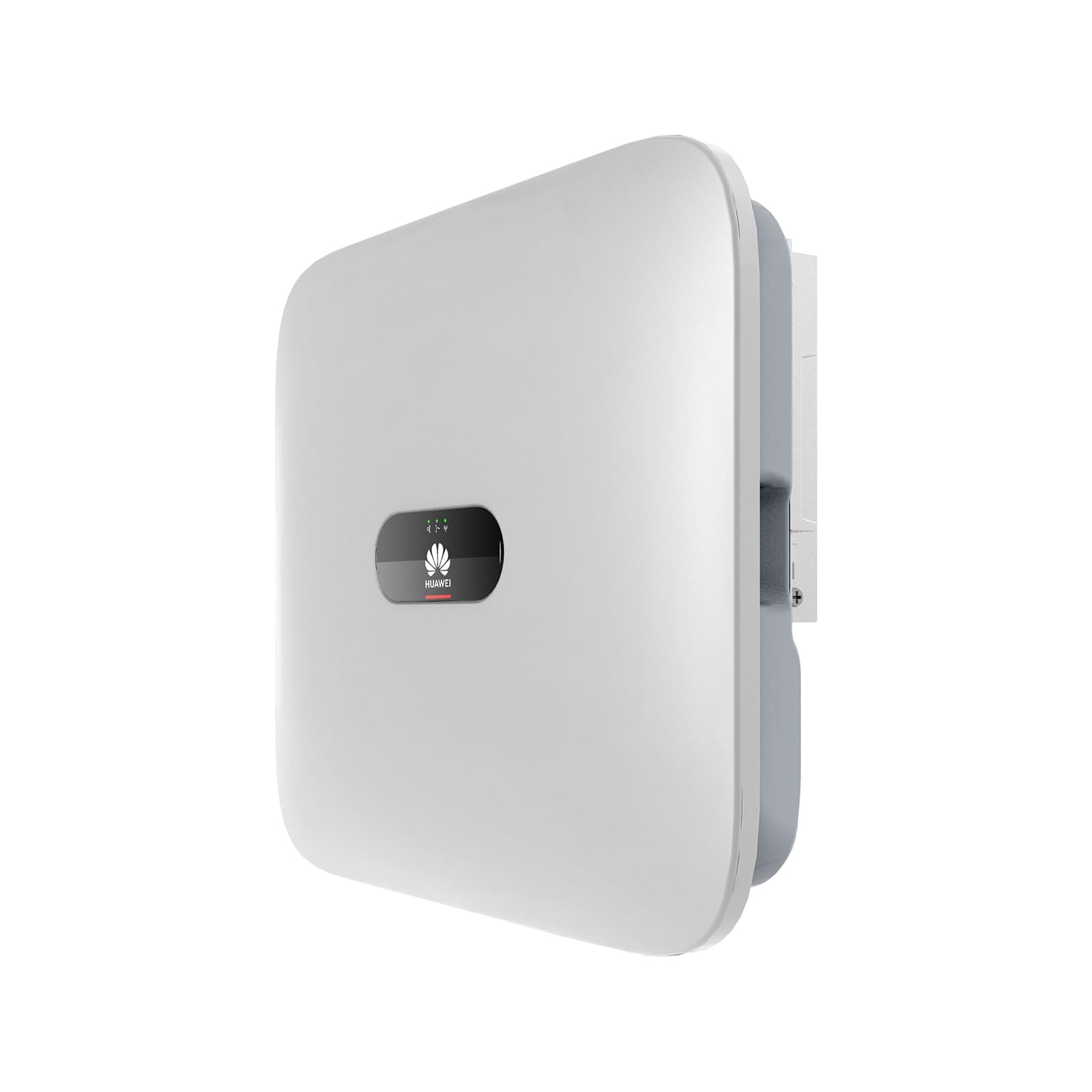

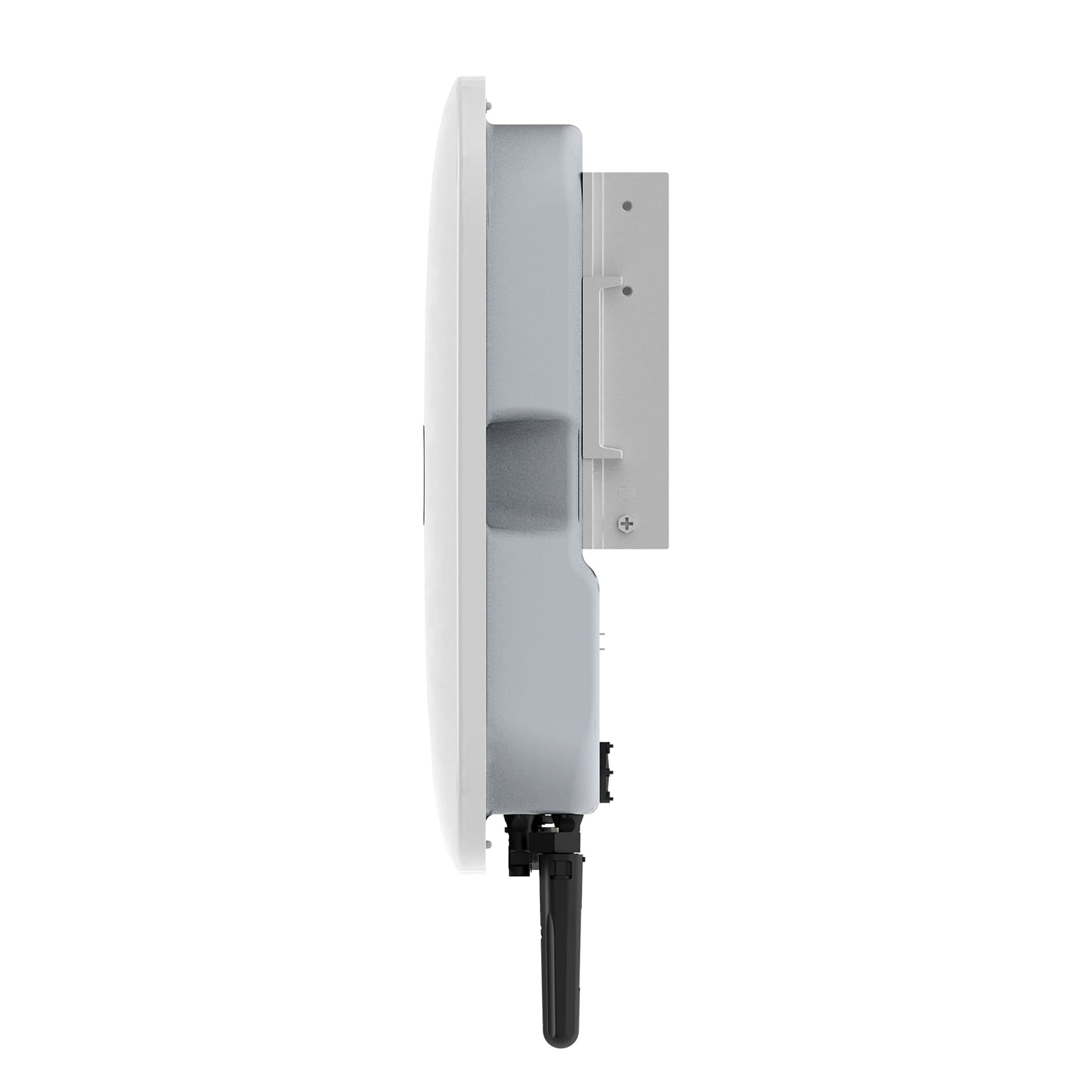

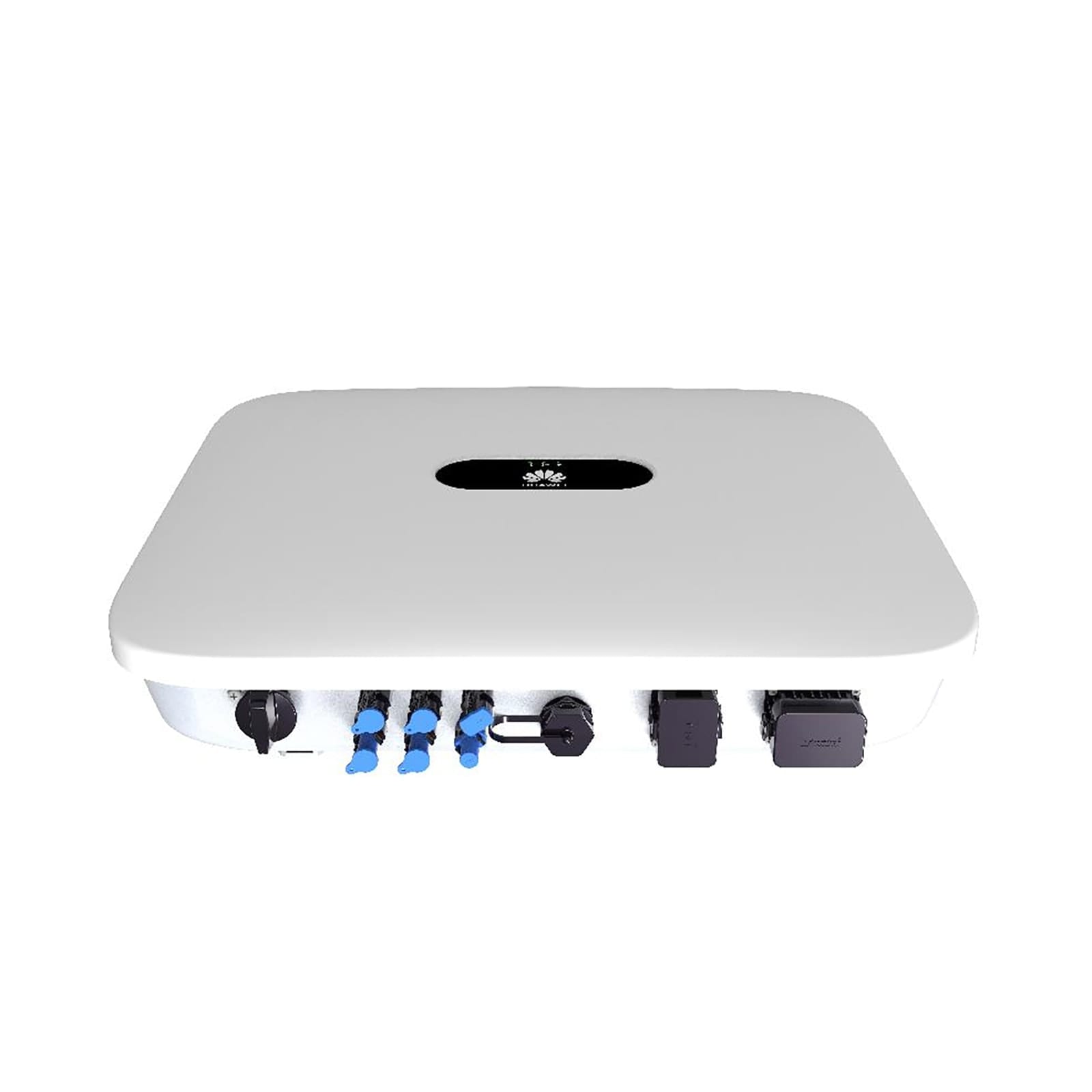

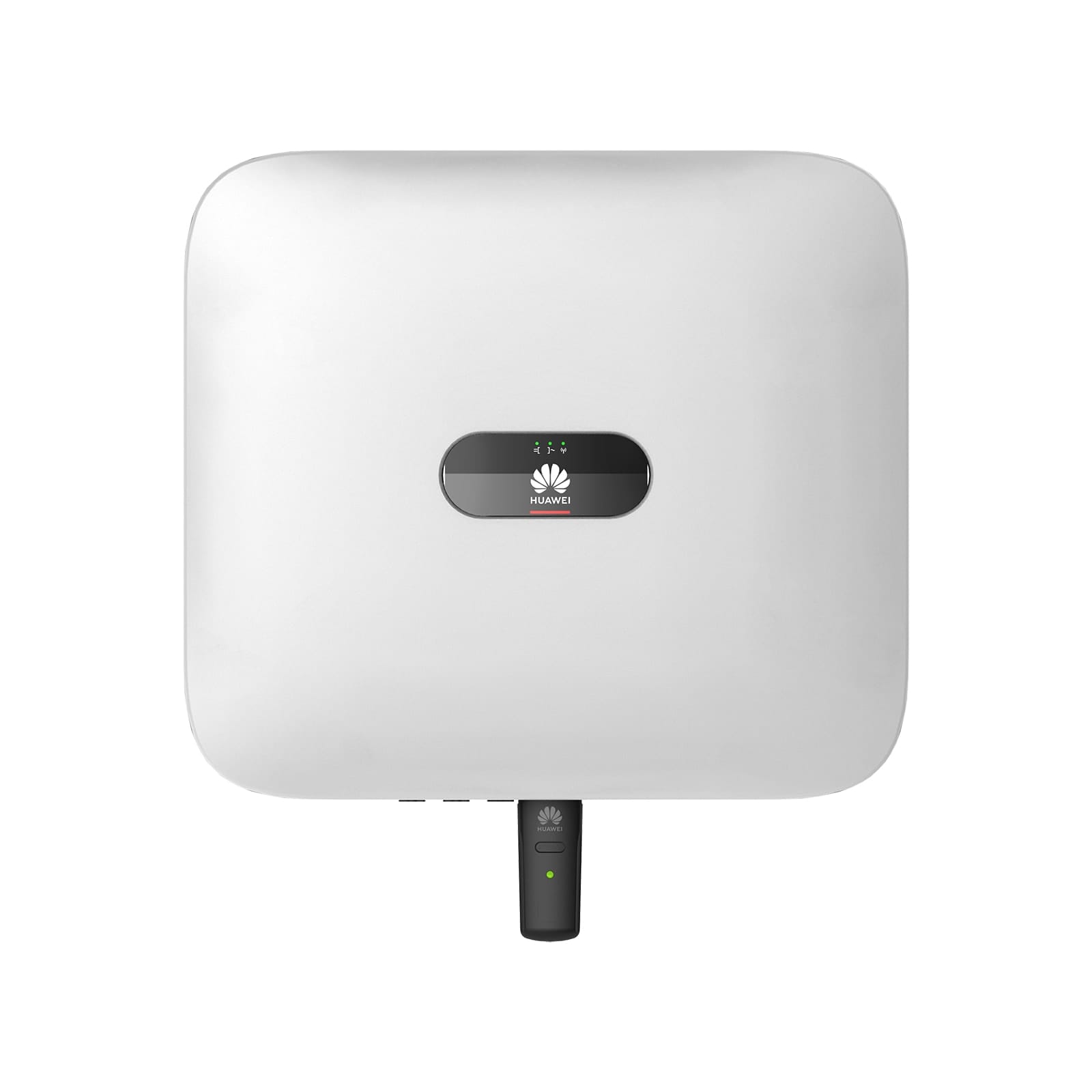

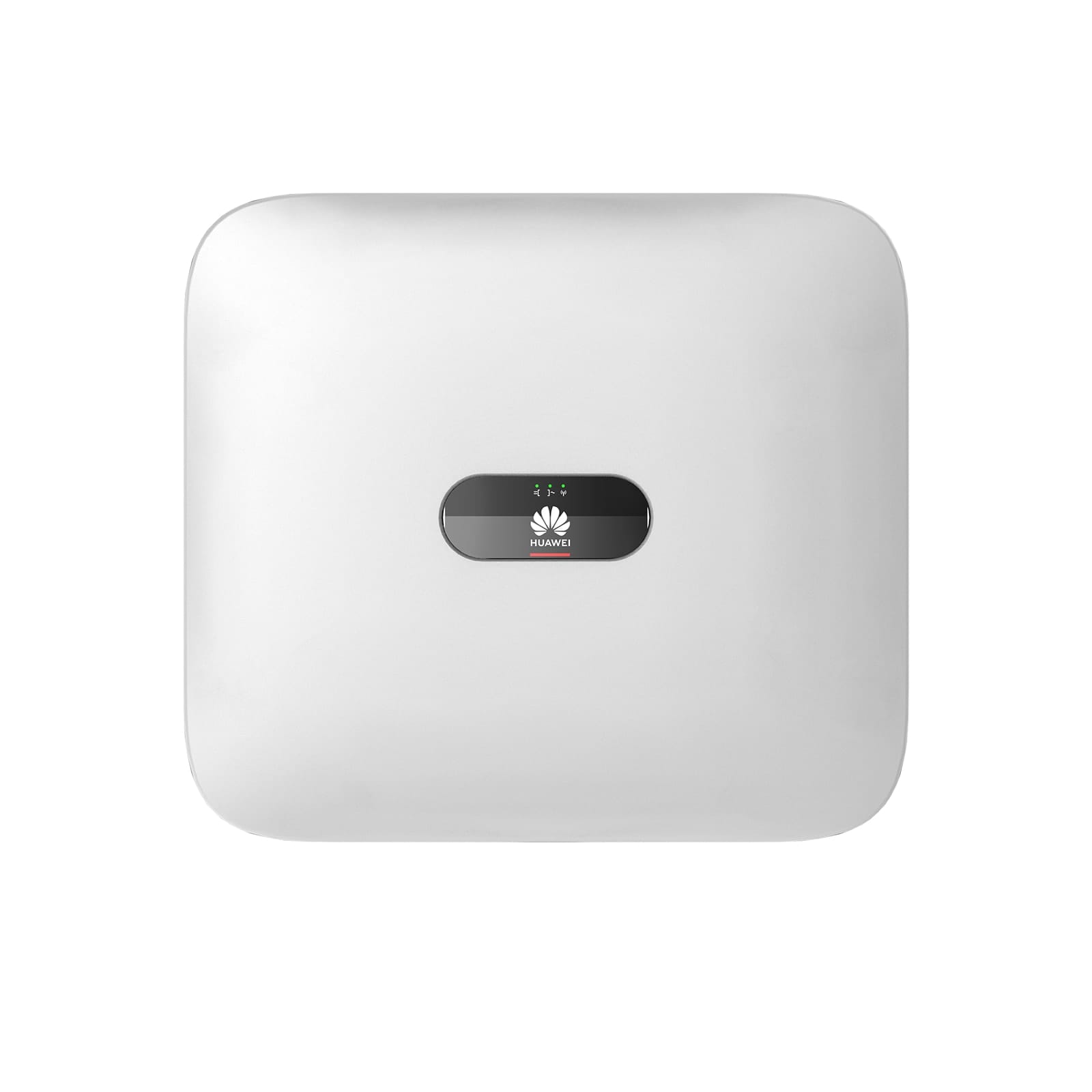

Huawei Residential Three Phase 8KW On-Grid Hybrid Solar Inverter Smart Energy Controller SUN2000-8KTL-M1 High Current Version
$840.00
A Surge in Yields
Industry-leading conversion efficiency through advanced power electronics technologies.
When combined with Smart Module Controllers, module-level optimization can be achieved, and power yields can be increased by up to 30%.
The Huawei SUN2000-8KTL-M1 combines efficiency with ease of use. As an indispensable component of the PV system, the inverter is designed to convert direct current from the solar cells into alternating current. In this form, it can be used or fed into the grid.
- 3-phase inverter with 8.800VA power
- 2 independent MPP trackers
- 1 battery connection (Plug & Play) for LUNA2000 ESS 5-15kWh
- Efficiency up to 98.6%
- Compatible with module optimizer
- Communication via WLAN / Ethernet & 4G/LTE*
- Free system monitoring with FusionSolar
- RS485 for Smart Power Sensor & LUNA2000 ESS 5-15kWh
- Integrated AC and DC overvoltage protection TYPE II
- Integrated PID recovery

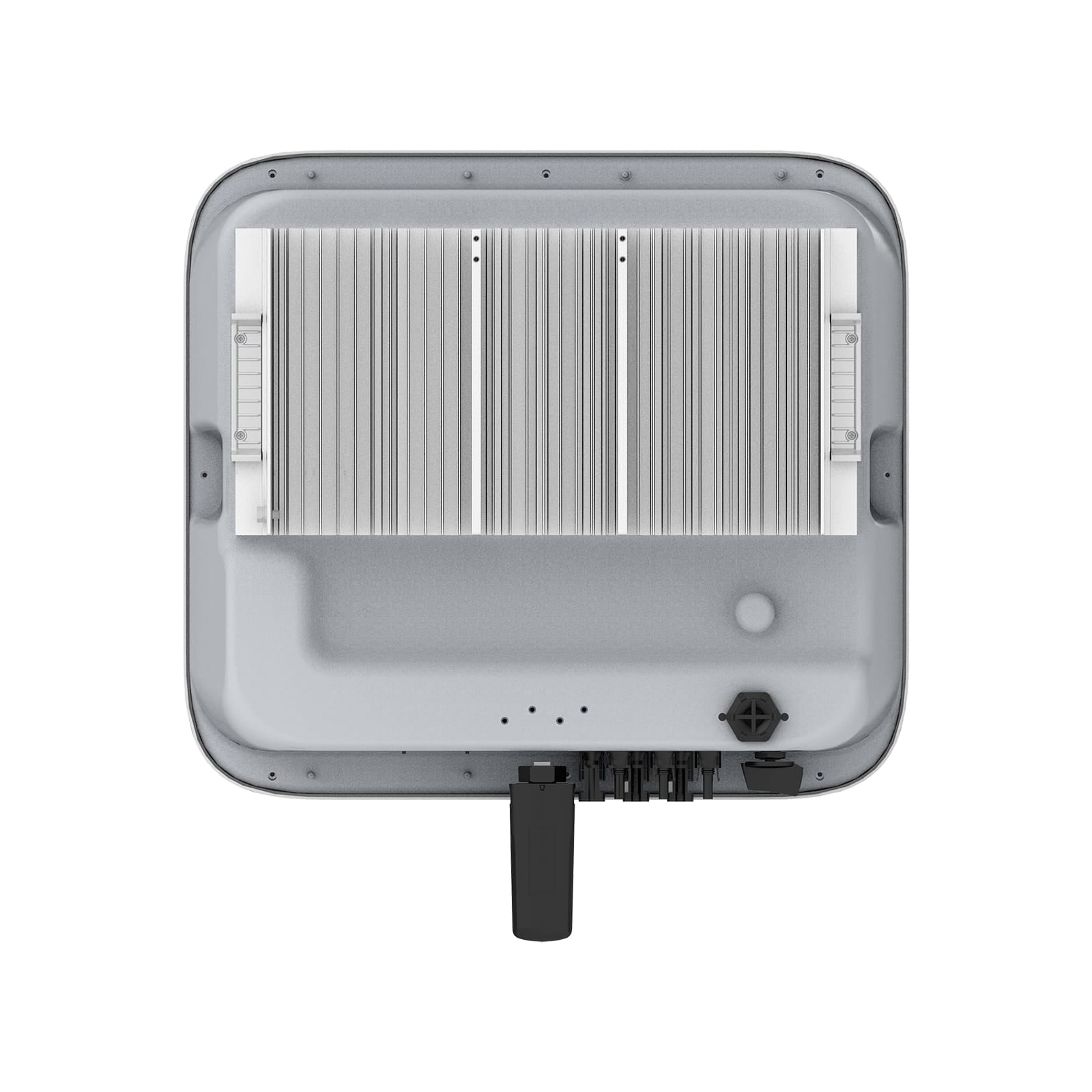

- Convection cooling
- Protection class IP65
Huawei SUN2000-8KTL-M1 High Current Version – Technical Specifications
Betriebstemperaturbereich: -25 ~ +60 °C
Relative Betriebsfeuchtigkeit: 0 % RH~100 % RH
Betriebshöhe: 0 – 4.000 m (Derating > 2.000 m)
Kühlung: Konvektionskühlung
Anzeige: LED – Anzeige
Kommunikation: RS485, WLAN, Ethernet über Smart Dongle-WLAN-FE; 4G/3G/2G über Smart Dongle 4G (optional)
Gewicht (inkl. Befestigungswinkel): 17 Kg
Abmessungen (inkl. Befestigungswinkel): 525 x 470 x 146.5 mm
Schutzart: IP65
Energieverbrauch nachts: < 5,5 W (<10 W, wenn die PID-Wiederherstellungsfunktion aktiviert ist)
Huawei SUN2000-8KTL-M1 High Current Version – Input (DC)
Recommended maximum PV power1: 12,000 Wp
Max. Input voltage2: 1,100 V
Operating voltage range3 : 140 V ~ 980 V
Starting voltage : 200 V
Rated input voltage : 600 V
Max. Input current per MPPT: 13.5 A
Max. Short circuit current: 19.5 A
Number of MPP trackers: 2
Max. Number of inputs per MPPT: 1
Huawei SUN2000-8KTL-M1 High Current Version – Input (DC Battery)
Compatible battery: HUAWEI Smart String ESS 5kWh – 30kWh
Operating voltage range: 600 V ~ 980 V
Maximum operating current: 16.7 A
Maximum charging power: 10,000 W
Maximum discharging power: 8,800 W
Huawei SUN2000-8KTL-M1 High Current Version – Output (On Grid)
Mains connection: 3-phase
Rated power: 8,000 W
Maximum apparent power: 8,800 VA
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
AC mains frequency: 50 Hz / 60 Hz
Maximum output current: 13.5 A
Adjustable power factor: 0.8 cap. … 0.8 ind.
Total harmonic distortion (THD): ≤ 3%.
Huawei SUN2000-8KTL-M1 High Current Version – Output (Backup Power via Backup Box-B1)
Maximum apparent power: 3,300 VA
Rated output voltage: 220 V / 230 V
Maximum output current: 15 A
Adjustable power factor: 0.8 kap. … 0.8 ind.
Huawei SUN2000-8KTL-M1 High Current Version – Protection and function
DC load break switch: Yes
Islanding detection: Yes
DC reverse polarity protection: Yes
Insulation monitoring: Yes
DC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
AC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
Fault current monitoring: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
Arc detection: Yes
Inputs for ripple control receivers: Yes
Integrated PID recovery: Yes
Battery charging from mains possible: Yes
Huawei SUN2000-8KTL-M1 High Current Version – Module Optimiser
DC MBUS compatible optimizer: SUN2000-450W-P
SUN2000-450W-P2
SUN2000-600W-P
Huawei SUN2000-8KTL-M1 High Current Version – Standards Compliance (others available on request)
Safety standards: EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Mains connection standards: G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR Erzeuger Typ A, NRS 097-2-1, IEC61727, IEC62116, DEWA
Huawei SUN2000-8KTL-M1 High Current Version – included in delivery
PV Connector
Battery Connector
AC Connector
Signal Cable Connector
Bracket
WLAN-FE-Dongle
Huawei SUN2000-8KTL-M1 High Current Version – Notes and Explanations
The maximum PV input power of the inverter is 20,000Wp when long strings are designed and fully connected to the SUN2000-450-P power optimizers.
The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would likely damage the inverter.
Any DC input voltage above the operating voltage range may cause faulty operation.
| Model No. | SUN2000-3KTL-M1 | SUN2000-4KTL-M1 | SUN2000-5KTL-M1 | SUN2000-6KTL-M1 | SUN2000-8KTL-M1 | SUN2000-10KTL-M1 |
| Input Data(DC) | ||||||
| Max. DC Power | 4.5 kW | 6 kW | 7.5 kW | 9 kW | 12 kW | 15 kW |
| Max. DC Voltage | 1100 V | 1100 V | 1100 V | 1100 V | 1100 V | 1100 V |
| Rated DC Voltage | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Min. DC Voltage to Start Feed In | 200 V | 200 V | 200 V | 200 V | 200 V | 200 V |
| Max. DC Current | 27 A | 27 A | 27 A | 27 A | 27 A | 27 A |
| No of MPP Trackers | 2 | 2 | 2 | 2 | 2 | 2 |
| DC Inputs | 2 | 2 | 2 | 2 | 2 | 2 |
| Output Data (AC) | ||||||
| Nominal AC Power | 3 kW | 4 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. AC Current | 5.1 A | 6.8 A | 8.5 A | 10.1 A | 13.5 A | 16.9 A |
| Frequency | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz | 50, 60 Hz |
| Distortion (THD) | < 3 % | < 3 % | < 3 % | < 3 % | < 3 % | < 3 % |
| No of feed-in phases | 3 | 3 | 3 | 3 | 3 | 3 |
| Max. Efficiency | 98.20% | 98.30% | 98.40% | 98.60% | 98.60% | 98.60% |
| Euro Efficiency | 96.70% | 97.10% | 97.50% | 97.70% | 98% | 98.10% |
| General Data | ||||||
| Dimensions (H/W/D) | 525x470x146.5 mm | 525x470x146.5 mm | 525x470x146.5 mm | 525x470x146.5 mm | 525x470x146.5 mm | 525x470x146.5 mm |
| Weight | 17 kg | 17 kg | 17 kg | 17 kg | 17 kg | 17 kg |
| Power Consumption at Night | < 5.5 W | < 5.5 W | < 5.5 W | < 5.5 W | < 5.5 W | < 5.5 W |
| Operating Temperature | -25 ~ +60 ℃ | |||||
| Protection Class | IP65 | |||||
| Humidity | 0-100 % | |||||
| Cooling | Natural | |||||
| Max. Altitude | 4000 m | |||||
| Interface | RS 485, WLAN | |||||
| Display | LED | |||||
| Protection Features | ||||||
| Protection Features | Anti Island Protection(ENS), Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection | |||||
| Weight | 19 kg |
|---|---|
| Dimensions | 60 × 50 × 30 cm |
| Brand | |
| Battery Type |
Lithium-ion |
| Battery Voltage Range(V) |
600-980 |
| Max. Charging Current(A) |
16.7 |
| Max. Discharging Current(A) |
16.7 |
| Number of battery input |
1 |
| Start-up Voltage(V) |
200 |
| Max PV Input Power(W) |
12000 |
| Max PV Input Voltage(V) |
1100 |
| Monitor Mode |
4G ,Bluetooth ,GPRS ,LAN ,WIFI |
| MPPT Efficiency |
>99% |
| MPPT Voltage Range(V) |
140-980 |
| No. Of MPPT |
2/1+1 |
| Rated AC Input/Output Active Power(W) |
8000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
230/400V |
| Size（W*H*D）[mm] |
525 x 470 x 146.5 |
Huawei's solar technology, particularly its inverters and energy management systems, is recognized for its advanced features and high efficiency.
Efficiency and Performance
High Efficiency: Huawei inverters typically boast efficiency ratings above 98%, comparable to other top brands like Sungrow. However, Huawei's inverters have a slight edge in performance under partial shading conditions due to their AI-driven Maximum Power Point Tracking (MPPT) technology, which optimizes energy production and consumption effectively.
Durability: Both Huawei and competing brands like Sungrow feature inverters with IP65 ratings, making them resistant to dust and water. Huawei's advanced cooling technology enhances operational reliability, especially in hot climates.
Smart Technology and Monitoring
AI Integration: Huawei inverters are equipped with smart energy management features that utilize AI to optimize energy production and consumption. This is a significant advantage for homeowners looking to maximize self-consumption and reduce grid reliance.
Advanced Monitoring: The FusionSolar app allows users to monitor system performance in real-time, receive alerts, and analyze energy consumption patterns. Huawei’s monitoring capabilities are often praised for their detailed analytics and predictive features, which can preemptively notify users of potential issues.
Compatibility and Versatility
Battery Compatibility: Huawei inverters are designed for seamless integration with various battery systems, making them a popular choice for hybrid solar solutions. This flexibility is crucial for users looking to implement energy storage alongside their solar systems.
Modular Design: Huawei's solar solutions are modular, allowing for easy expansion and scalability, which is beneficial for both residential and commercial applications.
Cost and Value
Competitive Pricing: Huawei's systems are priced approximately 7% higher than some competitors, such as SolaX. This premium reflects their commitment to advanced technology and user-friendly design while remaining competitive in the market.
