HUAWEI Smart String Solar Inverter SUN2000-40KTL-M3 40KW 380V Three Phase On-Grid FusionSolar PV solutions for Residential/Carport

The Huawei Solar Inverter SUN2000-40KTL-M3 is a powerful inverter that performs an indispensable task in the PV system: It converts the direct current into alternating current. With its high efficiency, it is the right solution for demanding system operators. Behind the dimensions of 640 x 530x 270 mm, the Huawei SUN2000-40KTL-M3 inverter offers a lot of state-of-the-art technical finesse. The weight is 43 kg – including the mounting plate. As with all Huawei Solar products, installation is simple and commissioning can be completed in just a few minutes using the app. RS485 communication is provided for data exchange with the Smart Logger and Smart Power Meter.

A big advantage of the Huawei Solar Inverter SUN2000-40KTL-M3 is the factory-supplied overvoltage protection (type 2 for AC and DC) as well as four independent MPP trackers are innovative details. In addition, the module operates pleasantly quietly, because the cooling takes place without a fan by natural convection. The maximum power of the Huawei SUN2000-40KTL-M3 solar inverter is 44,000 watts. The MPPT operating voltage range is from 200 V to 1,000 volts. With a maximum efficiency of 98.7 percent and a European efficiency of 98.4 percent, the device achieves tremendous efficiency.

• 3-phase inverter with 44,000VA power output
• 4 independent MPP trackers

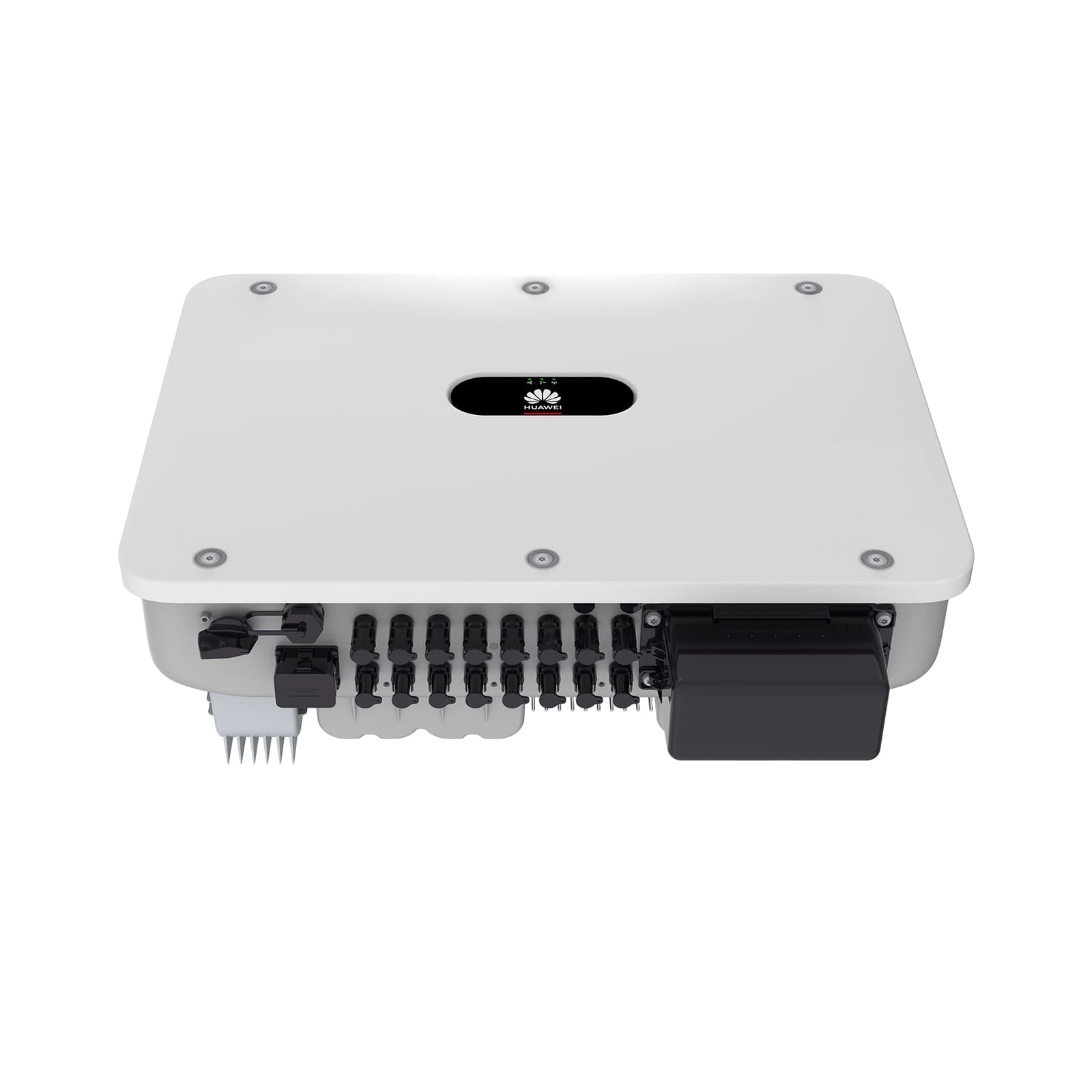

• 8 DC connections
• Efficiency up to 98.7%
• Communication via WLAN / Ethernet & 2G/3G/4G (optional)
• Free system monitoring with FusionSolar
• RS485 for Smart Power Sensor and SmartLogger
• Connection for ripple control receiver
• DC MBUS communication for Smart Optimizer
• Integrated AC and DC overvoltage protection TYPE II
• Integrated PID recovery

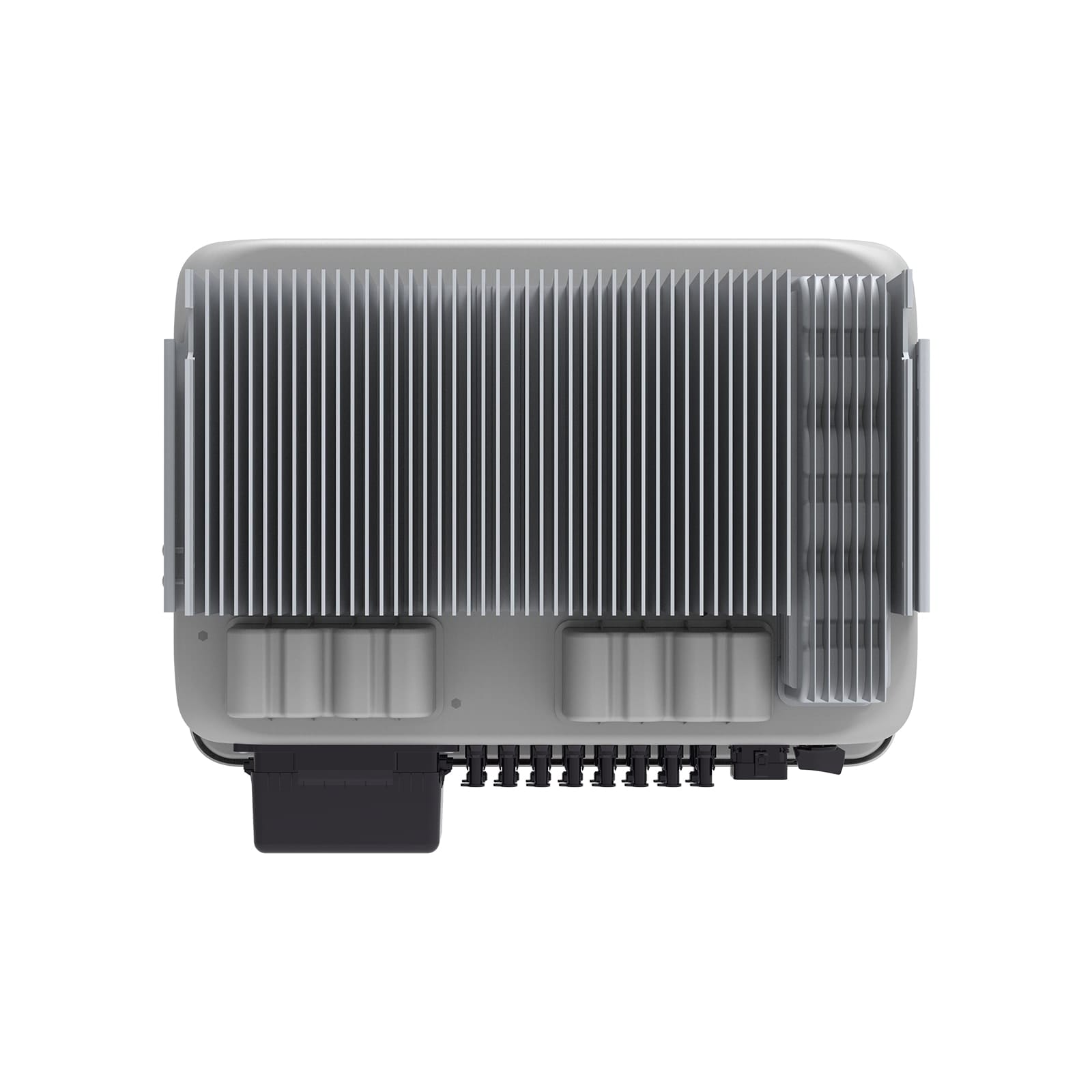

• Convection cooling
• Protection class IP66

Key Feature:

Higher yield
Max. Efficiency 98.7%
Up to 30% more energy with optimizers

Smart
Intelligent string monitoring

Secure
Fuse-free design

Reliable
Type II arrester for DC & AC

Huawei Solar Inverter SUN2000-40KTL-M3 – General Specifications
Betriebstemperaturbereich: -25 ~ +60 °C
Relative Betriebsfeuchtigkeit: 0 % RH~100 % RH
Betriebshöhe: max. 4.000 m
Kühlung: Konvektionskühlung
Gewicht (mit Montageplatte): 43 Kg
Geräuschentwicklung: < 46 dB
Abmessungen: 640 x 530x 270 mm
DC-Anschluss: Stäubli MC4
AC-Anschluss: Kabelschuhe auf Anschlussbolzen M8
Schutzart (nach IEC 60529): IP66
Topologie: Transformatorlos
Energieverbrauch nachts: ≤ 5.5 W
DC MBUS-kompatibler Optimierer: SUN2000-450W-P

Huawei Solar Inverter SUN2000-40KTL-M3 – Input DC
Max. Input voltage1: 1,100 V
Max. Current per MPPT : 26 A
Max. Short circuit current per MPPT: 40 A
Starting voltage: 200 V
MPPT operating voltage range2 200 V to 1,000 V
Rated input voltage: 600 V
Number of MPP trackers: 4
Max. number of inputs per MPPT: 26 A Number of inputs per MPPT: 2

Huawei Solar Inverter SUN2000-40KTL-M3 – Output AC
Rated power: 40000 W
Maximum apparent power: 44000 VA
Rated output voltage: 230 Vac / 400 Vac, 3W/N+PE
AC line frequency: 50 Hz / 60 Hz
Rated output current: 57.8 A
Maximum output current: 63.8 A
Adjustable power factor: 0.8 kap. … 0.8 ind.
THD: ≤ 3%

Efficiency
Max. Efficiency: 98.7 %
European efficiency: 98.4 %

Communication

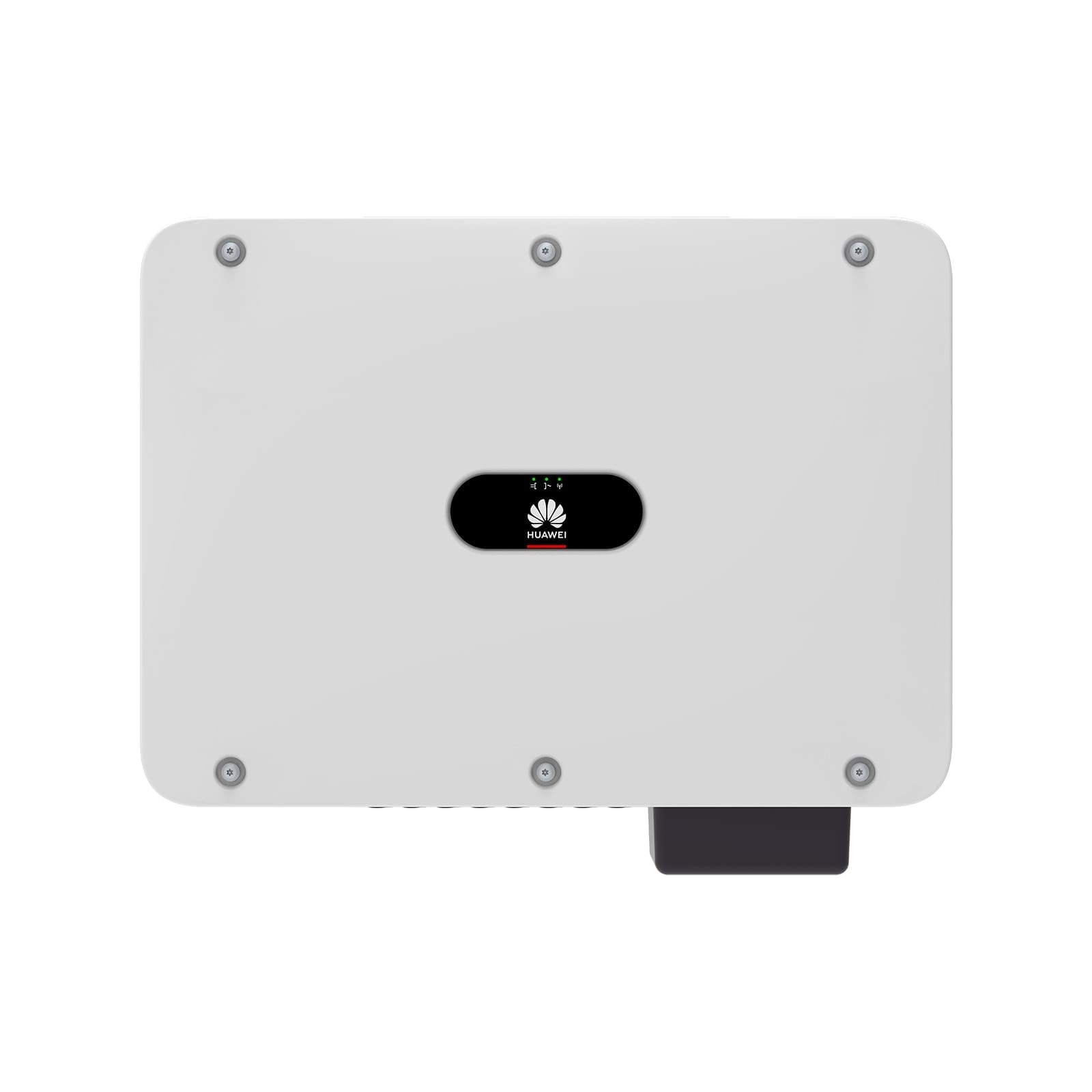

Display: LED display
RS485: Yes
USB: WLAN/Ethernet via Smart Dongle-WLAN-FE (optional), 4G/3G/2G via Smart Dongle-4G (optional)
Monitoring BUS (MBUS): No (from Prod. No. 01075485-070)

Huawei Solar Inverter SUN2000-40KTL-M3 – Protection and features
DC load break switch: Yes
Islanding detection: Yes
AC overcurrent protection: Yes
DC reverse polarity protection: Yes
String monitoring: Yes
DC overvoltage arrester: Yes
AC overvoltage protection: Yes
DC insulation resistance detection: Yes
Fault current monitoring: Yes
Arc detection: Yes
Inputs for ripple control receiver PID recovery3: Yes

Safety Standards
EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683

Mains Connection Standards
IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution Nr.7, NRS 097-2-1, AS/NZS 4777.2, DEWA
Further information on conformity to standards available on request.

Huawei Solar Inverter SUN2000-40KTL-M3 – included in delivery
PV Connector
Bluetooth Dongle
Bracket

Huawei Solar Inverter SUN2000-40KTL-M3 – Notes and explanations
1 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would likely damage the inverter.
2 Any DC input voltage above the operating voltage range may cause faulty operation.
3 SUN2000-36KTL-M3 raises the potential between PV and ground to above zero using the built-in PID recovery function. Supported module types include: P-type (Mono, Poly), N-type (nPERT, HIT).
