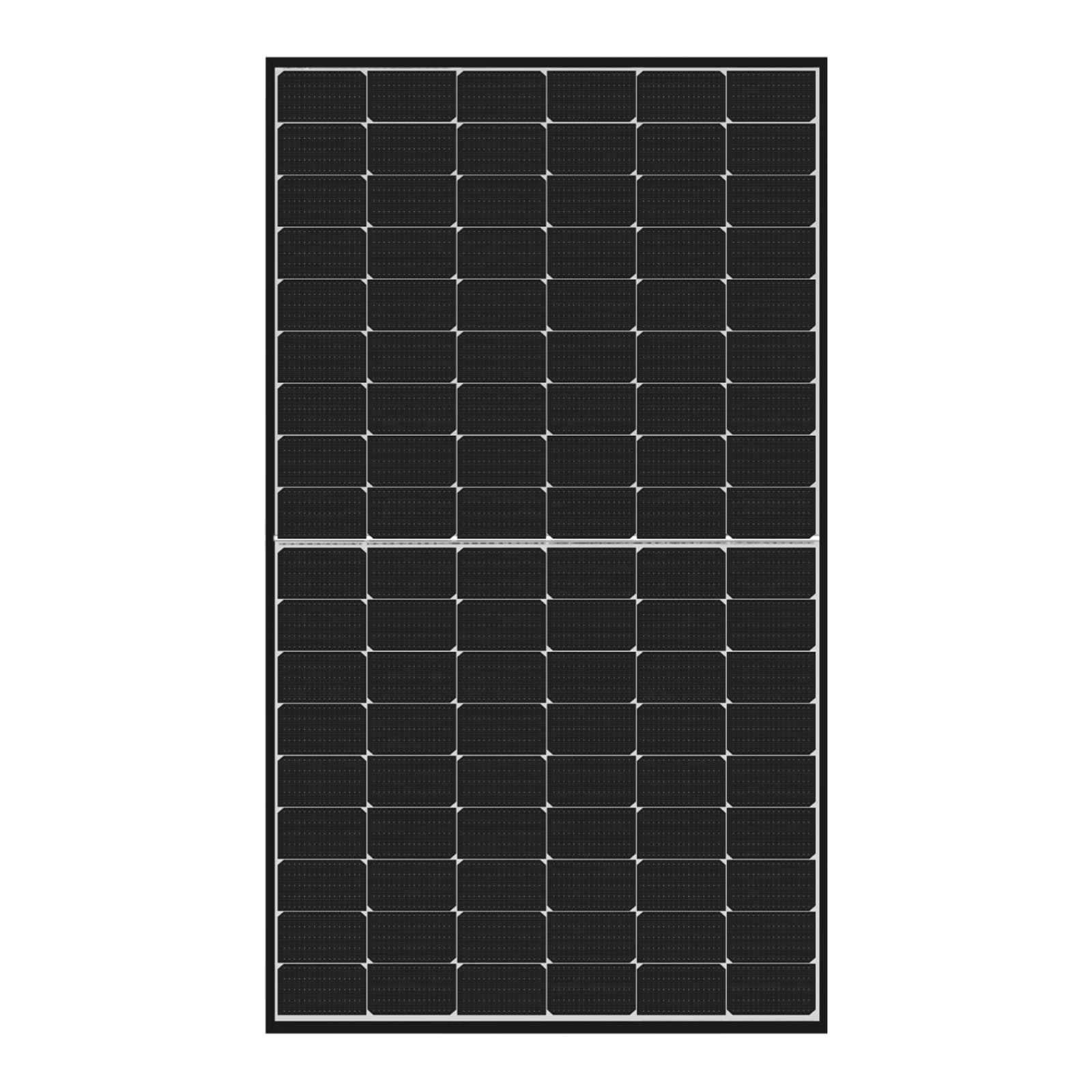

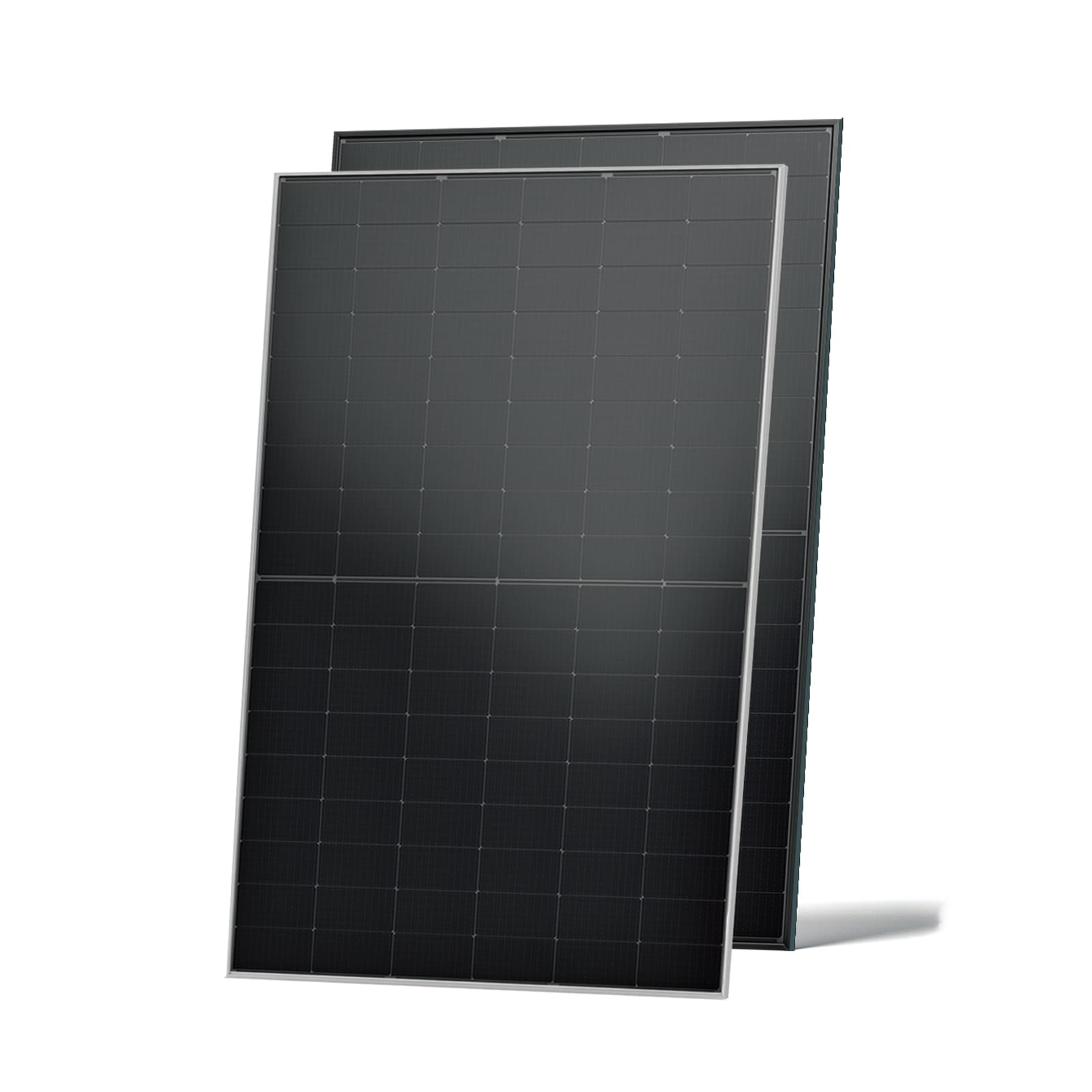

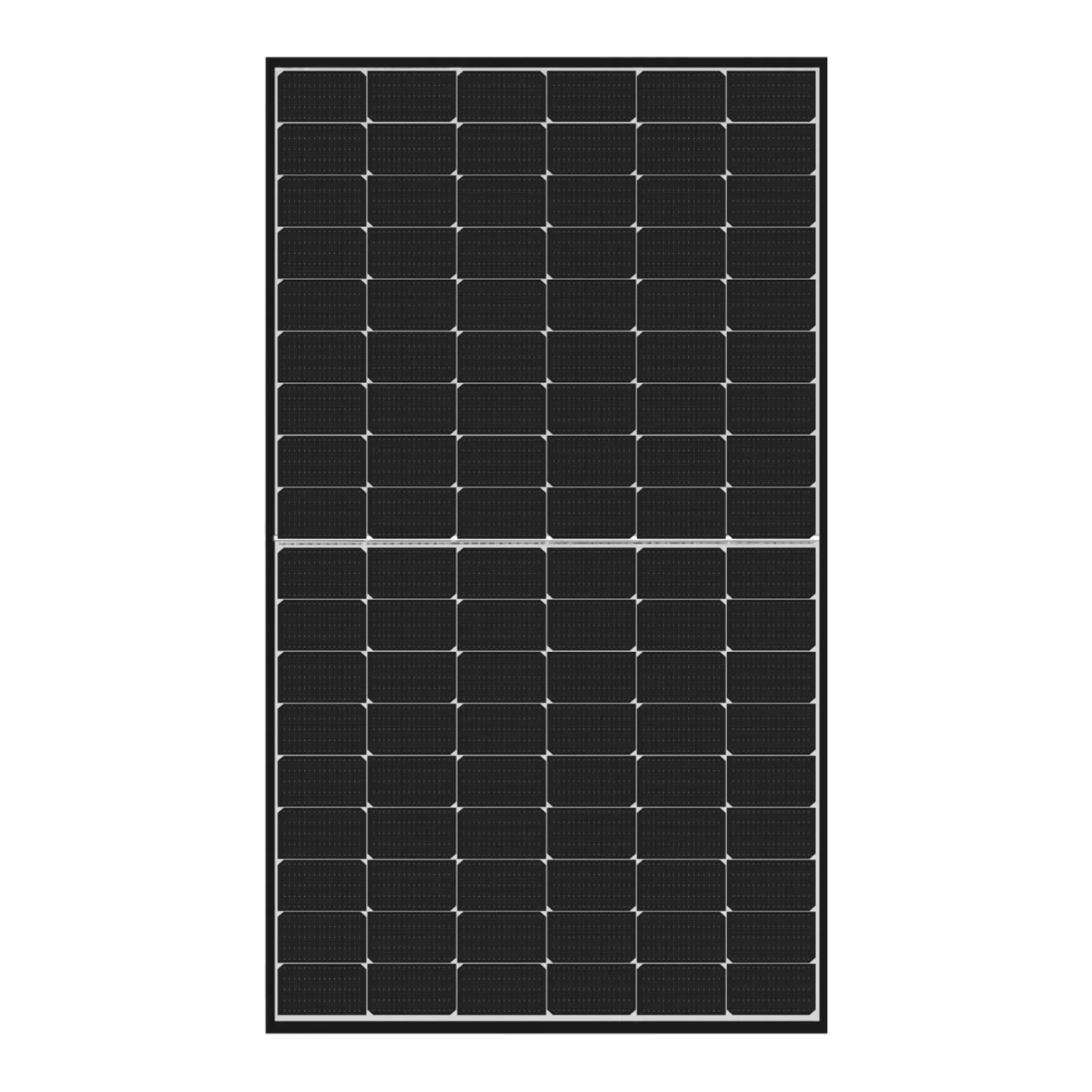

Jinko Solar Panels Tiger Neo 54HL4R-(V) 435-460W N-Type Mono-facial Monocrystalline PV Module All Back For On-Grid Solar Power System
$0.10
The Jinko Solar solar panel is a high-quality, high-efficiency option for residential or commercial solar systems. With bifacial technology with dual glass and N-type M10 (182mm) monocrystalline cells, this panel offers an efficiency of up to 22.36%. Furthermore, its degradation in the first year is less than 1% (it does not present initial degradation by LID or LETID) and during the following 30 years it is less than 0.4%. Jinko Solar also offers a 12-year product and 30-year production warranty, demonstrating its commitment to quality and long-term customer satisfaction.
Jinko Solar Panels Tiger Neo 54HL4R-(V) 435-460W N-Type Mono-facial Monocrystalline PV Module All Back For On-Grid Solar Power System
This Tiger Neo monocrystalline N-type solar panel (182mm M10 Cell) is an efficient and powerful solution that offers an efficiency of up to 23.02% and a maximum power of 460W. Designed as a monofacial panel, it is perfect for self-consumption installations in homes and small businesses. In addition, it has a 12-year product and 30-year production warranty, which guarantees its durability. Manufactured with N-type monocrystalline technology, this solar panel is an excellent option for projects seeking high performance and long life.
- N-Type technology allows for greater efficiency, lower degradation, and longer lasting panels
- Multi-Busbar Solar Cell giving the latest in solar technology to improve efficiency while looking great
- 22.02% Module Efficiency – Extra wattage in a compact form, being the same size as Jinko’s 415W modules
- 0.29% Temperature Co-efficient – Improved performance in higher temperatures
- Hot 2.0 technology with better reliability and little to no LID/LETID
- Able to withstand extreme weather conditions: Certified to withstand heavy wind loads (2400 Pascal)
- Low Degradation, with an annual degradation rate of only 0.4% over 30 years after the first year
- 25 Year Product Warranty | 30 Year Linear Power Warranty
| Type | Monocrystalline | |||||
| Model No. | 435W | 440W | 445W | 450W | 455W | 460W |
| Warranty | ||||||
| Product Warranty | 15 Years | |||||
| Power Warranty | 30 Years of 87.4% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 435 Wp | 440 Wp | 445 Wp | 450 Wp | 455 Wp | 460 Wp |
| Voltage at Maximum Power (Vmpp) | 32.59 V | 32.81 V | 33.02 V | 33.21 V | 33.41 V | 33.6 V |
| Current at Maximum Power (Impp) | 13.35 A | 13.41 A | 13.48 A | 13.55 A | 13.62 A | 13.69 A |
| Open Circuit Voltage (Voc) | 39.16 V | 39.38 V | 39.59 V | 39.78 V | 39.98 V | 40.17 V |
| Short Circuit Current (Isc) | 13.8 A | 13.86 A | 13.93 A | 14 A | 14.07 A | 14.14 A |
| Panel Efficiency | 21.77% | 22.02% | 22.27% | 22.52% | 22.77% | 23.02% |
| Power Tolerance (Positive) | 3% | 3% | 3% | 3% | 3% | 3% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | -40~70 °C | |||||
| Temperature Coefficient of Pmax | -0.29 %/°C | |||||
| Temperature Coefficient of Voc | -0.25 %/°C | |||||
| Temperature Coefficient of Isc | 0.045 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 25 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 1762x1134x30 mm | |||||
| Weight | 21 kg | |||||
| Cell Number | 108 | |||||
| Glass Type | Anti-reflection Coating, Tempered | |||||
| Glass Thickness | 3.2 mm | |||||
| Frame Type | Anodized Aluminium, Black | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
| Weight | 22 kg |
|---|---|
| Dimensions | 180 × 115 × 3 cm |
| Brand | |
| Cables |
4.0 mm |
| Encapsulant Material |
POE/EVA |
| J-Box |
IP68 |
| Maximum Power |
450 |
| Number Of Solar Cells |
108 |
| Solar Cells |
N-type Monocrystalline |
| Module Dimension(mm) |
1762x1134x30 |
| Backsheet |
2.0mm Heat Strengthened Glass |
| Front Glass |
2.0mm AR Coated Heat Strengthened Glass |
| Vmp(V) |
40.23 |
| Imp(A) |
13.32 |
| Backside Power |
N/A |
| Connector |
MC4 |
| Weight[kg] |
21 |
JinkoSolar Holding Co., Ltd. is one of the largest and most innovative solar module manufacturers globally. Founded in 2006, the company has established a strong presence in the solar industry, recognized for its commitment to technological innovation and high-quality solar products.
Key Achievements and Market Position
AAA Rating: JinkoSolar has consistently topped the PV Tech ModuleTech Bankability Report, earning a “AAA” rating, which highlights its leadership in manufacturing excellence, reliable quality, and strong financial performance.
Market Share: As of 2023, JinkoSolar held approximately 15% of the global solar module market, making it the largest manufacturer by shipment volume, with total module shipments exceeding 210 GW.
Financial Performance: In 2023, JinkoSolar reported total revenue of RMB 118.68 billion, a 43.55% increase year-over-year, and a net profit attributable to shareholders of RMB 7.44 billion, reflecting a 153.2% increase year-over-year.
Technological Innovations
N-type Technology: JinkoSolar is a leader in N-type solar technology, particularly with its Tiger Neo modules, which utilize advanced N-type monocrystalline solar cells. This technology allows for higher efficiency and better performance in low-light conditions.
Record Efficiency: The company has achieved significant milestones in solar cell efficiency, including a record conversion efficiency of 33.24% for its N-type TOPCon based perovskite tandem solar cells and an average mass production efficiency of 26.1% for N-type TOPCon cells.
Patents: JinkoSolar holds 330 patents related to TOPCon technology, underscoring its commitment to innovation in the photovoltaic sector.
Product Offerings
Tiger Neo Series: The Tiger Neo N-type solar panels are designed for high performance and efficiency, featuring a half-cut cell design that improves energy output and reduces losses. The JKM585N-72HL4-V model, for example, has a power output of 585W and is optimized for various installation conditions.
Global Distribution: JinkoSolar distributes its products to a wide range of markets, including the United States, Europe, Asia, and Africa, with a strong focus on utility-scale, commercial, and residential applications.
Future Outlook
Growth Projections: JinkoSolar anticipates a growth rate of 25% to 30% in global photovoltaic demand for 2024, with expectations to ship between 100 GW to 110 GW of solar modules throughout the year.
Strategic Initiatives: The company is focusing on optimizing its supply chain and production processes to manage costs effectively while addressing market challenges such as oversupply and pricing pressures.
