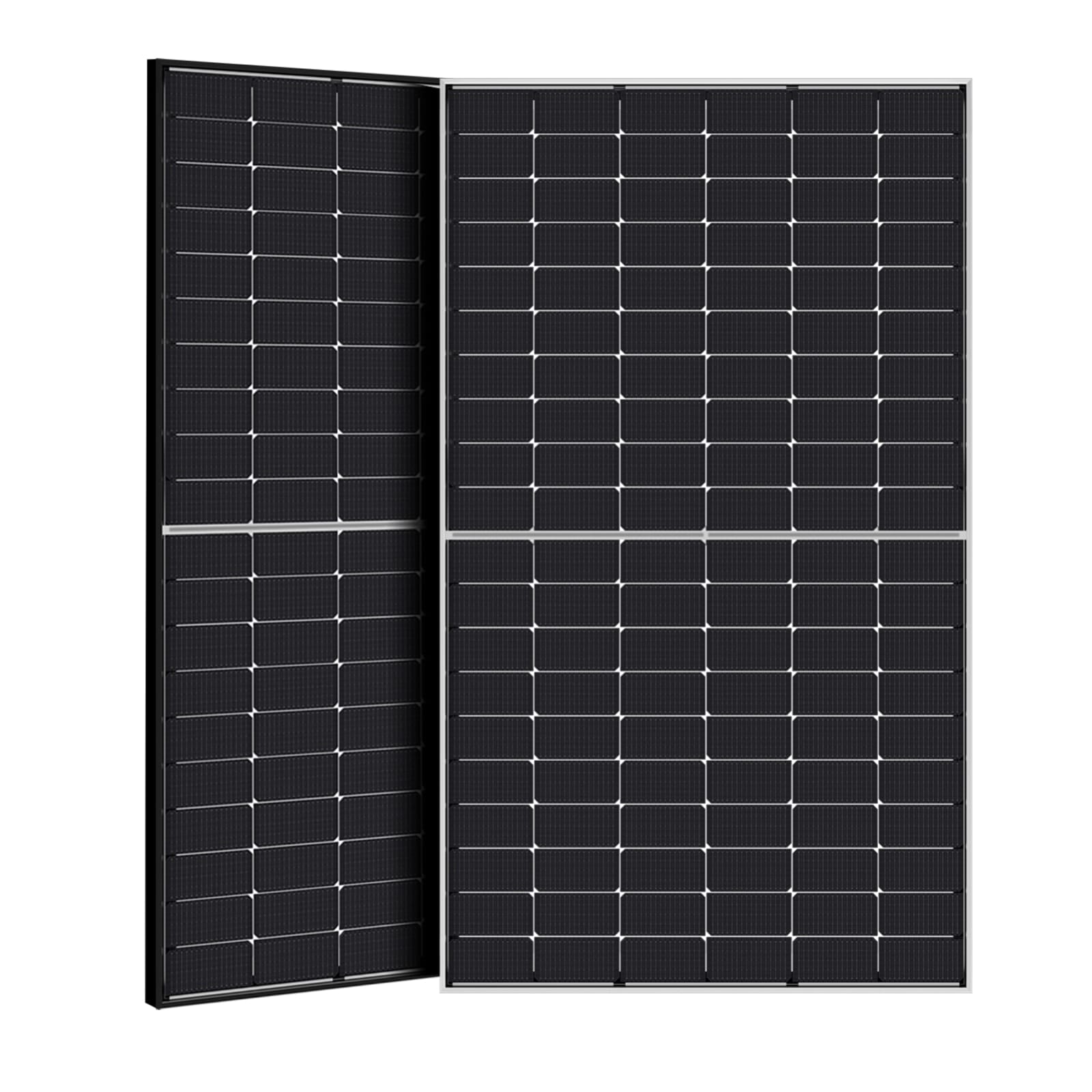

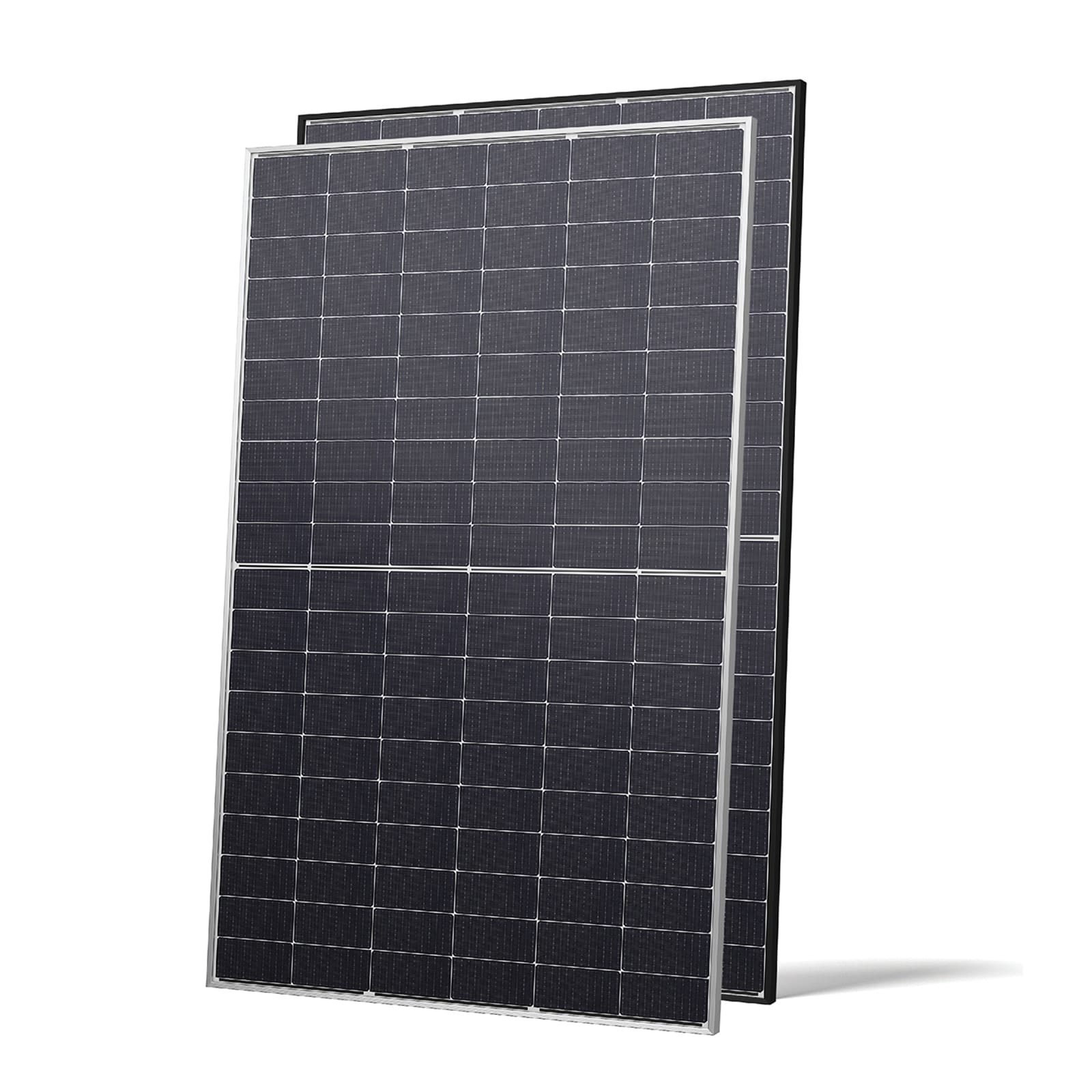

Jinko Solar Panels Tiger Neo 60HL4-(V) 475-500W N-Type Mono-facial Monocrystalline PV Module All Back For On-Grid Solar Power System
$0.10
The Jinko Solar solar panel is a high-quality, high-efficiency option for residential or commercial solar systems. With bifacial technology with dual glass and N-type M10 (182mm) monocrystalline cells, this panel offers an efficiency of up to 22.36%. Furthermore, its degradation in the first year is less than 1% (it does not present initial degradation by LID or LETID) and during the following 30 years it is less than 0.4%. Jinko Solar also offers a 12-year product and 30-year production warranty, demonstrating its commitment to quality and long-term customer satisfaction.
Jinko Solar Panels Tiger Neo 60HL4-(V) 475-500W N-Type Mono-facial Monocrystalline PV Module All Back For On-Grid Solar Power System
JinkoSolar manufactures a wide range of solar products, including monocrystalline and polycrystalline photovoltaic panels. Renowned for its technological innovations and research in the field of solar technologies, JinkoSolar operates globally, supplying its products to numerous countries worldwide. Jinko solar panels are utilized in both small residential installations and large-scale commercial and industrial projects.
JinkoSolar’s products are recognized for their high quality and reliability. The company holds various certifications and accreditations, affirming the excellence of its products and adherence to industry standards. Moreover, JinkoSolar is actively engaged in sustainability and environmental responsibility efforts. Acknowledged for its contributions to the advancement of solar technologies and renewable energy, JinkoSolar has received numerous awards and accolades.
Jinko Solar Tiger Neo N-type Monofacial is a solar panel module that uses advanced N-type monocrystalline solar cells to maximise energy efficiency and output.
First, this solar module features a half-cut cell design, which means that each solar cell is cut in half. In addition, the panel features a strong aluminium frame that can withstand heavy wind and snow loads, making it ideal for use in areas with extreme weather conditions.
Moreover, one of the key benefits of this solar panel module is its ability to perform well in low light conditions. Advanced N-type solar cells have a higher sensitivity to low light, making them an excellent choice for locations with less sunlight. Also, the single-facial design ensures that the panel is easy to install and maintain, while the highly efficient solar cells help reduce overall system costs.
In conclusion, the Jinko Solar Tiger Neo N-type Monofacial is a high-quality solar panel module that provides exceptional energy production and efficiency. Its advanced features and performance make it an excellent choice for commercial and residential applications.
Key features of the Jinko Tiger Neo 60HL4-(V) 475-500W
- 120 monocrystalline N-type cells
- 0 ~ +3 % positive power tolerance
- SMBB Technology
- Hot 2.0 Technology
- PID Resistance
- Higher Power Output
- Enhanced Mechanical Load
- 12 years Product warranty
- 30 years Linear power warranty
| Type | Monocrystalline | |||||
| Model No. | 475W | 480W | 485W | 490W | 495W | 500W |
| Warranty | ||||||
| Product Warranty | 12 Years | |||||
| Power Warranty | 30 Years of 87.4% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 475 Wp | 480 Wp | 485 Wp | 490 Wp | 495 Wp | 500 Wp |
| Voltage at Maximum Power (Vmpp) | 35.88 V | 36.06 V | 36.25 V | 36.43 V | 36.62 V | 36.79 V |
| Current at Maximum Power (Impp) | 13.24 A | 13.31 A | 13.38 A | 13.45 A | 13.52 A | 13.59 A |
| Open Circuit Voltage (Voc) | 43.45 V | 43.6 V | 43.76 V | 43.91 V | 44.07 V | 44.21 V |
| Short Circuit Current (Isc) | 13.77 A | 13.85 A | 13.93 A | 14.01 A | 14.09 A | 14.17 A |
| Panel Efficiency | 22.01% | 22.24% | 22.47% | 22.71% | 22.90% | 23.17% |
| Power Tolerance (Positive) | 3% | 3% | 3% | 3% | 3% | 3% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | -40~70 °C | |||||
| Temperature Coefficient of Pmax | -0.29 %/°C | |||||
| Temperature Coefficient of Voc | -0.25 %/°C | |||||
| Temperature Coefficient of Isc | 0.045 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 25 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 1906x1134x30 mm | |||||
| Weight | 22.5 kg | |||||
| Cell Number | 120 | |||||
| Glass Type | Anti-reflection Coating, Tempered | |||||
| Glass Thickness | 3.2 mm | |||||
| Frame Type | Anodized Aluminium | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
| Weight | 22 kg |
|---|---|
| Dimensions | 200 × 115 × 3 cm |
| Brand | |
| Cables |
4.0 mm |
| Encapsulant Material |
POE/EVA |
| J-Box |
IP68 |
| Maximum Power |
500 |
| Number Of Solar Cells |
120 |
| Solar Cells |
N-type Monocrystalline |
| Module Dimension(mm) |
1906x1134x30 |
| Backsheet |
White |
| Front Glass |
3.2mm AR Coated Heat Strengthened Glass |
| Vmp(V) |
36.79 |
| Imp(A) |
13.59 |
| Backside Power |
N/A |
| Connector |
MC4 |
| Weight[kg] |
22.5 |
JinkoSolar Holding Co., Ltd. is one of the largest and most innovative solar module manufacturers globally. Founded in 2006, the company has established a strong presence in the solar industry, recognized for its commitment to technological innovation and high-quality solar products.
Key Achievements and Market Position
AAA Rating: JinkoSolar has consistently topped the PV Tech ModuleTech Bankability Report, earning a “AAA” rating, which highlights its leadership in manufacturing excellence, reliable quality, and strong financial performance.
Market Share: As of 2023, JinkoSolar held approximately 15% of the global solar module market, making it the largest manufacturer by shipment volume, with total module shipments exceeding 210 GW.
Financial Performance: In 2023, JinkoSolar reported total revenue of RMB 118.68 billion, a 43.55% increase year-over-year, and a net profit attributable to shareholders of RMB 7.44 billion, reflecting a 153.2% increase year-over-year.
Technological Innovations
N-type Technology: JinkoSolar is a leader in N-type solar technology, particularly with its Tiger Neo modules, which utilize advanced N-type monocrystalline solar cells. This technology allows for higher efficiency and better performance in low-light conditions.
Record Efficiency: The company has achieved significant milestones in solar cell efficiency, including a record conversion efficiency of 33.24% for its N-type TOPCon based perovskite tandem solar cells and an average mass production efficiency of 26.1% for N-type TOPCon cells.
Patents: JinkoSolar holds 330 patents related to TOPCon technology, underscoring its commitment to innovation in the photovoltaic sector.
Product Offerings
Tiger Neo Series: The Tiger Neo N-type solar panels are designed for high performance and efficiency, featuring a half-cut cell design that improves energy output and reduces losses. The JKM585N-72HL4-V model, for example, has a power output of 585W and is optimized for various installation conditions.
Global Distribution: JinkoSolar distributes its products to a wide range of markets, including the United States, Europe, Asia, and Africa, with a strong focus on utility-scale, commercial, and residential applications.
Future Outlook
Growth Projections: JinkoSolar anticipates a growth rate of 25% to 30% in global photovoltaic demand for 2024, with expectations to ship between 100 GW to 110 GW of solar modules throughout the year.
Strategic Initiatives: The company is focusing on optimizing its supply chain and production processes to manage costs effectively while addressing market challenges such as oversupply and pricing pressures.
