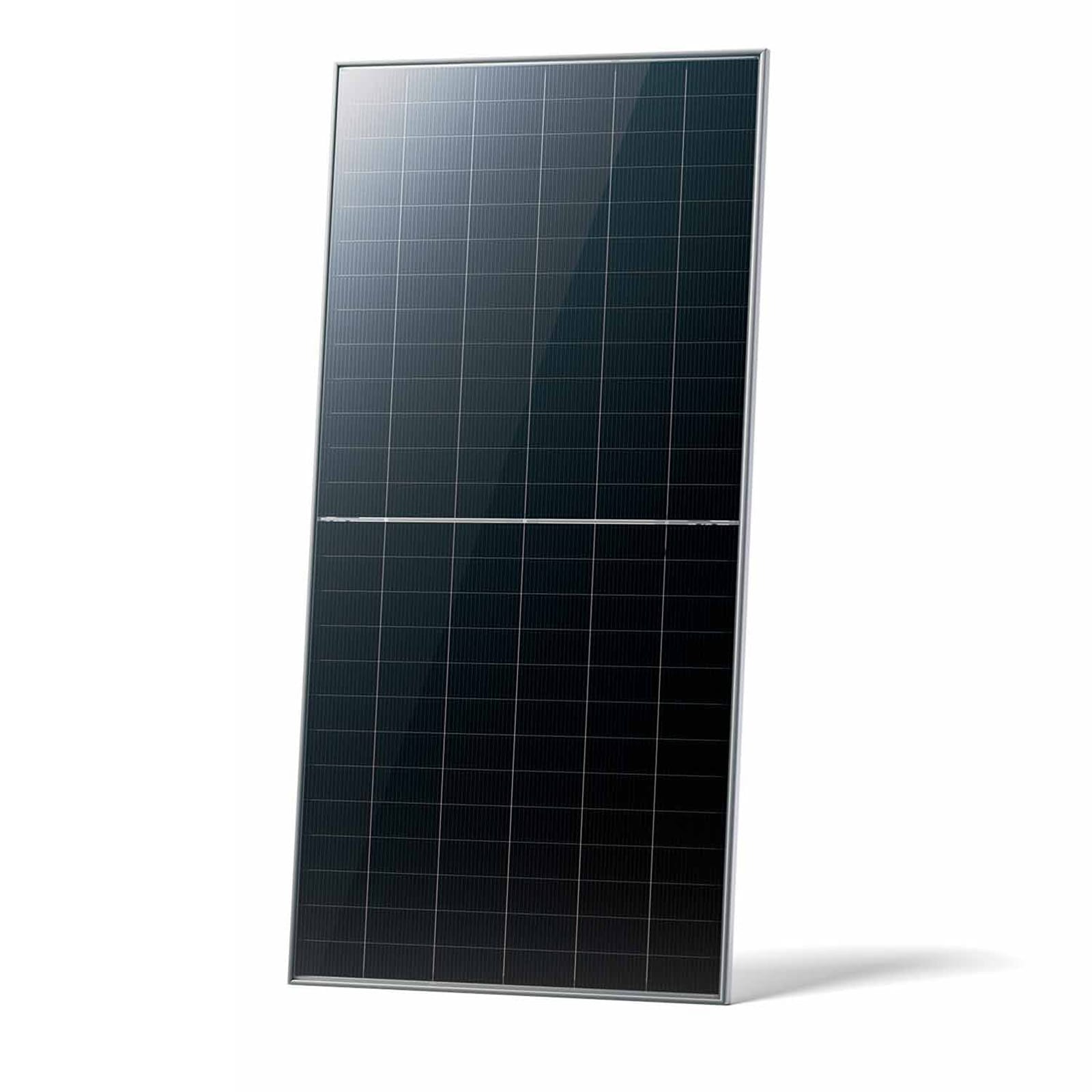

Jinko Solar Panels Tiger Neo (TOPCon) JKM625-650N-78HL4-BDV Standard Bifacial Monocrystalline N-Type 625-650WWp PV Module For On-Grid Solar System
$0.10
The Jinko Solar solar panel is a high-quality, high-efficiency option for residential or commercial solar systems. With bifacial technology with dual glass and N-type M10 (182mm) monocrystalline cells, this panel offers an efficiency of up to 22.36%. Furthermore, its degradation in the first year is less than 1% (it does not present initial degradation by LID or LETID) and during the following 30 years it is less than 0.4%. Jinko Solar also offers a 12-year product and 30-year production warranty, demonstrating its commitment to quality and long-term customer satisfaction.
Jinko Solar Panels JKM625-650N-78HL4-BDV Standard Bifacial Monocrystalline N-Type 625-650WWp PV Module For On-Grid Solar System
The Jinko Solar Panels JKM625-650N-78HL4-BDV is a high-performance bifacial monocrystalline N-type PV module designed for on-grid solar systems. Here are the key specifications and features of this model:
Key Features
- Power Range: 625 to 650 watts peak (Wp)
- Cell Type: Bifacial monocrystalline N-type PERC cells
- Cell Size: 182mm x 182mm
- Panel Efficiency: Up to 21.3%
- Bifacial Ratio: 70%
- Power Gain: Up to 30% additional power from rear side irradiation
- Power Temperature Coefficient: -0.35%/°C
- Warranty: 25 years at 86.2% output power, 30 years at 81.2% output power
Mechanical Specifications
- Cell Layout: 156 (6×26)
- Junction Box: IP68 rated with 3 bypass diodes
- Frame: Anodized aluminum alloy
- Glass: 2.0mm tempered glass
- Dimensions: 2465 x 1134 x 30 mm
- Weight: 34 kg
The Jinko Solar Panels JKM625-650N-78HL4-BDV offers several advantages:
N-type Technology
N-type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance
HOT 3.0 Technology
N-type modules with JinkoSolar’s HOT
3.0 technology offer better reliability and efficiency.
Dual-Sided Power Generation
increases with backside exposure to light, significantly reducing LCOE.
SMBB Technology
Better light trapping and current collection to improve module power output and reliability.
Mechanical Load Enhanced
Certified to withstand:
5400 Pa front side max static test load
2400 Pa rear side max static test load
Anti-PID Guarantee
Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
| Type | Monocrystalline | ||||
| Model No. | JKM605N-78HL4-BDV | JKM610N-78HL4-BDV | JKM615N-78HL4-BDV | JKM620N-78HL4-BDV | JKM625N-78HL4-BDV |
| Warranty | |||||
| Product Warranty | 12 Years | ||||
| Power Warranty | 30 Years of 87.4% Output Power | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) | 605 Wp | 610 Wp | 615 Wp | 620 Wp | 625 Wp |
| Voltage at Maximum Power (Vmpp) | 45.42 V | 45.6 V | 47.2 V | 47.37 V | 47.54 V |
| Current at Maximum Power (Impp) | 13.32 A | 13.38 A | 13.03 A | 13.09 A | 13.15 A |
| Open Circuit Voltage (Voc) | 55.17 V | 55.31 V | 56.69 V | 56.82 V | 56.95 V |
| Short Circuit Current (Isc) | 13.95 A | 14.03 A | 13.68 A | 13.74 A | 13.8 A |
| Panel Efficiency | 21.64% | 21.82% | 22% | 22.18% | 22.36% |
| Power Tolerance (Positive) | 3% | 3% | 3% | 3% | 3% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) | 455 Wp | 459 Wp | 463 Wp | 467 Wp | 470 Wp |
| Voltage at Maximum Power (Vmpp) | 42.23 V | 42.35 V | 44.39 V | 44.54 V | 44.69 V |
| Current at Maximum Power (Impp) | 10.77 A | 10.83 A | 10.44 A | 10.49 A | 10.54 A |
| Open Circuit Voltage (Voc) | 42.52 V | 42.62 V | 42.72 V | 42.82 V | 42.92 V |
| Short Circuit Current (Isc) | 10.25 A | 10.29 A | 10.31 A | 10.35 A | 10.4 A |
| Temperature | 45±2 °C | ||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||
| Thermal Ratings | |||||
| Operating Temperature Range | -40~85 °C | ||||
| Temperature Coefficient of Pmax | -0.29 %/°C | ||||
| Temperature Coefficient of Voc | -0.25 %/°C | ||||
| Temperature Coefficient of Isc | 0.045 %/°C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V | ||||
| Series Fuse Rating | 30 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 2465x1134x30 mm | ||||
| Weight | 34 kg | ||||
| Cell Number | 156 | ||||
| Glass Type | Anti-reflection Coating | ||||
| Glass Thickness | 2 mm | ||||
| Frame Type | Anodized Aluminium | ||||
| Junction Box Protection Class | IP 68 | ||||
| Connector Type | MC4 | ||||
| Cable Crossection | 4 mm2 | ||||
| Cable Length | 400 mm | ||||
| Brand | |
|---|---|
| Cables |
4.0 mm |
| Encapsulant Material |
POE/EVA |
| J-Box |
IP68 |
| Maximum Power |
650 |
| Number Of Solar Cells |
156 |
| Solar Cells |
N-type Monocrystalline |
| Module Dimension(mm) |
2465×1134×30 |
| Backsheet |
2.0mm Heat Strengthened Glass |
| Front Glass |
2.0mm AR Coated Heat Strengthened Glass |
| Vmp(V) |
48.33 |
| Imp(A) |
13.45 |
| Backside Power |
10% |
| Connector |
MC4 |
| Weight[kg] |
34 |
JinkoSolar Holding Co., Ltd. is one of the largest and most innovative solar module manufacturers globally. Founded in 2006, the company has established a strong presence in the solar industry, recognized for its commitment to technological innovation and high-quality solar products.
Key Achievements and Market Position
AAA Rating: JinkoSolar has consistently topped the PV Tech ModuleTech Bankability Report, earning a “AAA” rating, which highlights its leadership in manufacturing excellence, reliable quality, and strong financial performance.
Market Share: As of 2023, JinkoSolar held approximately 15% of the global solar module market, making it the largest manufacturer by shipment volume, with total module shipments exceeding 210 GW.
Financial Performance: In 2023, JinkoSolar reported total revenue of RMB 118.68 billion, a 43.55% increase year-over-year, and a net profit attributable to shareholders of RMB 7.44 billion, reflecting a 153.2% increase year-over-year.
Technological Innovations
N-type Technology: JinkoSolar is a leader in N-type solar technology, particularly with its Tiger Neo modules, which utilize advanced N-type monocrystalline solar cells. This technology allows for higher efficiency and better performance in low-light conditions.
Record Efficiency: The company has achieved significant milestones in solar cell efficiency, including a record conversion efficiency of 33.24% for its N-type TOPCon based perovskite tandem solar cells and an average mass production efficiency of 26.1% for N-type TOPCon cells.
Patents: JinkoSolar holds 330 patents related to TOPCon technology, underscoring its commitment to innovation in the photovoltaic sector.
Product Offerings
Tiger Neo Series: The Tiger Neo N-type solar panels are designed for high performance and efficiency, featuring a half-cut cell design that improves energy output and reduces losses. The JKM585N-72HL4-V model, for example, has a power output of 585W and is optimized for various installation conditions.
Global Distribution: JinkoSolar distributes its products to a wide range of markets, including the United States, Europe, Asia, and Africa, with a strong focus on utility-scale, commercial, and residential applications.
Future Outlook
Growth Projections: JinkoSolar anticipates a growth rate of 25% to 30% in global photovoltaic demand for 2024, with expectations to ship between 100 GW to 110 GW of solar modules throughout the year.
Strategic Initiatives: The company is focusing on optimizing its supply chain and production processes to manage costs effectively while addressing market challenges such as oversupply and pricing pressures.
