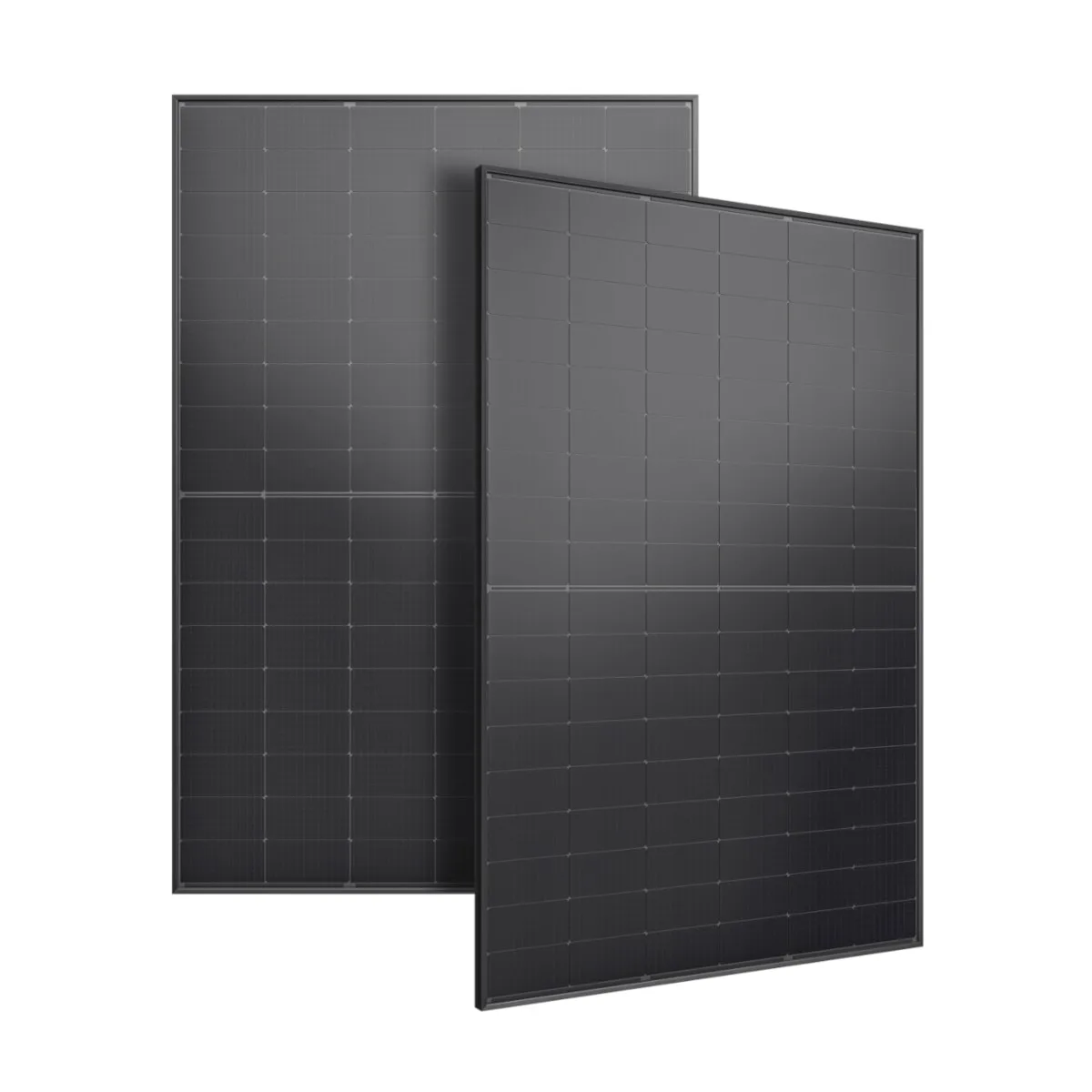

Jinko Solar Panels Tiger Neo TOPCon 54HL4R-BDB 425-450W N-Type Bifacial Monocrystalline PV Module With Dual Glass All Back For On-Grid Solar Power System
$0.10
The Jinko Solar solar panel is a high-quality, high-efficiency option for residential or commercial solar systems. With bifacial technology with dual glass and N-type M10 (182mm) monocrystalline cells, this panel offers an efficiency of up to 22.36%. Furthermore, its degradation in the first year is less than 1% (it does not present initial degradation by LID or LETID) and during the following 30 years it is less than 0.4%. Jinko Solar also offers a 12-year product and 30-year production warranty, demonstrating its commitment to quality and long-term customer satisfaction.
Jinko Solar Panels Tiger Neo TOPCon 54HL4R-BDB 425-450W N-Type Bifacial Monocrystalline PV Module With Dual Glass All Back For On-Grid Solar Power System

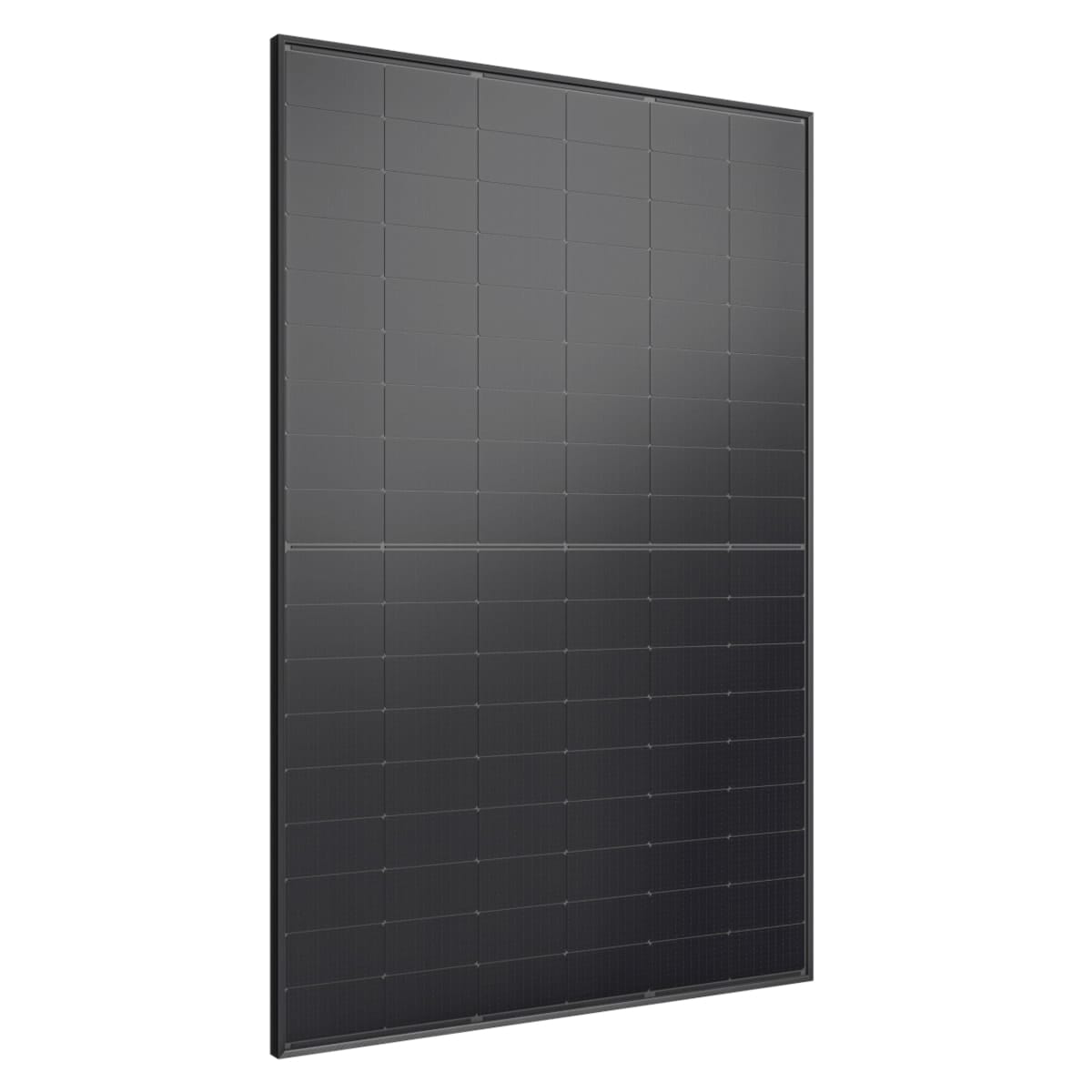

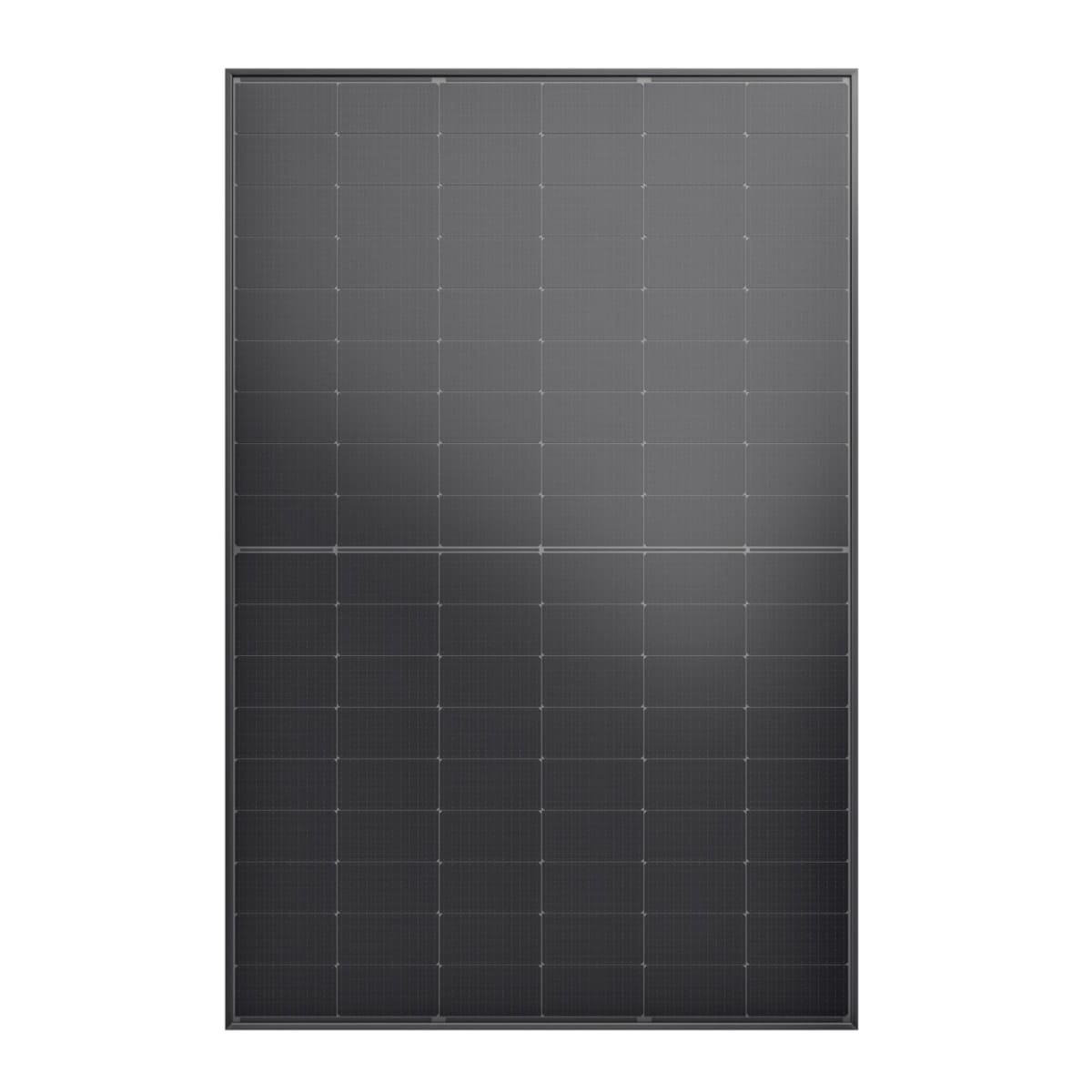

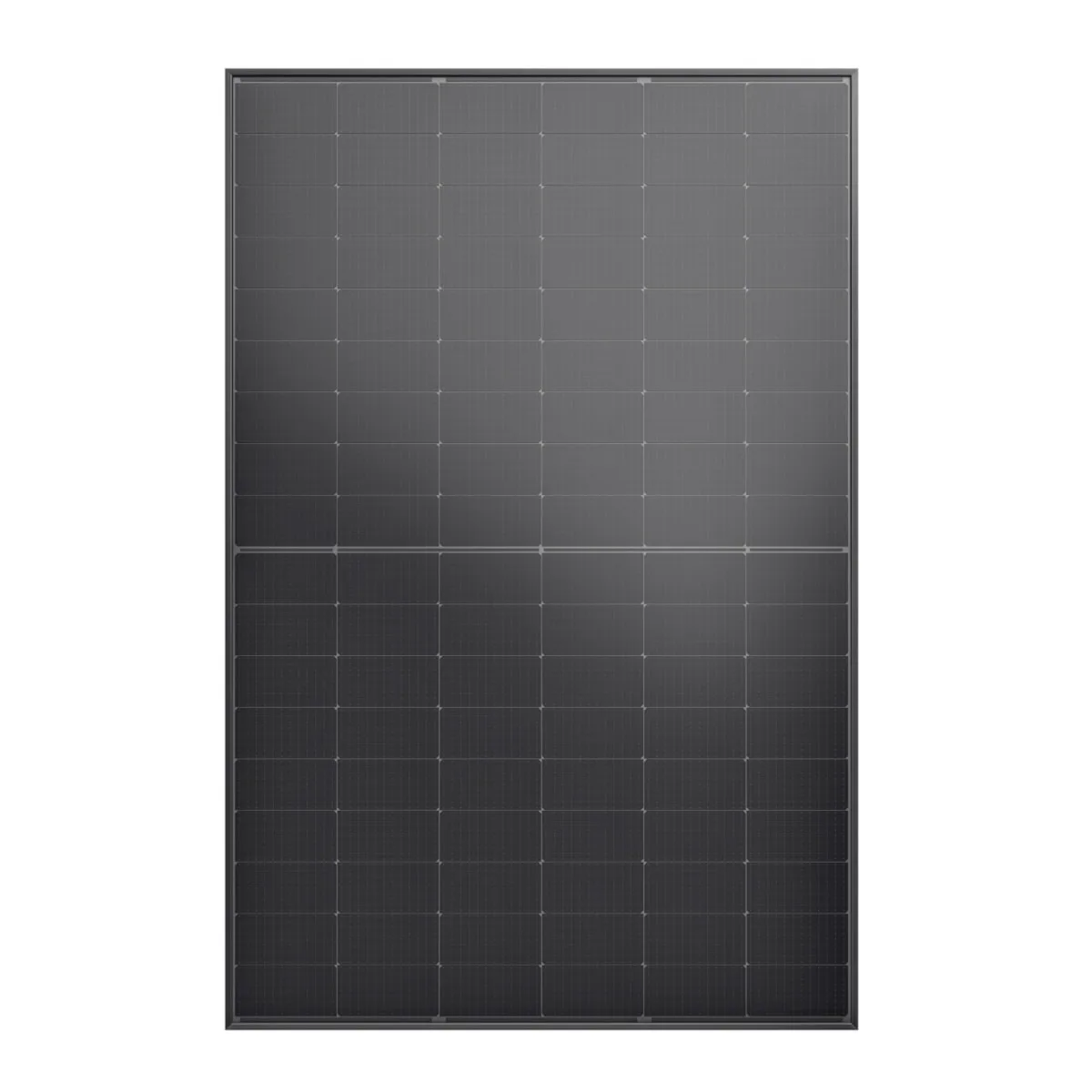

With the Jinko Solar Tiger Neo 54HL4R-BDB, JinkoSolar has launched a highly efficient and powerful all-black N-type solar module for private and commercial photovoltaic systems. With a rated output of up to 435 watts, bifacial energy generation on both sides and an efficiency of up to 21.77%, the module demonstrates its outstanding performance even in diffuse light conditions, thus ensuring excellent energy yield. In addition, the stable double glass design and resistance to adverse weather conditions make it the ideal choice for anyone who values performance, quality and reliability.
N-Type Technology N-Type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance. HOT 2.0 Technology 100% 99% N-type modules with Jinko Solar’s HOT 2.0 technology offer better reliability and efficiency. Dual-Sided Power Generation Mechanical Load Enhanced 87.4% 1 Product Warranty 15 Year Year Linear Power Warranty 25 First-year Degradation 30 Annual Degradation Over 30 Years Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE. SMBB Technology Better light trapping and current collection to improve module power output and reliability. Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load Anti-PID guarantee Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
Key Features:
- N-Type Technology:
- Utilizes Tunnel Oxide Passivating Contacts (TOPCon) technology.
- Offers lower Light-Induced Degradation (LID) and Light and Elevated Temperature Induced Degradation (LeTID).
- Provides better low light performance.
- HOT 2.0 Technology:
- JinkoSolar’s HOT 2.0 technology enhances reliability and efficiency.

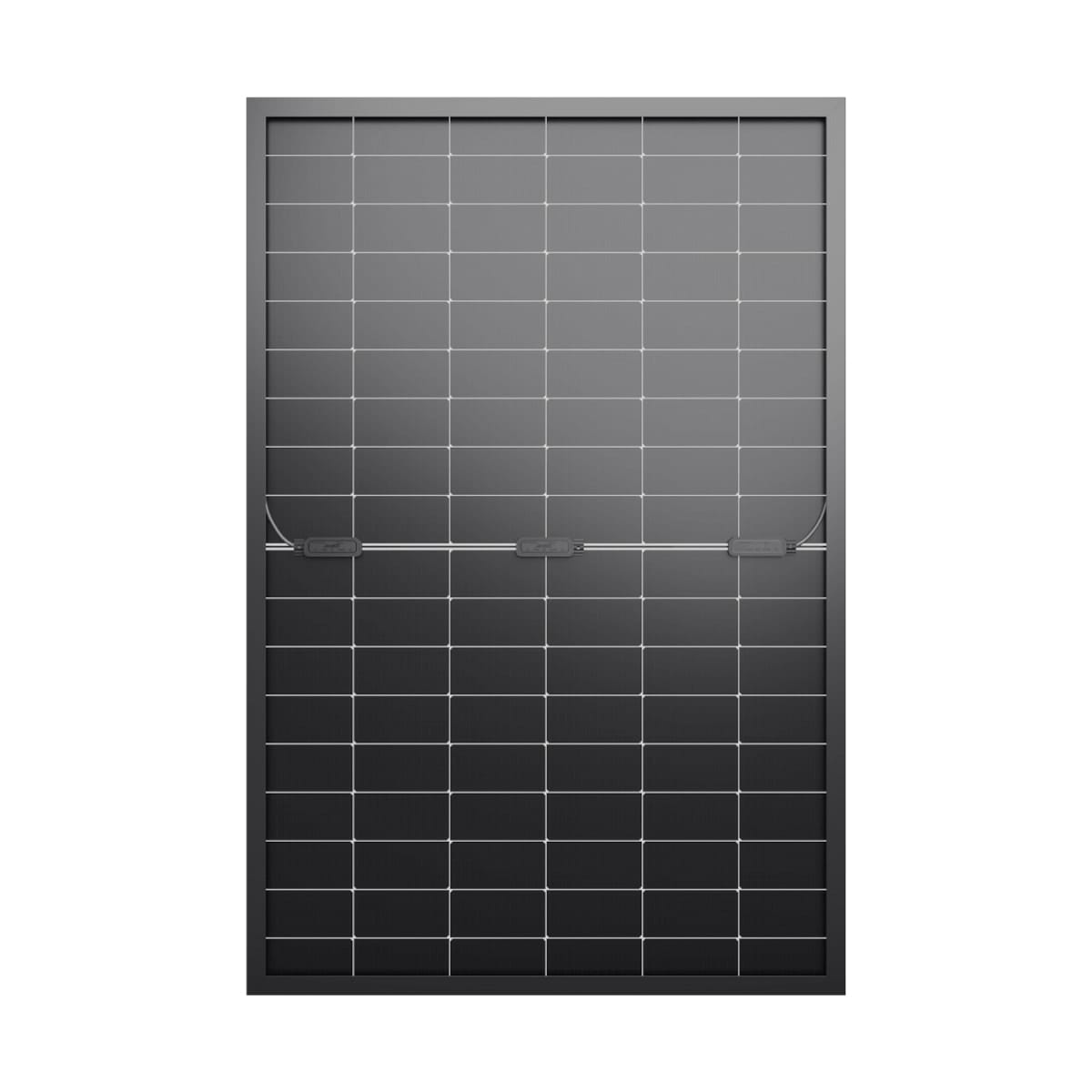

- Dual-Sided Power Generation:
- Gains power from both sides due to backside exposure to light, reducing Levelized Cost of Electricity (LCOE).
- Mechanical Load Enhanced:
- Certified to withstand:
- 5400 Pa front side max static test load.
- 2400 Pa rear side max static test load.
- Certified to withstand:
- SMBB Technology:
- Improves light trapping and current collection for better module power output and reliability.
- Anti-PID Guarantee:
- Minimizes Potential Induced Degradation (PID) through optimized cell production technology and material control.
Performance and Warranty:
- Product Warranty: 25 years
- Linear Power Warranty: 30 years
- First-Year Degradation: 1%
- Annual Degradation Over 30 Years: 0.4%
| Type | Monocrystalline | |||||
| Model No. | 425 | 430 | 435 | 440 | 445 | 450 |
| Warranty | ||||||
| Product Warranty | 25 Years | |||||
| Power Warranty | 30 Years of 87.4% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 425 Wp | 430 Wp | 435 Wp | 440 Wp | 445 Wp | 450 Wp |
| Voltage at Maximum Power (Vmpp) | 32.9 V | 33.08 V | 33.26 V | 33.44 V | 33.61 V | 33.79 V |
| Current at Maximum Power (Impp) | 12.92 A | 13 A | 13.08 A | 13.16 A | 13.24 A | 13.32 A |
| Open Circuit Voltage (Voc) | 39.23 V | 39.43 V | 39.63 V | 39.83 V | 40.03 V | 40.23 V |
| Short Circuit Current (Isc) | 13.77 A | 13.84 A | 13.91 A | 13.98 A | 14.05 A | 14.12 A |
| Panel Efficiency | 21.27% | 21.52% | 21.77% | 22.02% | 22.27% | 22.52% |
| Power Tolerance (Positive) | 3% | 3% | 3% | 3% | 3% | 3% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | -40~85 °C | |||||
| Temperature Coefficient of Pmax | -0.29 %/°C | |||||
| Temperature Coefficient of Voc | -0.25 %/°C | |||||
| Temperature Coefficient of Isc | 0.045 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 30 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 1762x1134x30 mm | |||||
| Weight | 24.5 kg | |||||
| Cell Number | 108 | |||||
| Glass Type | Anti-reflection Coating | |||||
| Glass Thickness | 2 mm | |||||
| Frame Type | Anodized Aluminium, Black | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
| Weight | 24.5 kg |
|---|---|
| Dimensions | 180 × 115 × 4 cm |
| Brand | |
| Cables |
4.0 mm |
| Encapsulant Material |
POE/EVA |
| J-Box |
IP68 |
| Maximum Power |
450 |
| Number Of Solar Cells |
108 |
| Solar Cells |
N-type Monocrystalline |
| Module Dimension(mm) |
1762x1134x30 |
| Backsheet |
2.0mm Heat Strengthened Glass |
| Front Glass |
2.0mm AR Coated Heat Strengthened Glass |
| Vmp(V) |
40.23 |
| Imp(A) |
13.32 |
| Backside Power |
10% |
| Connector |
MC4 |
| Weight[kg] |
24.5 |
JinkoSolar Holding Co., Ltd. is one of the largest and most innovative solar module manufacturers globally. Founded in 2006, the company has established a strong presence in the solar industry, recognized for its commitment to technological innovation and high-quality solar products.
Key Achievements and Market Position
AAA Rating: JinkoSolar has consistently topped the PV Tech ModuleTech Bankability Report, earning a “AAA” rating, which highlights its leadership in manufacturing excellence, reliable quality, and strong financial performance.
Market Share: As of 2023, JinkoSolar held approximately 15% of the global solar module market, making it the largest manufacturer by shipment volume, with total module shipments exceeding 210 GW.
Financial Performance: In 2023, JinkoSolar reported total revenue of RMB 118.68 billion, a 43.55% increase year-over-year, and a net profit attributable to shareholders of RMB 7.44 billion, reflecting a 153.2% increase year-over-year.
Technological Innovations
N-type Technology: JinkoSolar is a leader in N-type solar technology, particularly with its Tiger Neo modules, which utilize advanced N-type monocrystalline solar cells. This technology allows for higher efficiency and better performance in low-light conditions.
Record Efficiency: The company has achieved significant milestones in solar cell efficiency, including a record conversion efficiency of 33.24% for its N-type TOPCon based perovskite tandem solar cells and an average mass production efficiency of 26.1% for N-type TOPCon cells.
Patents: JinkoSolar holds 330 patents related to TOPCon technology, underscoring its commitment to innovation in the photovoltaic sector.
Product Offerings
Tiger Neo Series: The Tiger Neo N-type solar panels are designed for high performance and efficiency, featuring a half-cut cell design that improves energy output and reduces losses. The JKM585N-72HL4-V model, for example, has a power output of 585W and is optimized for various installation conditions.
Global Distribution: JinkoSolar distributes its products to a wide range of markets, including the United States, Europe, Asia, and Africa, with a strong focus on utility-scale, commercial, and residential applications.
Future Outlook
Growth Projections: JinkoSolar anticipates a growth rate of 25% to 30% in global photovoltaic demand for 2024, with expectations to ship between 100 GW to 110 GW of solar modules throughout the year.
Strategic Initiatives: The company is focusing on optimizing its supply chain and production processes to manage costs effectively while addressing market challenges such as oversupply and pricing pressures.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
RELATED PRODUCTS
Select options
This product has multiple variants. The options may be chosen on the product page

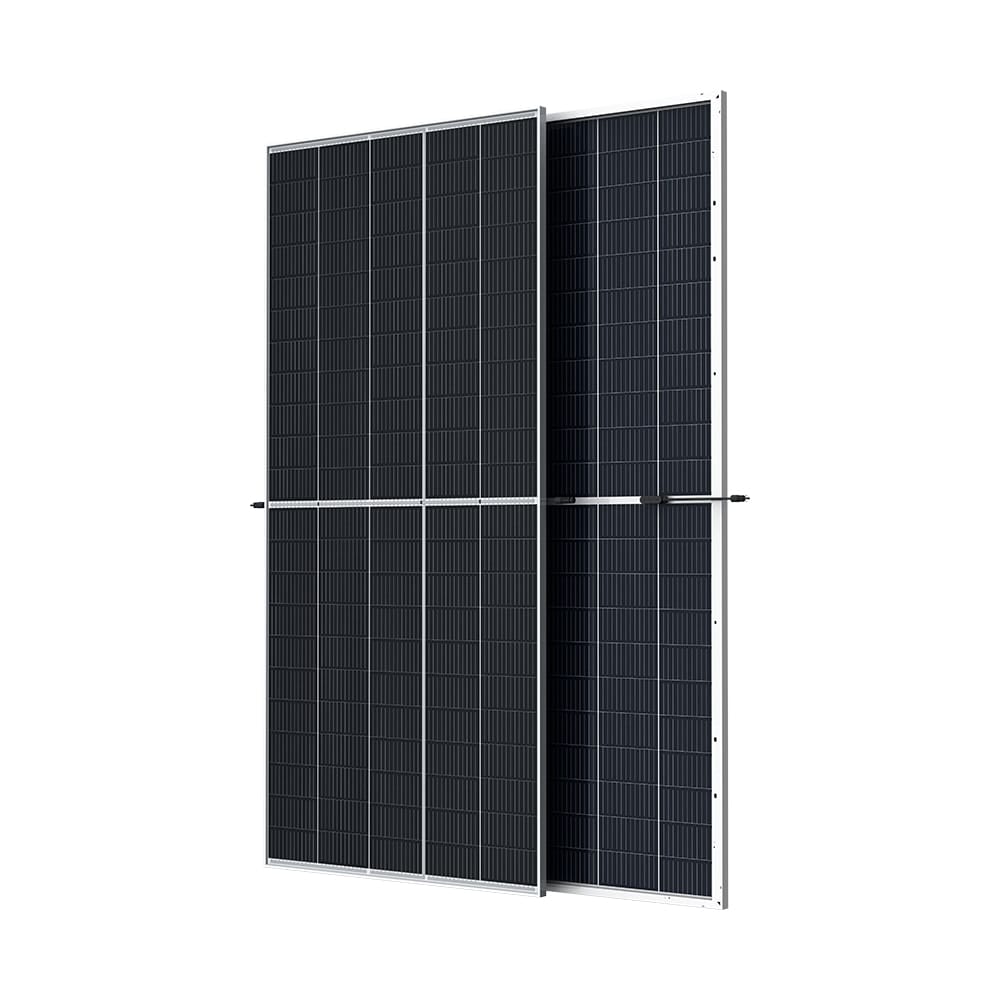

ASTRO N7 Bifacial Series Solar Panels CHSM66RN(DG)/F-BH 605~630W Monocrystalline N-Type (TOPCon) Double Glass PV Module For On-Grid Solar System
