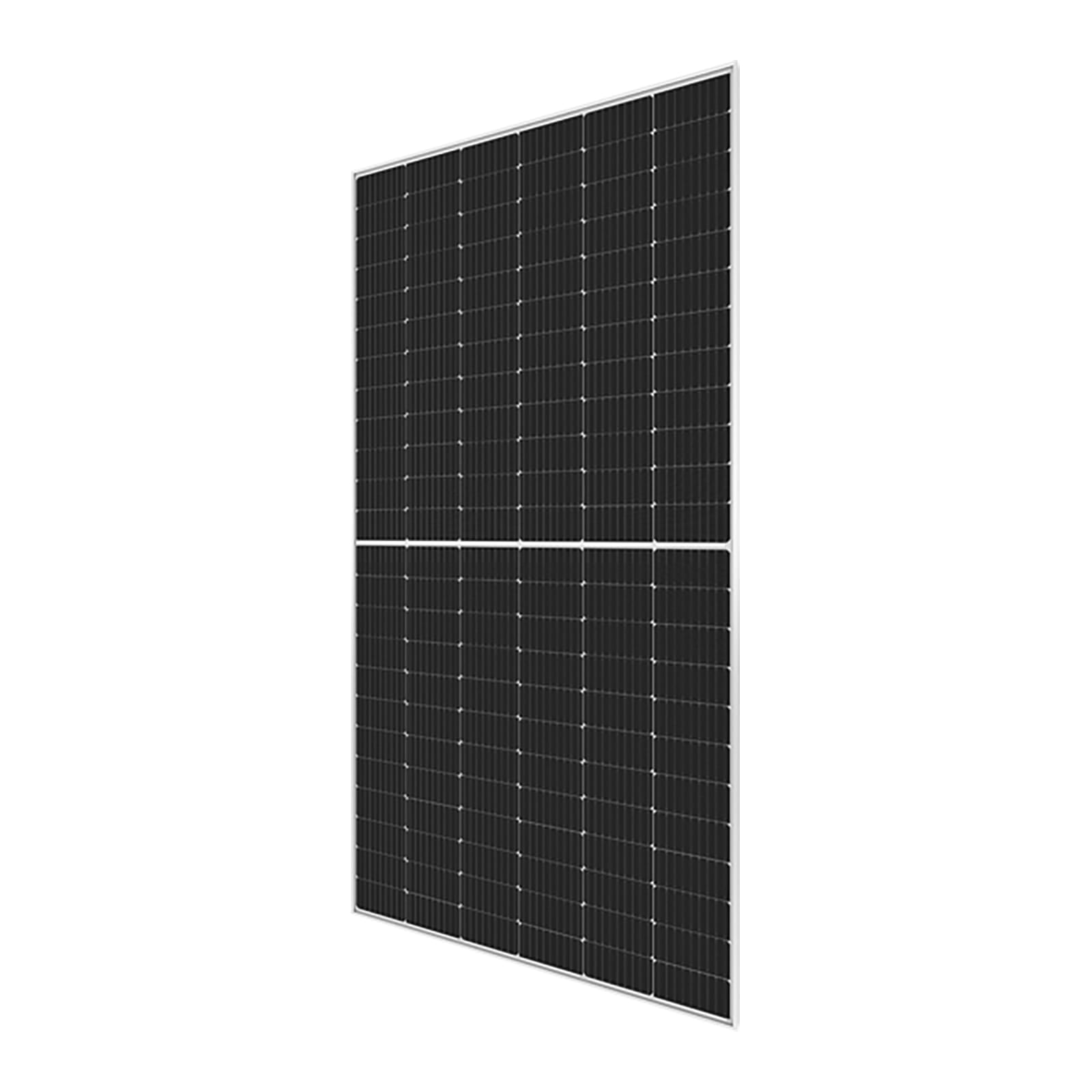

Longi Solar Panels Bifacial Hi-MO 5 LR5-72HBD 540-560M 144 Cells Monocrystalline Double Glass PV module For On-Grid Solar System
$0.10
Longi Solar Panels Bifacial Hi-MO 5 LR5-72HBD 540-560M 144 Cells Monocrystalline Double Glass PV module For On-Grid
The Longi Solar Panels Hi-MO 5 LR5-72HBD 540-560M is a high-performance bifacial monocrystalline solar panel designed for on-grid solar systems.
Key Features
- Power Output: The panel is available in a power range of 540 to 560 watts peak (Wp), making it suitable for high-efficiency applications.
- Cell Technology: It utilizes monocrystalline N-type PERC (Passivated Emitter and Rear Cell) technology, which enhances efficiency and performance while reducing light-induced degradation (LID).

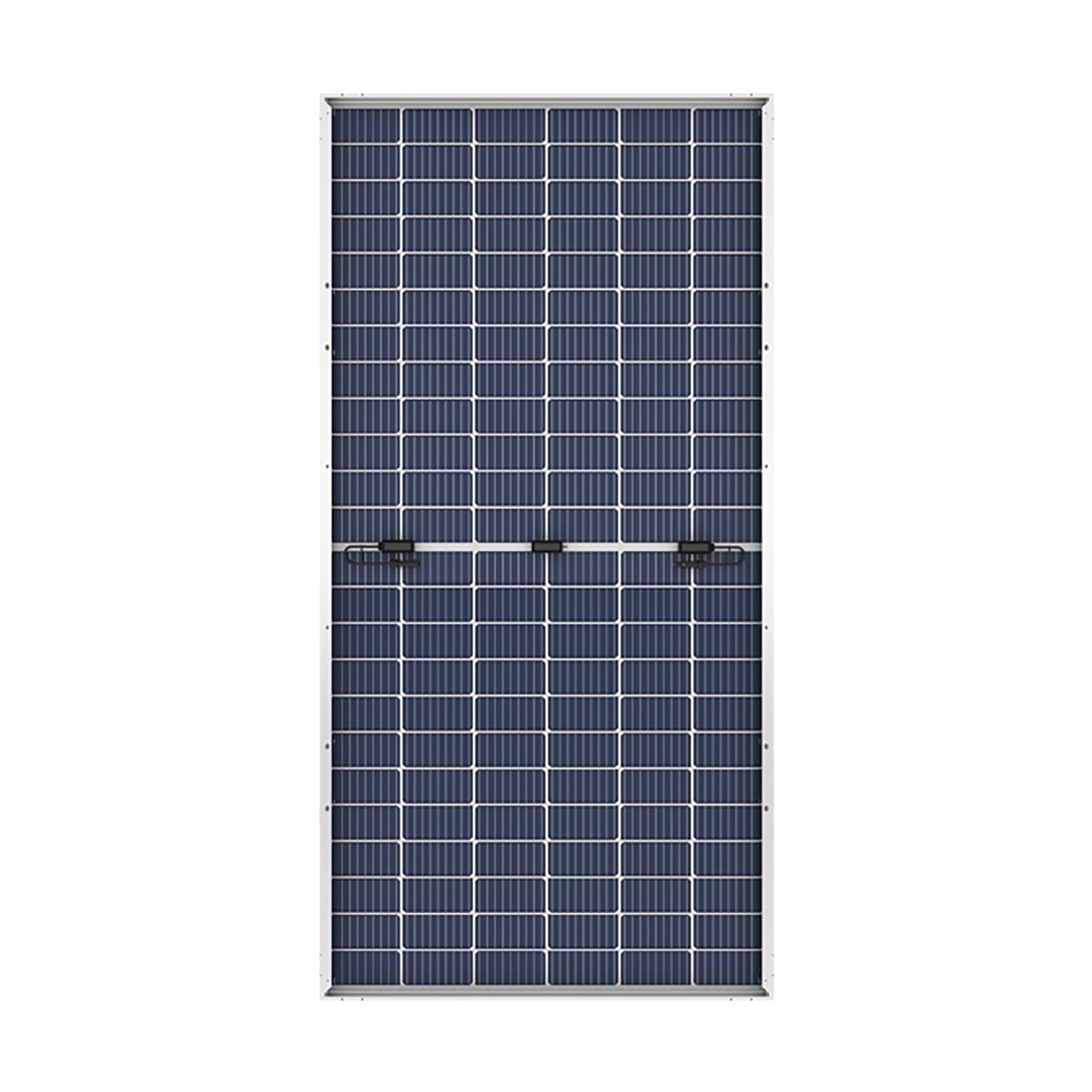

- Bifacial Design: The bifacial capability allows for energy generation from both sides of the panel, increasing overall output, especially in environments with reflective surfaces.
- Efficiency: The panel achieves high efficiencies, typically around 21.3% to 22.0%, depending on the specific configuration.
- Temperature Coefficient: The temperature coefficient is approximately -0.34%/°C, indicating good performance in high-temperature conditions.
- Durability: The double-glass design enhances durability, protecting the cells from environmental damage and improving longevity.
- Dimensions: The panels generally have dimensions of approximately 2278 x 1134 x 30 mm.
- Weight: The weight of these panels is around 31.8 kg, making them manageable for installation.
- Warranty: The panels typically come with a 12-year product warranty and a 25-year linear power output warranty, ensuring long-term performance.
Advantages
- High energy yield from bifacial design
- Improved low-light performance with N-type cells
- Versatile for utility-scale, commercial, and residential applications
- Reduced Balance of System (BOS) costs due to higher power output per panel
The Longi Hi-MO 5 LR5-72HBD is an ideal choice for on-grid solar systems, particularly in large-scale commercial and utility projects where maximizing energy output and efficiency is crucial. Its advanced features and robust construction make it a reliable and high-performance solution for modern solar installations.
| Type | Monocrystalline | |||||
| Model No. | LR5-72HBD-535M | LR5-72HBD-540M | LR5-72HBD-545M | LR5-72HBD-550M | LR5-72HBD-555M | LR5-72HBD-560M |
| Warranty | ||||||
| Product Warranty | 12 Years | |||||
| Power Warranty | 15 Years of 91.7% Output Power, 25 Years of 84.95% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 535 Wp | 540 Wp | 545 Wp | 550 Wp | 555 Wp | 560 Wp |
| Voltage at Maximum Power (Vmpp) | 41.5 V | 41.65 V | 41.8 V | 41.95 V | 42.1 V | 42.25 V |
| Current at Maximum Power (Impp) | 12.9 A | 12.97 A | 13.04 A | 13.12 A | 13.19 A | 13.26 A |
| Open Circuit Voltage (Voc) | 49.35 V | 49.5 V | 49.65 V | 49.8 V | 49.95 V | 50.1 V |
| Short Circuit Current (Isc) | 13.78 A | 13.85 A | 13.92 A | 13.99 A | 14.05 A | 14.1 A |
| Panel Efficiency | 20.70% | 20.90% | 21.10% | 21.30% | 21.50% | 21.70% |
| Power Tolerance (Positive) | 3% | 3% | 3% | 3% | 3% | 3% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) | 399.9 Wp | 403.6 Wp | 407.4 Wp | 411.1 Wp | 414.8 Wp | 418.6 Wp |
| Voltage at Maximum Power (Vmpp) | 38.7 V | 38.86 V | 39 V | 39.14 V | 39.28 V | 39.42 V |
| Current at Maximum Power (Impp) | 10.33 A | 10.39 A | 10.45 A | 10.51 A | 10.56 A | 10.62 A |
| Open Circuit Voltage (Voc) | 46.4 V | 46.54 V | 46.68 V | 46.82 V | 46.97 V | 47.11 V |
| Short Circuit Current (Isc) | 11.12 A | 11.17 A | 11.23 A | 11.29 A | 11.34 A | 11.38 A |
| Temperature | 45±2 °C | |||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | -40~85 °C | |||||
| Temperature Coefficient of Pmax | -0.34 %/°C | |||||
| Temperature Coefficient of Voc | -0.265 %/°C | |||||
| Temperature Coefficient of Isc | 0.05 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 30 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 2278x1134x35 mm | |||||
| Weight | 31.8 kg | |||||
| Cell Size | 182×182 mm | |||||
| Cell Number | 144 | |||||
| Glass Thickness | 2 mm | |||||
| Frame Type | Anodized Aluminium | |||||
| Junction Box Diodes | 3 | |||||
| Junction Box Protection Class | IP 68 | |||||
| Cable Crossection | 4 mm2 | |||||
| Brand | |
|---|---|
| Cables |
4.0 mm |
| Encapsulant Material |
POE/EVA |
| J-Box |
IP68 |
| Maximum Power |
560 |
| Number Of Solar Cells |
144 |
| Solar Cells |
N-type Monocrystalline |
| Module Dimension(mm) |
2278x1134x30 |
| Backsheet |
2.0mm Heat Strengthened Glass |
| Front Glass |
2.0mm AR Coated Heat Strengthened Glass |
| Vmp(V) |
39.42 |
| Imp(A) |
11.38 |
| Backside Power |
10% |
| Connector |
MC4 |
| Weight[kg] |
31.8 |
LONGi Green Energy Technology Co., Ltd., commonly known as LONGi Solar, is the world's largest manufacturer of solar photovoltaic (PV) products. Founded in 2000, the company specializes in the production of monocrystalline silicon wafers, solar cells, and modules, and is recognized for its commitment to technological innovation and sustainability.
Key Highlights
Market Leadership:
LONGi is the largest solar PV producer globally, with a significant share of the market, achieving module shipments of 31.34 GW in the first half of 2024 alone.
The company has maintained a AAA rating in PV Tech's ModuleTech Bankability rankings for 18 consecutive times, reflecting its strong financial health and product reliability.
Technological Innovation:
LONGi focuses on enhancing solar cell conversion efficiency through advanced technologies such as HPBC (High-Performance Bifacial Cell) technology, which improves energy yield and reduces costs.
The Hi-MO series of bifacial modules, including the latest Hi-MO 9, are designed for high performance in diverse environmental conditions, making them suitable for various applications.
Sustainability Commitment:
LONGi is committed to sustainability and has pledged to achieve 100% renewable electricity sourcing by 2028-2030. The company has also reported a nearly 40% reduction in operational emissions per revenue unit in 2022.
During the COP28 summit, LONGi announced partnerships aimed at promoting energy equity and sustainable development, showcasing its role in global climate action.
Global Presence:
LONGi operates manufacturing facilities and sales offices in over 150 countries, including significant production capabilities in China, Vietnam, and Malaysia. This extensive network allows for efficient distribution and local market support.
The company has made substantial inroads into markets such as Europe, the Middle East, and Asia, adapting its strategies to meet regional demands.
Research and Development:
LONGi invests heavily in R&D, collaborating with leading universities and research institutions to drive innovation in solar technology.
The company's focus on collaborative innovation has led to breakthroughs in cell technology and cost reduction across the solar industry.
Product Offerings
Solar Modules: LONGi's solar modules, especially the Hi-MO series, are known for their high efficiency and durability. They are suitable for residential, commercial, and utility-scale applications.
Bifacial Technology: LONGi's bifacial modules can capture sunlight from both sides, increasing energy generation and making them ideal for installations in various environments.
Green Hydrogen Solutions: In addition to solar products, LONGi has recently embraced green hydrogen technologies, supporting global zero-carbon development initiatives.
