Longi Solar Panels Bifacial Hi-MO 7 LR7-72HGD 585-620M 144 Cells Monocrystalline Double Glasses PV module For On-Grid

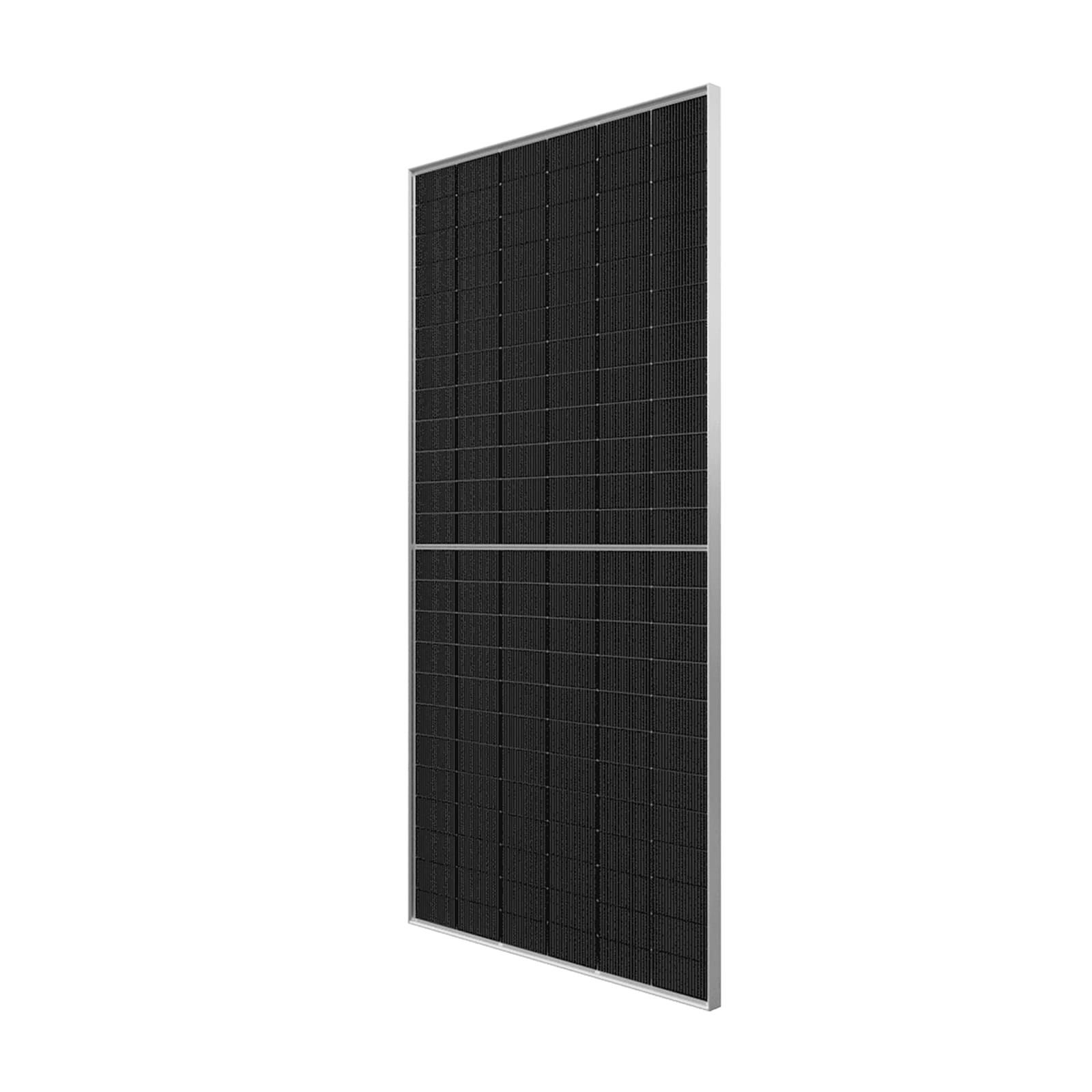

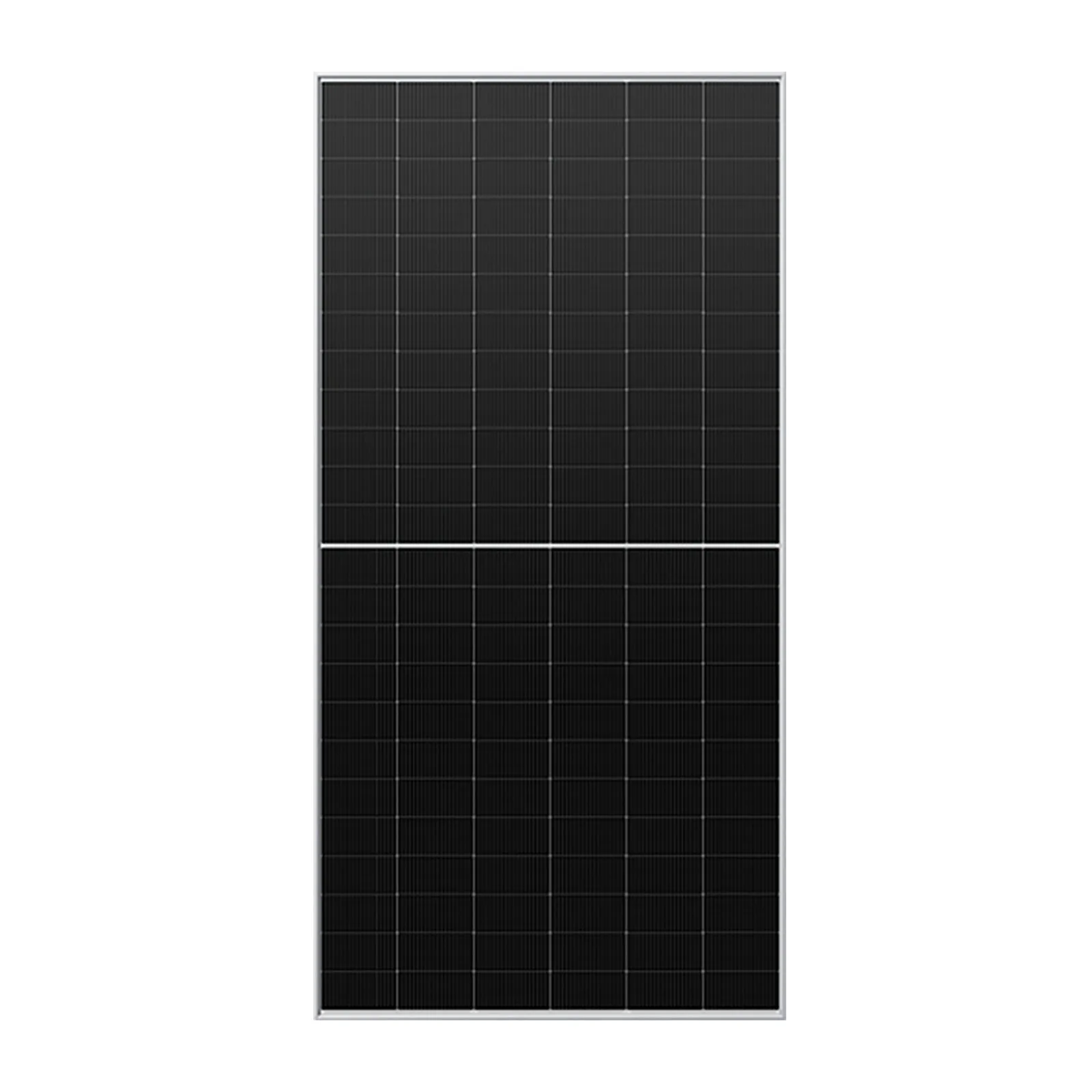

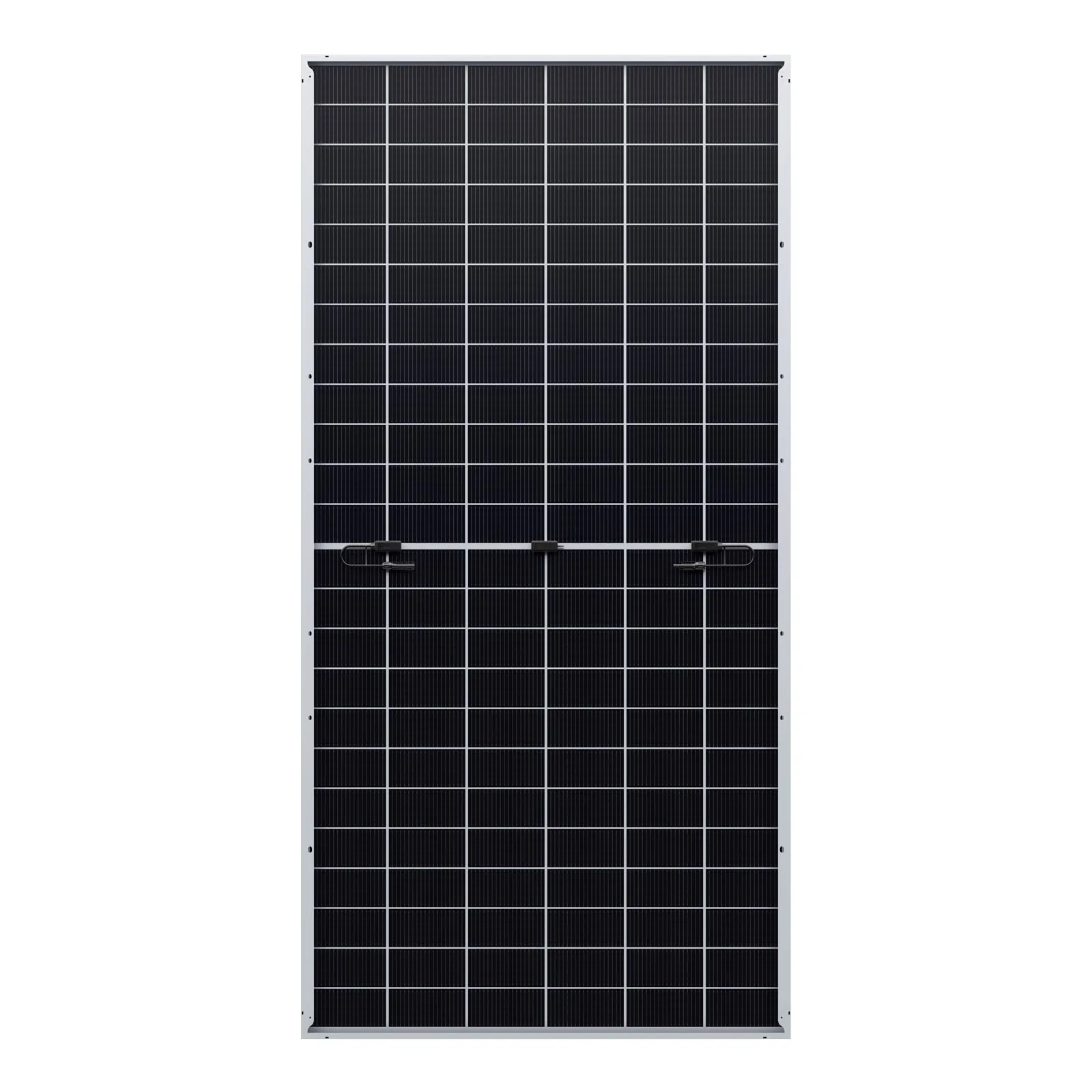

The Longi Solar panels Hi-MO 7 LR7-72HGD 585-620M is a high-performance bifacial solar panel series known for its reliability, efficiency, and cost savings. Here are the key features and specifications of this model:
Key Features
Power Range: 585 to 620 watts peak (Wp)
Cell Type: Bifacial monocrystalline PERC half-cut cells
Cell Size: 182mm x 182mm
Panel Efficiency: Up to 23%
Bifacial Ratio: Around 80%
Power Gain: Up to 3% compared to mainstream bifacial modules
Power Temperature Coefficient: -0.28%/°C
Warranty: 15 years at 93.4% output power, 30 years at 87.4% output power

Mechanical Specifications

Cell Layout: 144 (6×24)
Junction Box: IP68 rated with 3 bypass diodes
Frame: Anodized aluminum alloy
Glass: 2mm tempered glass
Dimensions: 2382 x 1134 x 30 mm
Weight: 33.5 kg

The Longi Solar panels Hi-MO 7 LR7-72HGD 585-620M series offers several advantages:

Improved power generation performance with a higher bifacial ratio and superior power temperature coefficient.
BOS cost savings due to increased installation capacity and reduced equipment requirements.
Operation and maintenance cost savings through improved efficiency and reduced cleaning needs.
Reliable performance backed by a 15-year 93.4% output power warranty and 30-year 87.4% output power warranty.

This bifacial solar panel series is ideal for commercial, industrial, and utility-scale solar projects, offering a combination of high efficiency, cost savings, and long-term reliability.

Type	Monocrystalline
Model No.	LR7-72HGD-585M	LR7-72HGD-590M	LR7-72HGD-595M	LR7-72HGD-600M	LR7-72HGD-605M	LR7-72HGD-610M	LR7-72HGD-615M	LR7-72HGD-620M
Warranty
Product Warranty	12 Years
Power Warranty	15 Years of 93.4% Output Power, 30 Years of 87.4% Output Power
Electrical Data at STC
Maximum Power (Pmax)	585 Wp	590 Wp	595 Wp	600 Wp	605 Wp	610 Wp	615 Wp	620 Wp
Voltage at Maximum Power (Vmpp)	43.57 V	43.68 V	43.79 V	43.9 V	44 V	44.11 V	44.22 V	44.33 V
Current at Maximum Power (Impp)	13.43 A	13.51 A	13.59 A	13.67 A	13.75 A	13.83 A	13.91 A	13.99 A
Open Circuit Voltage (Voc)	52.01 V	52.12 V	52.23 V	52.34 V	52.44 V	52.55 V	52.66 V	52.77 V
Short Circuit Current (Isc)	14.29 A	14.37 A	14.45 A	14.53 A	14.61 A	14.69 A	14.77 A	14.85 A
Panel Efficiency	21.70%	21.80%	22%	22.20%	22.40%	22.60%	22.80%	23%
Power Tolerance (Positive)	3%	3%	3%	3%	3%	3%	3%	3%
	Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)	445.3 Wp	449.1 Wp	452.9 Wp	456.7 Wp	460.6 Wp	464.4 Wp	468.2 Wp	472 Wp
Voltage at Maximum Power (Vmpp)	41.41 V	41.51 V	41.63 V	41.72 V	41.82 V	41.92 V	42.03 V	42.13 V
Current at Maximum Power (Impp)	10.76 A	10.82 A	10.88 A	10.95 A	11.02 A	11.08 A	11.14 A	11.21 A
Open Circuit Voltage (Voc)	49.43 V	49.53 V	49.64 V	49.74 V	49.84 V	49.94 V	50.04 V	50.15 V
Short Circuit Current (Isc)	11.48 A	11.54 A	11.61 A	11.67 A	11.74 A	11.8 A	11.86 A	11.92 A
Temperature	45±2 °C
	Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range	-40~85 °C
Temperature Coefficient of Pmax	-0.28 %/°C
Temperature Coefficient of Voc	-0.23 %/°C
Temperature Coefficient of Isc	0.045 %/°C
Maximum Ratings
Maximum System Voltage	1500 V
Series Fuse Rating	30 A
Material Data
Panel Dimension (H/W/D)	2382x1134x30 mm
Weight	33.5 kg
Cell Number	144
Glass Thickness	2 mm
Frame Type	Anodized Aluminium
Junction Box Diodes	3
Junction Box Protection Class	IP 68
Cable Crossection	4 mm2

Brand	Longi
Cables	4.0 mm
Encapsulant Material	POE/EVA
J-Box	IP68
Maximum Power	620W
Number Of Solar Cells	144
Solar Cells	N-type Monocrystalline
Module Dimension(mm)	2382x1134x30
Backsheet	2.0mm Heat Strengthened Glass
Front Glass	2.0mm AR Coated Heat Strengthened Glass
Vmp(V)	42.13
Imp(A)	11.21
Backside Power	10%
Connector	MC4
Weight[kg]	33.5
