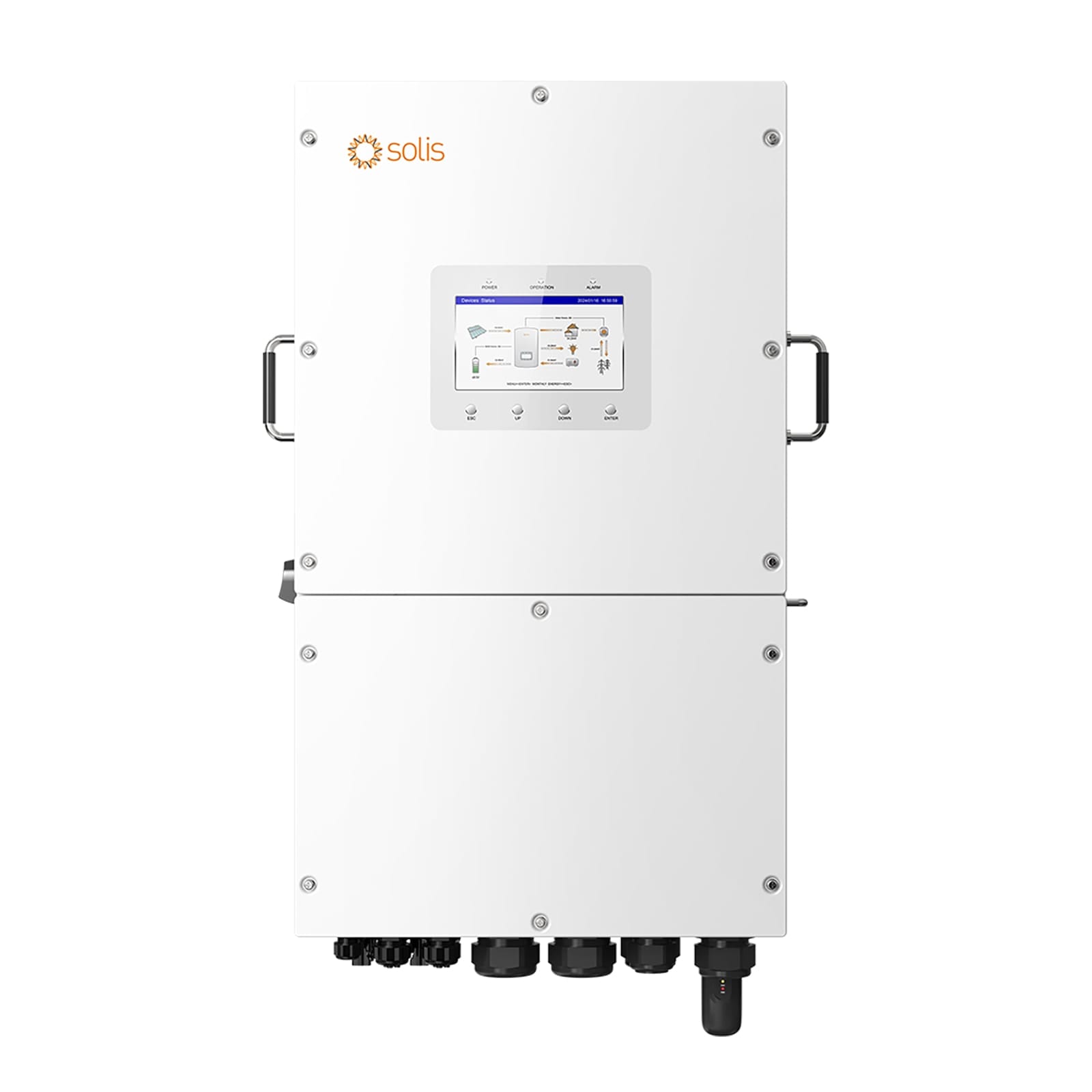

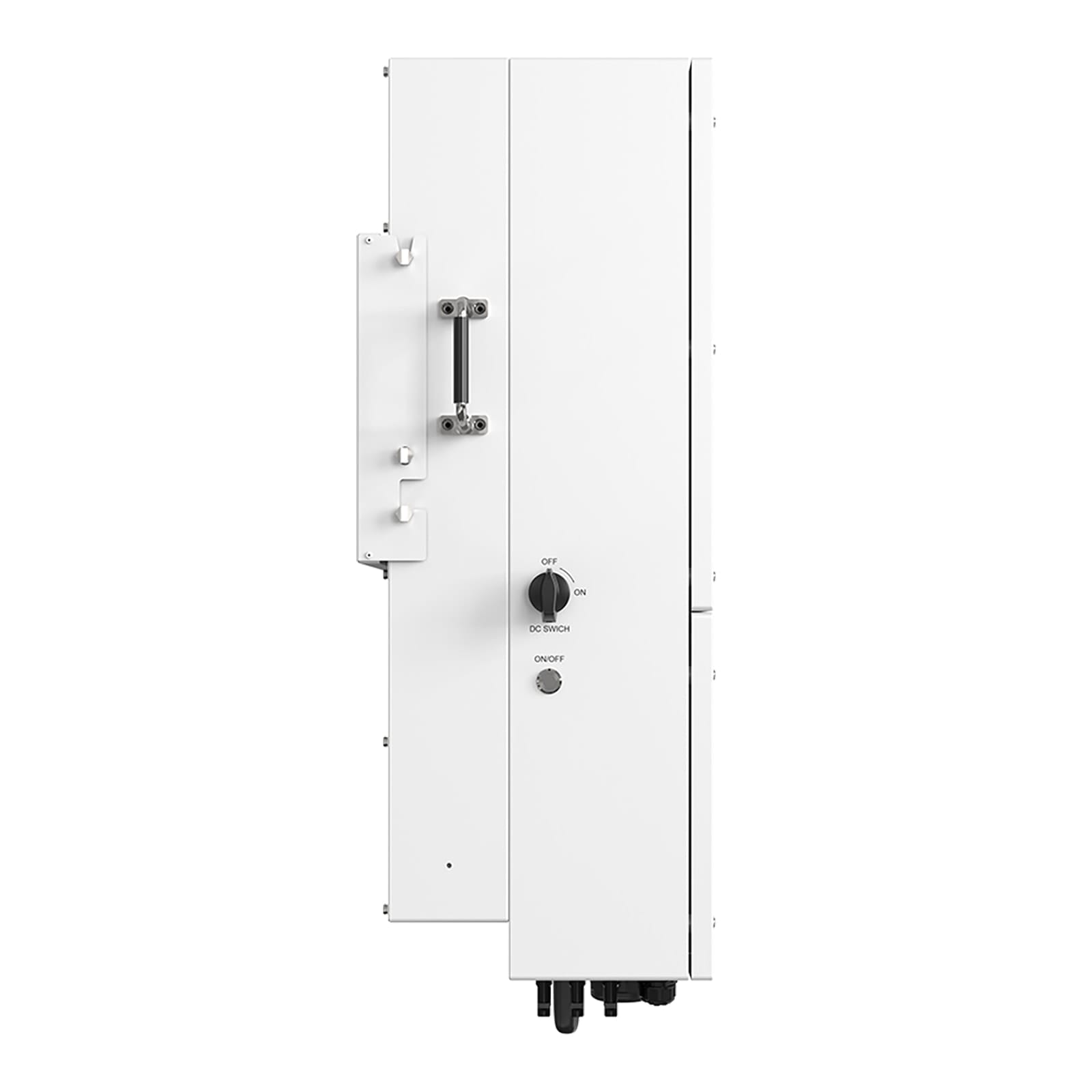

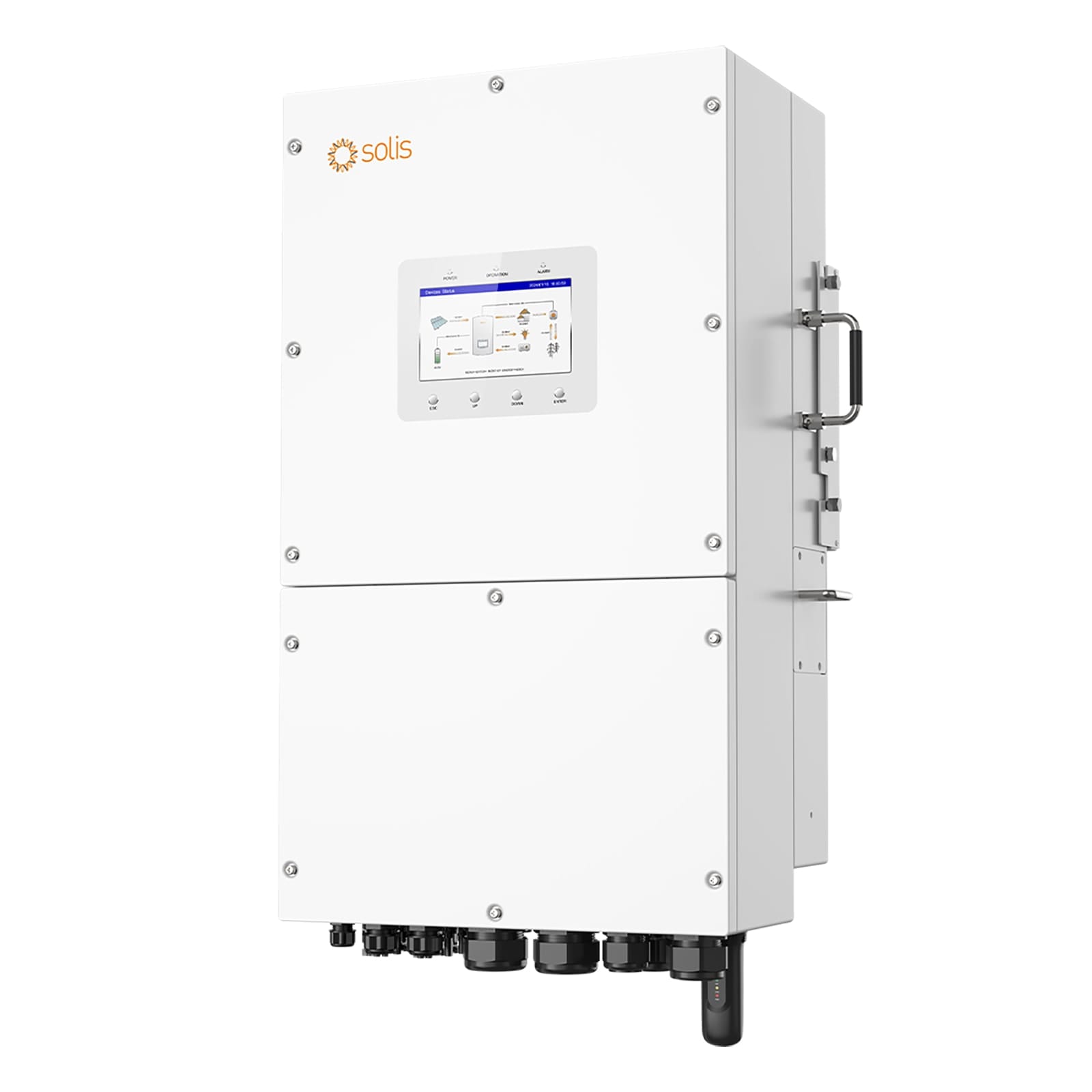

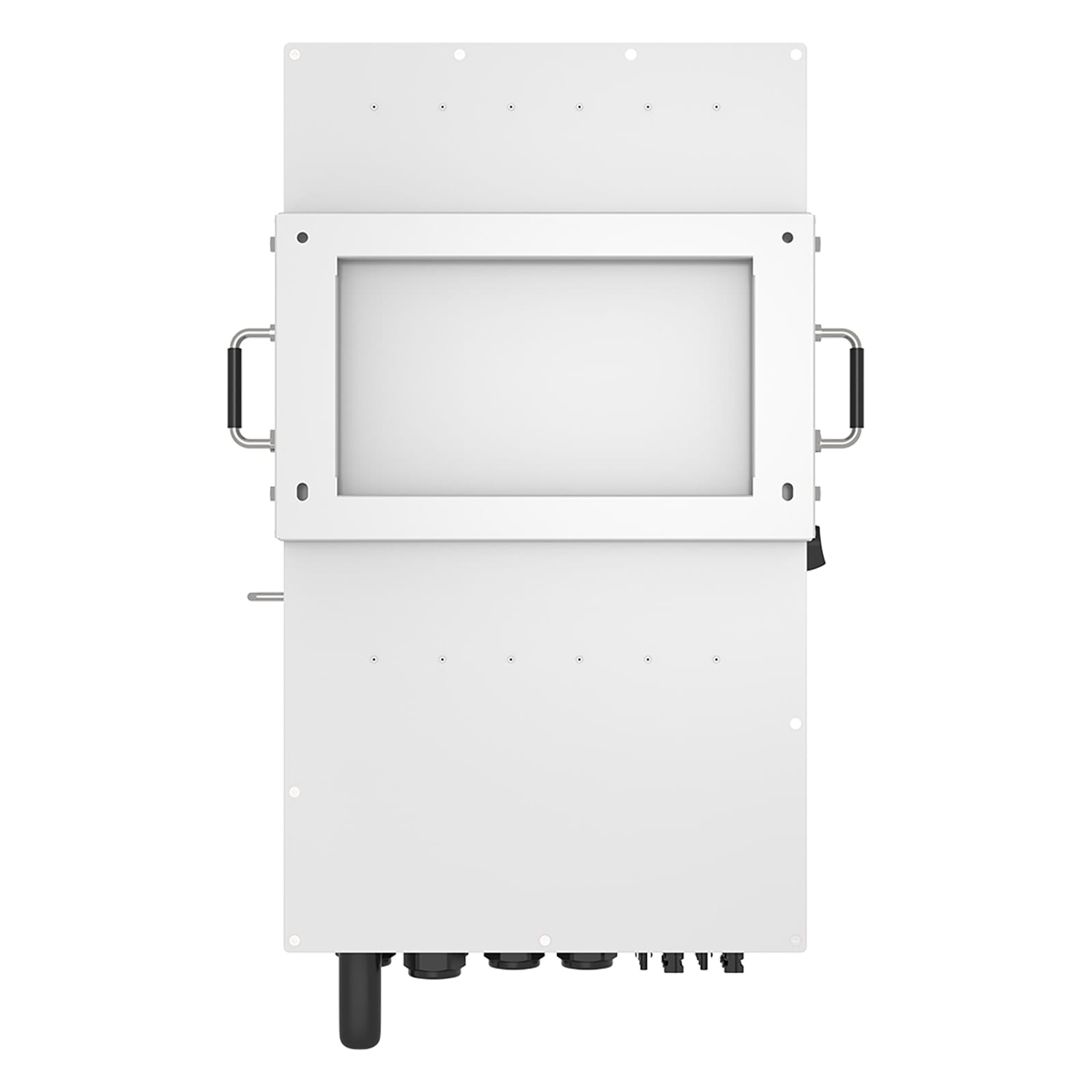

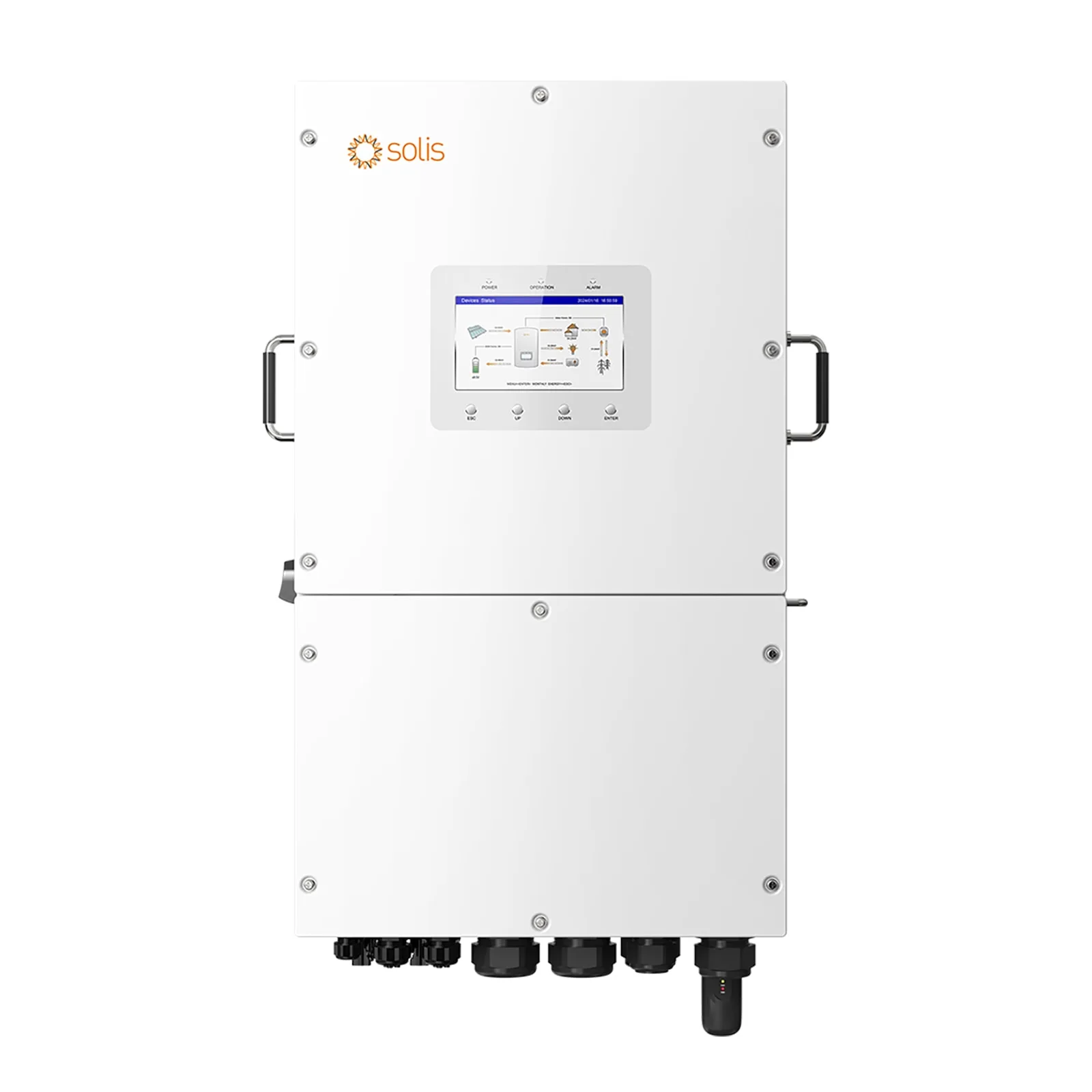

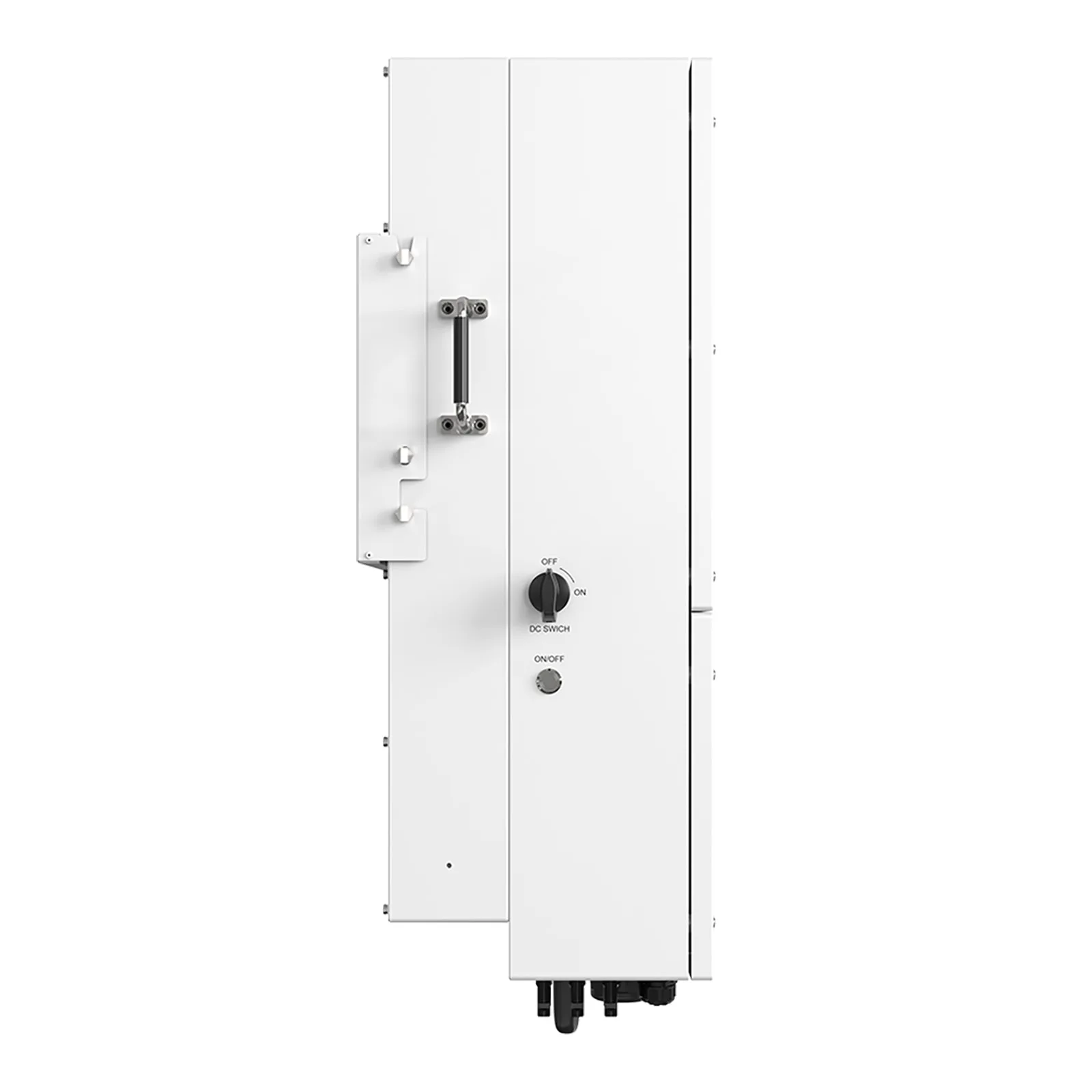

Solis Hybrid Solar Inverter S6-EH1P16K03-NV-YD-L 16kW 230V Single Phase Solution For Residential Solar Power System Compatible 40-60V Lithium/Lead-Acid Battery
$2,480.00
S6-EH1P(12-16)K-L series energy storage hybrid solar inverter is suitable for large residential PV energy storage system, support up to 40A MPPT current input, suitable for 182mm/210mm solar panels; integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system, the maximum power of 160kW. also support AC couple to retrofit existing solar system; Maximum 350A charging and discharging current, providing higher energy density. Intelligent and reliable, make it the first choice for large-scale residential PV energy storage system.
Solis Hybrid Solar Inverter S6-EH1P16K03-NV-YD-L 16kW 230V Single Phase Solution For Residential Solar Power System Compatible 40-60V Lithium/Lead-Acid Battery
S6-EH1P(12-16)K-L series energy storage hybrid solar inverter is suitable for large residential PV energy storage system, support up to 40A MPPT current input, suitable for 182mm/210mm solar panels; integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system, the maximum power of 160kW. also support AC couple to retrofit existing solar system; Maximum 350A charging and discharging current, providing higher energy density. Intelligent and reliable, make it the first choice for large-scale residential PV energy storage system.
Single Phase Low Voltage Energy Storage hybrid solar Inverter
- 10 seconds of 200% overload capability
- Multiple inverters can operate together to form a microgrid
- Generator-compatible to extend backup duration during grid power outage
- Supports dual backup ports for intelligent control of critical and non-critical loads
- Automatic switchover time is <4ms, providing seamless transitions from grid to backup
- Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
- Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations
- The battery’s DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems
| Models | 12K | 14K | 16K | ||||
| Input DC (PV side) | |||||||
| Recommended max. PV array size | 24 kW | 28 kW | 32 kW | ||||
| Max. usable PV input power | 19.2 kW | 22.4 kW | 22.4 kW | ||||
| Max. input voltage | 550 V | ||||||
| Rated voltage | 380 V | ||||||
| Start-up voltage | 100 V | ||||||
| MPPT voltage range | 80 – 520 V | ||||||
| Max. input current | 40 A / 40 A / 40 A | ||||||
| Max. short circuit current | 50 A / 50 A / 50 A | ||||||
| MPPT number / Max. input strings number | 3 / 6 | ||||||
| Battery | |||||||
| Battery type | Li-ion / Lead-acid | ||||||
| Battery voltage range | 40 – 60 V | ||||||
| Max. charge / discharge current | 250 A | 290 A | 290 A | ||||
| Communication | CAN / RS485 | ||||||
| Output AC (Grid side) | |||||||
| Rated output power | 12 kW | 14 kW | 16 kW | ||||
| Operation phase | L/N/PE | ||||||
| Rated grid voltage | 220 V / 230 V | ||||||
| Rated grid frequency | 50 Hz / 60 Hz | ||||||
| Rated grid output current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A | ||||
| Power factor | > 0.99 (0.8 leading – 0.8 lagging) | ||||||
| THDi | < 3% | ||||||
| Input AC (Grid side) | |||||||
| Input voltage range | 187 – 253 V | ||||||
| Max. input current | 81.8 A / 78.3 A | 95.5 A / 91.3 A | 109.1 A / 104.3 A | ||||
| Frequency range | 45 – 55 Hz / 55 – 65 Hz | ||||||
| Output AC (Back-up) | |||||||
| Rated output power | 12 kW | 14 kW | 16 kW | ||||
| Max. apparent output power | 2 times of rated power, 10 s | ||||||
| Back-up switch time | < 4 ms | ||||||
| Rated output voltage | L/N/PE, 220 V / 230 V | ||||||
| Rated frequency | 50 Hz / 60 Hz | ||||||
| Rated output current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A | ||||
| THDv (@linear load) | < 3% | ||||||
| Input Generator | |||||||
| Max. input power | 12 kW | 14 kW | 16 kW | ||||
| Max. input current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A | ||||
| Rated input frequency | 50 Hz / 60 Hz | ||||||
| Efficiency | |||||||
| Max. efficiency | 97.6% | ||||||
| EU efficiency | 97.2% | ||||||
| BAT charged by PV max. efficiency | > 94.9% | ||||||
| BAT charged / discharged to AC max. efficiency | > 94.33% / 93.51% | ||||||
| Protection | |||||||
| Surge protection | Yes | ||||||
| DC reverse-polarity protection | Yes (PV only) | ||||||
| Ground fault monitoring | Yes | ||||||
| Integrated AFCI 2.0 | Optional | ||||||
| Protection class / Over voltage category | I / II (PV and BAT), III (MAINS and BACKUP and GEN) | ||||||
| General Data | |||||||
| Dimensions (W × H × D) | 464 × 763 × 282 mm | ||||||
| Weight | 48.5 kg | ||||||
| Topology | Transformerless | ||||||
| Operating ambient temperature range | -25 ~ +60°C | ||||||
| Ingress protection | IP66 | ||||||
| Noise emission (typical) | < 65 dB(A) | ||||||
| Cooling concept | Intelligent fan-cooling | ||||||
| Max. operation altitude | 4000 m | ||||||
| Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 | ||||||
| Safety / EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | ||||||
| Features | |||||||

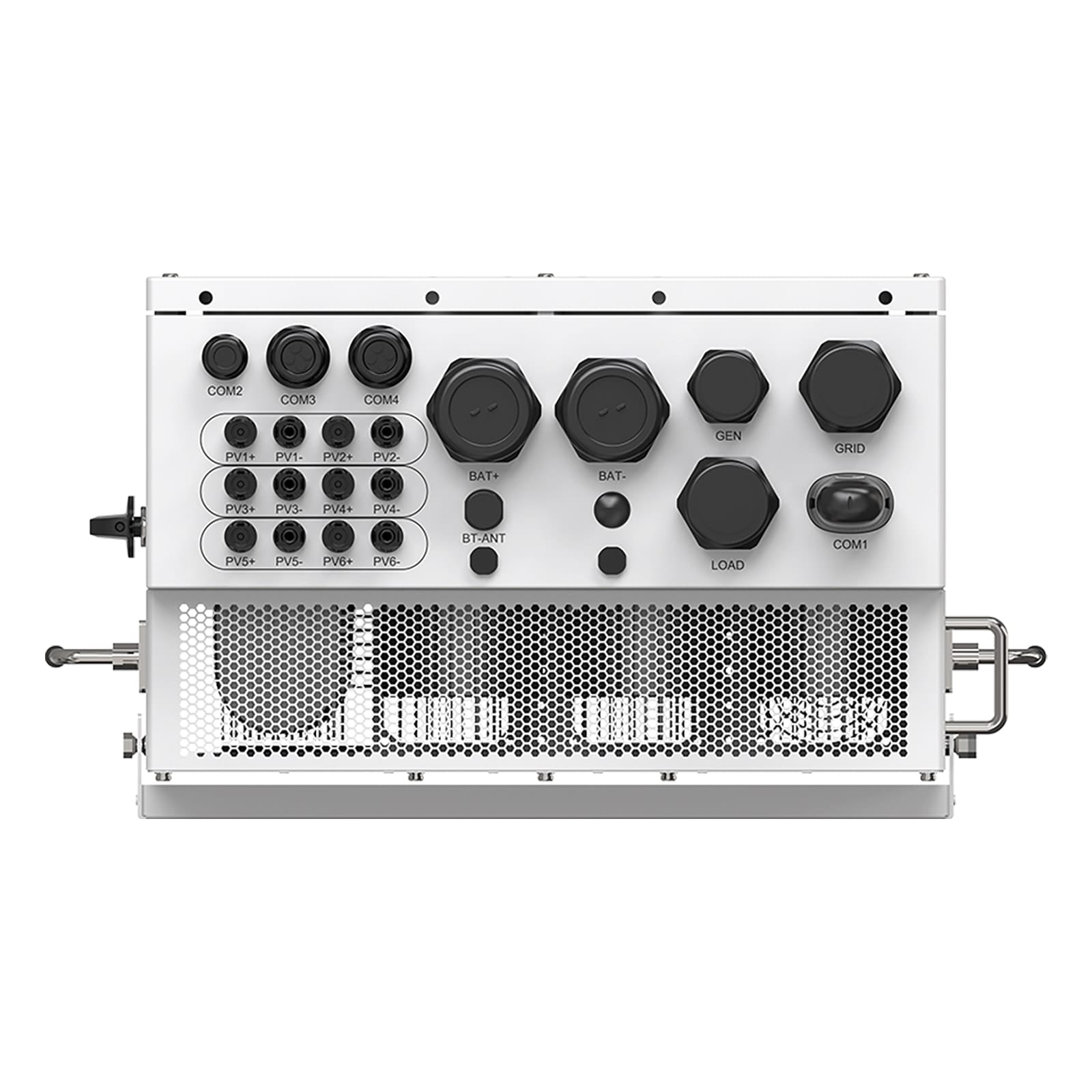

| DC connection | MC4 plug (PV port) / Terminal Block (BAT port) | ||||||
| AC connection | Terminal Block | ||||||
| Display | 7.0″ LCD display & Bluetooth + APP | ||||||
| Communication | RS485, Optional: Cellular, Wi-Fi, LAN | ||||||
| Weight | 50 kg |
|---|---|
| Dimensions | 90 × 60 × 40 cm |
| Brand | |
| Battery Type |
Lead-acid ,Lithium-ion |
| Max. Charging Current(A) |
290 |
| Battery Voltage Range(V) |
40-60 |
| Max PV Input Power(W) |
32K |
| Max PV Input Voltage(V) |
550 |
| MPPT Voltage Range(V) |
80-520 |
| No. Of MPPT |
3/2+2+2 |
| Number of battery input |
1 |
| Rated AC Input/Output Active Power(W) |
16000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
