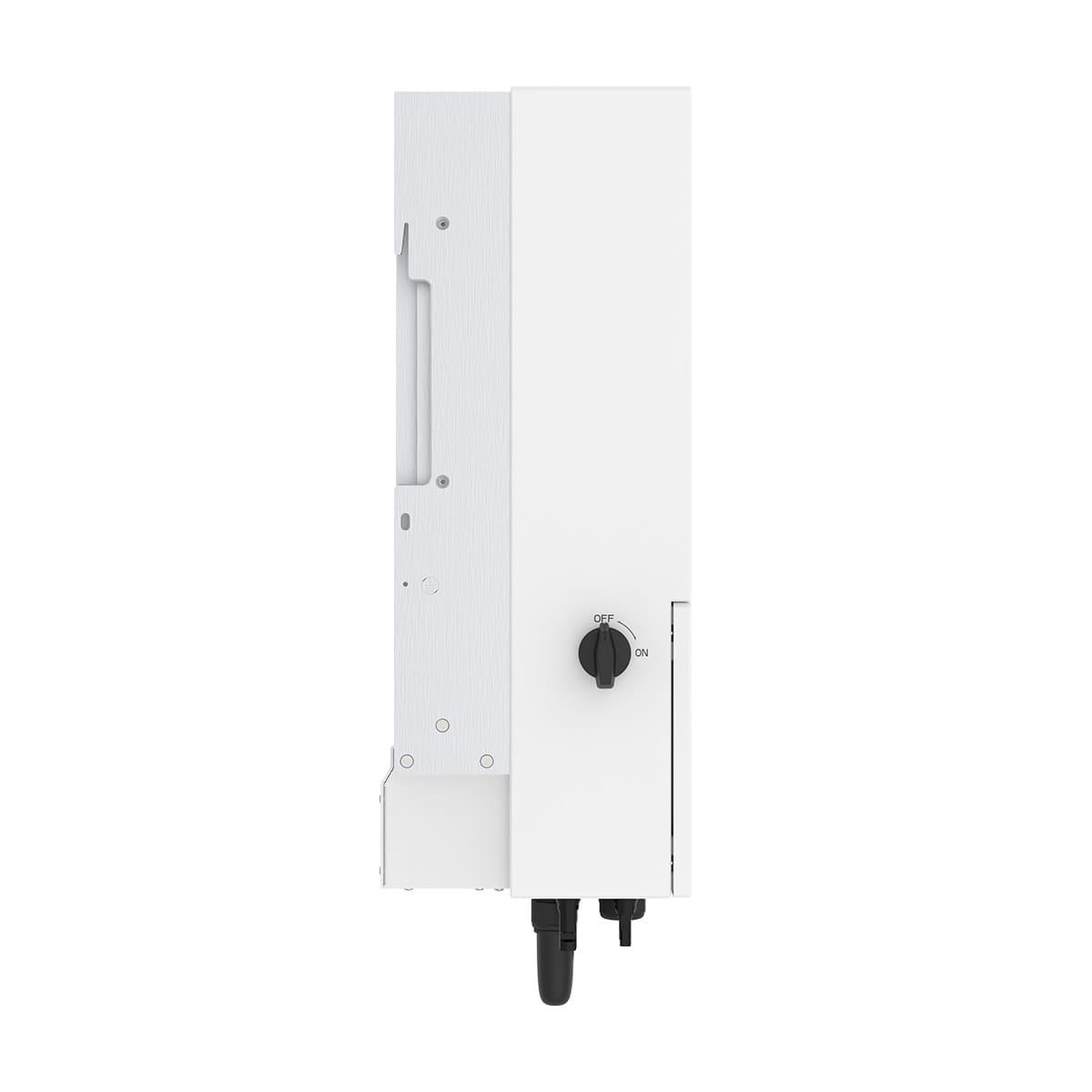

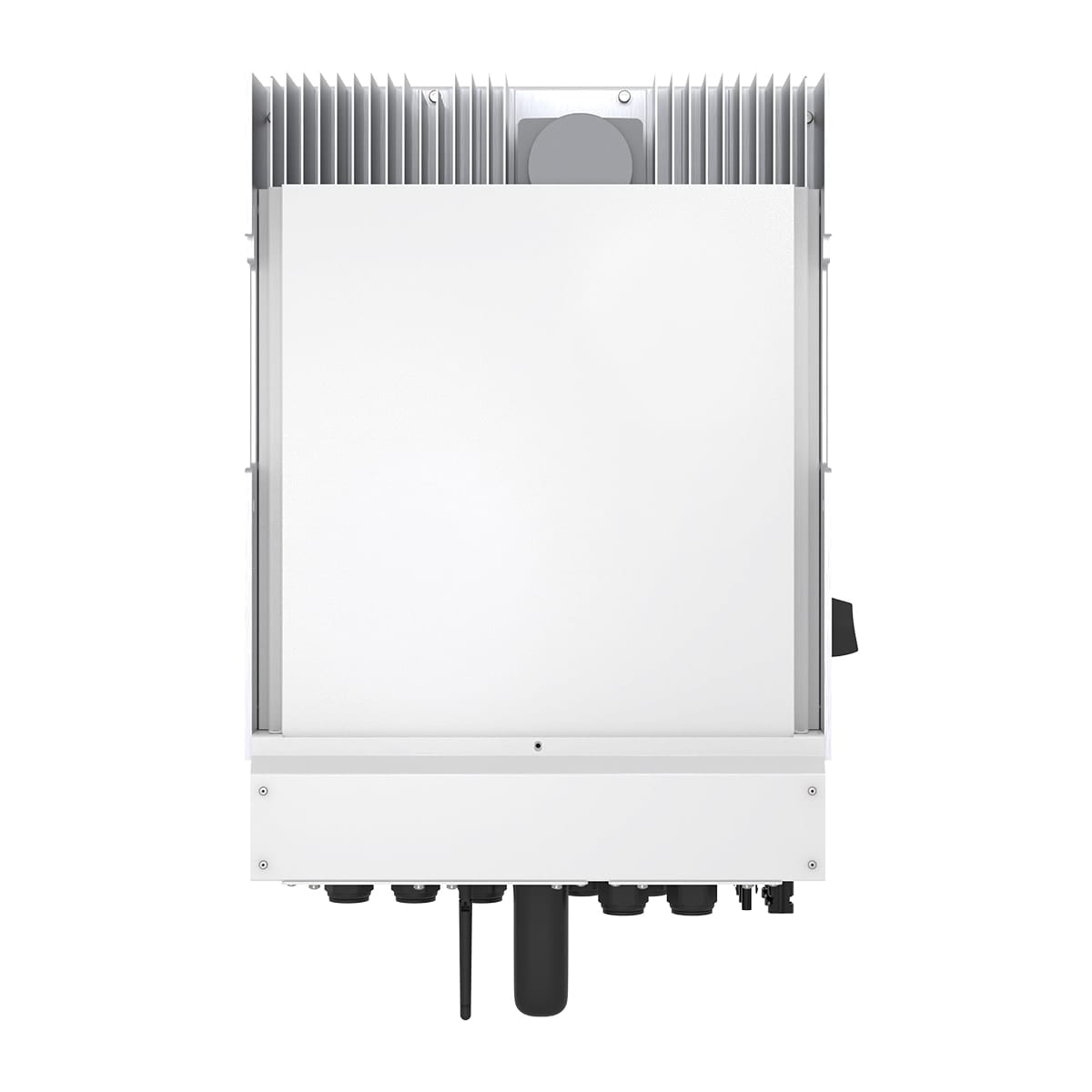

Solis Hybrid Solar Inverter S6-EH1P8K-L-PRO 8kW 230V Single Phase Solution For Residential Solar Energy System Compatible Low Voltage Lithium/Lead-Acid Battery
$1,480.00
S6-EH1P8K-L-PRO series inverter is energy storage hybrid solar inverter combines the advantages of grid tied inverters and off-grid inverters. It can not only feedback surplus electricity to public grid to get margin, but can also be used in conjunction with solar batteries to maximize the power generated by solar panels.
SKU:
S6-EH1P8K-L-PRO
Categories: Inverter & Controller, Hybrid Inverter
Tags: Hybrid Solar Inverter, On-Grid Solar Inverter
Solis Hybrid Solar Inverter S6-EH1P8K-L-PRO 8kW 230V Single Phase Solution For Residential Solar Energy System Compatible Low Voltage Lithium/Lead-Acid Battery
Solis energy storage Hybrid Solar inverter is a good choice for on/ off-grid integrated storage solutions
1. Higher incomes: select the electricity consumption mode in real time according to the market price;
2. High independence: can be operated out of the power grid;
3. Higher efficiency: International leading brand components provide higher efficiency;
4. Perfect switch: it’s less than 20ms from the grid
Solis S6 Pro Hybrid Solar Inverter 8KW S6-EH1P8K-L-PRO
- S6-EH1P8K-L-PRO series hybrid solar inverter with many excellent features, first, Up to 32A of MPPT current input to support 182mm/210mm solar panels;
- Supports 6 customized charge and discharge time set with defined charging source, more friendly for battery.
- And can support multiple parallel machine to form single-phase or three-phase system, the maximum power of 48kW. With UPS level switching time (< 4 ms), 190A charge-discharge current, provides higher energy throughput density. Intelligent and reliable ,which is the preferred product of residential PV energy storage and small commercial PV energy storage.
- Generator connectivity with multiple input methods and automatic generator On/Off control
- Automatic UPS switching
- 10 second 200% surge power backup overload capability
- Supports 1ph and 3ph flexible connection with max 48kW in parallel
- Up to 190A max charge/discharge current
- 6 customizable charge/discharge time settings
- Compatible with lead-acid and lithium batteries, with multiple battery protection features
- Supports peak shaving control in both “self-use” and “generator” mode
- 5-year warranty – extendable to 10-years.
S6-EH1P8K-L-PRO series hybrid solar inverter with many excellent features, first, Up to 32A of MPPT current input to support 182mm/210mm solar panels; Supports 6 customized charge and discharge time set with defined charging source, more friendly for battery. And can support multiple parallel machine to form single-phase or three-phase system, the maximum power of 48kW. With UPS level switching time (< 4 ms), 190A charge-discharge current, provides higher energy throughput density. Intelligent and reliable, which is the preferred product of residential PV energy storage and small commercial PV energy storage.
- Recommended max PV array size 16 kW
- Max. usable PV input power 12.8 kW
- Max. input voltage 600 V
- Rated voltage 330 V
- Start-up voltage 90 V
- MPPT voltage range 90-520 V
- Max. input current 32 A / 20 A
- Max. short circuit current 36 A / 30 A
- MPPT number/Max. input strings number 2/3
- Battery type Li-ion / Lead-acid
- Battery voltage range 40-60 V
- Max. charge / discharge power 8 kW
- Max. charge / discharge current 190 A
- Communication CAN/RS485
- Rated output power 8 kW
- Max. apparent output power 8.8 kVA
- Operation phase 1/N/PE
- Rated grid voltage 220 V / 230 V
- Rated grid frequency 50 Hz / 60 Hz
- Rated grid output current 36.4 A / 34.8 A
- Max. output current 40 A
- Power factor >0.99 (0.8 leading – 0.8 lagging)
- THDi <2%
Models | 8K | ||||
Input DC (PV side) | |||||
Recommended max. PV array size | 16 kW | ||||
Max. usable PV input power | 12.8 kW | ||||
Max. input voltage | 600 V | ||||
Rated voltage | 330 V | ||||
Start-up voltage | 90 V | ||||
MPPT voltage range | 90 – 520 V | ||||
Max. input current | 32 A / 20 A | ||||
Max. short circuit current | 36 A / 30 A | ||||
MPPT number / Max. input strings number | 2 / 3 | ||||
Battery | |||||
Battery type | Li-ion / Lead-acid | ||||
Battery voltage range | 40 – 60 V | ||||
Max. charge / discharge power | 8 kW | ||||
Max. charge / discharge current | 190 A | ||||
Communication | CAN / RS485 | ||||
Output AC (Grid side) | |||||
Rated output power | 8 kW | ||||
Max. apparent output power | 8.8 kVA | ||||
Operation phase | 1/N/PE | ||||
Rated grid voltage | 220 V / 230 V | ||||
Rated grid frequency | 50 Hz / 60 Hz | ||||
Rated grid output current | 36.4 A / 34.8 A | ||||
Max. output current | 40 A | ||||
Power factor | > 0.99 (0.8 leading – 0.8 lagging) | ||||
THDi | < 2% | ||||
Input AC (Grid side) | |||||
Input voltage range | 187 – 253 V | ||||
Max. input current | 50 A | ||||
Frequency range | 45 – 55 Hz / 55 – 65 Hz | ||||
Output AC (Back-up) | |||||
Rated output power | 8 kW | ||||
Max. apparent output power | 2 times of rated power, 10 s | ||||
Back-up switch time | < 4 ms | ||||
Rated output voltage | 1/N/PE, 220 V / 230 V | ||||
Rated frequency | 50 Hz / 60 Hz | ||||
Rated output current | 36.4 A / 34.8 A | ||||
Max. output current | 40 A | ||||
Max. AC passthrough current | 50 A | ||||
THDv (@linear load) | < 2% | ||||
Efficiency | |||||
Max. efficiency | > 96.9% | ||||
EU efficiency | > 96.5% | ||||
Protection | |||||
DC reverse-polarity protection | Yes | ||||
Ground fault monitoring | Yes | ||||
Integrated AFCI | Yes (1) | ||||
Protection class / Over voltage category | I / II (PV and BAT), III (MAINS and BACKUP and GEN) | ||||
General Data | |||||
Dimensions (W × H × D) | 406 × 560 × 215 mm | ||||
Weight | 26 kg | ||||
Topology | High frequency isolation (for battery) | ||||
Operating ambient temperature range | -40 ~ +60°C | ||||
Ingress protection | IP66 | ||||
Cooling concept | Intelligent fan-cooling | ||||
Max. operation altitude | 4000 m | ||||
Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA | ||||
Safety / EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | ||||
Features | |||||
DC connection | MC4 plug (PV port) / Terminal Block (BAT port) | ||||
AC connection | Terminal Block | ||||
Display | LED indicator & Bluetooth + APP | ||||
Communication | RS485, CAN, Optional: Wi-Fi, GPRS, LAN |
Weight | 18 kg |
---|---|
Dimensions | 52 × 40 × 30 cm |
Brand | |
Battery Type |
Lead-acid ,Lithium-ion |
Max. Charging Current(A) |
190 |
Battery Voltage Range(V) |
40-60 |
Max PV Input Power(W) |
16K |
Max PV Input Voltage(V) |
600 |
MPPT Voltage Range(V) |
90-520 |
No. Of MPPT |
2/2+1 |
Number of battery input |
1 |
Rated AC Input/Output Active Power(W) |
8000 |
Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
Rated Input/Output Voltage/Range(V) |
220V/230V |
Be the first to review “Solis Hybrid Solar Inverter S6-EH1P8K-L-PRO 8kW 230V Single Phase Solution For Residential Solar Energy System Compatible Low Voltage Lithium/Lead-Acid Battery” Cancel reply
Solis is a leading global manufacturer of solar inverters and energy storage solutions. They offer a wide range of inverter products for residential, commercial, and utility-scale solar applications.
Some key things to know about Solis inverters:
Product Overview:
Solis offers both string inverters and microinverters/power optimizers.
Their inverter models range from small single-phase units for residential use to large 3-phase central inverters for utility-scale solar farms.
Solis has a strong focus on reliability, efficiency, and advanced grid support features.
Key Features:
High conversion efficiency, often exceeding 98% peak efficiency
Dual MPPT inputs for flexible system design
Integrated DC and AC surge protection
Advanced grid support functions like volt/var control, voltage ride-through
Remote monitoring and control capabilities
Modular and scalable design options
Applications:
Residential rooftop solar
Commercial and industrial solar installations
Ground-mounted utility-scale solar power plants
Hybrid solar + energy storage systems
Warranty:
Solis offers standard 5-year warranties on their inverters
Extended warranty options up to 20 or 25 years are available
