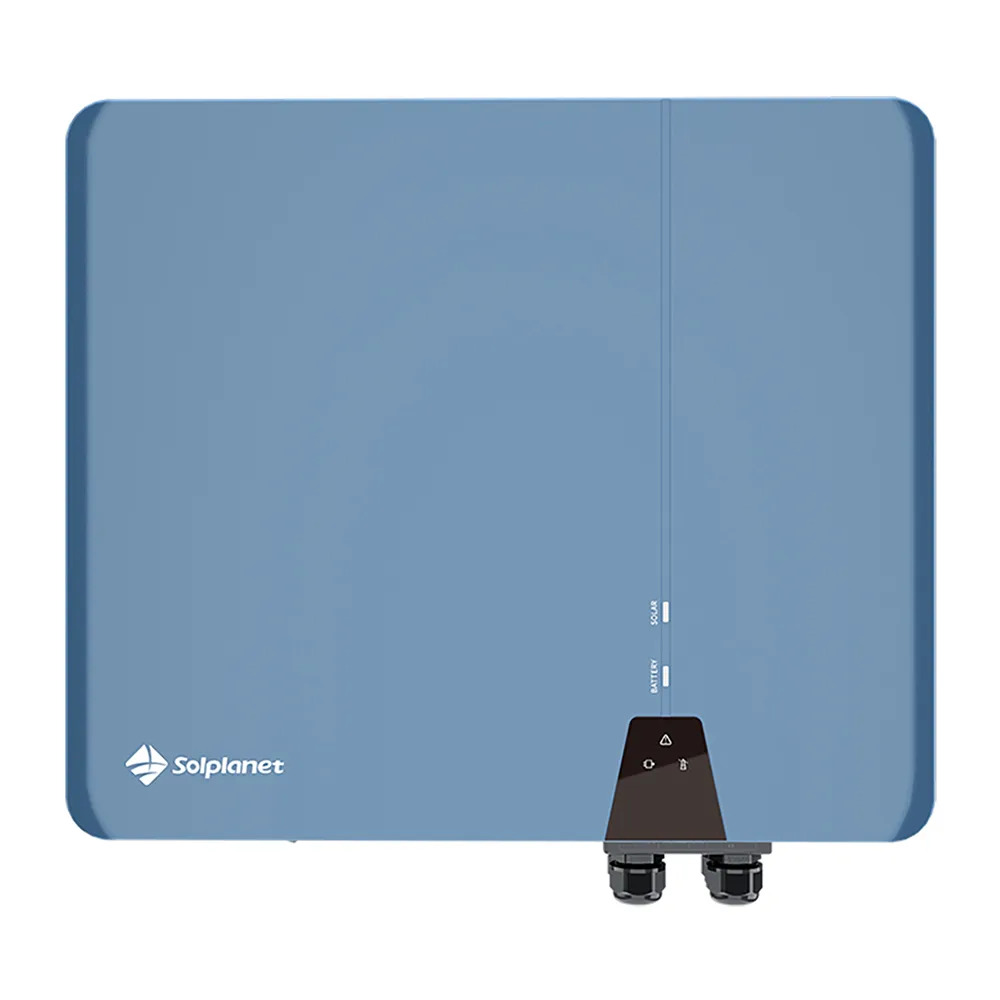

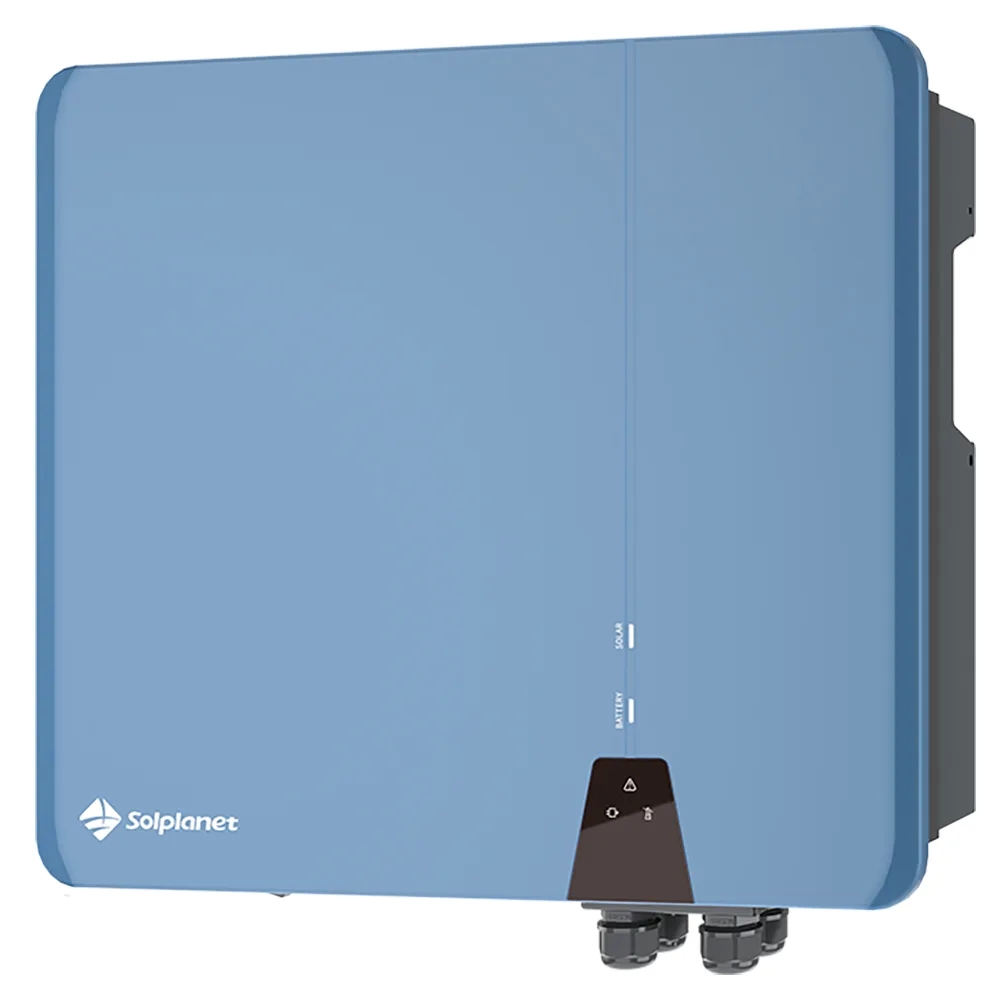

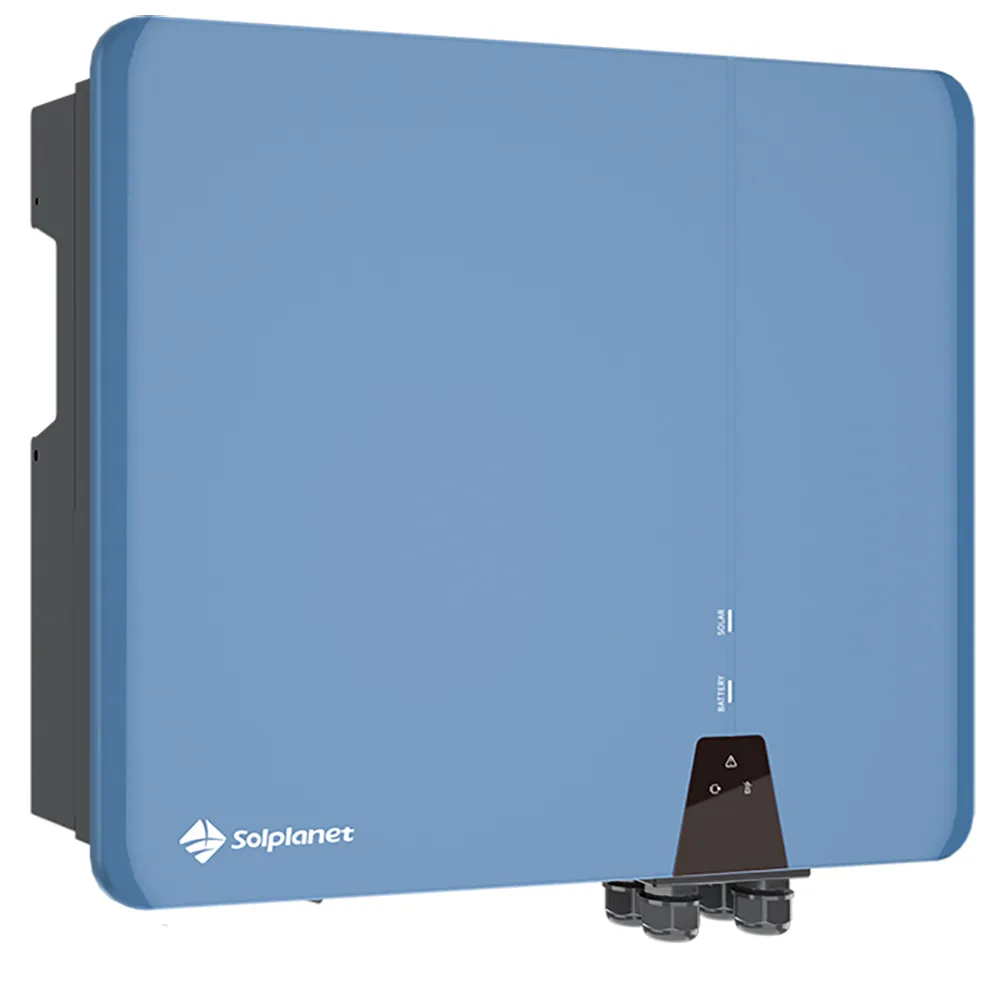

Solplanet Hybrid Solar Inverter ASW08kH-T2 Flexible Power Three Phase Solution For Residential Solar Energy System Compatible 120-600V Lithium Battery
$1,120.00
ASW 05-12kH-T2/T3 Series
Flexible power for small installations
ASW 05kH-T2 | ASW 06kH-T2 | ASW 08kH-T2 | ASW 10kH-T2 | ASW 12kH-T2 | ASW 05kH-T2-O |
ASW 06kH-T2-O | ASW 08kH-T2-O | ASW 10kH-T2-O | ASW 12kH-T2-O
ASW 08kH-T3 | ASW 10kH-T3 | ASW 12kH-T3 | ASW 08kH-T3-O | ASW 10kH-T3-O | ASW 12kH-T3-O
Flexible and smart hybrid solar inverter solution
The ASW H-T2/T3 three-phase hybrid solar inverter series is the ultimate solution for residential and small-scale commercial and industrial installations. Elevate your solar experience with Solplanet’s ASW H-T2/T3 series – where elegance meets unwavering performance.
Behind its elegant facade lies a powerhouse with optimizing system efficiency for variable loads. Our integrated smart customizable software empowers you to effortlessly manage battery functions in DOD, time of use, and power setting modes. Experience lightning-fast UPS level switching in under 10 ms. Installation is a breeze with basic tools, thanks to Solplanet’s commitment to user-friendly products, and the IP66-certified design ensures worry-free indoor or outdoor installation.

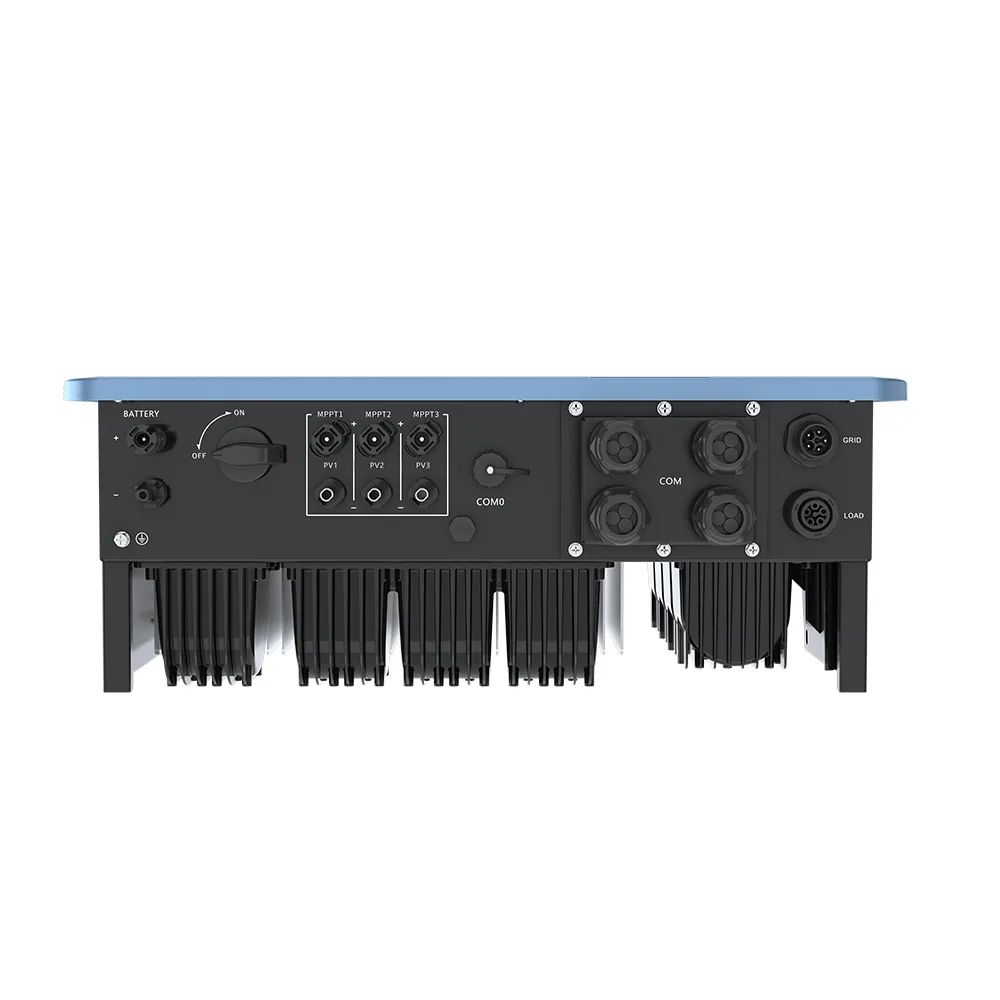

The H-T3 series, equipped with 3 independent MPPTs, offers flexible and higher kWp PV array designs, perfect for bifacial and large PV modules. Meanwhile, the H-T2 series, featuring 2 independent MPPTs, boasts an unbeatable 20A maximum input per string.
Main Benefits
- Available with or without asymmetrical power output
- IP66-rated design for reliable outdoor use
- Programmable Depth-of-Discharge
- UPS level switching time in less than 10 ms
- User-friendly monitoring 24/7 with Solplanet App
- Quick and easy installation using standard tools
Key Features
Easy to install
The ASW 05-12kH-T2/T3 series is designed to be wall-mountable and installed easily with standard tools and the Phoenix Contact PV connectors make these inverters compatible with a wide range of solar panels. Optional Plug & Play Dongles connect them to the internet and allow up to five to be monitored by Solplanet’s user-friendly mobile application. Users can view real-time solar installation data, configure their inverters, and receive system alerts, right in the palm of their hand.
Durable and versatile
The ASW 05-12kH-T2/T3 series of hybrid solar inverters embodies power and versatility. With up to 150% PV array oversizing, these inverters maximize yields. Available with or without asymmetrical power output and a UPS-level switching time under 10 ms, they ensure uninterrupted performance. The IP66-rated design ensures durability for outdoor use. A minimum DC input of 60V and a wide MPP voltage range guarantee optimized energy performance, making these inverters ideal for diverse residential rooftop PV systems, accommodating varied designs, scales, and purposes with dynamic efficiency.
Powerful
The ASW 05-12kH-T2/T3 series offers seamless setup, commissioning, and monitoring through the intuitive Solplanet app. Intelligent work modes and customizable battery management, catering to depth of discharge (DOD), time of use, and power settings, ensure tailored energy solutions. With a maximum 20A input current for the H-T2 and 16A for the H-T3, these inverters are ideal for bifacial and large PV modules. Choose between 3 MPPTs (H-T3) or 2 MPPTs (H-T2) based on the scale of your installation, delivering versatility for varied solar setups.
Parameter
| Technical Datasheet | ASW05kH-T2 | ASW06kH-T2 | ASW08kH-T2 | ASW10kH-T2 | ASW12kH-T2 | |||||
| Max. PV array power | 7500 Wp | 9000 Wp | 12000 Wp | 15000 Wp | 18000 Wp | |||||
| Max. input voltage | 1100 V | |||||||||
| MPP voltage range / rated input voltage | 150 V to 950 V / 630 V | 200 V to 950 V / 630 V2) | ||||||||
| Min. input voltage / start voltage | 60 V / 180 V | |||||||||
| No. of independent MPPT trackers / strings per MPPT input | 2/1 | |||||||||
| Max. input current / Max. power per MPP tracker | 20 A | 7500 W | 20 A | 9000 W | 20 A | 10000 W | 20 A | 10000 W | 20 A | 10000 W |
| Max. short-circuit current per MPP tracker | 30 A | |||||||||
| Battery voltage range | 120 V to 600 V | |||||||||
| Max. charging / discharging power | 5000 W | 6000 W | 8000 W | 10000 W | 12000 W | |||||
| Max. charging current / Max. discharging current | 30A | |||||||||
| Battery type | LiFePO4 | |||||||||
| Rated grid voltage | 3/N/PE, 220 V / 380 V; 230 V / 400 V; 240 V / 415 V | |||||||||
| Rated grid frequency | 50 Hz / 60 Hz | |||||||||
| Max. input power from grid | 10000 W | 12000 W | 16000 W | 20000 W | 24000 W | |||||
| Max. input current from grid | 14.5 A | 17.4 A | 23.2 A | 29.0 A | 34.8 A | |||||
| AC voltage range / Nominal AC voltage | 270 V to 480 V / 3/N/PE, 220 V / 380 V; 230 V / 400 V; 240 V / 415 V | |||||||||
| Rated AC grid frequency | 50 Hz / 60 Hz | |||||||||
| AC grid frequency range | 45 ~ 55 Hz / 55 ~ 65 Hz | |||||||||
| Rated apparent power | 5000 VA | 6000 VA | 8000 VA | 10000 VA | 12000 VA | |||||
| Max. apparent power | 5000 VA | 6000 VA | 8000 VA | 10000 VA | 12000 VA | |||||
| Rated grid output current (@400 V) | 7.3 A | 8.7 A | 11.6 A | 14.5 A | 17.4 A | |||||
| Max. grid output current (@400 V) | 8.0 A | 9.6 A | 12.8 A | 16.0 A | 19.2 A | |||||
| Harmonics THDi (@Nominal power) | < 3 % (of nominal power) | |||||||||
| Nominal output voltage | 3/N/PE, 220 V / 380 V; 230 V / 400 V; 240 V / 415 V | |||||||||
| Nominal output frequency | 50 Hz / 60 Hz | |||||||||
| Rated apparent power | 5000 VA | 6000 VA | 8000 VA | 10000 VA | 12000 VA | |||||
| Rated current (@400 V) | 7.3 A | 8.7 A | 11.6 A | 14.5 A | 17.4 A | |||||
| Max. current (@400 V, continuous on-grid / of-grid) | 14.5 A | 7.3 A | 17.4 A | 8.7 A | 23.2 A | 11.6 A | 29.0 A | 14.5 A | 34.8 A | 17.4 A |
| Max. power on each phase(@400 V, continuous on-grid / of-grid) | 3333 W | 1667 W | 4000 W | 2000 W | 5333 W | 2667 W | 6667 W | 3333 W | 8000 W | 4000 W |
| Peak output apparent power(@400 V, continuous on-grid / of-grid up to 10s) | 10000 VA | 10000 VA | 12000 VA | 12000 VA | 16000 VA | 16000 VA | 20000 VA | 20000 VA | 24000 VA | 24000 VA |
| Max. switch time | < 10 ms | |||||||||
| Output THDv (@Linear load) | 2% | |||||||||
| MPPT efciency | 99.90% | |||||||||
| Euro efciency / Max. efciency | 97.2 % / 98.0 % | 97.5 % / 98.2 % | 97.9 % / 98.4 % | |||||||
| DC surge protection (Type II, according to EN/IEC 61643-11) | ● | |||||||||
| Insulation resistance detection | ● | |||||||||
| PV string input reverse polarity protection | ● | |||||||||
| Battery input reverse polarity protection | ● | |||||||||
| Ground fault monitoring | ● | |||||||||
| Residual current monitoring unit | ● | |||||||||
| AC short circuit protection | ● | |||||||||
| Anti-islanding protection | ● | |||||||||
| Power factor at rated power / adjustable displacement | 1 / 0.8 leading to 0.8 lagging | |||||||||
| Dimensions (W / H / D) | 545 mm / 465 mm / 205 mm | |||||||||
| Weight | 24.5 kg | |||||||||
| Operating temperature range | -25 °C … +60 °C | |||||||||
| Cooling concept | Natural convection | |||||||||
| Noise emission | < 35 dB | |||||||||
| Degree of protection (as per IEC 60529) | IP66 | |||||||||
| Max. relative humidity | 100% | |||||||||
| Max. operating altitude | 4000 m | |||||||||
| User interface | LED & App | |||||||||
| BMS interface | CAN | |||||||||
| Smart meter interface | RS485 | |||||||||
| Internet communication interfaces | Wif / LAN | |||||||||
| Digital output (dry contact) / No. of outputs | ● / 2 | |||||||||
| Digital input (dry contact) / No. of inputs | ● / 4 | |||||||||
| Integrated power control / export power control | ● / ● | |||||||||
| Weight | 32 kg |
|---|---|
| Dimensions | 80 × 60 × 40 cm |
| Brand | |
| Battery Type |
Lithium-ion |
| Max. Charging Current(A) |
30 |
| Battery Voltage Range(V) |
120-600 |
| Max PV Input Power(W) |
12000 |
| Max PV Input Voltage(V) |
1100 |
| MPPT Voltage Range(V) |
150-950 |
| No. Of MPPT |
2/1+1 |
| Number of battery input |
1 |
| Rated AC Input/Output Active Power(W) |
8000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
230/400V |
Solplanet is a brand that specializes in solar inverters and energy solutions, focusing on providing high-quality products for residential, commercial, and utility-scale solar applications.
Company Overview:
Founded: Solplanet is a relatively new brand that emerged from the established solar technology company AISWEI, which has a strong background in the solar industry.
Headquarters: The brand is based in China but aims to serve a global market.
Key Products:
Solar Inverters:
Solplanet offers a range of solar inverters, including string inverters and hybrid inverters designed for various applications.
Their products are known for high efficiency, reliability, and advanced features to maximize energy production.
Energy Storage Solutions:
The brand is also involved in developing energy storage systems that complement solar installations, allowing for optimized energy management and usage.
Key Features:
High Efficiency: Solplanet inverters typically boast high conversion efficiencies, often exceeding 98%, which helps maximize energy yield from solar panels.
Smart Monitoring: Many of their inverters come equipped with monitoring capabilities, enabling users to track performance and diagnose issues in real-time through mobile apps or web interfaces.
User-Friendly Design: Solplanet products are designed for easy installation and maintenance, making them suitable for both professional installers and DIY enthusiasts.
Market Presence:
Solplanet aims to establish a strong presence in the global solar market, focusing on regions with high solar energy potential.
The brand emphasizes quality and performance, aiming to compete with other established solar inverter manufacturers.
Commitment to Sustainability:
Solplanet is dedicated to promoting renewable energy solutions, contributing to the global shift toward sustainable energy practices.
