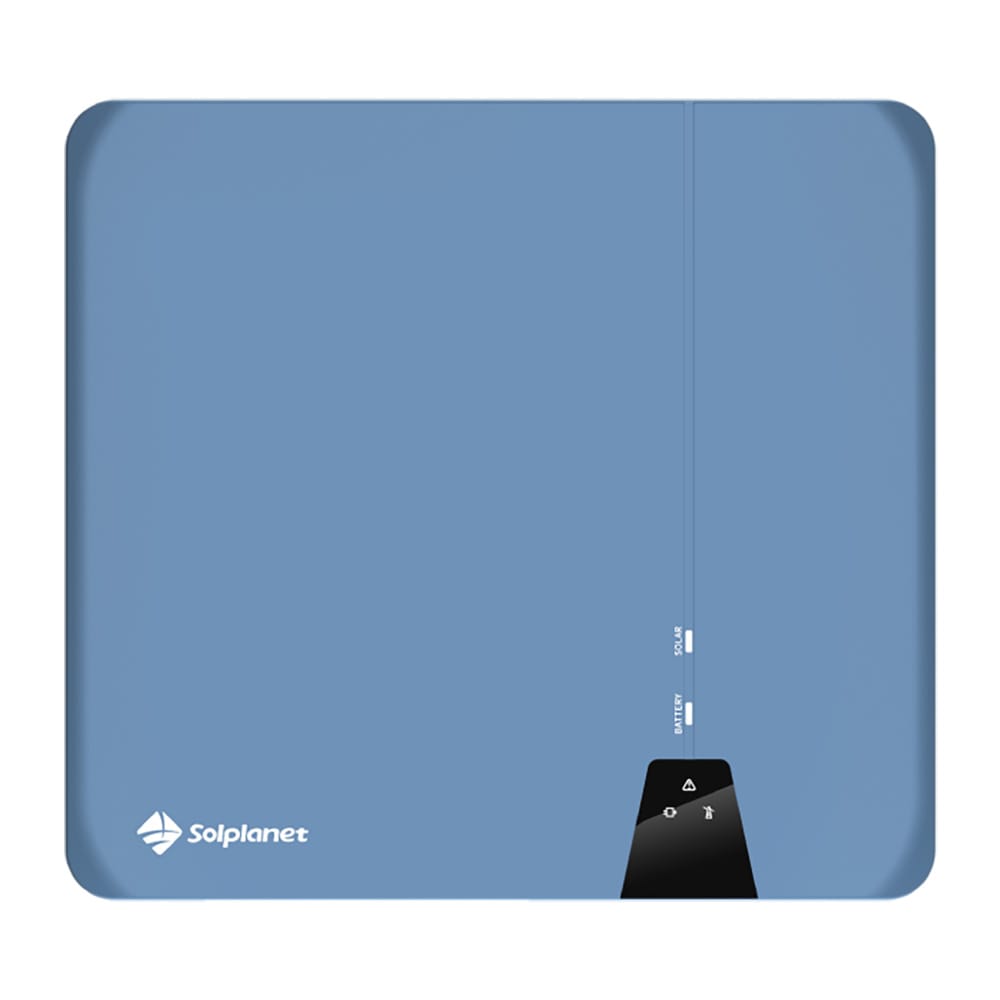

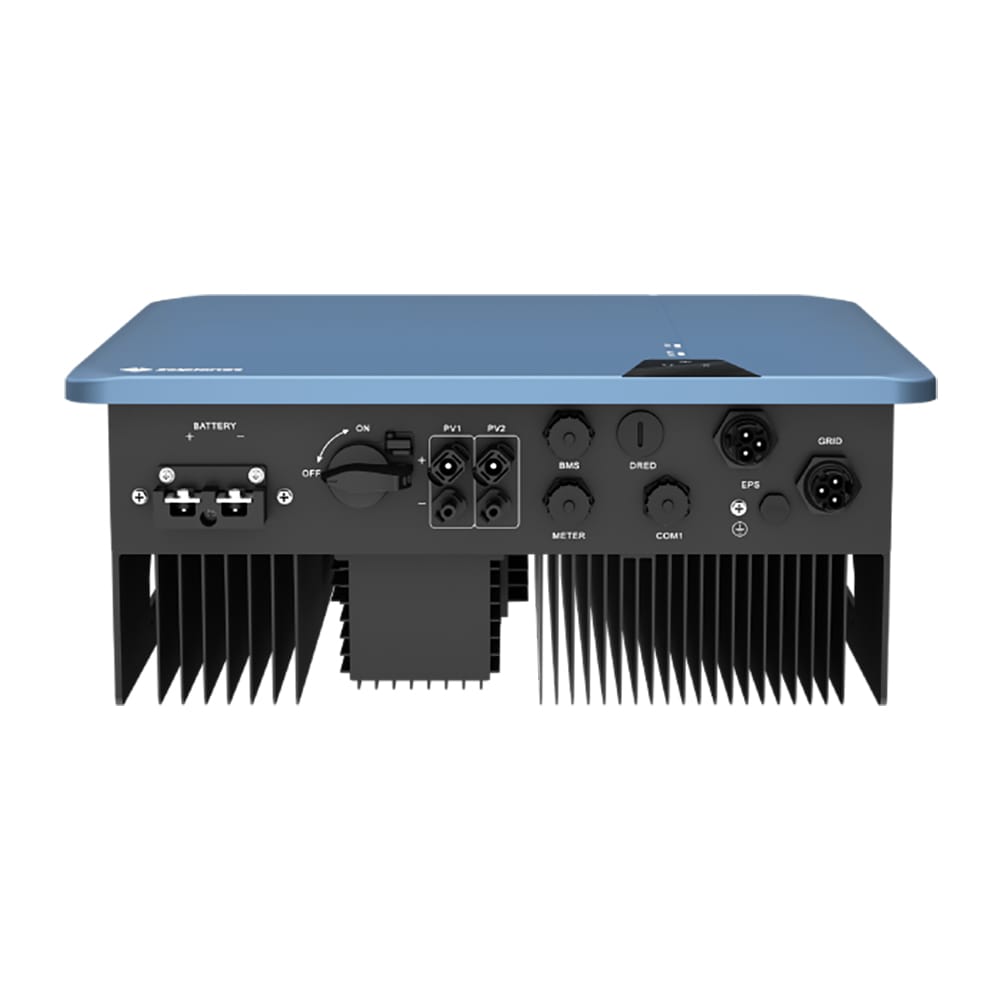

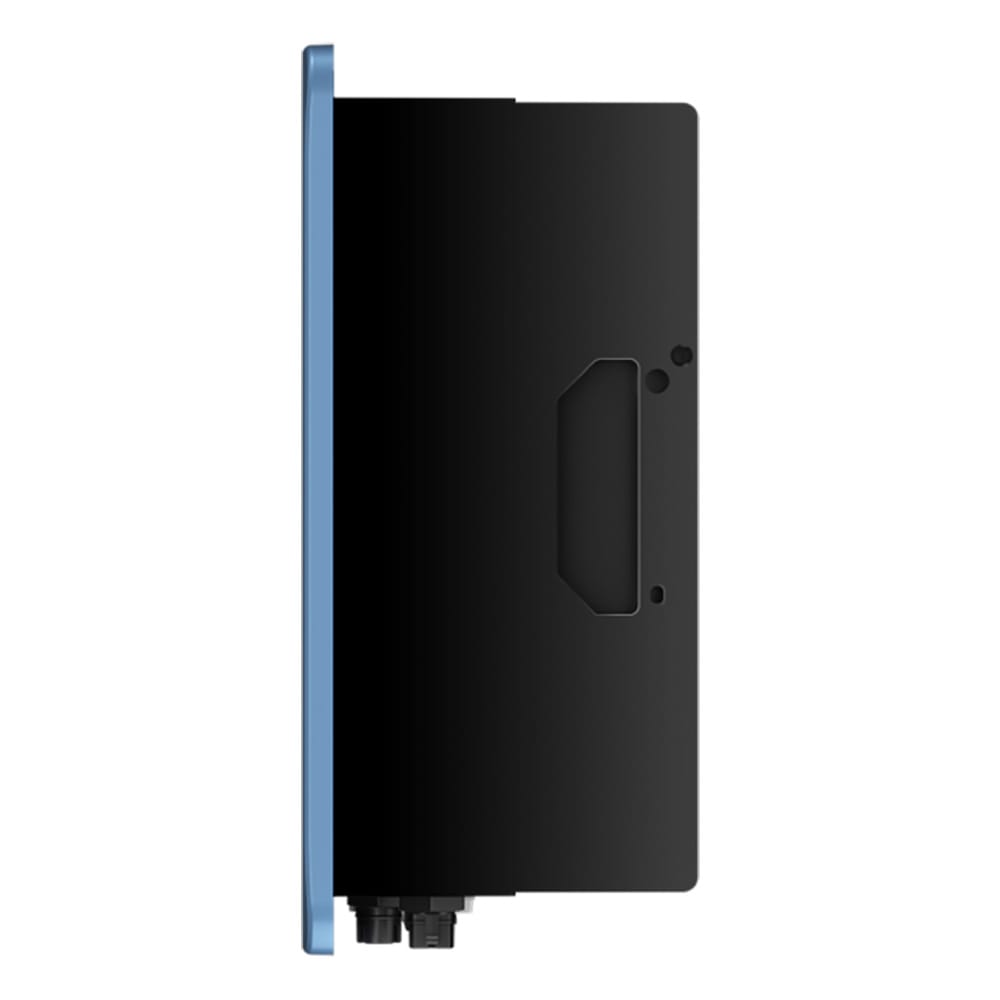

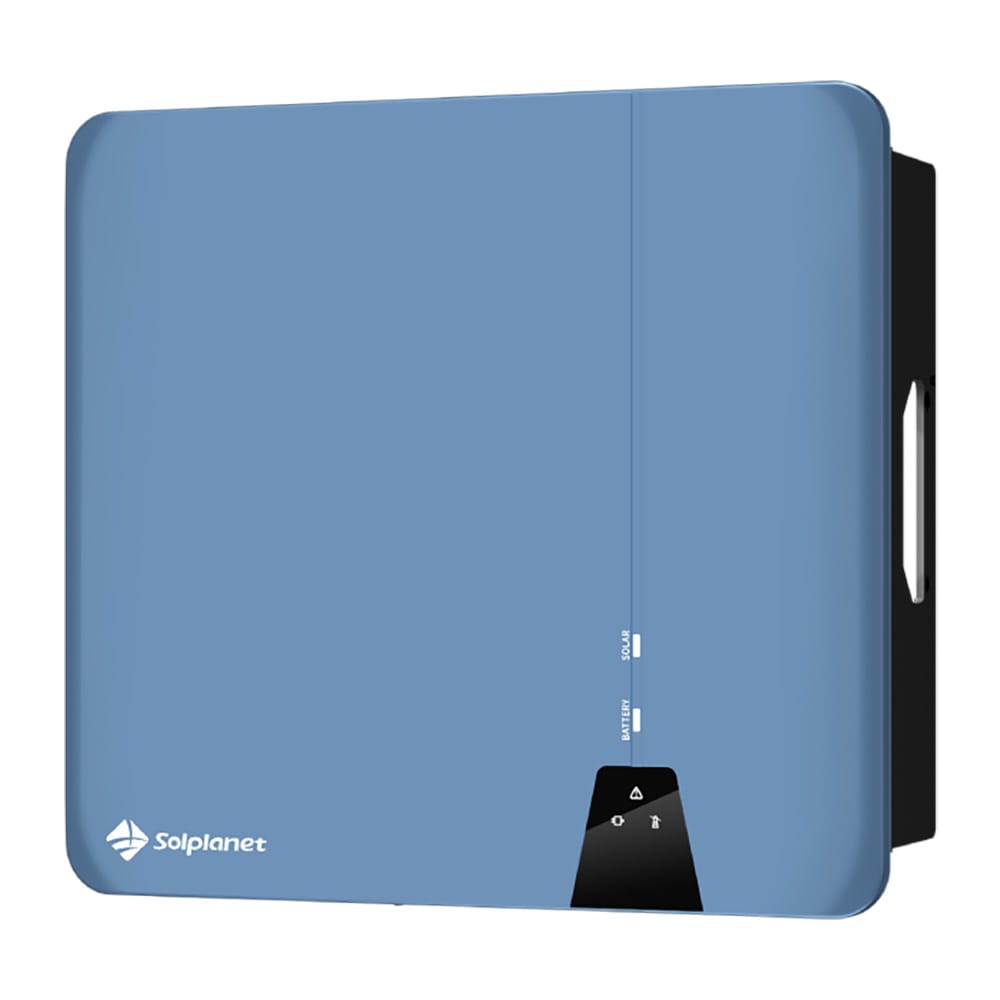

Solplanet Hybrid Solar Inverter H-S2 Series ASW6000H-S2 Powerfully upgraded Single Phase Solution For Residential Solar Energy System Compatible 40-60V Lithium Battery
$830.00
Solplanet Hybrid Solar Inverter H-S2 Series ASW6000H-S2 Powerfully upgraded Single Phase Solution For Residential Solar Energy System Compatible 40-60V Lithium Battery
ASW 3-6k H-S2 Series
Our most popular hybrid single phase hybrid
The ASW 3-6k H-S2 series of single phase hybrid solar inverters have been designed for those who crave power, appreciate the latest advancements, and demand easy installation. The series elevates the already award-winning, easy-to-install design with powerful upgrades.
Aligned with Solplanet’s mission to make solar accessible to everyone, this robust and reliable inverter series boasts enhanced efficiency through advanced dual-phase shift control technology. Experience improved charge-discharge processes and lightning-fast switch from on-grid to off-grid. The intelligent EMS control ensures continuous tracking and adjustment of photovoltaic panel power, battery power, load power, and online power. With IP66 certification catering to both indoor and outdoor installations, performance is guaranteed, rain or shine. Elevate your solar experience with the ASW H-S2 series – power, efficiency, and reliability in one dynamic package.
Main Benefits
- IP66-rated design for reliable outdoor use
- Possible 150% oversizing with integrated DC switch
- Maximum 16A input current per string
- Quick and easy installation using standard tools
- Compact and lightweight wall-mounting
- Easy commissioning and monitoring with Solplanet app
Key Features
Millisecond-level switching speed
The ASW 3-6k H-S2 single phase hybrid solar inverter series introduces a remarkable millisecond-level switching speed, seamlessly transitioning from on-grid to off-grid. System upgrades have enhanced the detection of grid disconnection, achieving a swift response in less than 10 ms. This unparalleled speed ensures a quicker transition from on-grid to off-grid, providing an uninterrupted power supply during blackouts. With the ASW H-S2 series, reliability and swift response become integral, offering peace of mind in every power transition scenario.
Increased Control
The ASW 3-6k H-S2 single phase hybrid solar inverter series features enhanced Intelligent Energy Management System control. This innovative system integrates smart tracking and continuous adjustment functionalities for PV Panels, batteries, loads, and online power. The result is optimized energy consumption and enhanced performance, ultimately reducing overall costs. This forward-thinking series redefines efficiency, ensuring a harmonious synergy between various components for maximum energy utilization and cost-effectiveness.
Powerful
The ASW 3-6k H-S2 single phase hybrid solar inverters present exceptional capabilities with a maximum input of 550V (initial feed at 50V) and an input PV power array ranging from 5500 to 9000 Wp STC. Featuring two independent MPP trackers, each supporting a maximum input current of 16A, this adaptable inverter series offers output-rated power ranging from 3000W to 6000W and a 230 nominal voltage. Its versatility makes it highly sought-after for residential and small commercial installations, ensuring optimal performance and efficiency.
| Technical Datasheet | ASW3000H-S2 | ASW3680H-S2 | ASW4000H-S2 | ASW5000H-S2 | ASW6000H-S2 |
| Max. PV array power | 5500 Wp STC | 6180 Wp STC | 6500 Wp STC | 7500 Wp STC | 9000 Wp STC |
| Max. input voltage | 550 V | ||||
| MPP voltage range / rated input voltage | 40 V to 530 V / 380 V | ||||
| Min. input voltage / start voltage | 40 V/ 50 V | ||||
| No. of independent MPPT trackers / strings per MPPT input | 2 / 1 | ||||
| Max. input current per MPP tracker | 16 A | ||||
| Max. short-circuit current per MPP tracker | 20 A | ||||
| Nominal battery voltage | 48 V | ||||
| Battery voltage range | 40 V to 60 V | ||||
| Max. charging / discharging power | 5000 W / 5000 W | ||||
| Max. charging current / Max. discharging current | 100 A / 100A | ||||
| Battery type | LiFePO4 | ||||
| Compatible Battery | Aiswei Ai-LB series*3 | ||||
| AC voltage range / Nominal AC voltage | 180 V to 280 V / 230 V | ||||
| Rated AC grid frequency | 50 Hz / 60 Hz | ||||
| AC grid frequency range | 50 Hz±5Hz / 60 Hz±5Hz | ||||
| Rated active power | 3000 W | 3680 W | 4000 W | 5000 W*¹ | 6000 W |
| Rated apparent power | 3000 VA | 3680 VA | 4000 VA | 5000 VA*¹ | 6000 VA |
| Max. apparent power | 3000 VA | 3680 VA | 4000 VA | 5000 VA*¹ | 6000 VA |
| Rated grid output Current (@230V) | 13.1 A | 16 A | 17.4 A | 21.7 A*² | 26.1 A |
| Max. grid output current | 13.6 A | 16 A | 18.2 A | 22.7 A*² | 27.3 A |
| Harmonics THDi (@ Nominal power) | < 3% | ||||
| Rated grid voltage | a.c. 230V | ||||
| Rated apparent power | 6000 VA | ||||
| Max. input apparent power from grid | 6000 VA | ||||
| Rated input current from grid | a.c. 26.1 A | ||||
| Max. input current from grid | a.c. 27.3 A | ||||
| Nominal output voltage | 230 V | ||||
| Nominal output frequency | 50 Hz / 60 Hz | ||||
| Rated apparent power | 5000 VA | ||||
| Max. output apparent power | 5000 VA | ||||
| Peak output apparent power | 7500 VA, 10s | ||||
| Rated Current (@230V) | 21.7A | ||||
| Max. output current | 21.7A | ||||
| Max. switch time | ≤ 10 ms | ||||
| Output THDi (@ Linear load) | <3% | ||||
| MPPT efficiency | 99.90% | ||||
| Euro efficiency / Max. efficiency | 97% / 97.6% | ||||
| Max. battery to load efficiency | 94.70% | ||||
| DC-side disconnection device | ● | ||||
| PV string- / Battery input reverse polarity protection | ● / ● | ||||
| All-pole sensitive residual current monitoring unit | ● | ||||
| Anti-islanding protection | ● | ||||
| Ground fault protection | ● | ||||
| AC output over current / short circuit current protection | ● / ● | ||||
| AC over voltage protection | ● | ||||
| Protection class (as per IEC 62109-1) / overvoltage category (as per IEC 62109-1) | I / AC: III; DC: II | ||||
| Power factor at rated power / adjustable displacement | ≥0.99 / 0.8 leading to 0.8 lagging | ||||
| Dimensions (W / H / D) | 483 / 455 / 193.5 mm | ||||
| Device weight | 25.1kg | ||||
| Operating temperature range | -25 °C … +60 °C | ||||
| Noise emissions (typical) | 30 dB(A) | ||||
| Standby consumption | < 10 W | ||||
| Cooling concept | Natural convection | ||||
| Degree of protection (as per IEC 60529) | IP66 | ||||
| Climatic category (according to IEC 60721-3-4) | 4K4H | ||||
| Max. permissible value for relative humidity (non-condensing) | 100% | ||||
| Max. operating altitude | 4000m (>3000m power derating) | ||||
| Country of manufacture | THE PEOPLE'S REPUBLIC OF CHINA | ||||
| User interface | LED & App | ||||
| Communication with BMS | CAN | ||||
| Communication with meter | RS485 | ||||
| Communication with portal | WIFI stick / LAN | ||||
| Other communication | DRM | ||||
| Integrated power control / Zero export control | ● / ● | ||||
| Weight | 32 kg |
|---|---|
| Dimensions | 80 × 60 × 40 cm |
| Brand | |
| Battery Type |
Lithium-ion |
| Max. Charging Current(A) |
100 |
| Battery Voltage Range(V) |
40-60 |
| Max PV Input Power(W) |
9000 |
| Max PV Input Voltage(V) |
550 |
| MPPT Voltage Range(V) |
40-530 |
| No. Of MPPT |
2/1+1 |
| Number of battery input |
1 |
| Rated AC Input/Output Active Power(W) |
6000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
Solplanet is a brand that specializes in solar inverters and energy solutions, focusing on providing high-quality products for residential, commercial, and utility-scale solar applications.
Company Overview:
Founded: Solplanet is a relatively new brand that emerged from the established solar technology company AISWEI, which has a strong background in the solar industry.
Headquarters: The brand is based in China but aims to serve a global market.
Key Products:
Solar Inverters:
Solplanet offers a range of solar inverters, including string inverters and hybrid inverters designed for various applications.
Their products are known for high efficiency, reliability, and advanced features to maximize energy production.
Energy Storage Solutions:
The brand is also involved in developing energy storage systems that complement solar installations, allowing for optimized energy management and usage.
Key Features:
High Efficiency: Solplanet inverters typically boast high conversion efficiencies, often exceeding 98%, which helps maximize energy yield from solar panels.
Smart Monitoring: Many of their inverters come equipped with monitoring capabilities, enabling users to track performance and diagnose issues in real-time through mobile apps or web interfaces.
User-Friendly Design: Solplanet products are designed for easy installation and maintenance, making them suitable for both professional installers and DIY enthusiasts.
Market Presence:
Solplanet aims to establish a strong presence in the global solar market, focusing on regions with high solar energy potential.
The brand emphasizes quality and performance, aiming to compete with other established solar inverter manufacturers.
Commitment to Sustainability:
Solplanet is dedicated to promoting renewable energy solutions, contributing to the global shift toward sustainable energy practices.
