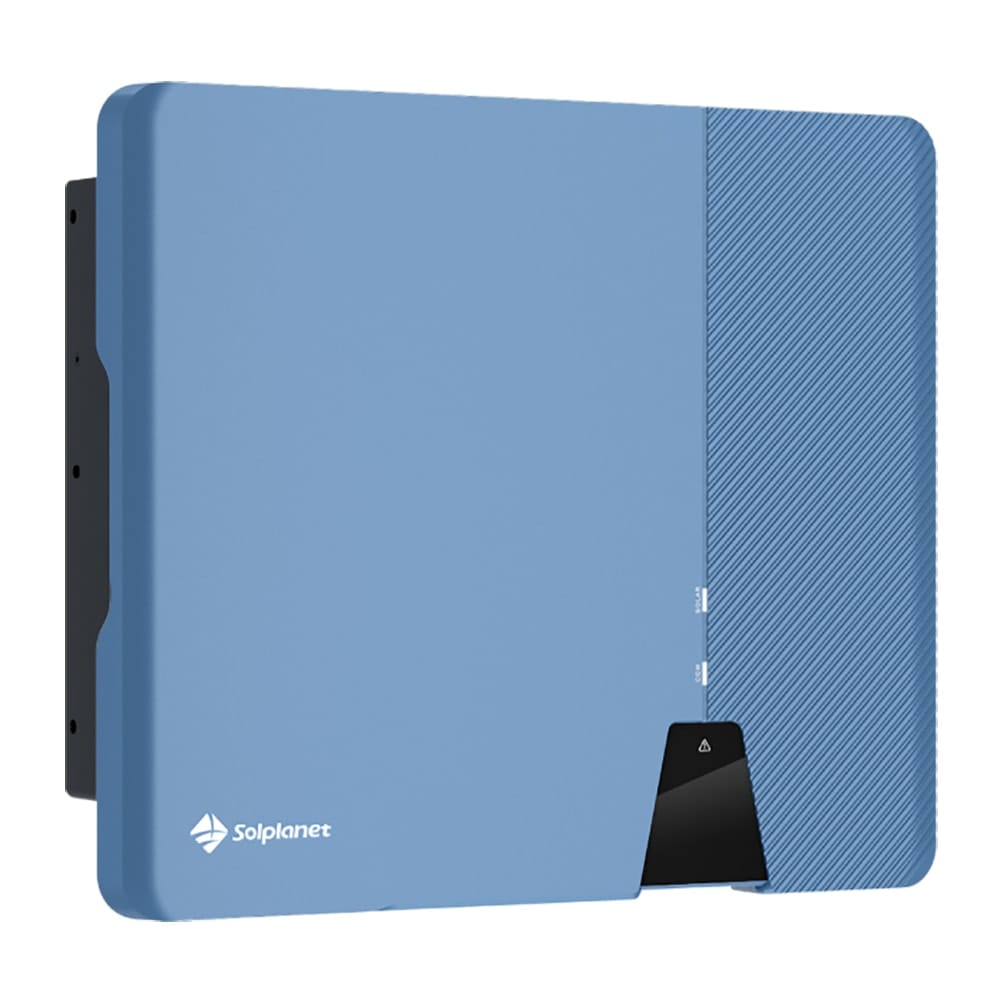

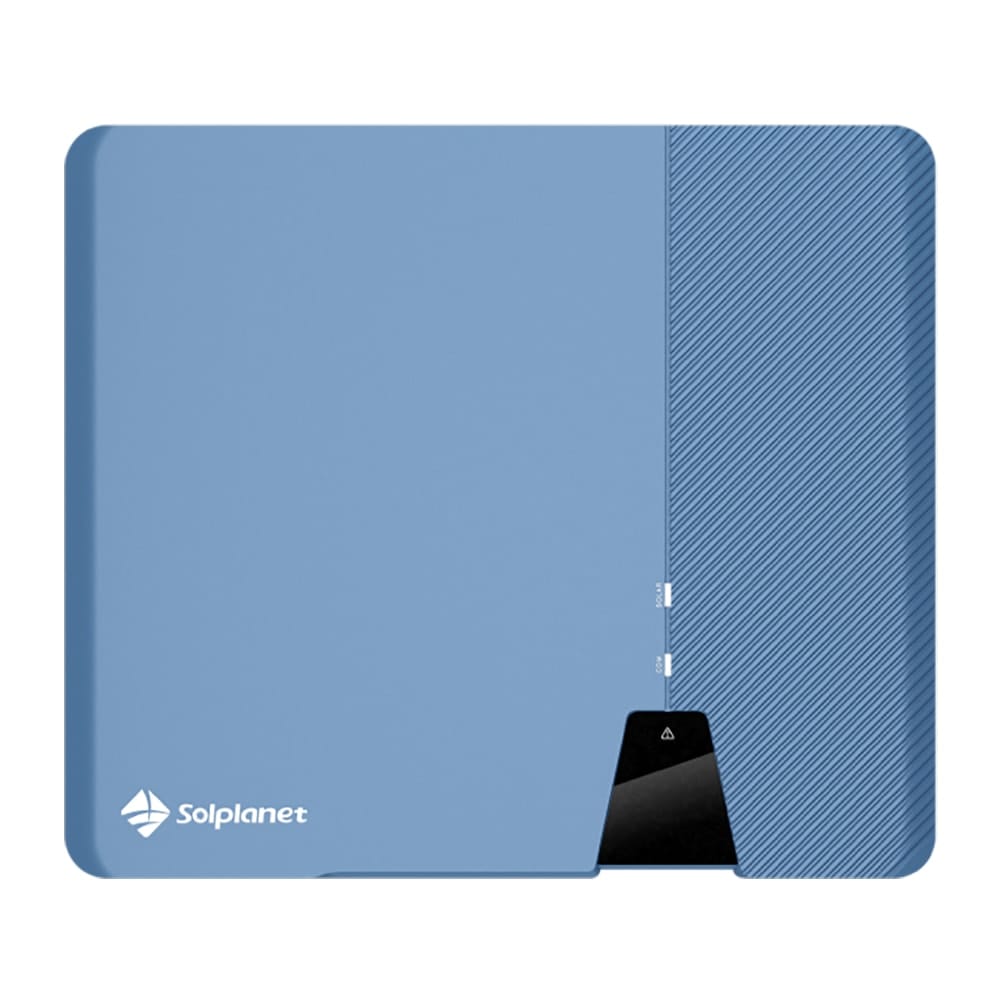

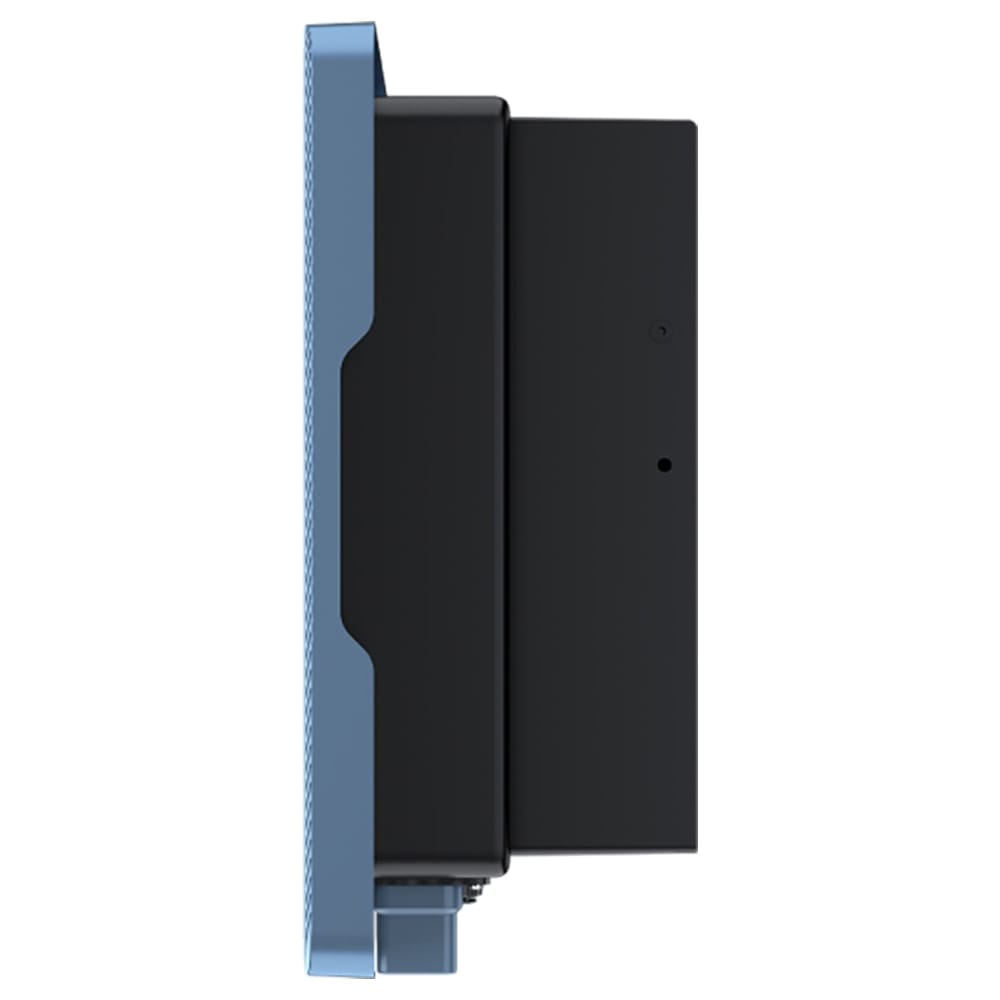

Solplanet On-Grid Solar Inverter ASW8000-S 8KW 3 MPPT Trackers 220V Single Phase Solar Solution For Residential PV system
$430.00
ASW 6-10K-S Series
The ultimate choice for homes and small businesses
The ASW 6-10K-S series of single phase solar inverters are stylish, flexible, and powerful inverter solutions that are the ultimate choice for both residential and small-scale commercial use. These inverters are designed to be the powerful and reliable centre of a solar installation while also discreetly blending into their surroundings.
The ASW 6-10K-S inverters feature a compact and award-winning design that is IP66-rated, making it weatherproof and extremely durable. These units have three independent MPP trackers that allow for a possible 150% oversizing of the PV array, ensuring maximum system flexibility and efficiency. Looking to power an energy-hungry home or business? The ASW 6-10K-S series inverters feature a maximum input current of 16 A per string making them the ultimate choice for bi-facial and large PV modules.
Main Benefits
- IP66-rated design for reliable outdoor use
- Maximum 16A input current per string
- Discreet and silent operation
- Quick and easy installation using standard tools
- 3 MPPTs for ultimate PV design flexibility
- Solplanet apps make commissioning and monitoring easy
Key Features
Reliable
The ASW 6-10K-S series was designed in accordance with international quality and safety standards and is a robust family of extremely reliable solar inverters. The IP66 certification rating also means these inverters will maintain their reliability in a wide range of environmental conditions. From a purely technical angle, the DC reverse polarity protection and AC sensitive residual current monitoring functions ensure reliable and safe long-term operation.
Powerful
Our ASW 6-10K-S series of solar inverters are designed to be powerful. A minimum DC input DC of 80V and a wide MPP voltage range ensure highly optimised energy performance for reliable energy yields. These dynamic solar inverters also allow for up to 150% oversizing of the attached PV system array, making them perfect for residential rooftop PV systems that vary greatly in their design, scale, and purpose.
Easy to install
The ASW 6-10K-S series is designed to be installed quickly and easily with standard tools and the Phoenix Contact DC connectors make these inverters compatible with a wide range of solar panels. Optional Plug & Play and 4G dongles connect them to the internet and allow up to five to be monitored by Solplanet’s user-friendly mobile application. Users can view real-time solar installation data, configure their inverters, and receive system alerts, right in the palm of their hand.
| Technical Datasheet | ASW6000-S | ASW8000-S | ASW10000-S | |
| Input (DC) | Max. PV array power | 9000 Wp STC | 12000 Wp STC | 15000 Wp STC |
| Max. input voltage | 600V | |||
| MPP voltage range / rated input voltage | 80 V – 560 V / 360 V | |||
| Min. input voltage | 80 V | |||
| Initial. feed in voltage | 100 V | |||
| Max. operating input current | 16 A | |||
| Max. short circuit current | 22.5 A | |||
| No. of independent MPPT inputs / strings per MPPT input | 3/1 | |||
| Output (AC) | Rated active power | 6000 W | 8000 W | 10000 W |
| Rated apparent power | 6000 VA | 8000 VA | 10000 VA | |
| Max. apparent power | 6000 VA | 8000 VA | 10000 VA | |
| AC nominal voltage | 220 V / 230 V / 240 V | |||
| AC voltage range | 180 V to 295 V | |||
| AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz | |||
| 60 Hz / 55 Hz to 65 Hz | ||||
| Max. output current | 30 A | 40 A | 50 A | |
| Adjustable power factor range | 0.8 leading to 0.8 lagging | |||
| Feed-in phases | 1 | |||
| Harmonic distortion (THD) at rated output | < 3% | |||
| Efciency & Protection | Max. efciency / European efciency | 97.7 % / 97.3 % | ||
| DC switch | ● | |||
| Ground fault monitoring / grid monitoring | ● / ● | |||
| DC reverse polarity protection / AC short circuit protection | ● / ● | |||
| All-pole-sensitive residual-current monitoring unit | ● | |||
| Anti-Islanding protection | ● | |||
| Surge protection | ● / Type II | |||
| Protection class (according to IEC 62109-1) / | I / AC: III; DC: II | |||
| overvoltage category (according to IEC 62109-1) | ||||
| General data | Dimensions (W / H / D) | 503 / 435 / 183 mm | ||
| Weight | < 19 kg | |||
| Operating temperature range | -25°C … +60°C | |||
| Self-consumption (at night) | < 1 W | |||
| Topology | Non-isolated | |||
| Cooling concept | Natural convection | |||
| Degree of protection (according to IEC 60529) | IP66 | |||
| Climatic category (according to IEC 60721-3-4) | 4K4H | |||
| Max. permissible value for relative humidity (non-condensing) | 100% | |||
| Max. operating altitude | 3000 m | |||

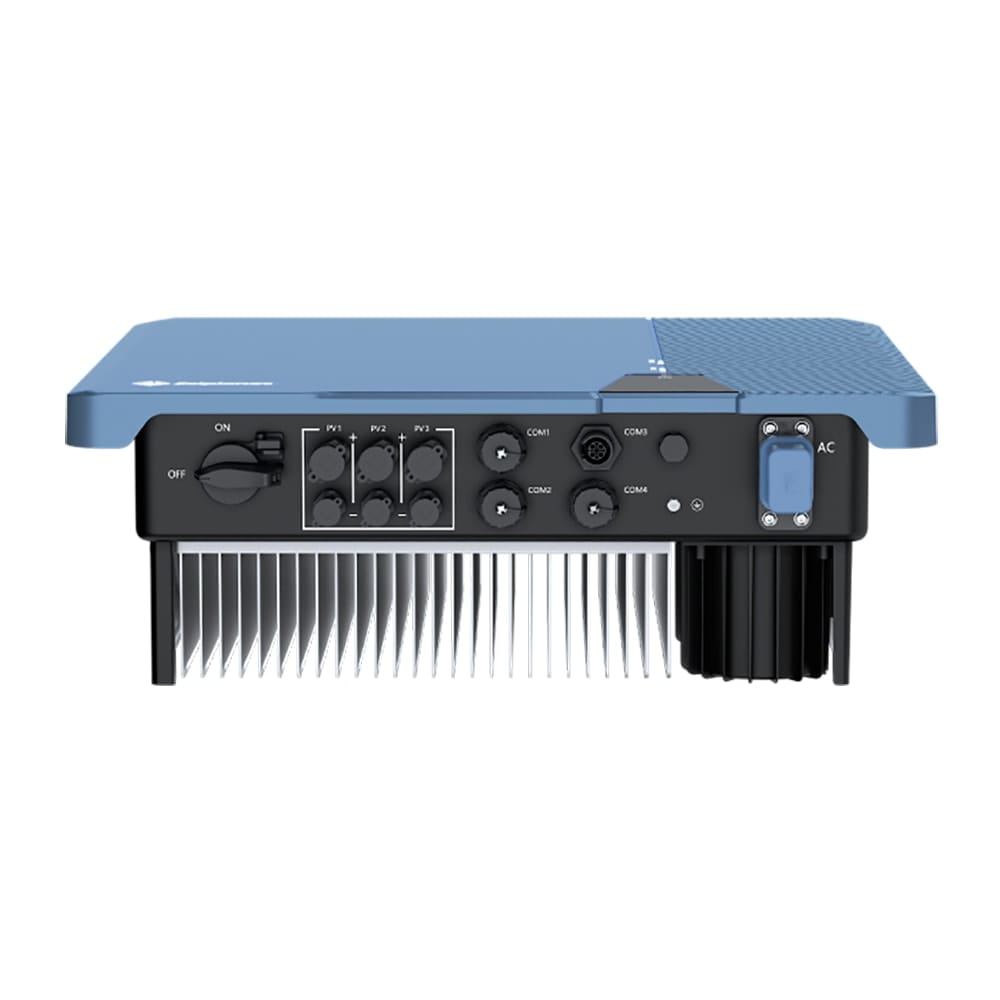

| Features | DC connection | Plug-in connector | ||
| AC connection | Plug-in connector | |||
| Mounting type | Wall-mount bracket | |||
| LED indicators (Status / Fault / Communication) | ● | |||
| 24/7 monitoring | ● | |||
| Communication interface1 | ●/●/●/○ | |||
| (RS485 /Wi-Fi/ LAN /4G) | ||||
| Country of manufacture | China | |||
| Certifcates and approvals (more available on request) | CE, EN50549, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, AS/NZS4777, C10/C11 | |||
| Weight | 20 kg |
|---|---|
| Dimensions | 60 × 50 × 30 cm |
| Brand | |
| Max PV Input Power(W) |
12000 |
| Max PV Input Voltage(V) |
600 |
| Max PV Input Current(A) |
16 |
| Start-up Voltage(V) |
100 |
| MPPT Voltage Range(V) |
80-560 |
| No. Of MPPT |
3/2+2+2 |
| MPPT Efficiency |
97.7% |
| Rated AC Input/Output Active Power(W) |
8000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
| Max AC Output Current(A) |
40 |
| Monitor Mode |
4G ,GPRS ,LAN ,WIFI |
Solplanet is a brand that specializes in solar inverters and energy solutions, focusing on providing high-quality products for residential, commercial, and utility-scale solar applications.
Company Overview:
Founded: Solplanet is a relatively new brand that emerged from the established solar technology company AISWEI, which has a strong background in the solar industry.
Headquarters: The brand is based in China but aims to serve a global market.
Key Products:
Solar Inverters:
Solplanet offers a range of solar inverters, including string inverters and hybrid inverters designed for various applications.
Their products are known for high efficiency, reliability, and advanced features to maximize energy production.
Energy Storage Solutions:
The brand is also involved in developing energy storage systems that complement solar installations, allowing for optimized energy management and usage.
Key Features:
High Efficiency: Solplanet inverters typically boast high conversion efficiencies, often exceeding 98%, which helps maximize energy yield from solar panels.
Smart Monitoring: Many of their inverters come equipped with monitoring capabilities, enabling users to track performance and diagnose issues in real-time through mobile apps or web interfaces.
User-Friendly Design: Solplanet products are designed for easy installation and maintenance, making them suitable for both professional installers and DIY enthusiasts.
Market Presence:
Solplanet aims to establish a strong presence in the global solar market, focusing on regions with high solar energy potential.
The brand emphasizes quality and performance, aiming to compete with other established solar inverter manufacturers.
Commitment to Sustainability:
Solplanet is dedicated to promoting renewable energy solutions, contributing to the global shift toward sustainable energy practices.
