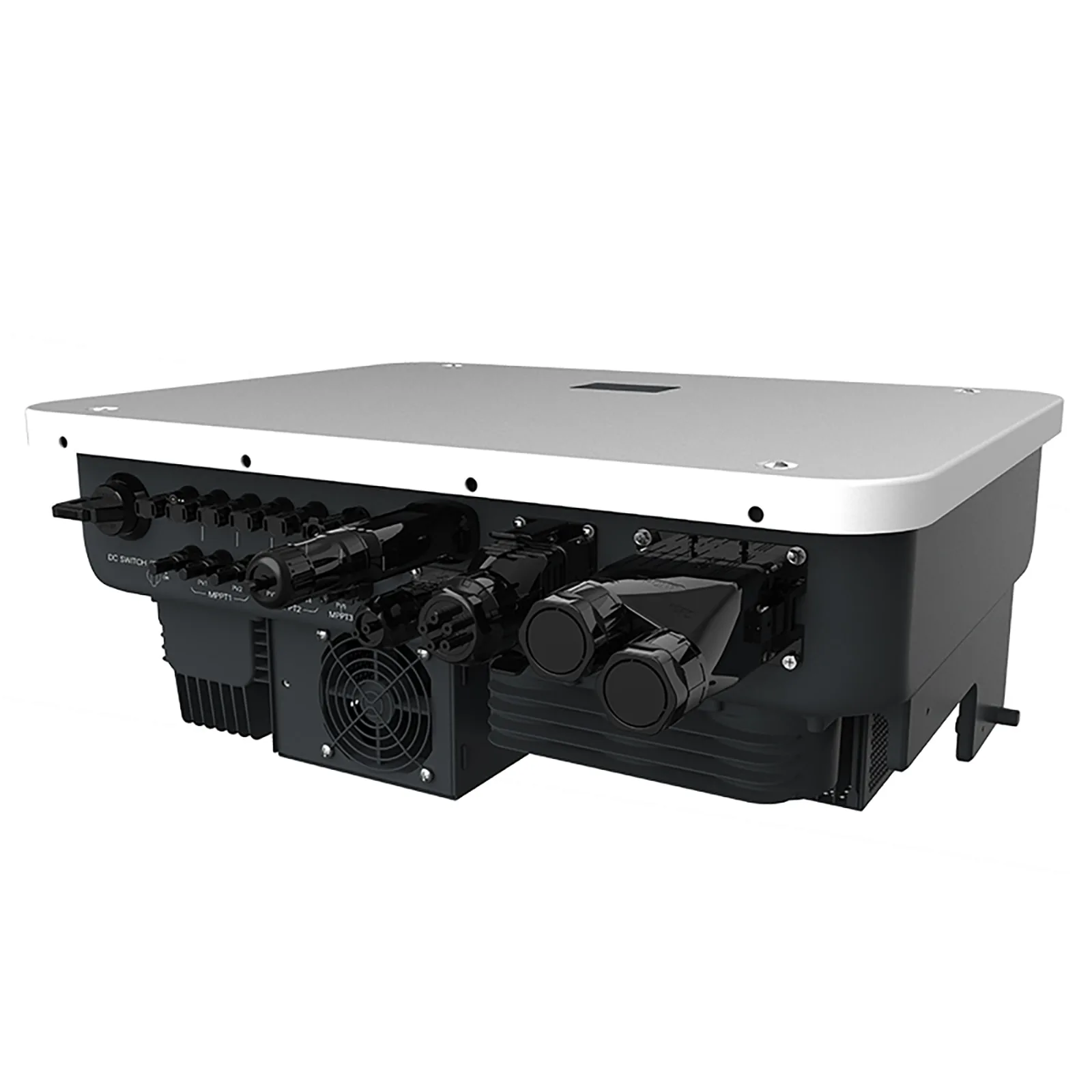

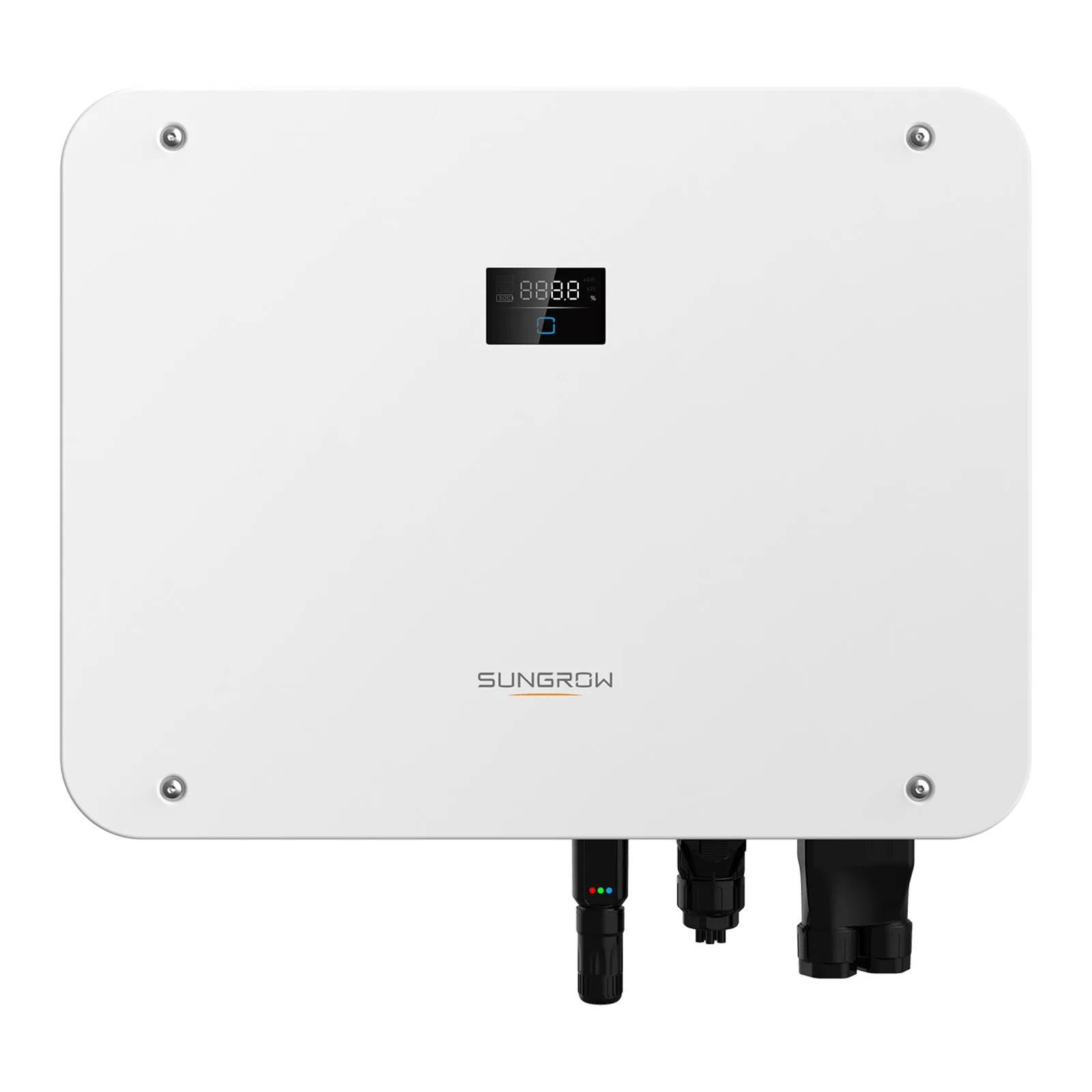

Sungrow Hybrid Solar Inverter SH15T 15kW 400V Three Phase Solution For Residential Solar Energy System Compatible High Voltage Lithium Battery
$2,900.00
The Sungrow SH15/20/25T is a powerful and feature-rich three-phase hybrid solar inverter well-suited for large Australian homes seeking a reliable solar and battery storage solution. With its high power output, backup capabilities, and flexible battery compatibility, the SH15/20/25T can help you maximise your solar energy use and achieve greater energy independence.
Sungrow Hybrid Solar Inverter SH15T 15kW 400V Three Phase Solution For Residential Solar Energy System Compatible High Voltage Lithium Battery
Key features of the Sungrow SH15/20/25T Three-Phase Hybrid Solar Inverter
- High power output: With a maximum output of 25kVA, the SH15/20/25T can power essential appliances like air conditioners and pool pumps during blackouts, ensuring uninterrupted home comfort.
- Triple MPPT (Maximum Power Point Tracking): This feature optimises energy production by independently tracking the power output of three separate solar panel strings, maximising efficiency even with varying roof orientations or shading.
- Battery compatibility: The SH15/20/25T integrates seamlessly with compatible battery storage systems, allowing you to store excess solar energy for later use and increase your self-reliance on solar power.
- Wide range of compatible solar panels: The inverter works with most major solar panel brands, offering flexibility in system design.
- Monitoring and support: Sungrow offers a well-regarded monitoring platform for real-time system performance tracking. Sungrow also has a local presence in Australia with a support office that ensures after-sales service and technical assistance.
Specifications of the Sungrow SH15/20/25T Three-Phase Hybrid Solar Inverter
- Power output: SH15T (15kW), SH20T(20kW), SH25T (25kW)
- Number of independent MPP trackers: 3
- Maximum AC power from grid: 43000VA
- Maximum AC output apparent power: Up to 25000VA
- Cooling method: Natural convection
- Dimensions (W*H*D): 620mm * 480mm * 245mm
- Weight: Up to 40 kg
Sungrow SH15/20/25T Three-Phase Hybrid Solar Inverter warranty
Sungrow provides a 10-year standard warranty on the SH15/20/25T inverter, giving you peace of mind knowing your investment is protected.
Applications for the Sungrow SH15/20/25T Three-Phase Hybrid Solar Inverter
This inverter is well-suited for a variety of residential applications in Australia, including:
- Large family homes: With its high power output, the SH15/20/25T can handle the increased electricity demands of larger households.
- Off-grid or remote homes: The SH15/20/25 T’s battery backup capability makes it a viable option for those seeking greater energy independence from the grid.
- Environmentally conscious homeowners: The SH15/20/25T can help reduce your carbon footprint and contribute to a sustainable future by maximising solar energy use.
Advantage of the Sungrow SH15/20/25T Three-Phase Hybrid Solar Inverter
- High power output and backup capability: Delivers up to 25kVA of backup power, allowing you to run essential appliances during grid outages.
- Increased efficiency: This model features three MPPTs (Maximum Power Point Tracking) that optimise energy production from your solar panels for different roof orientations, maximising your solar power generation.
- Competitive price and local support: Sungrow offers a good value proposition with a 10+ year presence in Australia/EU and a local office for reliable support.
- Excellent monitoring platform: Provides a user-friendly monitoring system to track solar energy production and consumption.
- AC coupling compatibility: This enables you to connect additional solar panels to dedicated backup circuits, expanding your solar capacity for self-consumption.
- Well-regarded by installers: Sungrow inverters have a positive reputation among solar installers in Australia/EU.
- Smart meter adapter needed for full analytics: While the hybrid solar inverter offers monitoring, a separate Sungrow adapter might be required for comprehensive grid interaction data.
- Fewer features compared to top-tier models: Compared to some higher-end options, the SH15/20/25T might need more advanced features.
This inverter is ideal for:
Homes with large energy needs: If your household consumes significant power, the SH15/20/25T’s high capacity can ensure you meet your daytime and backup power requirements.
Solar battery storage aspirations: The inverter’s hybrid functionality allows you to integrate a battery system for self-consumption and blackout protection.
Three-phase power systems: Three-phase power is common in larger homes and commercial establishments. The SH15/20/25T is specifically designed for these setups.
Things to consider:
Cost: Hybrid solar inverters typically come at a premium compared to grid-tie inverters.
System design: Ensure your solar system design, including panel wattage and battery capacity, is compatible with the chosen inverter model.
Passive cooling: The SH15/20/25T relies on passive cooling, so proper ventilation during installation is crucial, especially in hot climates.
| Type designation | SH15T | SH20T | SH25T | |||
| Input (DC) | ||||||
| Recommended max. PV input power | 30000 Wp | 40000 Wp | 50000 Wp | |||
| Max. PV input voltage * | 1000 V | |||||
| Min. PV input voltage / Startup input voltage | 150 V / 180 V | |||||
| Rated PV input voltage | 600 V | |||||
| MPPT operating voltage range ** | 150 V – 950 V | |||||
| No. of independent MPP trackers | 3 | |||||
| No. of PV strings per MPPT | 2 / 2 / 1 | |||||
| Max. PV input current | 80 A ( 32 A / 32 A / 16 A ) | |||||
| Max. DC short-circuit current | 100 A ( 40 A / 40 A / 20 A ) | |||||
| Max. current for input connector | 30 A | |||||
| Battery data | ||||||
| Battery type | Li-ion battery | |||||
| Battery voltage range | 100 V – 700 V | |||||
| Max. charge / discharge current *** | 50 A / 50 A | |||||
| Max. charge / discharge power | 30000 W / 15000 W | 30000 W / 20000 W | 30000 W / 25000 W | |||
| Input and Output (AC) | ||||||
| Max. AC power from grid **** | 43000 VA | |||||
| Rated AC output power | 15000 W | 20000 W | 25000 W | |||
| Max. AC output apparent power | 15000 VA | 20000 VA | 25000 VA | |||
| Max. AC output current | 22.8 A | 30.4 A | 37.9 A | |||
| Rated AC voltage | 3 / N / PE, 220 V / 380 V ; 230 V / 400 V; 240 V / 415 V | |||||
| AC voltage range | 270 V – 480 V | |||||
| Rated grid frequency | 50 Hz / 60 Hz | |||||
| Grid frequency range | 45 Hz – 55 Hz / 55 Hz – 65 Hz | |||||
| Harmonic (THD) | < 3 % ( of rated power ) | |||||
| Power factor at rated power / Adjustable power factor | > 0.99 / 0.8 leading to 0.8 lagging | |||||
| Feed-in phases / connection phases | 3 / 3-N-PE | |||||
| Backup data(on grid mode) | ||||||
| Max. output power for backup load **** | 43000 W | |||||
| Max. output current for backup load | 3 * 63 A | |||||
| Backup data(off-grid mode) | ||||||
| Rated voltage | 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V ( ± 2 % ) | |||||
| Rated frequency | 50 Hz / 60 Hz ( ± 0.2 % ) | |||||
| THDV ( @Linear load ) | 2 % | |||||
| Backup switch time | < 10 ms | |||||
| Rated output power | 15000 W / 15000 VA | 20000 W / 20000 VA | 25000 W / 25000 VA | |||
| Peak output power ***** | 25500 W / 25500 VA ,10 s | 32000 W / 32000 VA ,10 s | 36500 W / 36500 VA ,10 s | |||
| Efficiency | ||||||
| Max. efficiency / European efficiency | 98.1 % / 97.6 % | 98.2 % / 97.8 % | ||||
| Protection & Function | ||||||
| Grid monitoring | Yes | |||||
| DC reverse polarity protection | Yes | |||||
| AC short-circuit protection | Yes | |||||
| Leakage current protection | Yes | |||||
| DC switch (solar) | Yes | |||||
| Surge protection | DC Type II / AC Type II | |||||
| PID zero | Yes | |||||
| Battery input reverse polarity protection | Yes | |||||
| General data | ||||||
| Topology (solar / battery) | Transformerless / Transformerless | |||||
| Degree of protection | IP65 | |||||
| Dimensions (W * H * D) | 620 mm * 480 mm * 245 mm | |||||
| Weight | 38 kg | 40 kg | ||||
| Mounting method | Wall-mounting bracket | |||||
| Operating ambient temperature range | -25 ℃ – 60 ℃ | |||||
| Allowable relative humidity range(Non-condensing) | 0 % – 100 % | |||||
| Cooling method | Natural convection | Fan cooling | ||||
| Max. operating altitude | 2000 m | |||||
| Noise(Typical) | 35 dB ( A ) | 50 dB ( A ) | ||||
| Display | LED | |||||
| Communication | RS485, WLAN, Ethernet, CAN | |||||
| DI / DO | DI * 4 / DO * 2 / DRM0 | |||||
| DC connection type | MC4 compatible connector ( PV,Max.6 mm² ) /Plug and play connector ( battery, Max.10 mm² ) | |||||
| AC connection type | Plug and play connector ( Max.16 mm² ) | |||||
| Compliance | IEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11, VDE-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21 | |||||
| Weight | 18 kg |
|---|---|
| Dimensions | 52 × 40 × 30 cm |
| Brand | |
| Battery Type |
Lithium-ion |
| Max. Charging Current(A) |
50 |
| Battery Voltage Range(V) |
100-700 |
| Max PV Input Power(W) |
30000 |
| Max PV Input Voltage(V) |
1000 |
| MPPT Voltage Range(V) |
150-950 |
| No. Of MPPT |
3 |
| Number of battery input |
1 |
| Rated AC Input/Output Active Power(W) |
15000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
230/400V |
Sungrow is a leading global supplier of solar inverter solutions. With a strong reputation for innovation and quality, Sungrow offers a wide range of inverters for different applications, from residential to large-scale commercial and utility-scale projects.
The company's inverters are known for their high efficiency, reliability, and advanced features. They are designed to maximize energy output and ensure smooth operation of solar power systems.
Sungrow also provides excellent customer service and technical support, helping customers optimize their solar installations and achieve maximum return on investment.
In addition to inverters, Sungrow is also involved in the development and manufacturing of energy storage systems, further enhancing its position in the renewable energy market.
Whether you are a homeowner looking to install a solar system or a large-scale project developer, Sungrow's products and solutions can meet your needs and contribute to a sustainable future.
