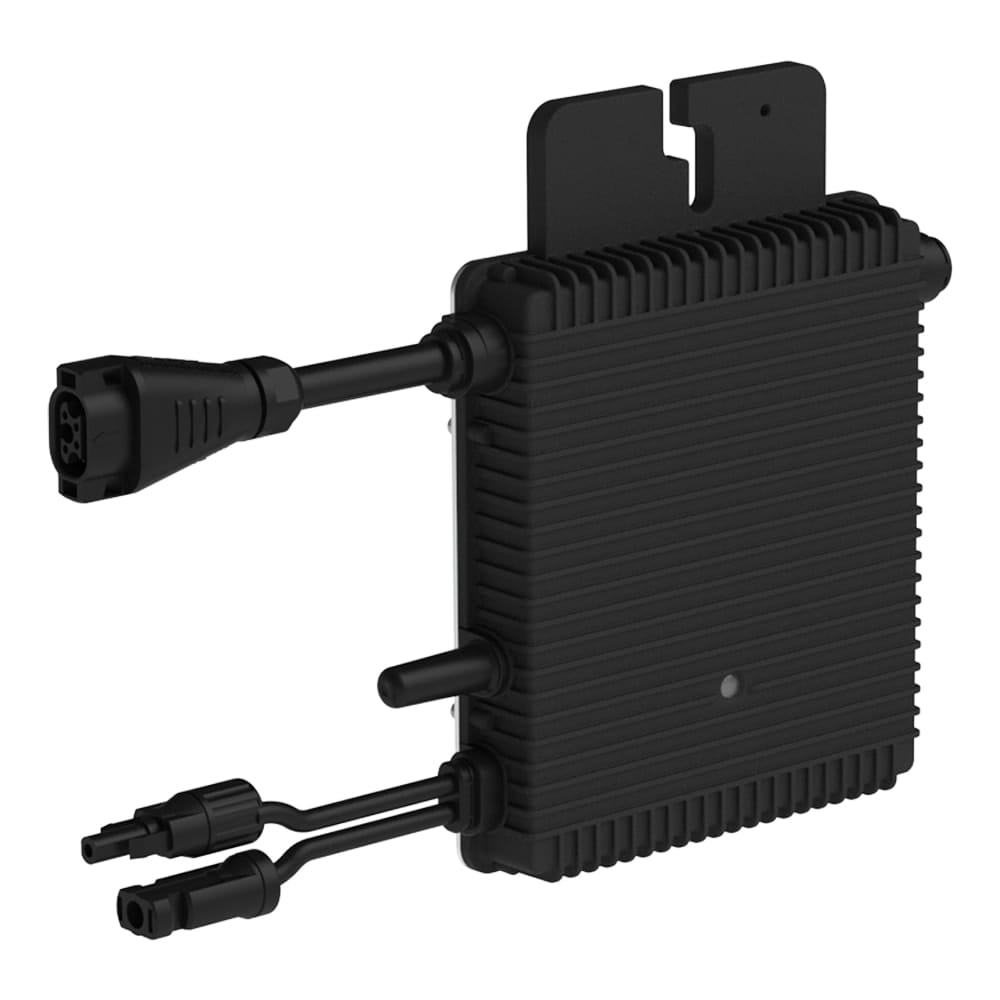

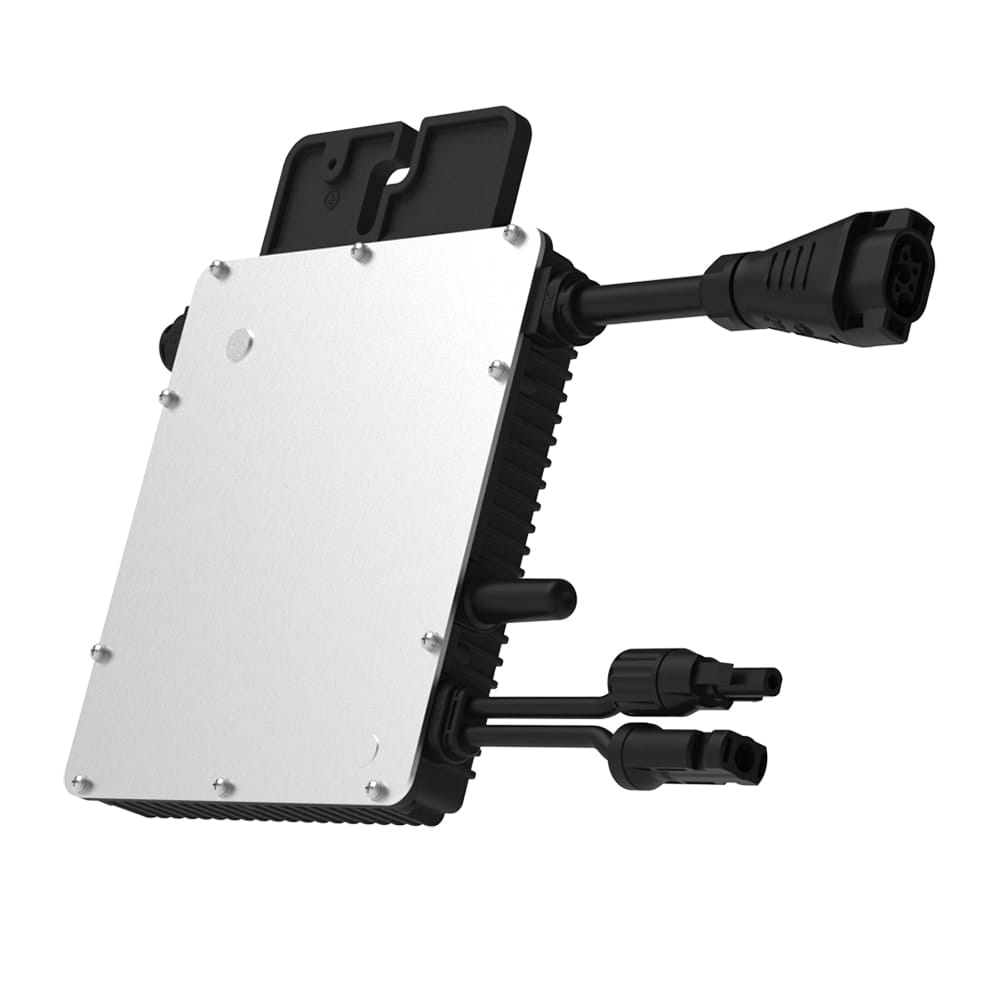

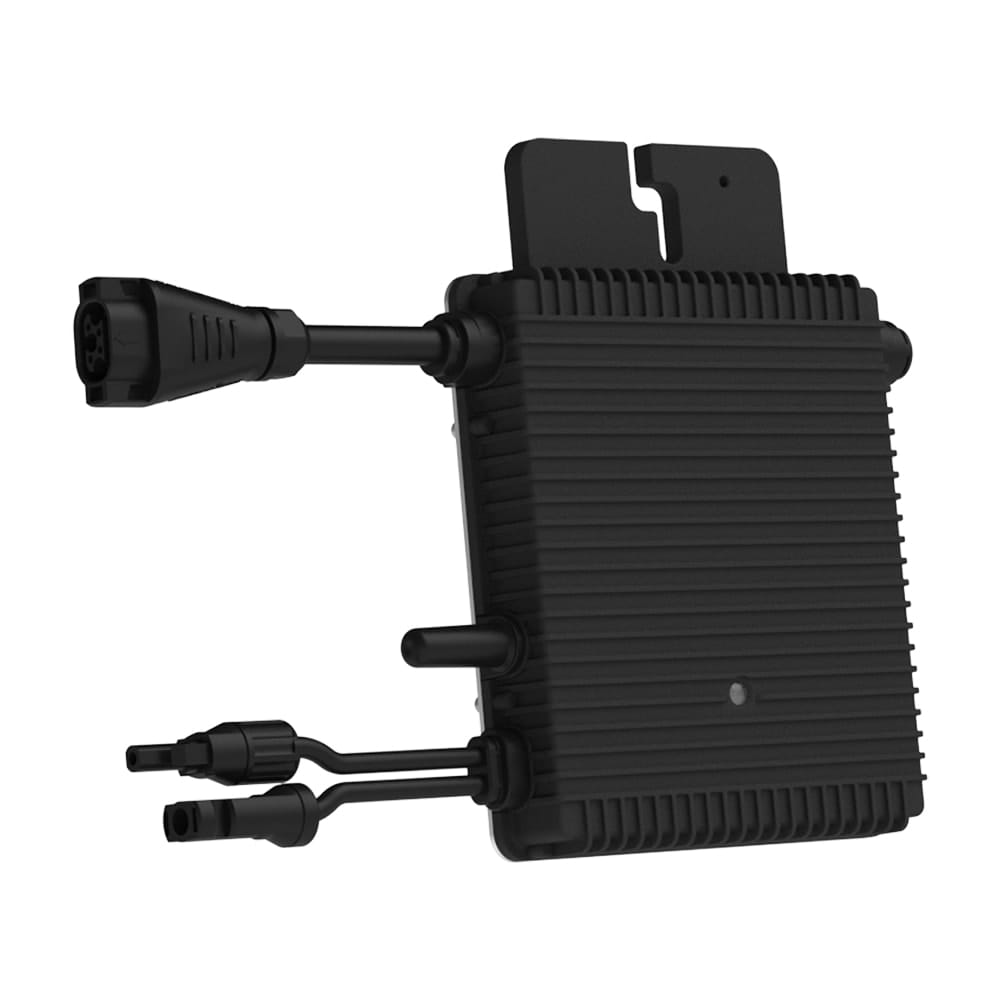

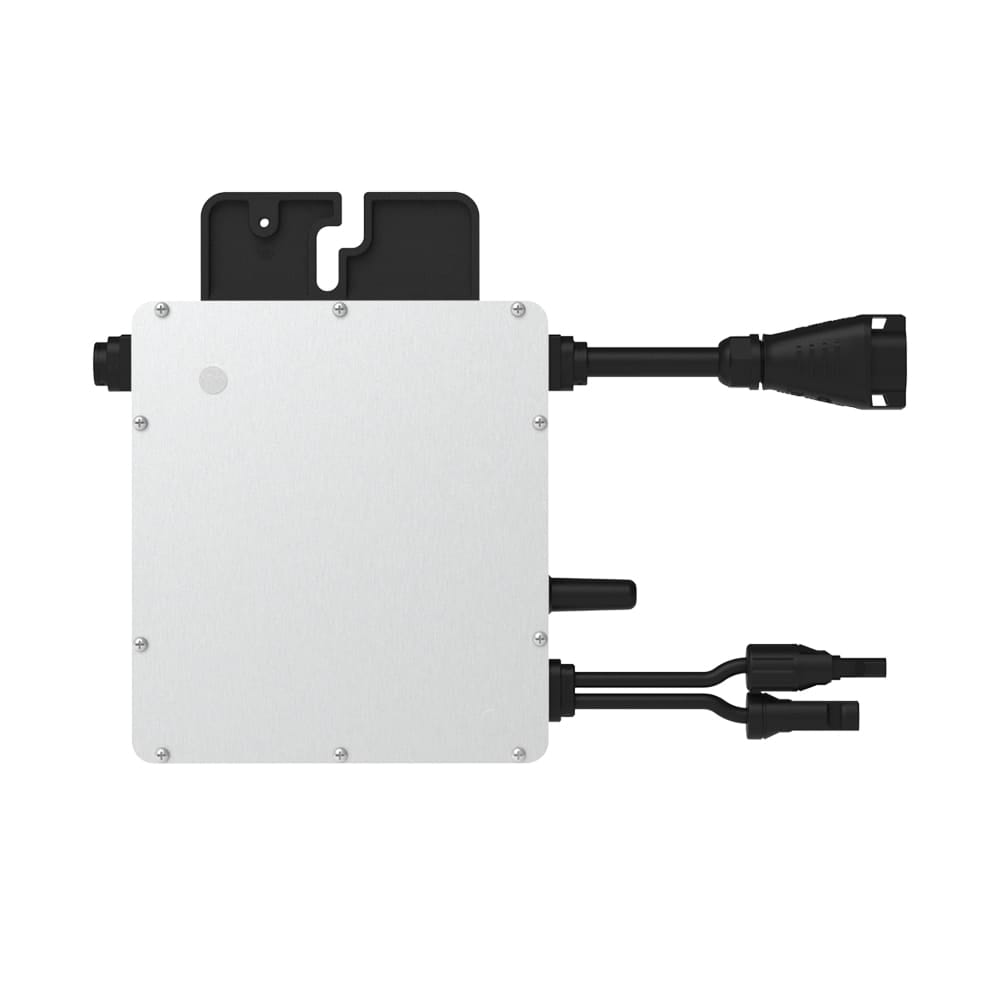

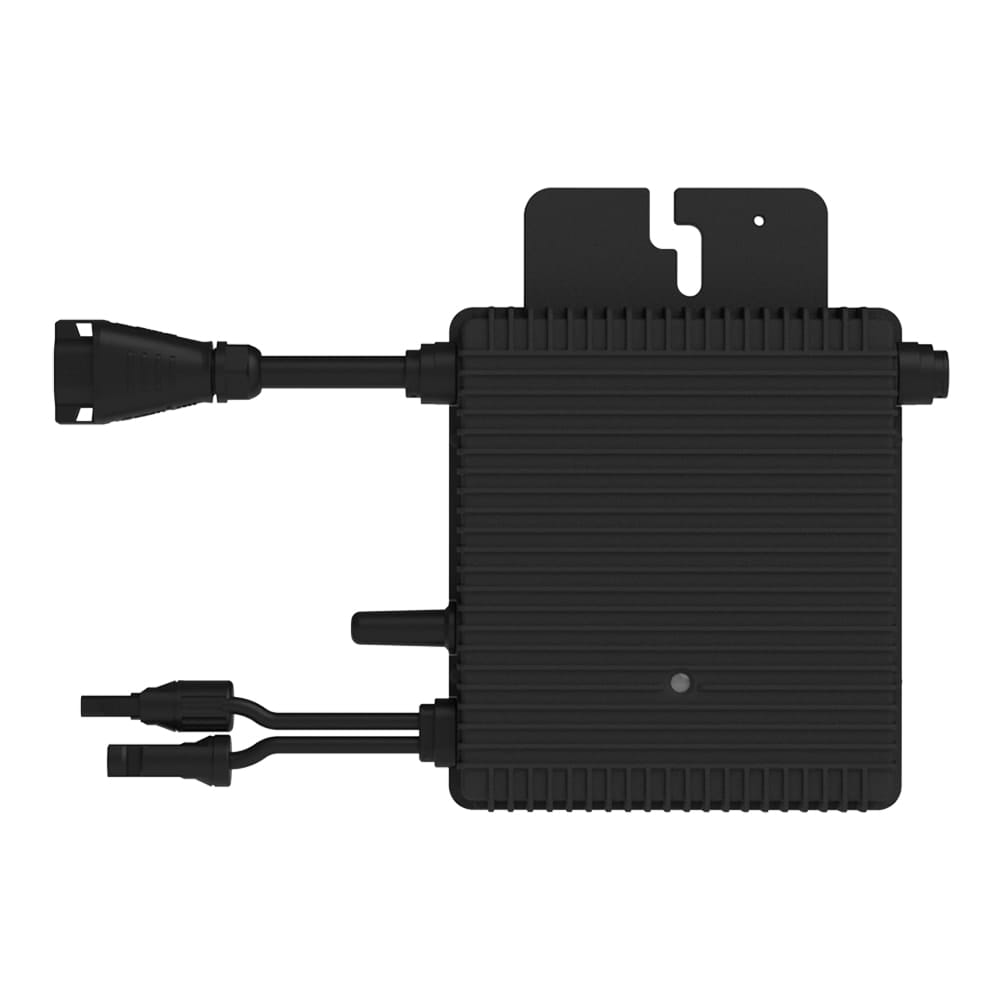

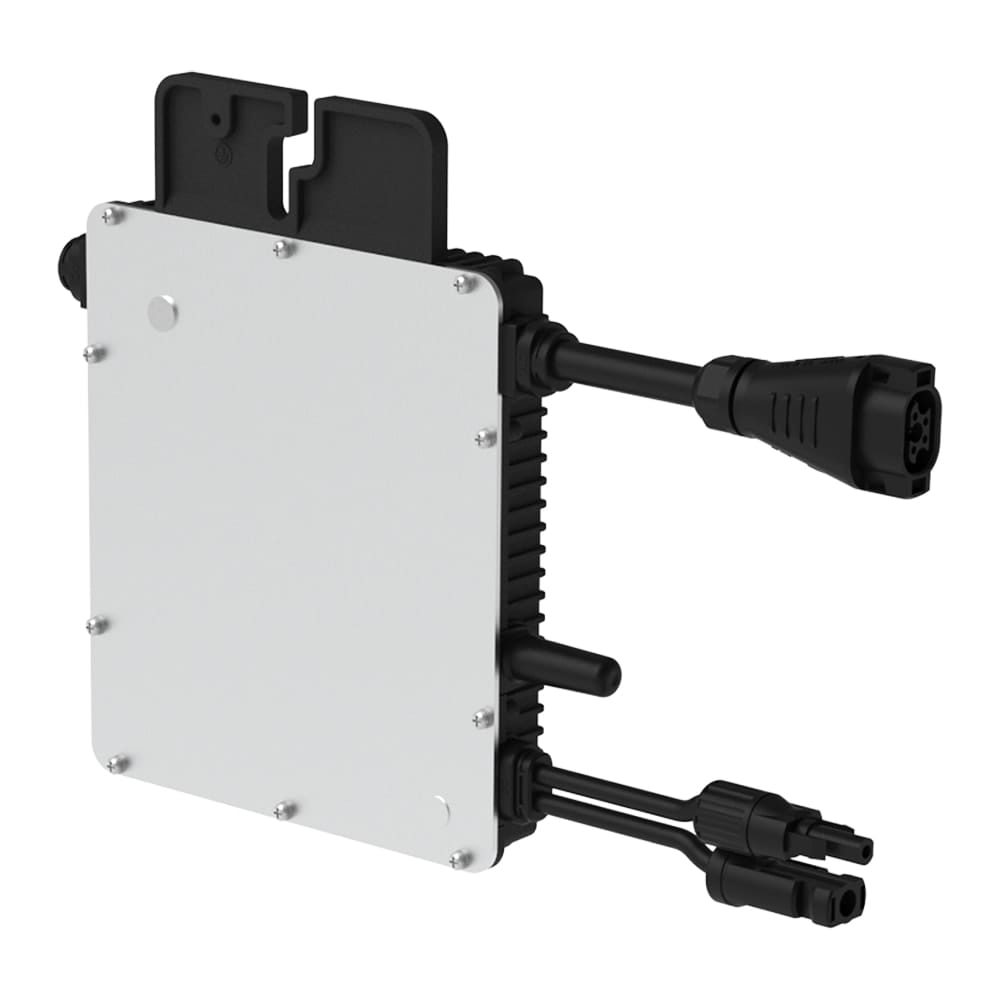

Hoymiles Microinverter HMS-450-1T 450W 230V Single-Phase Solar Inverter For EU Market On-grid Residential PV System/Commercial PV Rooftops
$128.00
● High-powered microinverter for 1-in-1 with output power up to 500 VA
● With Reactive Power Control, compliant with EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.
● Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
● Connected to one panel, flexible for various applications
● Sub-1G wireless solution allows stable communication with Hoymiles gateway DTU
Hoymiles Microinverter HMS-450-1T 450W 230V Single-Phase Solar Inverter For On-grid Residential PV System/Commercial PV Rooftops
Hoymiles’s new photovoltaic microinverter HMS series is connected to one panel and is flexible for various applications.
All of the Hoymiles HMS series are equipped with reactive power control and can meet the requirements of EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.
HMS series with the new Sub-1G wireless solution enables more stable communication under various environmental conditions.
The HMS-450 (MPN: HMS-450-1T) from Hoymiles is the perfect microinverter for your balcony power plant. The compact lightweight (only 1.75kg) is suitable for solar power production up to an output of 360 to 600+ each. Just like all other microinverters from Hoymiles, it is suitable for long operating hours and wide PV module applications, as its start-up is very low (only 22V) and the DC input range of the operating voltage (16-60V) is extremely wide.
Compared to the previous model from the HM series, the HMS-450 has become 0.23 kg lighter and offers more safety for rooftop solar power plants thanks to its quick shutdown and isolated transformer. The new sub-1G radio solution enables more stable communication with the Hoymiles gateway DTU.
Features
- Minimization of the effects of e.g. shading, dust or aging by MPPT
- High-quality energy generation with high MPPT accuracy
- Optimum system reliability
- Peak efficiency of 96.5%
- 12-year product warranty
- High level of safety thanks to integrated protective functions
- Easy installation
- Long service life
- Complies with EN 50549-1: 2019, VDE-AR-N 4105: 2018, VFR2019,
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 - Optionally possible: monitoring via S-Miles App or S-Miles Cloud
- A DTU Lite-S is required for system monitoring
- To have the option of changing settings in addition to monitoring, a DTU Pro-S is required instead of the DTU Lite-S
Optimum reliability
Microinverter systems are inherently more reliable than conventional solar inverters. The decentralized design of a micro inverter system ensures that the entire PV system does not fail in the event of a fault. Hoymiles microinverters are designed to operate at full power in ambient temperatures up to +65°C (150°F). The housing of the micro inverter is designed for outdoor installation and complies with protection class IP67.
Simple design
PV systems with Hoymiles microinverters are very easy to plan. There is no need to install cumbersome conventional inverters. Each microinverter can be quickly mounted on the PV mounting frame or directly under the PV module. The PV module is connected to the microinverter directly on site, eliminating the risk of people being exposed to dangerously high DC voltage.
Technical data
- Recommended module power: 360 to 600+W
- MPPT voltage range: 16-60V
- Switch-on voltage: 22V
- Maximum input voltage: 65V
- Maximum input current: 15A
- Maximum input short-circuit current: 25A
- Nominal output power: 450VA
- Rated output current: 1.96A
- Nominal output voltage/range: 230V (180 – 275V)
- CEC peak efficiency: 96.5%
- Ambient temperature range: -40°C – +65°C
- Dimensions (WxHxD): 182 × 164 × 30 mm
- Weight: 1.75kg
- Housing classification: IP67
| Dimensions：182 × 164 × 30mm | Max. input voltage: 65V |
| Rated output power: 450VA | Number of modules connected: 1 |
| Commonly used module power: 360W to 600W+ | MPPT voltage range: 16V–60V |
| Max. input current: 13.3A | Number of MPPTs: 1 |
| Max. input short circuit current (A): 20A |
| Weight | 2 kg |
|---|---|
| Dimensions | 20 × 20 × 10 cm |
| Brand | |
| Max PV Input Power(W) |
600 |
| Max PV Input Voltage(V) |
65 |
| Max PV Input Current(A) |
15 |
| Start-up Voltage(V) |
22 |
| MPPT Voltage Range(V) |
16-60 |
| No. Of MPPT |
1/1 |
| MPPT Efficiency |
>99% |
| Rated AC Input/Output Active Power(W) |
450 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
| Max AC Output Current(A) |
2.05 |
| Monitor Mode |
WIFI |
