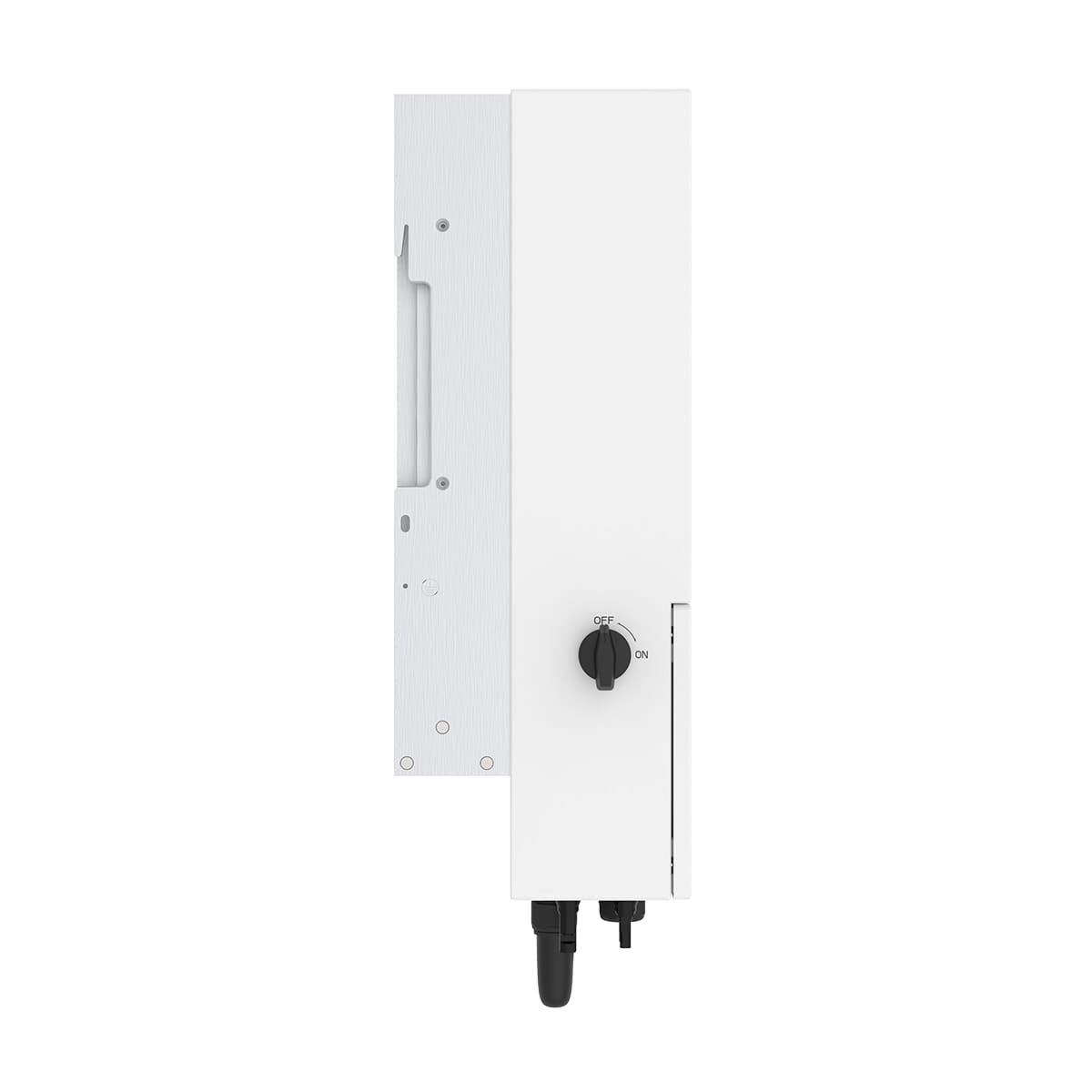

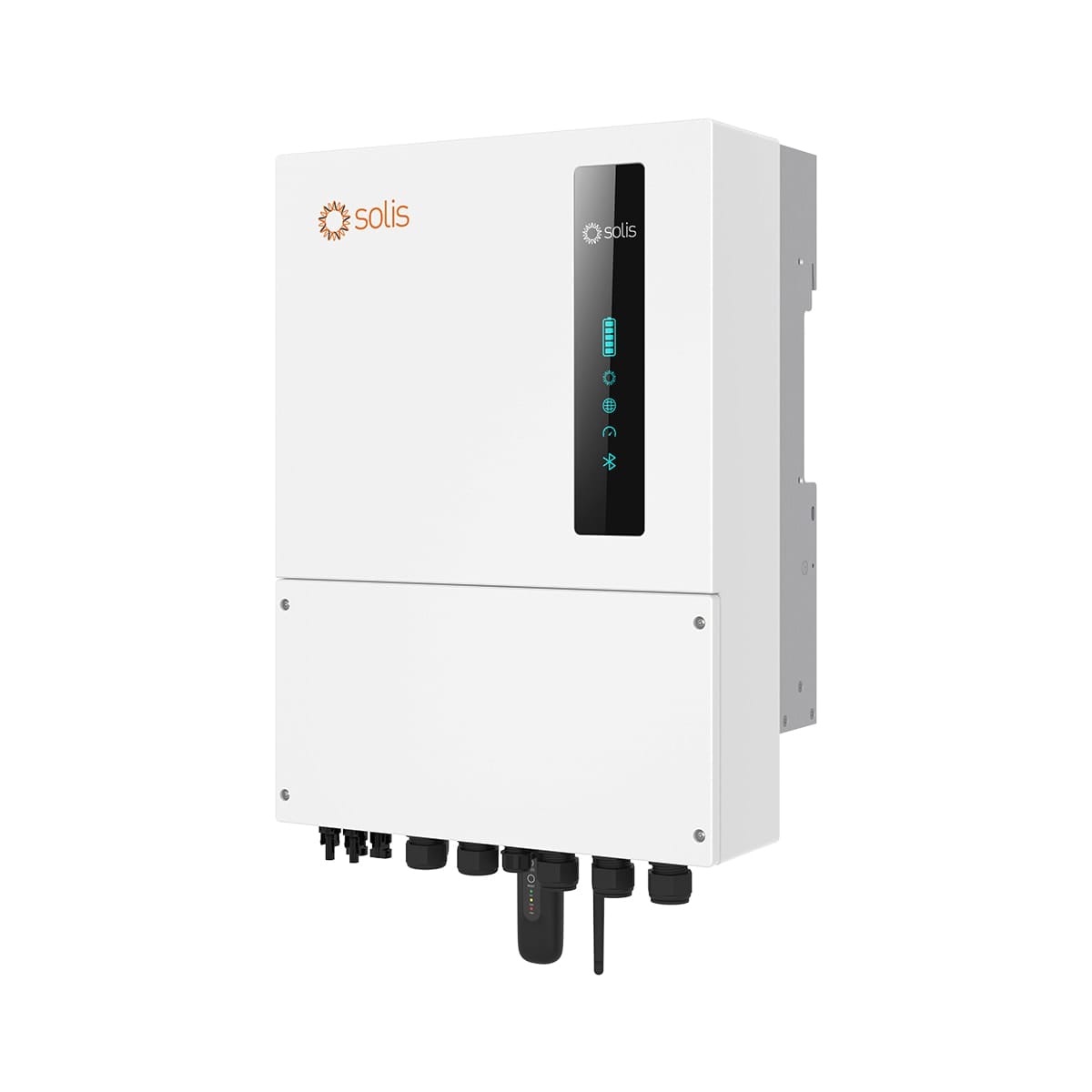

Solis Hybrid Solar Inverter S6-EH1P5K-L-PRO 5kW 230V Single Phase Solution For Residential Solar Energy System Compatible Low Voltage Lithium/Lead-Acid Battery
$1,040.00
S6-EH1P(3-6)K-L-PRO series energy storage hybrid solar inverter is designed for residential PV energy storage system，Support multiple parallel machines to form a single-phase or three-phase system with maximum power of 36kW. With UPS level switching time, 10s surge power overload and critical loads. Support 135A Charge and discharge capacity, provide higher energy throughput density. A variety of intelligent protection functions make home power supply safe and secure.
Solis Hybrid Solar Inverter S6-EH1P5K-L-PRO 5kW 230V Single Phase Solution For Residential Solar Energy System Compatible Low Voltage Lithium/Lead-Acid Battery
Solis energy storage Hybrid Solar inverter is a good choice for on/ off-grid integrated storage solutions
1. Higher incomes: select the electricity consumption mode in real time according to the market price;
2. High independence: can be operated out of the power grid;
3. Higher efficiency: International leading brand components provide higher efficiency;
4. Perfect switch: it’s less than 20ms from the grid
Single Phase Low Voltage Energy Storage hybrid solar Inverter Leading Features
- Automatic UPS switching
- Up to 135A max charge/discharge current
- 6 customisable charge/discharge time settings
- 10 second 200% surge power backup overload capability
- Supports 1ph and 3ph flexible connection with max 36kW in parallel
- Supports peak shaving control in both “self-use” and “generator” mode
- Generator connectivity with multiple input methods and automatic generator On/Off control
- Compatible with lead-acid and lithium batteries, with multiple battery protection features
| Models | 3K | 3.6K | 5K | 6K | ||
| Input DC (PV side) | ||||||
| Recommended max. PV array size | 6 kW | 7.2 kW | 10 kW | 12 kW | ||
| Max. usable PV input power | 4.8 kW | 5.76 kW | 8 kW | 9.6 kW | ||
| Max. input voltage | 600 V | |||||
| Rated voltage | 330 V | |||||
| Start-up voltage | 90 V | |||||
| MPPT voltage range | 90 – 520 V | |||||
| Max. input current | 16 A / 16 A | |||||
| Max. short circuit current | 24 A / 24 A | |||||
| MPPT number / Max. input strings number | 2 / 2 | |||||
| Battery | ||||||
| Battery type | Li-ion / Lead-acid | |||||
| Battery voltage range | 40 – 60 V | |||||
| Max. charge / discharge power | 3 kW | 3.6 kW | 5 kW | 6 kW | ||
| Max. charge / discharge current | 70 A | 80 A | 112 A | 135 A | ||
| Communication | CAN / RS485 | |||||
| Output AC (Grid side) | ||||||
| Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | ||
| Max. apparent output power | 3.3 kVA | 4 kVA | 5.5 kVA | 6.6 kVA | ||
| Operation phase | 1/N/PE | |||||
| Rated grid voltage | 220 V / 230 V | |||||
| Rated grid frequency | 50 Hz / 60 Hz | |||||
| Rated grid output current | 13.6 A / 13.0 A | 16.4 A / 15.7 A | 22.7 A / 21.7 A | 27.3 A / 26.1 A | ||
| Max. output current | 15 A | 20 A | 25 A | 30 A | ||
| Power factor | > 0.99 (0.8 leading – 0.8 lagging) | |||||
| THDi | < 2% | |||||
| Input AC (Grid side) | ||||||
| Input voltage range | 187 – 253 V | |||||
| Max. input current | 20 A | 25 A | 32 A | 40 A | ||
| Frequency range | 45 – 55 Hz / 55 – 65 Hz | |||||
| Output AC (Back-up) | ||||||
| Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | ||
| Max. apparent output power | 2 times of rated power, 10 s | |||||
| Back-up switch time | < 4 ms | |||||
| Rated output voltage | 1/N/PE, 220 V / 230 V | |||||
| Rated frequency | 50 Hz / 60 Hz | |||||
| Rated output current | 13.6 A / 13.0 A | 16.4 A / 15.7 A | 22.7 A / 21.7 A | 27.3 A / 26.1 A | ||
| Max. output current | 15 A | 20 A | 25 A | 30 A | ||
| Max. AC passthrough current | 35 A | 40 A | ||||
| THDv (@linear load) | < 2% | |||||
| Efficiency | ||||||
| Max. efficiency | > 96.9% | |||||
| EU efficiency | > 96.5% | |||||
| Protection | ||||||
| DC reverse-polarity protection | Yes | |||||
| Ground fault monitoring | Yes | |||||
| Integrated AFCI | Yes (1) | |||||
| Protection class / Over voltage category | I / II (PV and BAT), III (MAINS and BACKUP and GEN) | |||||
| General Data | ||||||
| Dimensions (W × H × D) | 406 × 560 × 205 mm | |||||
| Weight | 24 kg | |||||
| Topology | High frequency isolation (for battery) | |||||
| Operating ambient temperature range | -40 ~ +60°C | |||||
| Ingress protection | IP66 | |||||
| Cooling concept | Natural cooling | |||||
| Max. operation altitude | 4000 m | |||||
| Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA | |||||
| Safety / EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | |||||
| Features | ||||||
| DC connection | MC4 plug (PV port) / Terminal Block (BAT port) | |||||
| AC connection | Terminal Block | |||||
| Display | LED indicator & Bluetooth + APP | |||||
| Communication | RS485, CAN, Optional: Wi-Fi, GPRS, LAN | |||||
S6-EH1P(3-6)K-L-PRO series energy storage hybrid solar inverter is designed for residential PV energy storage system，Support multiple parallel machines to form a single-phase or three-phase system with maximum power of 36kW.
With UPS level switching time, 10s surge power overload and critical loads. Support 135A Charge and discharge capacity, provide higher energy throughput density. A variety of intelligent protection functions make home power supply safe and secure.
| Weight | 18 kg |
|---|---|
| Dimensions | 52 × 40 × 30 cm |
| Brand | |
| Battery Type |
Lead-acid ,Lithium-ion |
| Max. Charging Current(A) |
112 |
| Battery Voltage Range(V) |
40-60 |
| Max PV Input Power(W) |
10000 |
| Max PV Input Voltage(V) |
600 |
| MPPT Voltage Range(V) |
90-520 |
| No. Of MPPT |
2/1+1 |
| Number of battery input |
1 |
| Rated AC Input/Output Active Power(W) |
5000 |
| Rated Input/Output Grid Frequency/Range |
50Hz/45Hz-55Hz ,60Hz/55Hz-65Hz |
| Rated Input/Output Voltage/Range(V) |
220V/230V |
Solis is a leading global manufacturer of solar inverters and energy storage solutions. They offer a wide range of inverter products for residential, commercial, and utility-scale solar applications.
Some key things to know about Solis inverters:
Product Overview:
Solis offers both string inverters and microinverters/power optimizers.
Their inverter models range from small single-phase units for residential use to large 3-phase central inverters for utility-scale solar farms.
Solis has a strong focus on reliability, efficiency, and advanced grid support features.
Key Features:
High conversion efficiency, often exceeding 98% peak efficiency
Dual MPPT inputs for flexible system design
Integrated DC and AC surge protection
Advanced grid support functions like volt/var control, voltage ride-through
Remote monitoring and control capabilities
Modular and scalable design options
Applications:
Residential rooftop solar
Commercial and industrial solar installations
Ground-mounted utility-scale solar power plants
Hybrid solar + energy storage systems
Warranty:
Solis offers standard 5-year warranties on their inverters
Extended warranty options up to 20 or 25 years are available
